| Quantity: | |
|---|---|
GW-BPDJ
Greetwin
5-7 Day
2000PCS/Month
Shenzhen
Greetwin
GW-BPDJ
1 PC

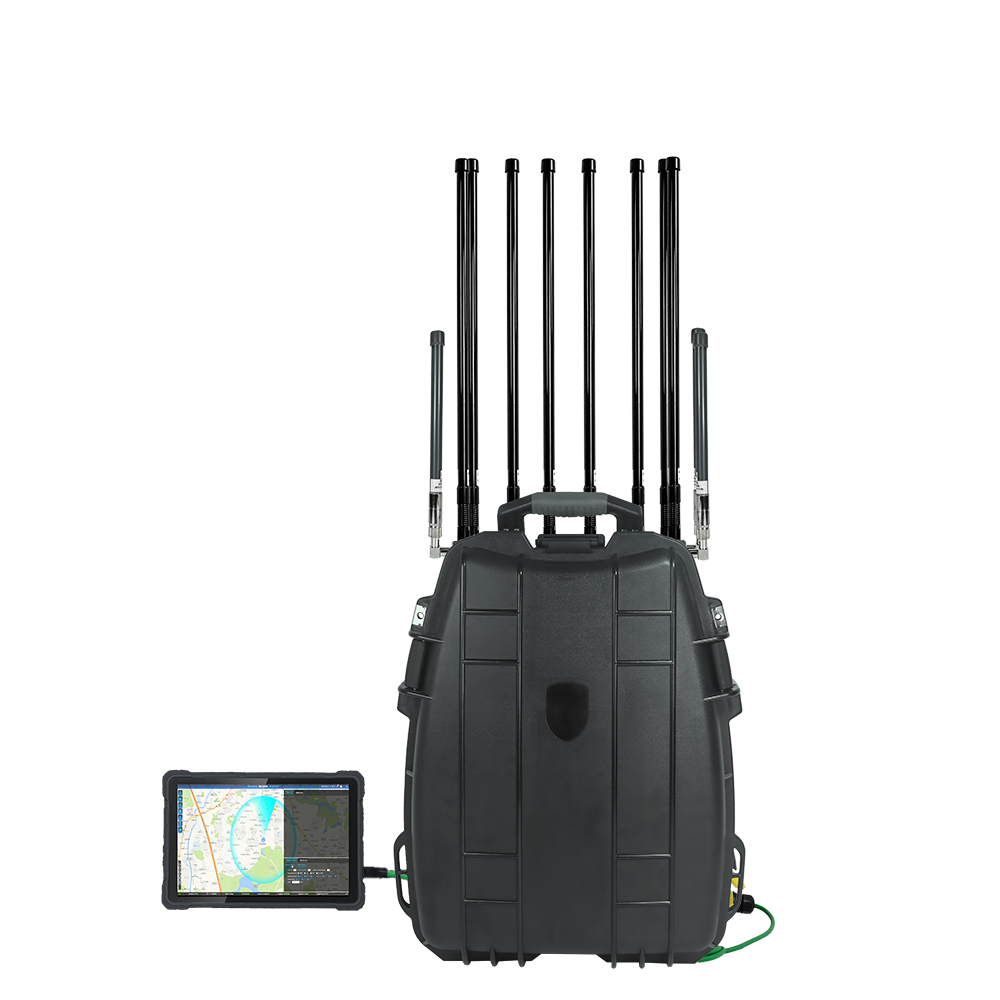

Product Hardware Composition Details
| Serial Number | Device Name | Number | Unit |
| 1 | device host | 1 | pc |
| 2 | RF antenna | 10 | pcs |
| 3 | GPS antenna | 1 | pc |
| 4 | power adapter | 1 | pc |
| NO. | ITEM | Technical parameter |
| 1 | Work pattern | passive detection |
| 2 | Work frequency | 400MHz, 700MHz, 900MHz, 1.2G,1.4G,1.5G,2.4G, 3.3G, 5.2G, 5.8G and other commonly used drone frequency |
3 | Detection and identify UAV type | DJI series, FPV, FEMI, YUNEEC, AUTEL, HUBSAN, Powervision, Tello UAV and video transmission module |
3 | Detection range | 100-2000m (urban environment, tested by DJI AIR2 target) |
| 4 | Probe azimuth | 0 °~360° (omnidirectional antenna) |
| 5 | Recognition time | ≤2s |
| 6 | False alarm rate | 1 time / day |
| 7 | Capacity of discernment | The number of drones that can be simultaneously detected and identified ≥ 10 (5 manufacturers) |
| Channel | Working frequency | Output power(±1dBm) | |
| CH1 | 420-450MHz | 47 dBm(50W) | |
| CH2 | 700-840MHz | 47 dBm(50W) | |
| CH3 | 840-930MHz | 47 dBm(50W) | |
| CH4 | 1550-1610MHz | 47 dBm(50W) | |
| CH5 | 1100-1300MHz | 47 dBm(50W) | |
| CH6 | 5150-5300MHz | 45 dBm(30W) | |
| CH7 | 2400-2500MHz | 47 dBm(50W) | |
| CH8 | 5700-5900MHz | 47 dBm(50W) | |
| Total output power: 380W | |||
| Power consumption : 900W | |||
| Power supply: AC90-260V, DC24-28V | |||
| Main engine weight : 12Kg (Manpack 10KG,Antenna 1.5KG,Control Box 0.3KG) | |||
| Size:520*400*230mm | |||

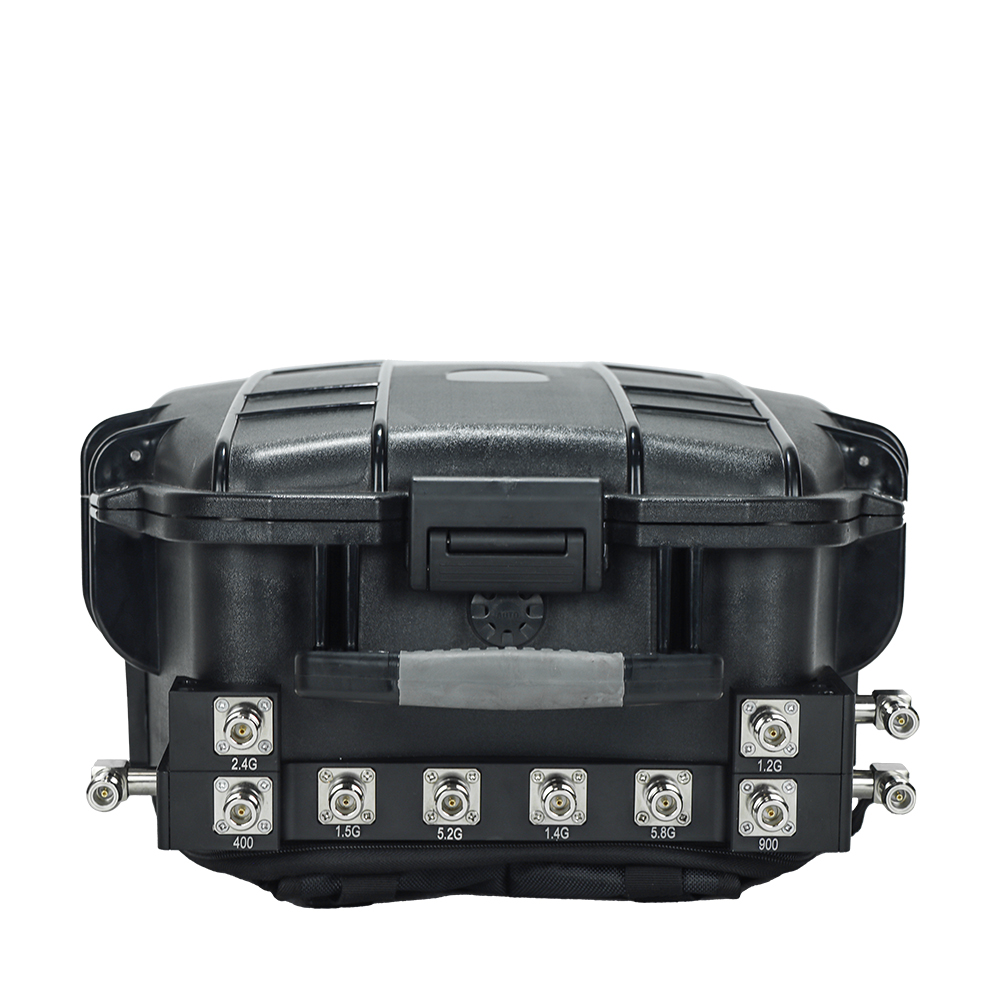

| With omni antenna 8 pcs | |||
| Jammer Module Number :8 | |||

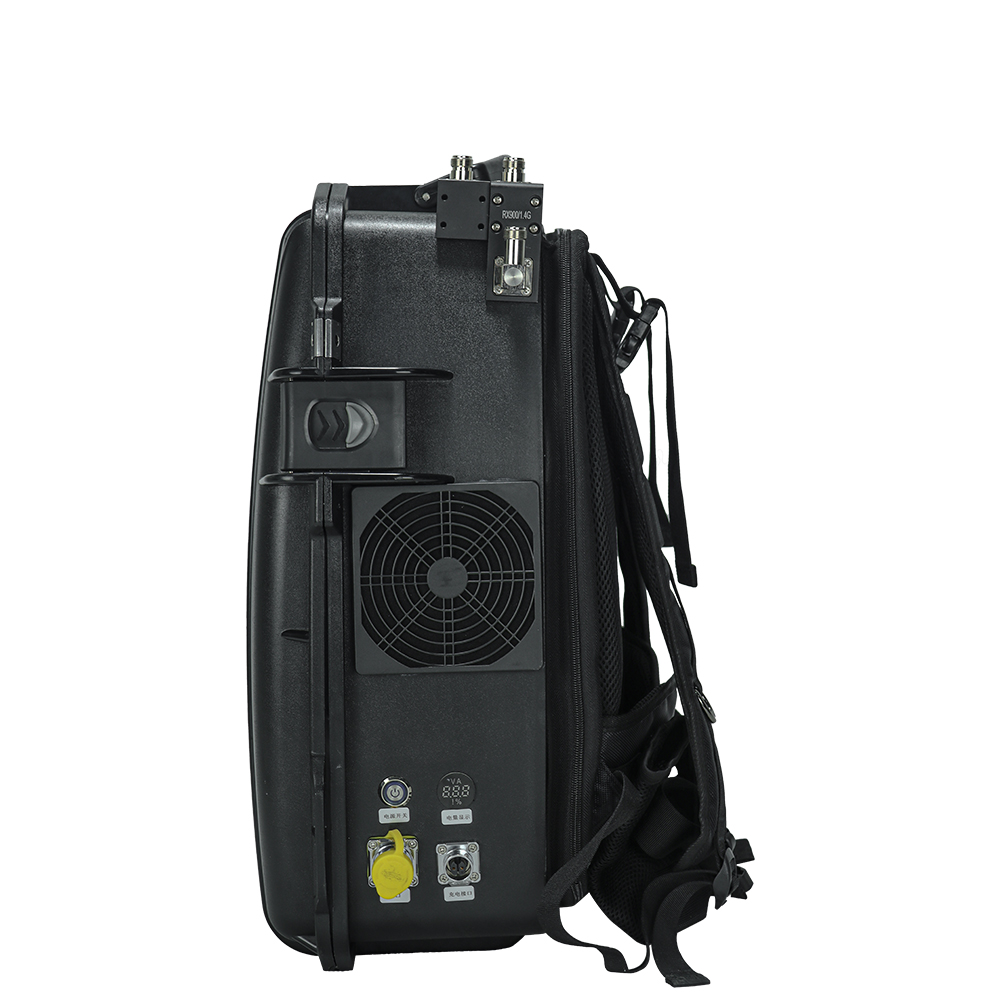

| Cooling System: | Systematic Smart Cooling System | ||
| Jamming Source : | Noise Technology | ||
| Humidity: 30%-95% | |||
| Running temperature : -20ºC to +60ºC | |||
| Inside battery working 1.5h: 24V, 25Ah | |||
| Battery charger: 5A(Open the external switch to charge, automatically manage the charging current, full automatically disconnect) | |||
| Jamming Range: 800-1500m | |||
External Remote control Panel : shows the battery voltage, can switch on/off each band. | |||
