| Quantity: | |
|---|---|
GW-BP1C
Greetwin
5-7 Day
L/C, D/A, D/P, T/T, Western Union, MoneyGram
2000PCS/Month
Shenzhen
Greetwin
GW-BP1C
1 PC
Product Hardware Composition Details
| Serial Number | Device Name | Number | Unit |
| 1 | device host | 1 | pc |
| 2 | RF antenna | 4 | pcs |
| 3 | GPS antenna | 1 | pc |
| 4 | power adapter | 1 | pc |
Drone monitoring: Capable of obtaining information such as serial number, model, position (longitude, latitude, azimuth), speed, altitude, takeoff point, return point, trajectory, remote control position (longitude, latitude, azimuth), etc. of unmanned aerial vehicles within the monitoring range.
Unique ID identification: Identify the unique serial number of the drone and confirm its unique identity information.

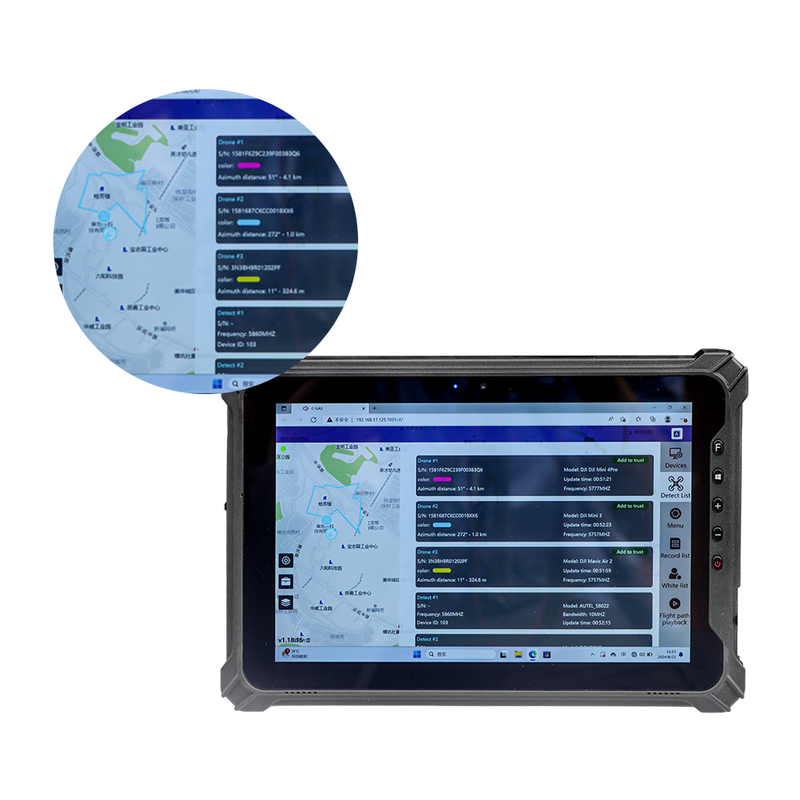

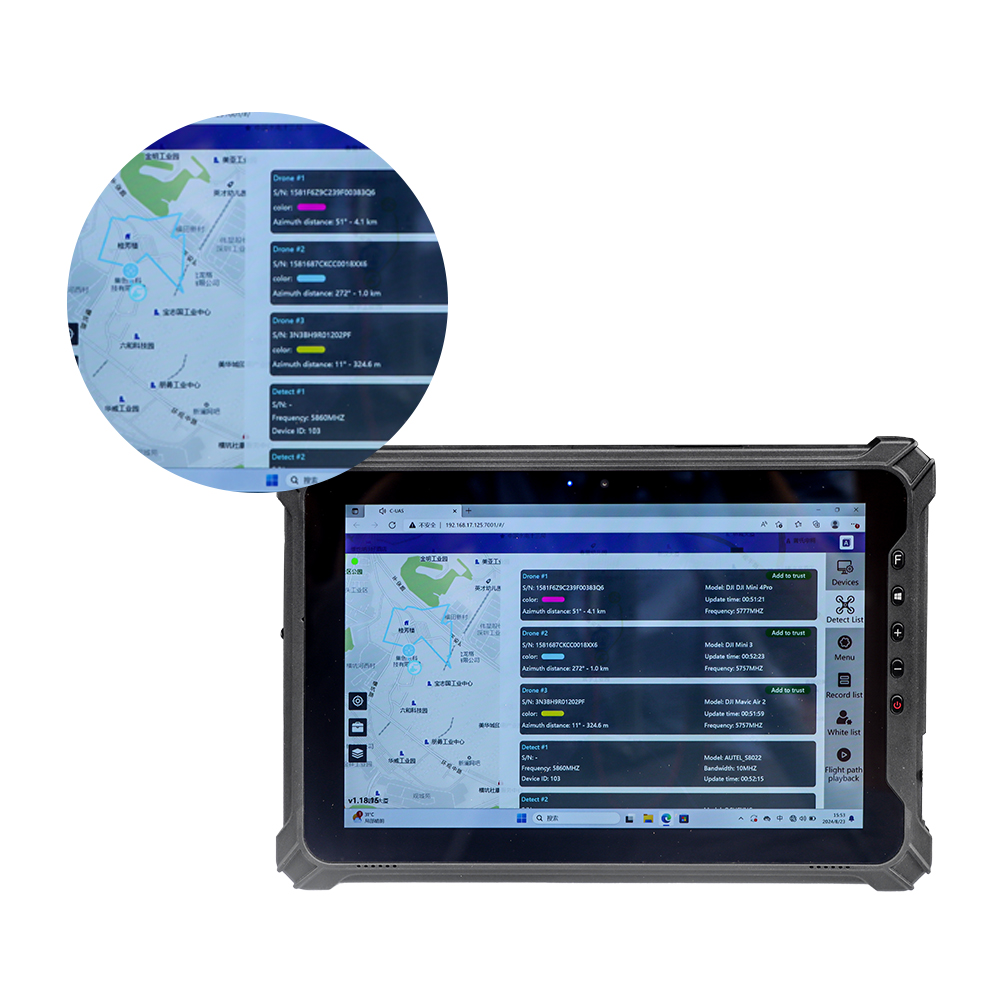

UAV positioning: Positionable drone position information, real-time display of drone position (longitude and latitude), azimuth information, and distance information (the distance of the drone relative to the location of the device).
Flying hand positioning: Positionable pilot position information, real-time display of pilot (remote control) position (longitude and latitude), azimuth information, distance information (the distance of the pilot relative to the position of the device).
All detection models: The system can identify and detect common brands of drones such as DJI, AUTEL, Dahua, and Haoxiang, as well as the vast majority of models on the market such as self-made traversing machines and WiFi machines.
Long detection distance: In an open environment, some models can detect distances of over 10km.
Passive detection: The device does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly.
Comprehensive protection: The equipment operates continuously day and night throughout the day (7 * 24 hours), 24 hours a day (suitable for complex electromagnetic environments and harsh weather environments), and provides comprehensive (360° detection of drone intrusion) security in the core area.
| Number | Index | Parameter | Notes |
| 1 | Detection and identification of drone types | DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Powervision, Tello drones etc. | |
| 2 | Localizable drone models | DJI mavic,air,mini,FPV,avata, etc. | |
| 3 | Detection frequency band | 433MHz,900MHz,1.2GHz,1.4GHz, 2.4GHz,5.2GHz,5.8GHz | |
| 4 | Detection and positioning distance | 1~10km | Depending on the environment |
| 5 | Detection height | 0m~1000m | |
| 6 | Number of targets that can be detected simultaneously | ≥5 sorties | |
| 7 | Capable of simultaneously tracking and displaying drone trajectories | ≥5strip | |
| 8 | Azimuth error | ≤1.5°(RMS) | |
| 9 | Positioning accuracy | ≤10m | |
| 10 | Detection success rate | ≥95% | |
| 11 | Identify response time | ≤5s |
