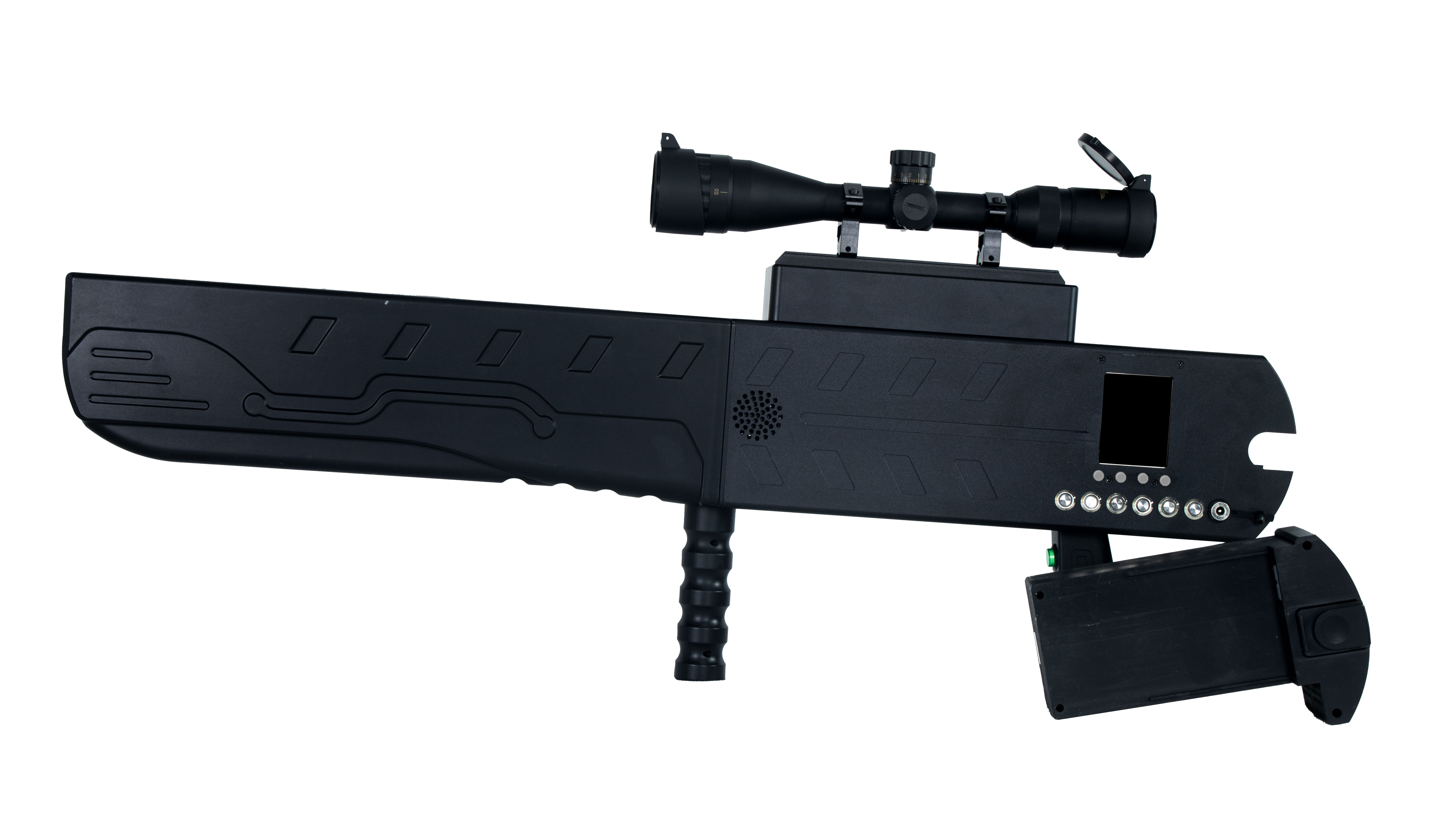

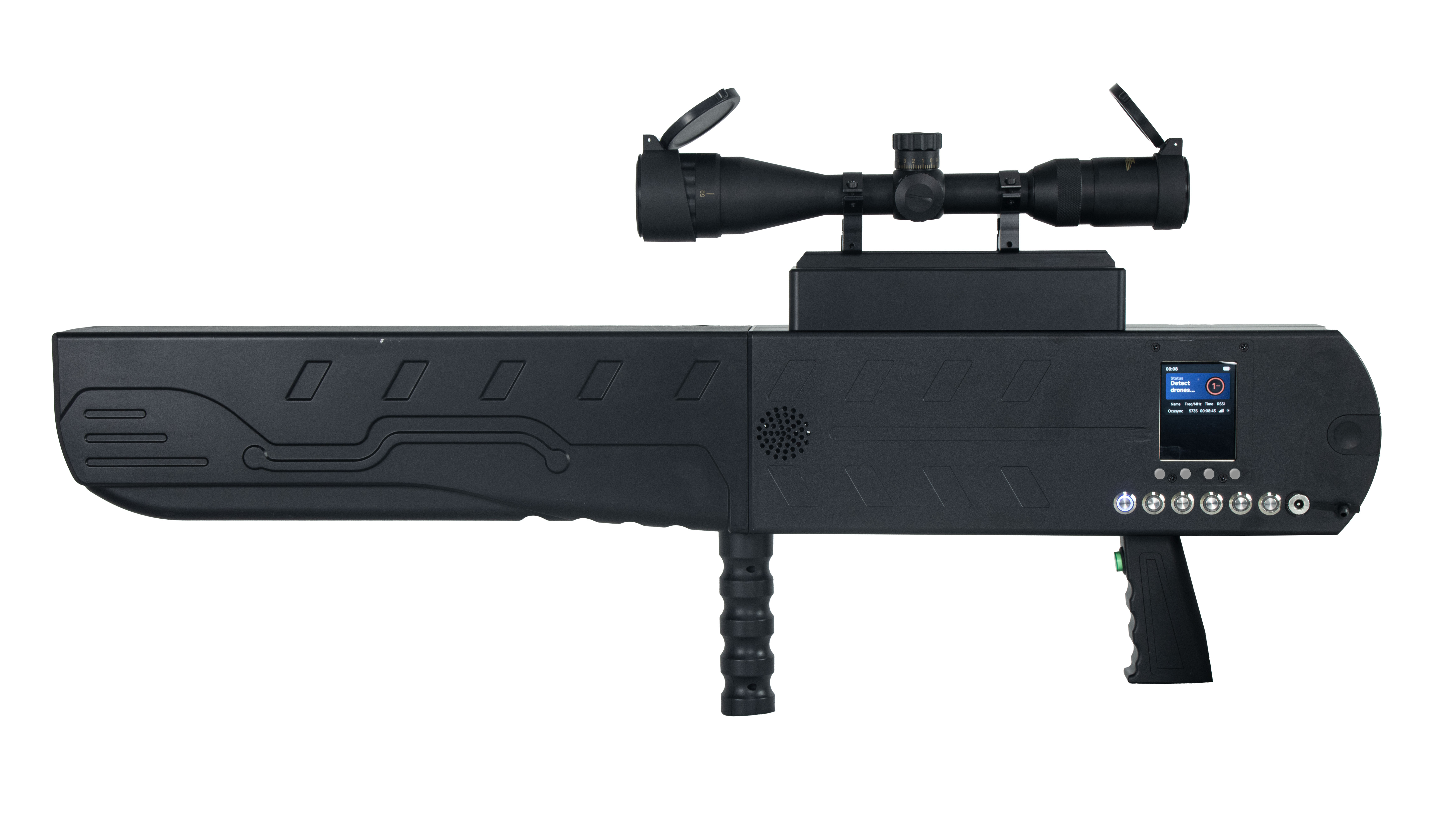

2km Drone Signal Jamming 8 Band UAV Jammer Device Anti Drone Gun
1、Overview
The handheld UAV detection and strike integrated equipment, as a portable UAV detection and strike integrated platform, integrates UAV detection, model identification, rough direction finding, and directional strike. Its principle is based on spectrum sensing and artificial intelligence technology to identify and classify the flight control link and image transmission link of UAV, and can conduct rough direction finding and accurate position acquisition for UAV, and can attack the intruder UAV based on radio interference technology to better guard low altitude safety.
2、Product composition：
Serial Number | Device Name | Number | Unit |
1 | device host | 1 | pcs |
2 | battery | 1 | pcs |
3 | power adapter | 1 | pcs |
3、Product Features：
1）Portable design with a gun like appearance for easy portability and use.
2）Passive detection, no electromagnetic environmental pollution, environmentally friendly.
3）Real time detection of drone signals in the environment and early warning of drone intrusion.

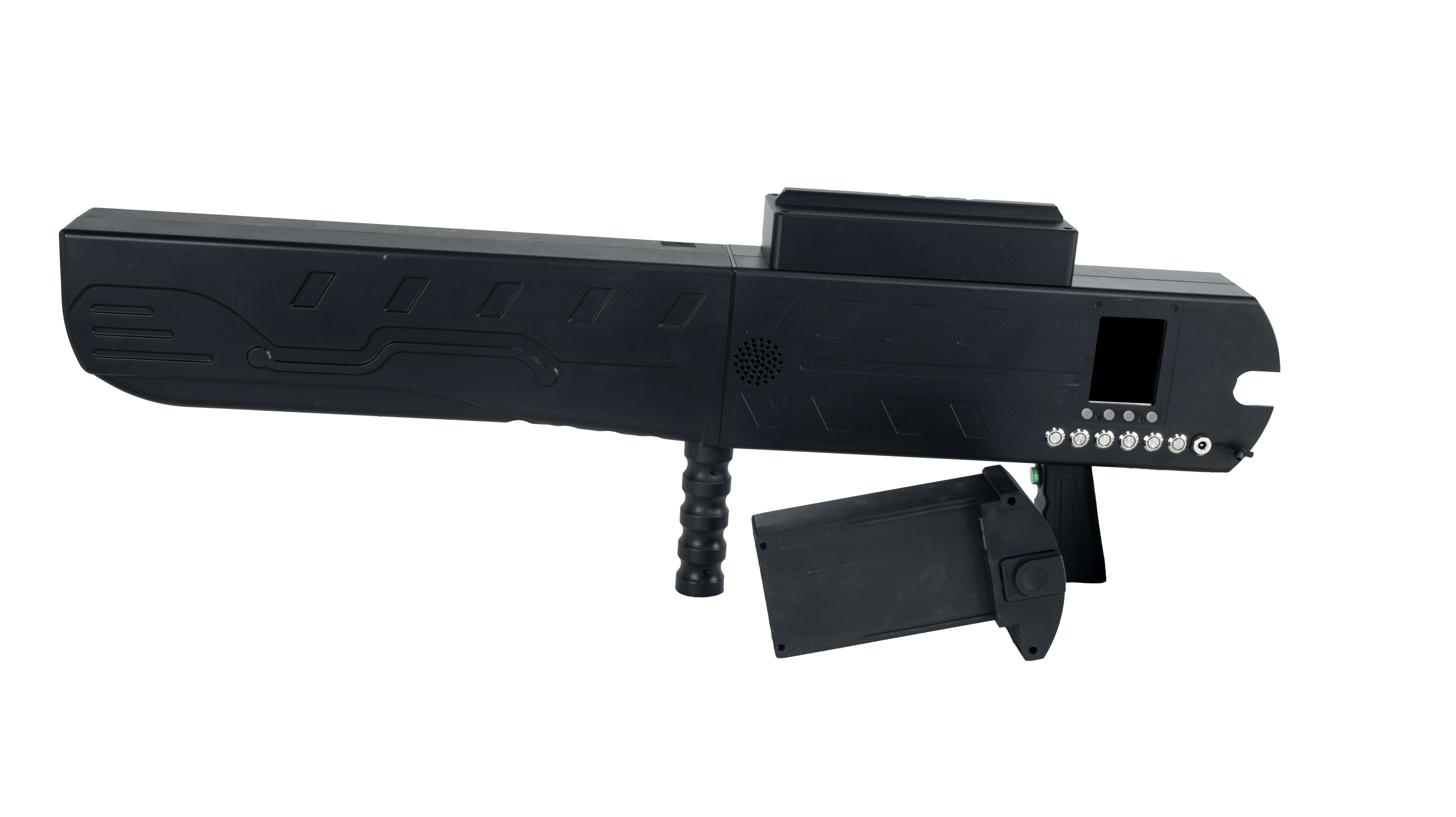

4）The battery adopts a detachable design, which can be quickly replaced and extends the device's battery life.
5）The device has a high-resolution screen for data and interactive operation display.
6）The device can perform targeted attacks on drones and accurately counter drones.
4、Indicator parameters：
4.1 Detection performance indicators
Number | Index | Parameter | Notes |
1 | Detection and identification of drone types | DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Power vision, Tello drones etc. | |
2 | Localizable drone models | DJI mavic、air、mini、FPV、avata | |
3 | Detection frequency band | 900MHz、1.4GHz、2.4GHz and 5.2、5.8GHz | |
4 | Detection range | 500~3000m | Affected by environmental factors |
5 | Number of targets that can be detected simultaneously | ≥10 sorties | |
6 | Azimuth error | ≤30°（RMS） | |
7 | Detection success rate | ≥95% | |
8 | Identify response time | ≤6s |
4.2 Jammer performance indicators
Channel | Working Frequency | Output power(±1.5dBm) | |
CH1 | 5.8G | 5725-5850MHz | 46 dBm |
CH2 | 2.4G | 2400-2485MHz | 46 dBm |
CH3 | GPSL1 | 1560-1620MHZ | 45 dBm |
CH4 | 5.2G | 5150-5250MHz | 45 dBm |
CH5 | 1.2G | 1170-1280MHz | 41 dBm |
CH6 | 900MHz | 840-930MHz | 45 dBm |
CH7 | 433MHz | 428-438MHz | 41 dBm |
CH8 | 1.4G | 1450-1530MHz | 41 dBm |
Power supply mode | Inside battery: 24V, 10A; Or External battery | ||
Battery working time | 35 minutes | ||
Working temperature | -20ºC to +65ºC | ||
Total Output Power | 200W | ||
Power consumption | 400W | ||
Weight | 7.5KG | ||
Package Size | 940X480X210mm |
Directional Antenna | 15dBi Gain |
Jammer Feature:
1. Replaceable battery 10Ah design, operating time 30-40 minutes,
2. Higher gain antenna 15dBi
3. Strong jamming range, 1500-2000meters
4. Inner cooling fan design, Device work continuously
5. Antenna & Main unit can assemble/disassemble easily.
6. Antenna housing is Fireproof and explosion-proof material.
7. 16 x telescope, Anti-vibration, Easy to spot and target drones
8. LED Screen shows battery capacity & voltage.
