SRD-UAV-H3P
SRD
5-7 Day
2000PCS/Month
Shenzhen
Greetwin
SRD-UAV-H3P
1 PC
Overview

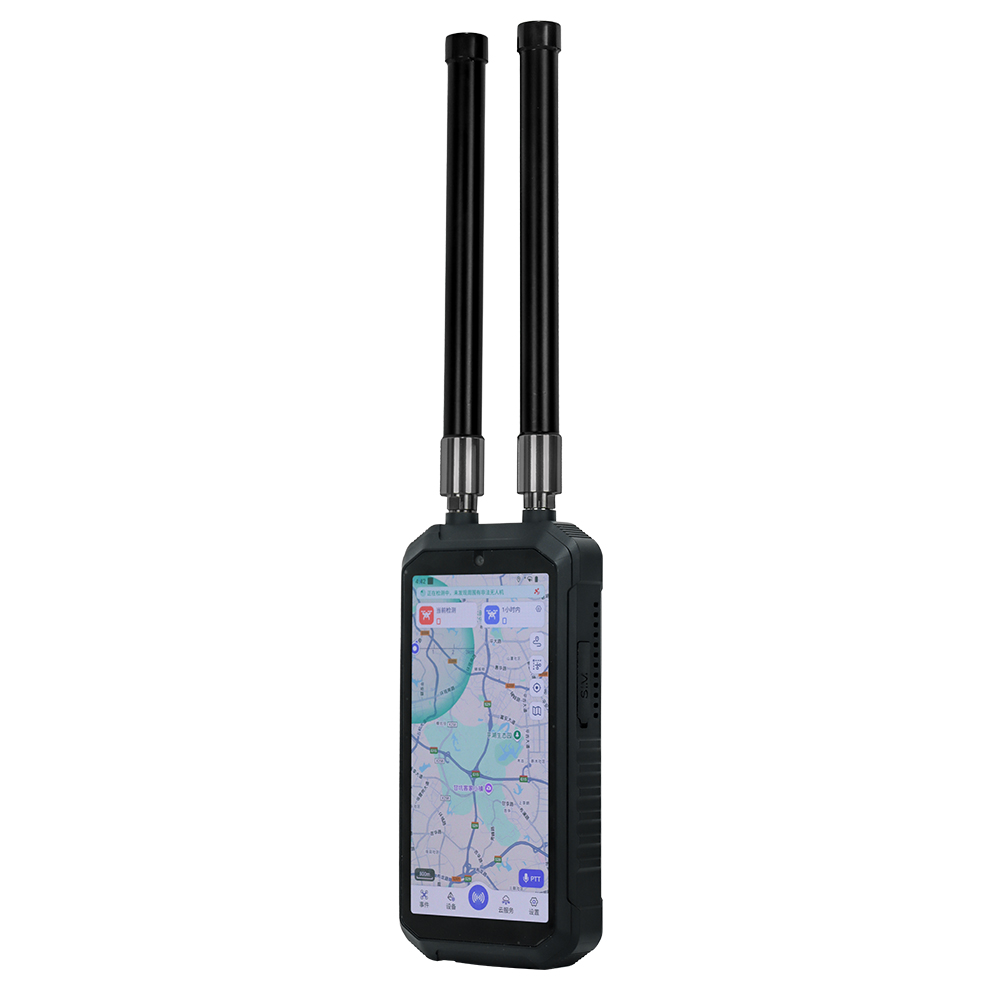

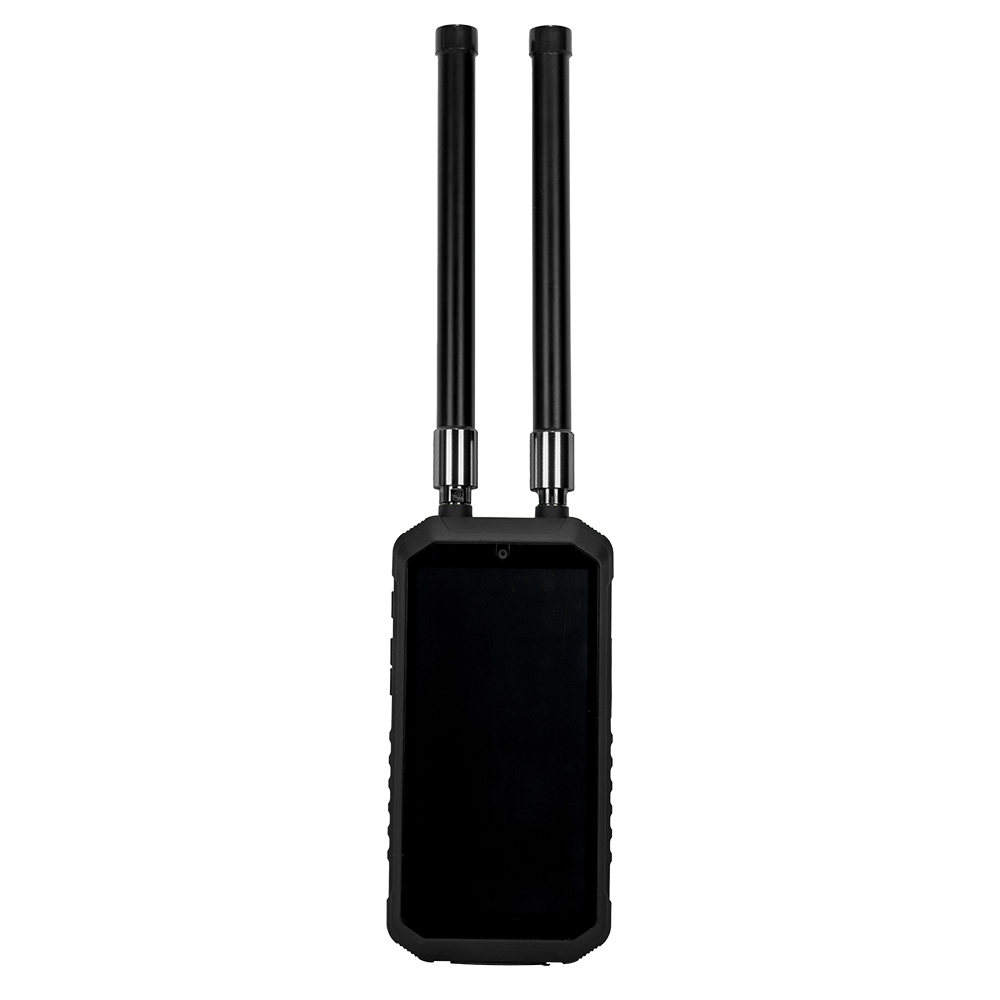

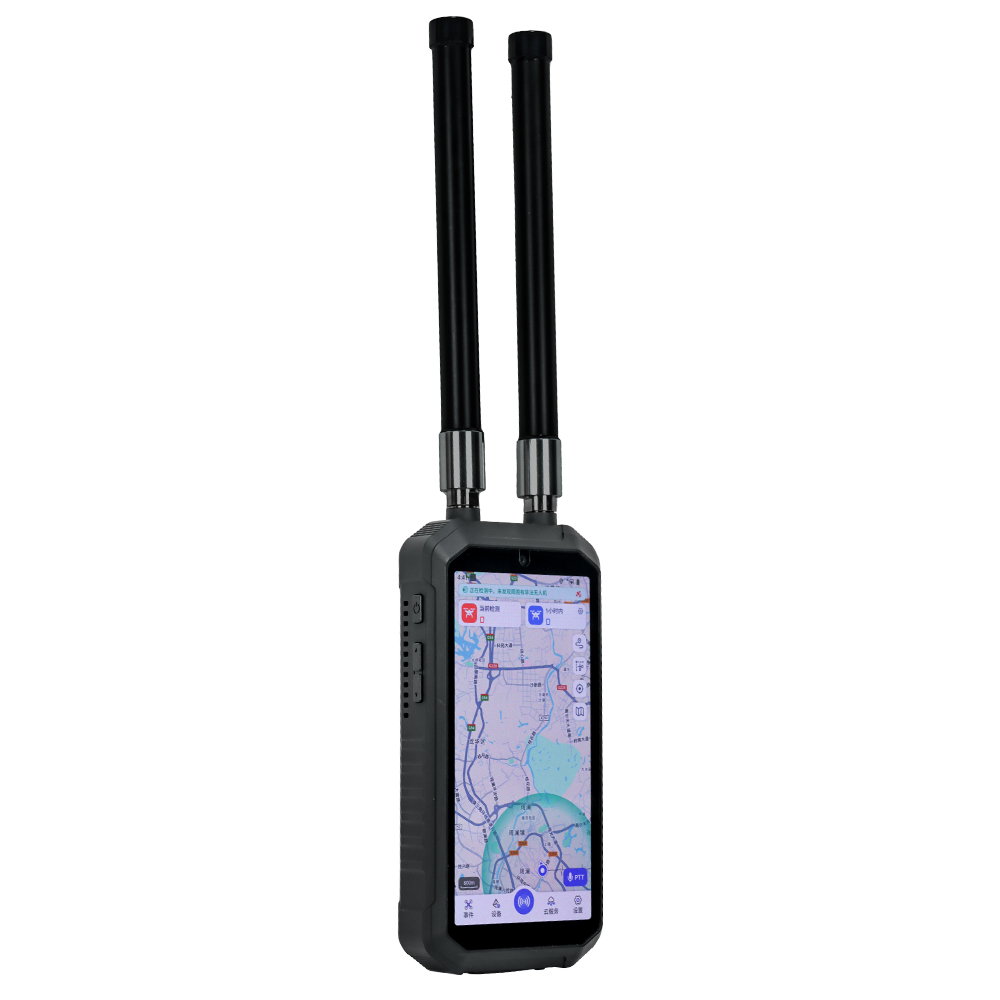

The Handheld Drone Detection and Positioning Equipment (H3P) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology and RID monitoring and identification technologies to detect, accurately identify, locate, and track low-altitude drones. The system is designed with high integration, compact size, and lightweight, primarily used for portable low-altitude security defense.
Product Advantages
This drone detector device presents a lightweight, handheld design that combines rugged construction with ergonomic handling, ideal for field operations requiring portability. The device’s architecture supports external antennas and multiple interface ports such as Type-C and SIM card slots, facilitating system expansion and customization. As a portable drone detector, the modular design enhances durability and user adaptability, while the rf drone detector technology ensures comprehensive spectrum monitoring without electromagnetic emissions, aligning with international quality standards including ISO9001 and CE certifications.
Delivering high sensitivity down to -95dBm and a detection range extending up to 3 kilometers, this fpv drone detector offers superior real-time response with a low latency under 5 seconds. Its user interface provides intuitive controls and clear visualization on the 6-inch display, simplifying operation even in complex scenarios. Battery endurance supports extended missions with minimal downtime, making it an effective tool for intensive drone detection tasks. Users benefit from accurate tracking and multi-drone monitoring capabilities, enhancing security decision-making and operational readiness.
Product Hardware Composition Details
| PRODUCT PERFORMANCE | |
| Working Principle | Passive detection, does not emit any electromagnetic signals |
| Detection Bands | 900MHz, 1.4MHz, 2.4GHz, 5.8GHz, WiFi; |
| Sensitivity | -95dBm |
| Detection Distance | 0~3km+ (Different exist due to different environments and drone type) |
| Response Time | ≤5s |
| Detection Quantity | ≥12 Drones (Simultaneous) |
| Number of Drone Trajectories | ≥11 Drones (Simultaneous) |
| Position Accuracy | ≤3 M (Available for the drones can be decoded) |
| Drone Library (Geo-Locaation) | DJI OC protocol models, Mavlink protocol, Parrot, TBS CrossFire and other brands |
| Dynamic Detection Movement Speed | ≥60km/h (Available for the drones can be decoded) |
| Screen Size | 6.0 Inch |
| Battery Capacity | 12000mAh |
| Endurance | 3~4h |
| External Interface | Type-C, SMA antenna connector (external screw and internal hole)*2, 3.5mm audio output connector*1, SIM card*1 |
| Charging Power | DC9V, 2A |
| Charging Time | ≤3h(0%-100%) |
| Power Consumption | ≤15W |
| Size | 177mm * 89mm * 29.5mm(±2mm) |
| Weight | ≤580g(±0.05kg,without antenna) ≤46g per antenna |
| Operation Temperature | -20ºC to +50ºC |
| Storage Environment | 15~25ºC RH25~65% |
| IP Level | IP54 |
Use Scenarios
Security Patrols in Outdoor Environments
In outdoor security patrol operations, this portable drone detector acts as a frontline tool for continuous monitoring of drone threats in parks, campuses, or large event venues. Security personnel utilize it to quickly locate unauthorized drone activity by detecting various drone frequencies, including fpv signals. The device’s rf drone detector capabilities allow seamless integration with communication and surveillance systems, supporting proactive airspace control and compliance with regulatory requirements. Its portability and rapid deployment capability enable security forces to maintain vigilance over extensive perimeters effectively.
Critical Infrastructure and Airport Monitoring Applications
Critical infrastructure sites and airports benefit from deploying this drone detector device to counter unauthorized drone incursions. It functions as a passive rf drone detector that identifies drone signals without interference, enabling operators to implement prompt mitigation strategies. The fpv drone detector feature can detect live drone video transmissions, providing actionable intelligence for threat assessment. Integrating with existing security frameworks, this portable drone detector supports multi-layered protection, ensuring airspace safety and compliance with aviation security mandates through continuous drone activity surveillance.
FAQ
What frequency bands does the handheld drone detector cover?
Our handheld drone detector operates across a wide frequency range from 600MHz to 6GHz, including major bands like 900MHz, 1.4MHz, 2.4GHz, 5.8GHz, and WiFi. This coverage ensures accurate detection of various drones and FPV signals in multiple
environments, supporting effective low-altitude drone monitoring.
Can you customize the drone detector device for specific user needs?
Yes, we offer customization options tailored to your requirements. Whether you need adjustments in detection parameters, interface ports, or antenna compatibility, we provide flexible solutions to ensure the drone detector device matches your operational needs perfectly.
How portable and user-friendly is the fpv drone detector?
Our fpv drone detector is designed to be compact, lightweight, and handheld, weighing under 580g without the antenna. Featuring a 6-inch display with intuitive controls and up to 4 hours of battery life, it offers easy, on-the-go operation for field security personnel and hobbyists.
What is the typical shipping time for orders of the portable drone detector?
We generally ship the portable drone detector within 5-7 days after order confirmation. This ensures prompt delivery so customers can benefit quickly from reliable drone detection technology for security or personal use. Please contact us for specific logistics details.
