| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-UAV200
1pcs
Negotiable
Wooden Case with PE Foam
10 Working Days after Received Payment
T/T, L/C, Western Union, MoneyGram
1000pcs per Month

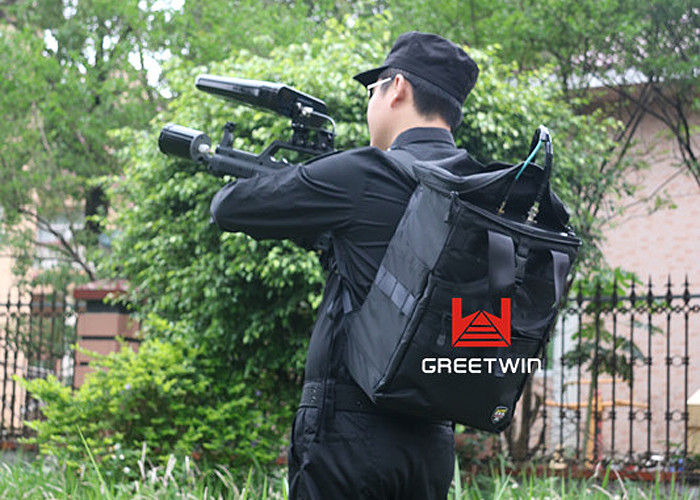

Manpack Drone Cell Phone Signal Blocker Device Portable High Integration
The portable UAV/drone jammer is our company's latest product designed by R&D department,
against the widespread use of UAV nowadays.
It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal, to force the UAV fall or return. The jamming distance reaches more than 3KM.
Drone Blocker Function:
Effective interference with UAV Remote-Control Signal 2400MHz, GPS signal 1500MHz, GPS signal 1200MHz, Transmission Signal 5800MHz.
Drone Blocker Features:
1. Signal Source: Digital gaussian white noise technology
High integration & Stable operation.
2. highly effective power & long jamming distance
3. Manpack type, If device have any problem, “BUZZER” function will let you know, its convenient operation.
4. High quality tubular radiator, effective in radiating heat.
5. Import components; the moderating circuit-starting design avoids a spark,
when the device turn on/off.
6. Batteries are separate from the main device, easy to be replaced and maintained.
Drone Blocker Application:
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc
We make field test for Futaba 14sg,
ICR = Y / X = 600 / 50=12
Y is interference distance, X is Communication distance.
When X increase, ICR will be smaller , approach to 1.
For example,
When X is 500m, Y is 1.5KM.
ICR means RF jammer can get effective interference , the maximum ratio of interference distance and Communication distance.
We introduce two models:
Advanced Model A: GW-UAV200
ICR = Y / X = 3 / 1.5= 2
Y is interference distance, X is Communication distance.
ICR means RF jammer can get effective interference , the maximum ratio of interference distance and Communication distance.
Drone Blocker Technical Parameters:
| Channel | working frequency | Output power(±1dBm) | |
| CH1 | 2.4G | 2400-2485MHz | 43 dBm |
| GPS, Glonass | 1565-1610MHz | 41.7 dBm | |
| GPS, Glonass | 1217-1250MHz | 41.7 dBm | |
| CH2 | 5.8G | 5725-5850MHz | 39 dBm |
| CH3 | 2.4G | 2400-2485MHz | 43 dBm |
| Build-in battery | 24V,12A ( min 30minutes working continually) | ||
| Signal Source | Digital gaussian white noise | ||
| jamming radius | 2-3km | ||
| Antennas | 3pcs directional antennas | ||
| Output Power | 78W | ||
| Power consumption | 240W | ||
| Main engine weight | 15Kg | ||
| Size | 346×216×100mm | ||
| Humidity | 30%-95% | ||
| Running temperature | -10 to +50â | ||
