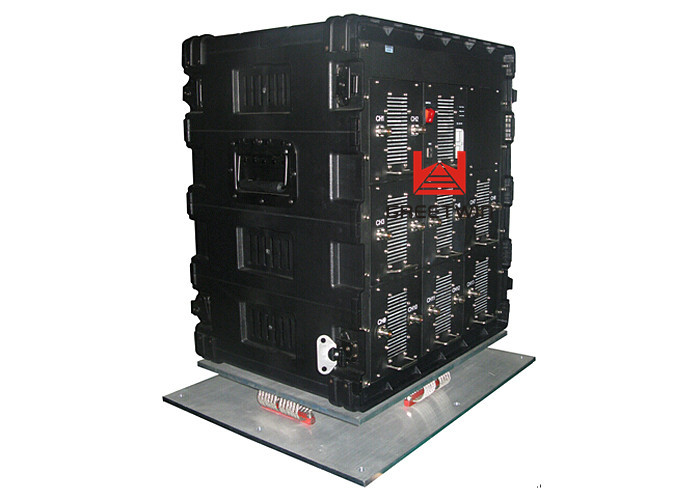

630W RCIED Convoy Bomb Jammer Remote Control Improvised Explosive Devices

Quantity:
  • China

  • GREETWIN

  • SGS, ISO9001

  • GW-2700VJ13

  • 1pcs

  • Negotiable

  • Wooden Case with PE Foam

  • 10 Working Days After Received Payment

  • T/T, L/C, Western Union, MoneyGram

  • 500pcs per Month

630W RCIED Convoy Bomb Jammer Remote Control Improvised Explosive Devices





Convey Bomb Jammer Description:

Protecting military and VIP convoys from the threat of Remote Control Improvised Explosive Devices (RCIEDs) – road-side bombs – has become a top priority in many parts of the world. Preventing the orginzation of riots has likewise become critical in countries around the world.
We're pleased to offer a selection of turn-key, "ready-to-drive" solutions to the threat of road-side bombs and organized riots. These are vehicles converted by GREETWIN into dedicated, traveling bomb jammers implementing the most effective and reliable RF jamming technology available anywhere.



Convey Bomb Jammer Features:
Special design feature :
Use DDS technology.
USER can Choose frequency range by LED Control Panel.
Some other channel use VCO technology. (can customize DDS.)
Highly Efficiency output power, long jamming radius.



Perfect Self Protection:
Over Heat protection – Thermal protector
High input Voltage and low Voltage protection
VSWR protection: against antenna miss-match including open and short circuit

Modular construction for easy maintenance, repair and upgrade.
Jam up to 13 different jamming modules.
Max 1300 watt total RF output power.
Systematic Smart Cooling System.
The general design of the system meets military requirements.
Frequency bands and output power selectable.
Integrated main equipment,and antennas increases mobility of the device;
Different frequency bands can be controlled independently by different switches;
Local or wire control operation mode can be selected based on actual environment;
AC or DC power supply can be selected;
Power Amplifiers protection design ensures the working reliabity of the device.
Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc



Convey Bomb Jammer Specifications:



RF Characteristics
Output Power 630 Watts
Signal Source DDS
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 13
Wired Remote Control ON/OFF with Digital display board
Remote Monitoring Adjusted output power by Digital display board.
Antenna External – Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector
Operating hours Unlimited



Channel Frequency Range Output Power (± 1dBm )
CH1 20-200 MHz 47 dBm
CH2 200~500MHz 47 dBm
CH3 136~174MHz 47 dBm
CH4 400~430MHz 47 dBm
CH5 851~894MHz 47 dBm
CH6 925~960MHz 47 dBm
CH7 1570~1580MHz 47dBm
CH8 1805~1880MHz 47 dBm
CH9 1930~1990MHz 47 dBm
CH10 2110~2170MHz 47 dBm
CH11 2400~2500MHz 47 dBm
CH12 2620~2690MHz 47 dBm
CH13 430~470MHz 47 dBm

Power Supply : AC110-240V, DC 24V



Output power: 630W


Jamming radius: 50-500M depending on the environment signal strength

Power Consumption: 2000W



Host Weight :86Kg

13pcs External Omni antennas



Host Size(L×H×W) :625×500×700 mm

Humidity : 30%-95%



Working temp: -20 to +55 degree Celsius



Convey Bomb Jammer Applications:

• VIP Protection

• Bomb Disposal

• Convoy Protection etc.
