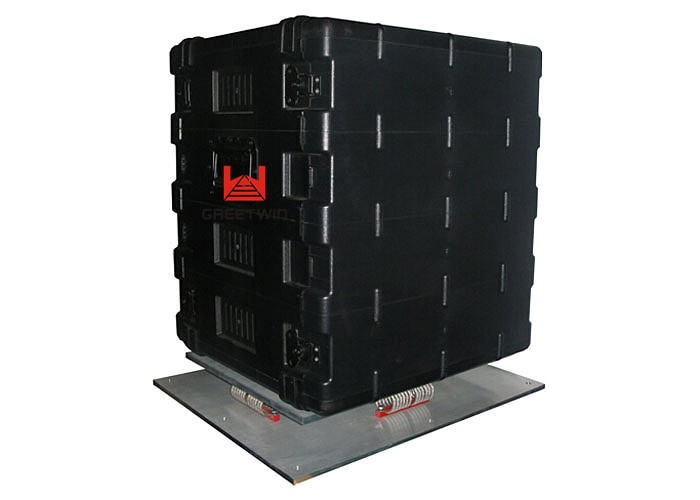

Water Resistance RF Convoy Bomb RC Drone Jammer , Drone RF Jammer

  • China


  • SGS, ISO9001

  • GW-2700VJ13

  • 1pcs

  • Negotiable

  • Wooden Case with PE Foam

  • 10 Working Days After Received Payment

  • T/T, L/C, Western Union, MoneyGram

  • 500pcs per Month

Water Resistance RF Convoy Bomb RC Drone Jammer , Drone RF Jammer



Drone Jamemr Description:

The VIP Digital RF Jammer ,Designed for blocking remote controlled improvised explosive devices used by terrorists.

The Convoy Bomb Jammer 's Operating System can be fully controlled from the driver's seat to ensure the optimal user experience. Our vehicle mounted Counter-IED Jammers have 360⁰ protection, and are thus able to protect other vehicles in the convoy.

Convoy Jammer for protecting VIP(Very Important Person). RF jamming systems make an appearance during speeches, radio jamming systems become part of the social norm.

For example, when the Chinese President drives down “Window of the World” in Shenzhen, the cellular phones of mobile subscribers all lose connection with the local cellular networks.

There are many discussions on Vehicle Mounted Jammer and the limit of mobile phone communications. when considering the the deadly nature resulting from the use of remote controlled weapons, the Vehicle Mounted Jammer and VIP Convoy Jammers used today are an necessity.


Drone Jamemr Features:

  1. Equipped with an ultra-broadband frequency bands : 20-2700Mhz
  2. All frequency bands are jammed continuously and simultaneously
  3. Designed with shockproof case. Easy of mobility.
  4. Approved by Military and International Government
  5. (Optional)Integrated back-up battery system for continuous silent operation and fast start .
  6. Integrated independent "smart active" cooling system .
  7. System management (activation, control and operation) is carried out via a remote control unit which is installed (in a covert manner) inside the Driver's console unit.
  8. Provided with a on/off switch for each separate frequency band.
  9. Special RF protection shielding design to make sure the passenger and VIP's safety .
  10. Supplied to the Olympic Event and universiade.
  11. To protect military and VIP team as well as some important place from the road-side remote improvised explosive device (RCIED) attacks is becoming a global challenges and tremendous task in security fields.

The GREETWIN Jammer is designed with ultra-high RF transmission high power ,

resulting in huge coverage distance.

Its jamming system covers the RF communication frequencies from 20MHz to 2700MHz,

which are most commonly used by terrorists to detonate bombs (RCIED) continuously and simultaneously.


Drone Jamemr Specifications:

RF Characteristics
Output Power 630 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 13
Control ON/OFF with Switch
Wired remote control  Adjusted output power by control panel.
Antenna External – Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector
Operating hours Unlimited


Channel Frequency Range Output Power (± 1dBm )
CH1 20-200 MHz 47 dBm
CH2 200~500MHz 47 dBm
CH3 136~174MHz 47 dBm
CH4 420~460MHz 47 dBm
CH5 851~894MHz 47 dBm
CH6 925~960MHz 47 dBm
CH7 1570~1580MHz 47dBm
CH8 1805~1880MHz 47 dBm
CH9 1930~1990MHz 47 dBm
CH10 2110~2170MHz 47 dBm
CH11 2400~2500MHz 47 dBm
CH12 2620~2690MHz 47 dBm
CH13 460~470MHz 47 dBm

Power Supply : AC110-240V, DC 24V

Output power: 630W
Jamming radius: 50-500M depending on the environment signal strength

Power Consumption: 2400W

Host Weight :86Kg

13pcs External Omni antennas

Host Size(L×H×W) :625×500×700 mm

Humidity : 30%-95%

Working temp: -20 to +55 degree Celsius



Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks;
Protect explosives handling experts;
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc;
Risk mitigation and explosives removal in specified spots;
Police used for VVIP convoy, anti drug, riot control, etc.
Military used for border control, etc.


• Special Military Units

• Special Police Units

• VIP Protection

• Bomb Disposal

• Convoy Protection etc.


Note: All Bomb Jammers, IED Jammers, RF Signal Jammer and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
