| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001,CE,ROHS
GW-15GDW
1pcs
$280 PC

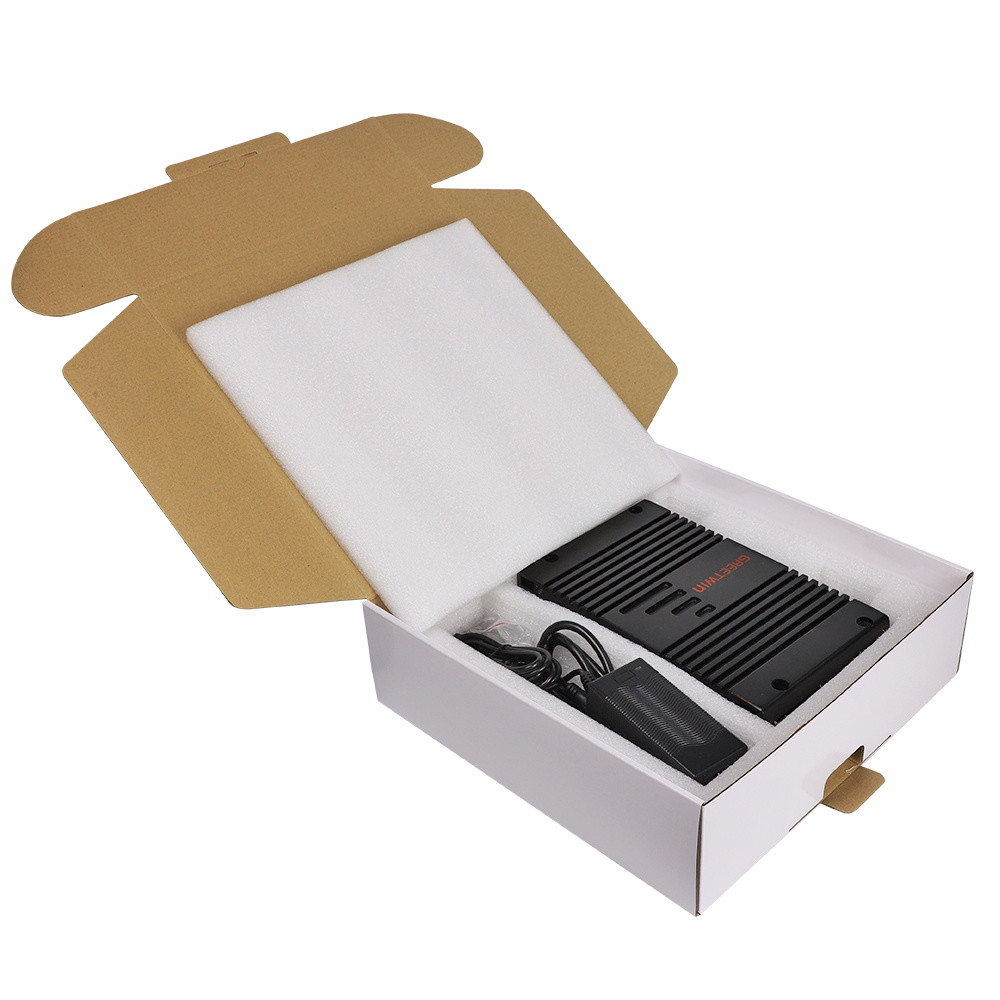

Carton with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
5000pcs per Month

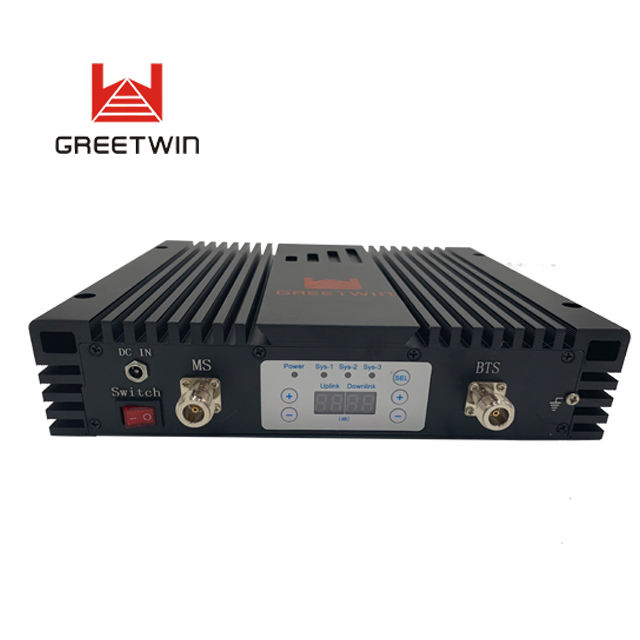

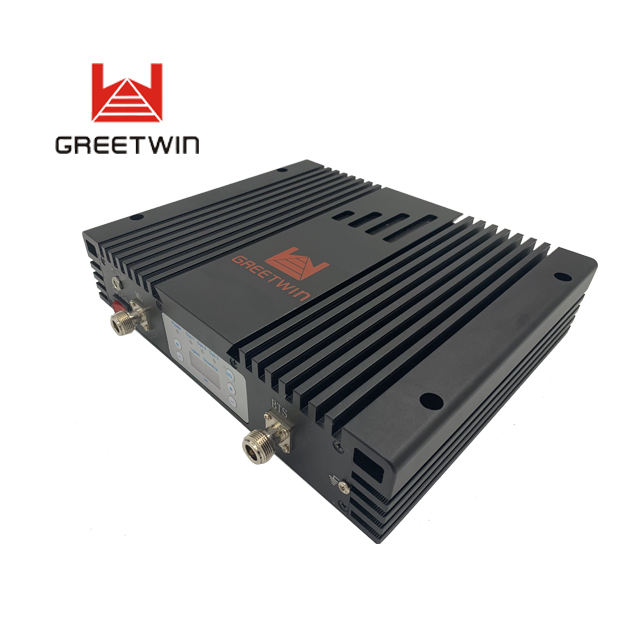

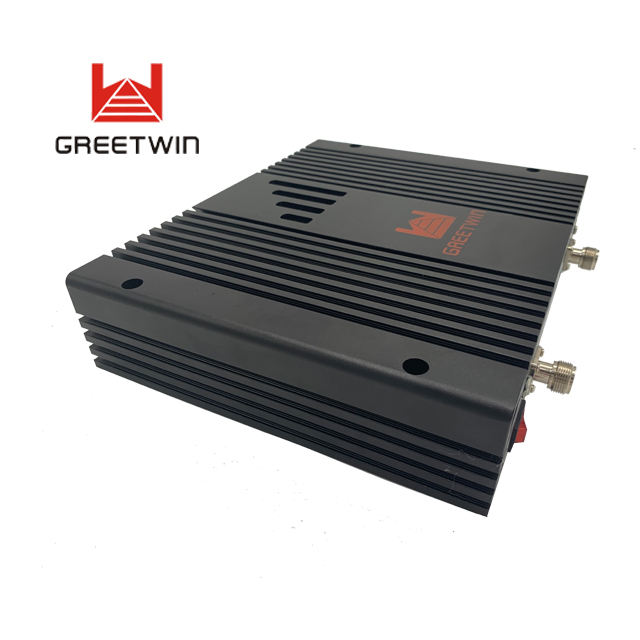

15dBm Tri-band Indoor 2G 3G 4G Network GSM900 DCS1800 WCDMA Booster Mobile Signal Repeater Amplifier
| Frequency Range | Uplink | Downlink | ||
| GSM900+DCS1800+WCDMA | 890-915/1710-1785/ 1920 - 1980MHz | 935-960/1805-1880/ 2110 - 2170MHz | ||
| Gain | 60dB±2dB | 65dB±2dB | ||
| Output Power | 12dBm±2dBm | 15dBm±2dBm | ||
| Bandwidth | Wide Band | |||
| Manual Gain Control | 31dB / 1dB Step | |||
| ALC | ≥ 20dB | |||
| Ripple in Band | 8dB | |||
| Noise Figure | ≤ 6dB | |||
| VSWR | ≤ 2.0 | |||
| Intermodulation Products | ≤ -40dBc | |||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm/30KHz | ||
| 1~12.75GHz | ≤ -30dBm/30KHz | |||
| Time Delay | ≤ 1.5 μs | |||
| Frequency stability | ≤ 0.01ppm | |||
| MTBF | > 50000 hours | |||
| Impedance | 50Ω | |||
| Power Supply | AC 90-264V,DC 10V/6A | |||
| Power LED | Power indicator | |||
| Alarm LED | Red | Self-oscillation or Strong input signal | ||
| Green | Normal | |||
| Mechanical Specification | ||||
| RF Connector | N-Female | |||
| Switch | Power Switch | |||
| Cooling | Heatsink Convection cooling | |||
| Humidity | < 90% | |||
| Operating Temperature | -10°C ~ +55°C | |||
| Environment Conditions | IP40(Indoor) | |||
| Installation Type | Wall Installation | |||
| Size | 268mm*58mm*239mm | |||
| Weight | < 5.5Kg | |||
Product Manual
Indoor Tri-Band Signal Repeater (Signal Booster) series is an ideal solution for three wireless systems in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to the BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over-saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is an easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The signal booster improves mobile signals with no negative impact on human health.
Features
1. Cost-effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extending of the signal of the base station.
Optimization of the quality of the signal and source
3. Cover about 500~3000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wideband signal booster, or customize selective band booster.
Advantages

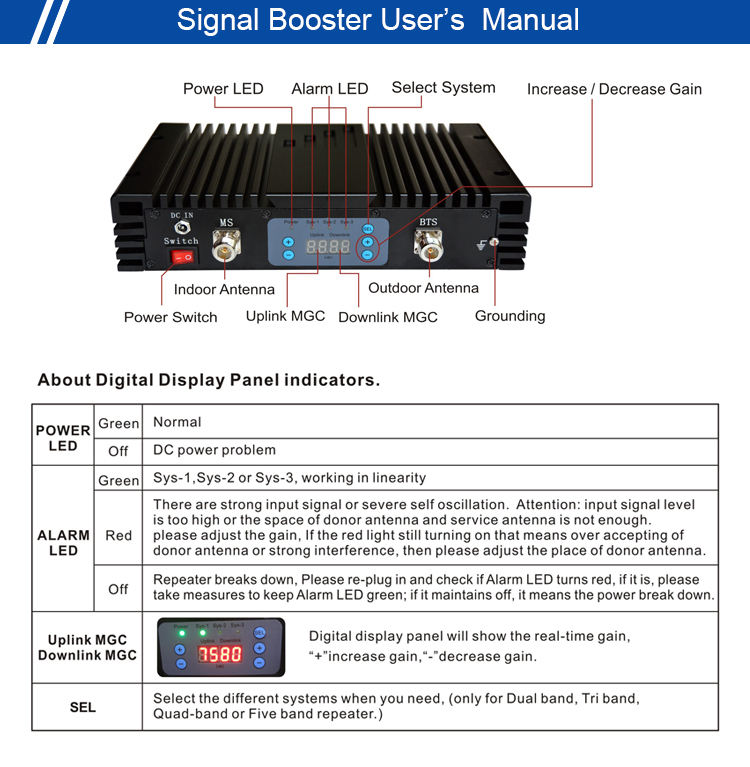

Digital Display Panel, Intelligent mode setting
A smart function called which can be activated via the digital display panel.
Users can choose the gain and working system by LCD Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.

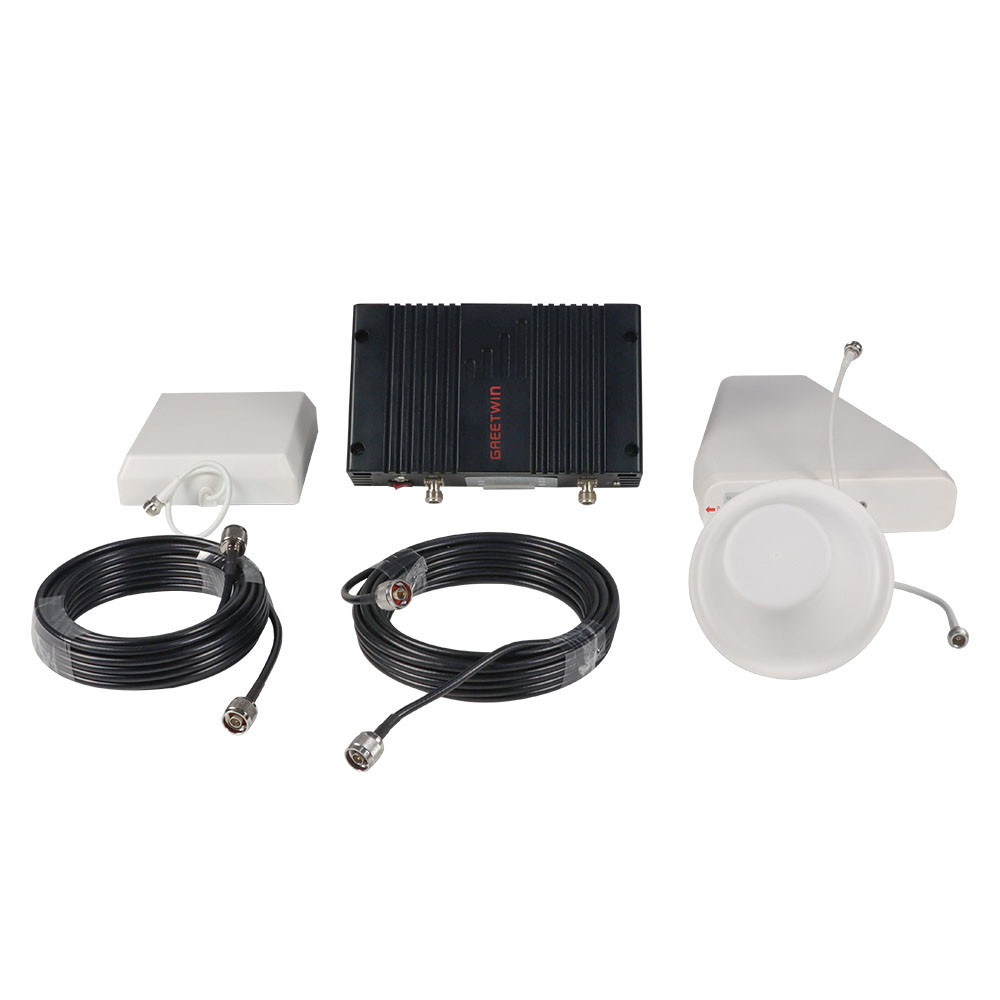

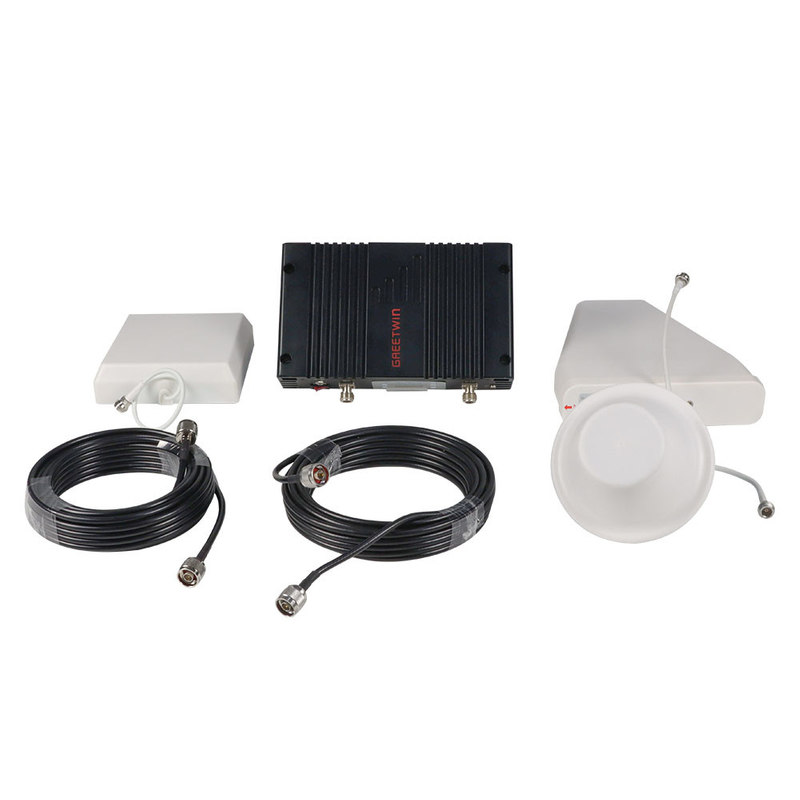

Standard Package
1) AC90-264V, DC10V/6A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS

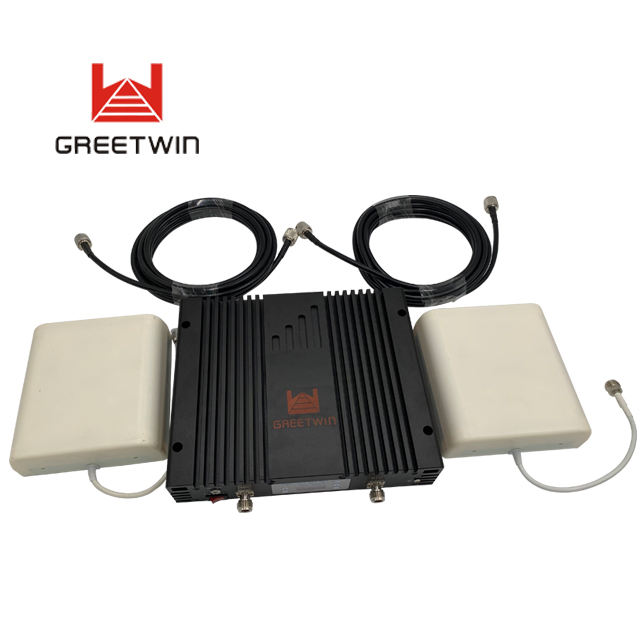

Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
Application Diagram
To expand signal coverage or fill the signal blind area where the signal is weak or unavailable.
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.
