| Quantity: | |
|---|---|
shenzhen
Greetwin
CE, RoHS
GW-LPDA802511d
50pcs
$1-$11.9/ PC
Carton with PE Foam
3 Working Days After Received Payment
T/T, Western Union, MoneyGram
10000pcs per Month

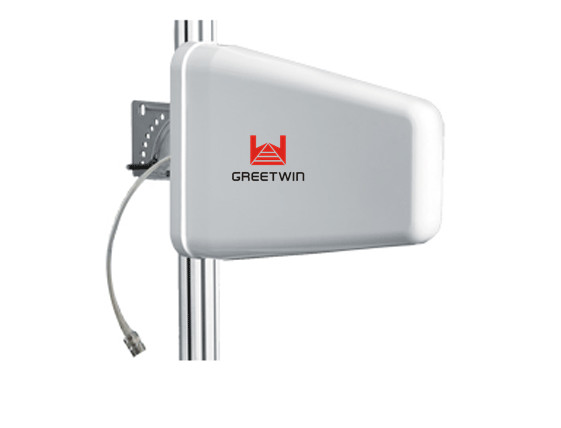

824MHz - 2700MHz Cell Phone Signal Boosters Log Periodic Dipole Antenna
Dipole Antenna Features:
* Wide band and high gain.
* Eelegant appearance, simple installation, stable performance.
* Good performance in anti-vibration and resistant to aging.
* Can be installed indoor or outdoor pole mount.
Dipole Antenna Specification:
| ELECTRICAL | |
| Frequency Range | 824-960/1710-2500-MHz |
| Bandwidth | 136/790-MHz |
| Gain | 11-dBi |
| Beamwidth | H:65/50-° E:50/40-° |
| F/B ratio | ≥18-dB |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Max power | 50 -W |
| Nominal Impedance | 50 -Ω |
| MECHANICAL | |
| Connector | N female or customized |
| Antenna Dimension | 440x207x65-mm |
| Weight | 1-kg |
| Rated Wind Velocity | 60-m/s |
| Mounting Kits | L bracket & U bolts |
| Mounting Mast Diameter | 40-50-mm |
