65dB Gsm Mobile Signal Booster Quad Band 1.5 VSWR 2600MHz SGS

Quantity:
  • China

  • GREETWIN

  • SGS, ISO9001,CE,ROHS

  • GW-17CDWL

  • 1pcs

  • $68.7-$76.9/ PC

  • Carton with PE Foam

  • 3 Working Days After Received Payment

  • T/T, L/C, Western Union, MoneyGram

  • 5000pcs per Month

Factory price 17dBm 4 band 900 1800 2100 2600MHz gsm signal booster mobile signal booster

Product Description

1,Product Details





Frequency Range
Uplink
Downlink
900MHz
935-960MHz
890-915MHz
1800MHz
1805-1880MHz
1710-1785MHz
2100MHz
2110- 2170MHz
1920-1980MHz
2600MHz 2620-2690MHz 2500-2570MHz
Output Power
17dBm
15dBm
Gain
65dB
60dB
Inter-modulation
36dBc
power supply
AC:100V-240V,50/60Hz
working voltage
DC 12V
Power Port
DC-55-2.5
Dimension
205mm*175mm*27mm
Weight
0.9kg
Operating Temperature
0-50
Environmental class
IP40
RF Port Number
2(BTS:1,MS:1)
RF Connector
N-Female,50ohm
Product Number
GW-17CDWL

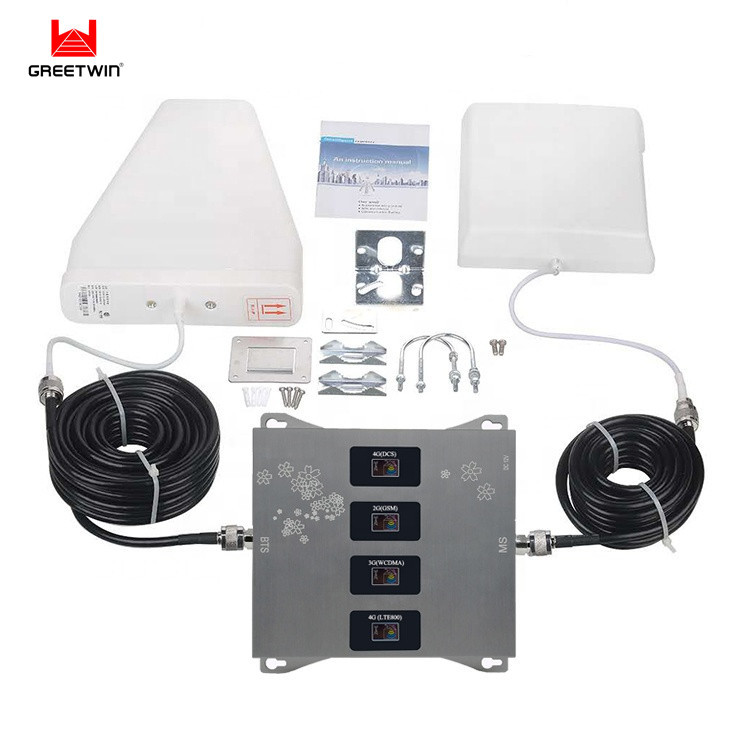

It can be a TV, Wi-Fi, a Cell Phone Signal Booster. It is A.K.A. an amplifier or a repeater. It is a device that has an amplifier and two antennas (exterior and interior). All items connect with coaxial cable(s). It boosts wi-fi and/or cellphone signals to your wireless device. It can improve wifi & cellular in homes, offices, or cars & trucks. Wireless communication occurs over a wide spectrum. Our wireless network boosting products cover mobiles, wi-fi & TV freq. bands used in the U.S.A. & Canada. All network boosters are certified by F.C.C. & I.S.E.D. / I.C.



2,Product Display

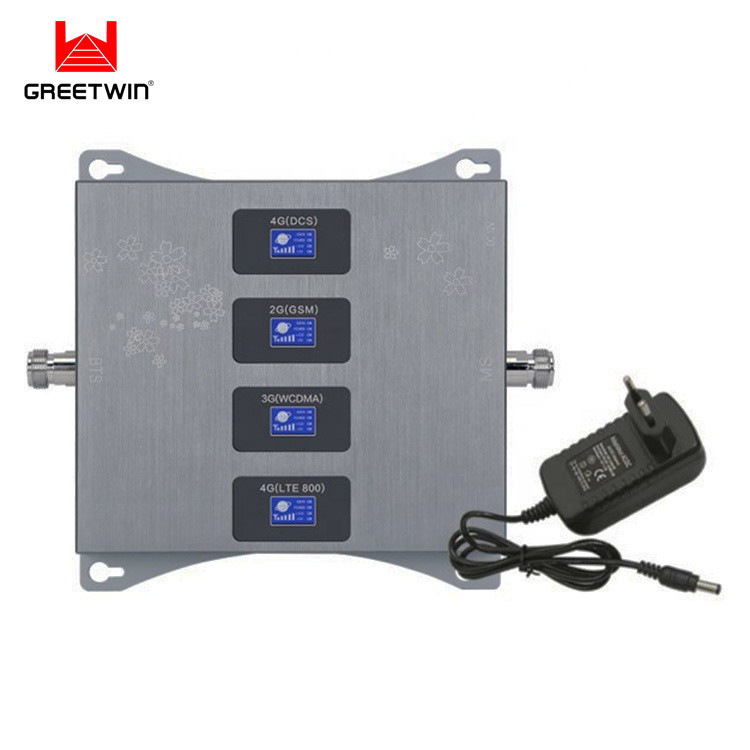

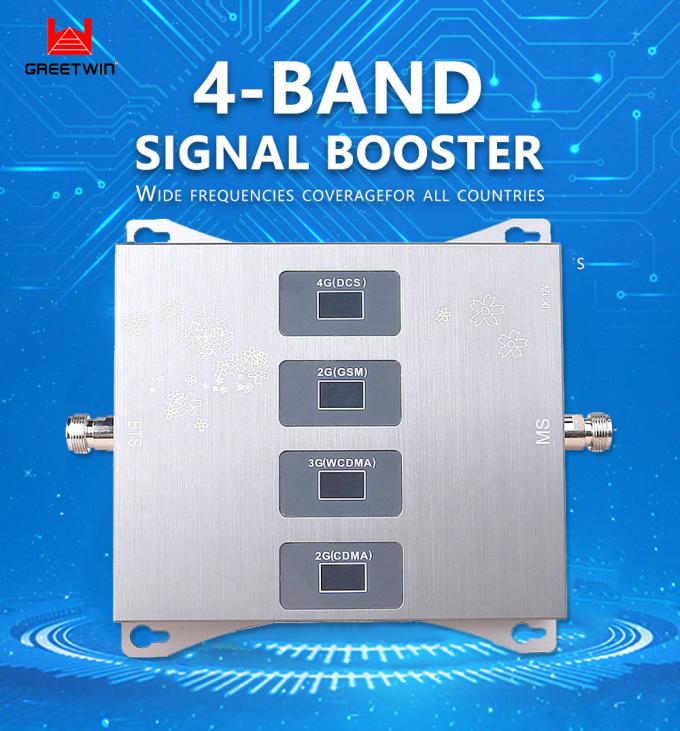

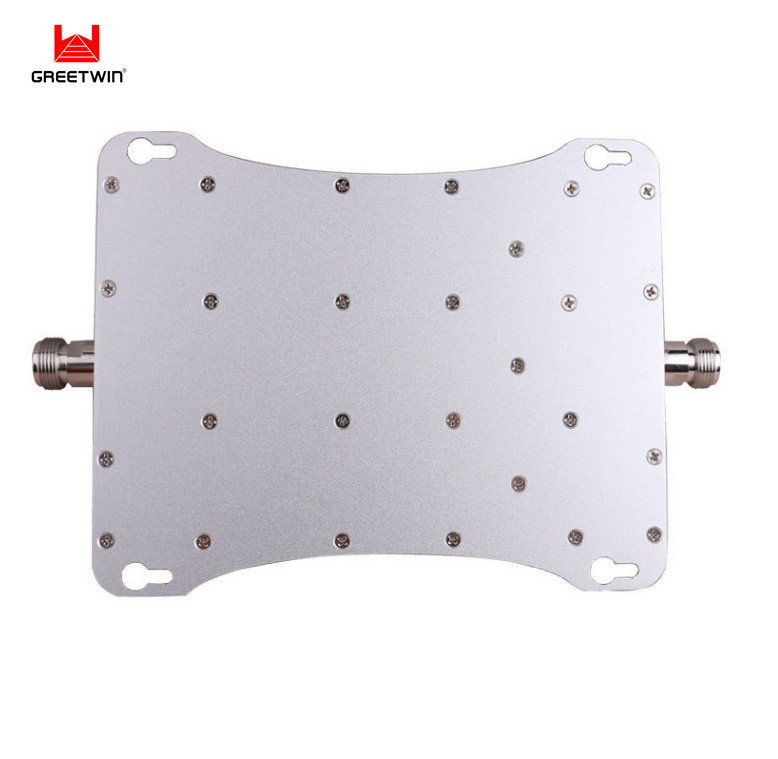

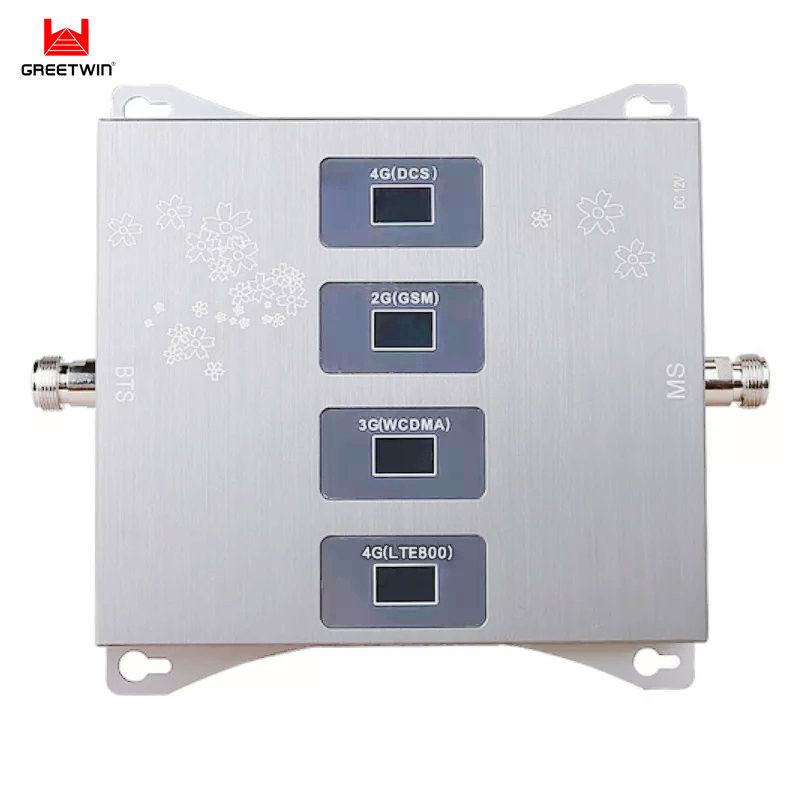

65dB Gsm Mobile Signal Booster Quad Band 1.5 VSWR 2600MHz SGS 2











65dB Gsm Mobile Signal Booster Quad Band 1.5 VSWR 2600MHz SGS 3

65dB Gsm Mobile Signal Booster Quad Band 1.5 VSWR 2600MHz SGS 4

65dB Gsm Mobile Signal Booster Quad Band 1.5 VSWR 2600MHz SGS 5
