| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001,CE,ROHS
GW-23CP-V
1pcs
$65.70-$109.50/ PC
Carton with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
5000pcs per Month

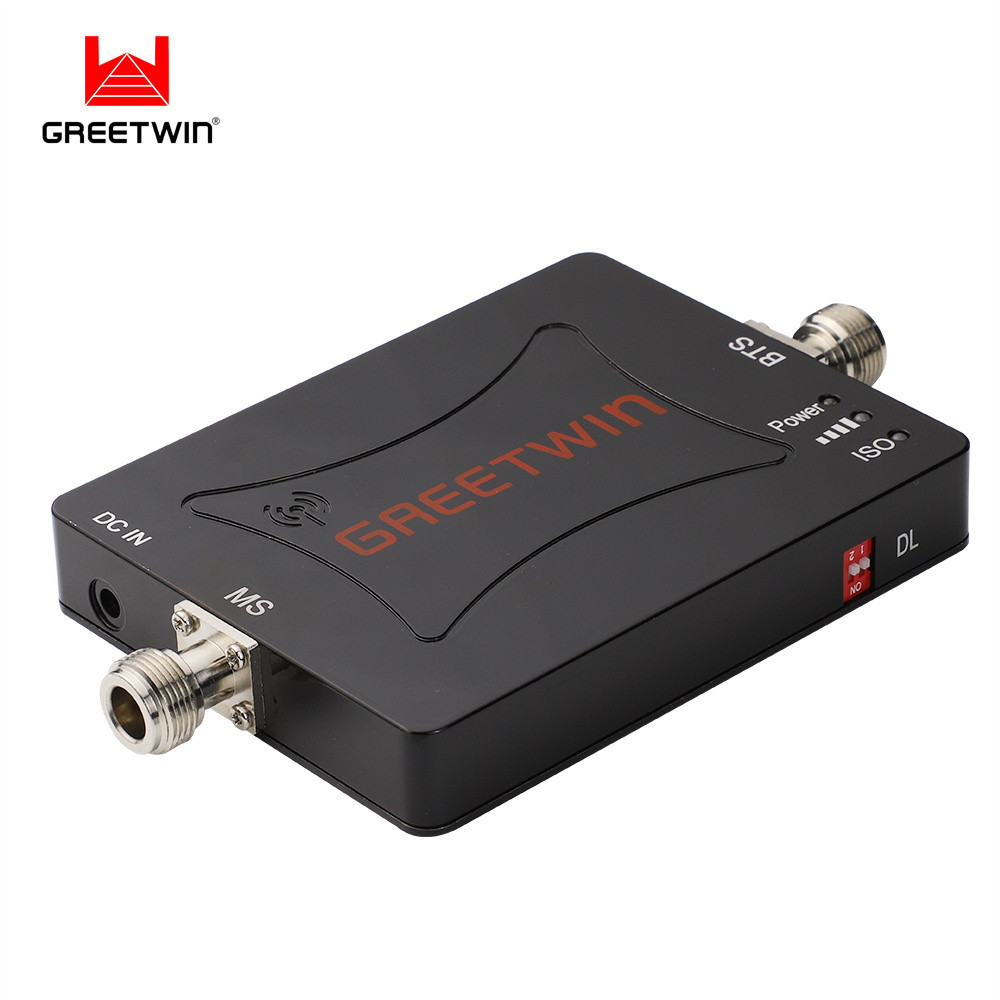

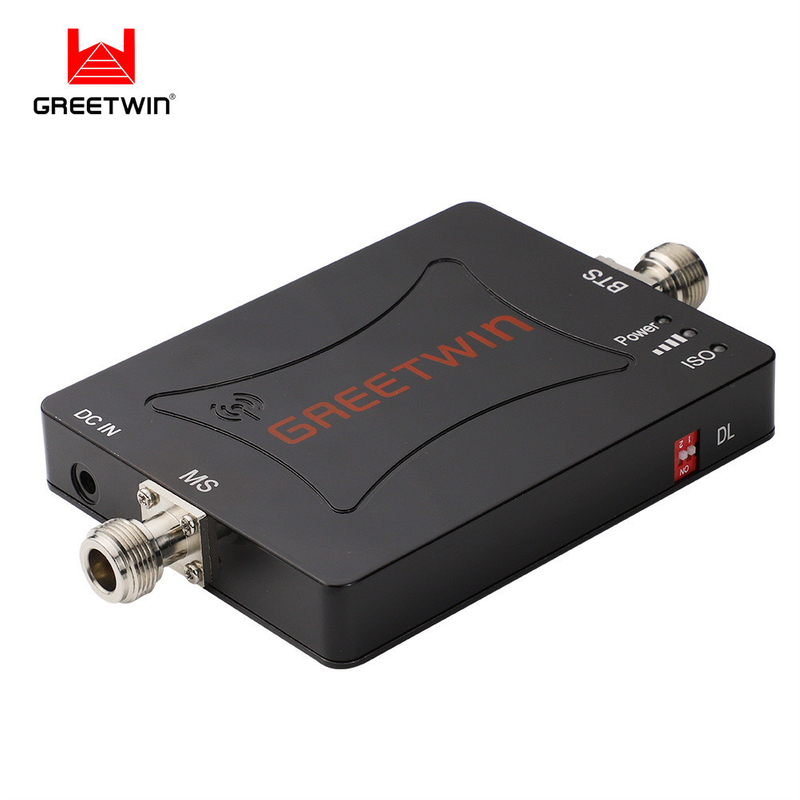

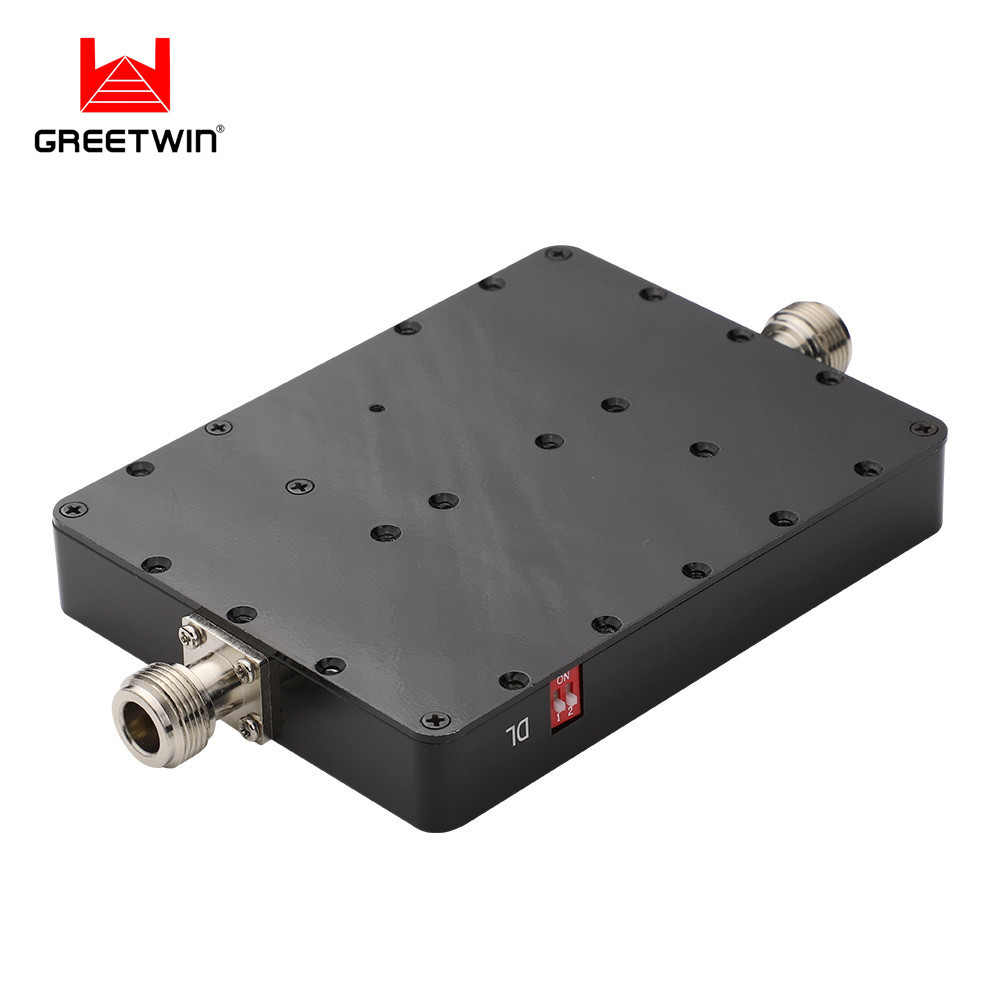

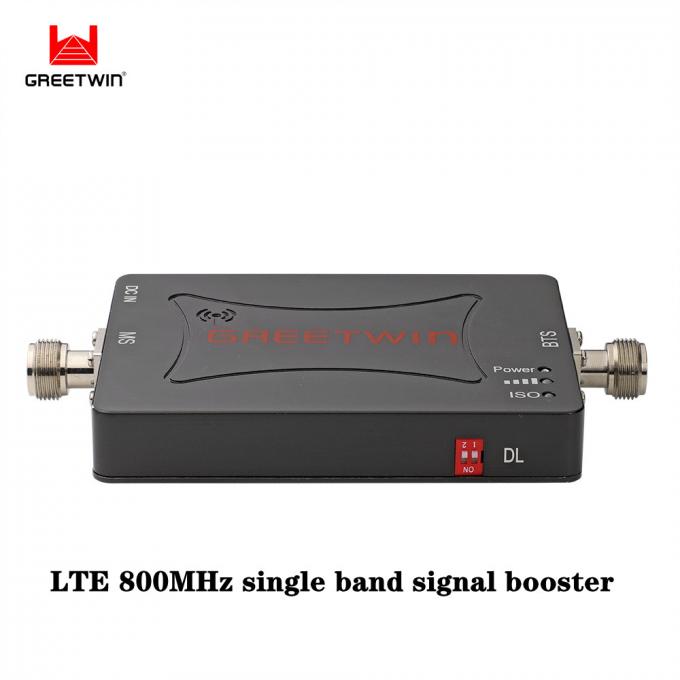

Greetwin Repeater gsm signal booster 23dBm single band lte 800MHz mobile signal booster gsm
| Frequency Range | Uplink | Downlink | |||
| CDMA 800MHz | 824 - 849 MHz | 869 - 894MHz | |||
| PCS 1900MHz | 1850 - 1910MHz | 1930 - 1990MHz | |||
| Gain | 70dB±2dB | 75dB±2dB | |||
| Output Power | 20dBm±2dBm | 23dBm±2dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 15dB | ||||
| ALC | >25dB | ||||
| Ripple in Band | 8dB | ||||
| Noise Figure | ≤ 6dB | ||||
| VSWR | ≤ 2.0 | ||||
| Intermodulation Products | ≤ -40dBc | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Impedance | 50 ohm | ||||
| Power Supply | AC 90-264V,DC 6V/3A | ||||
| Power LED | Power indicator | ||||
| ISO(Alarm LED) | Red | Self oscillation or Strong input signal | |||
| Green | Normal | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -20°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Installation Type | Wall Installation | ||||
| Size | 182*118*18mm | ||||
| Weight | < 1.2 Kg | ||||

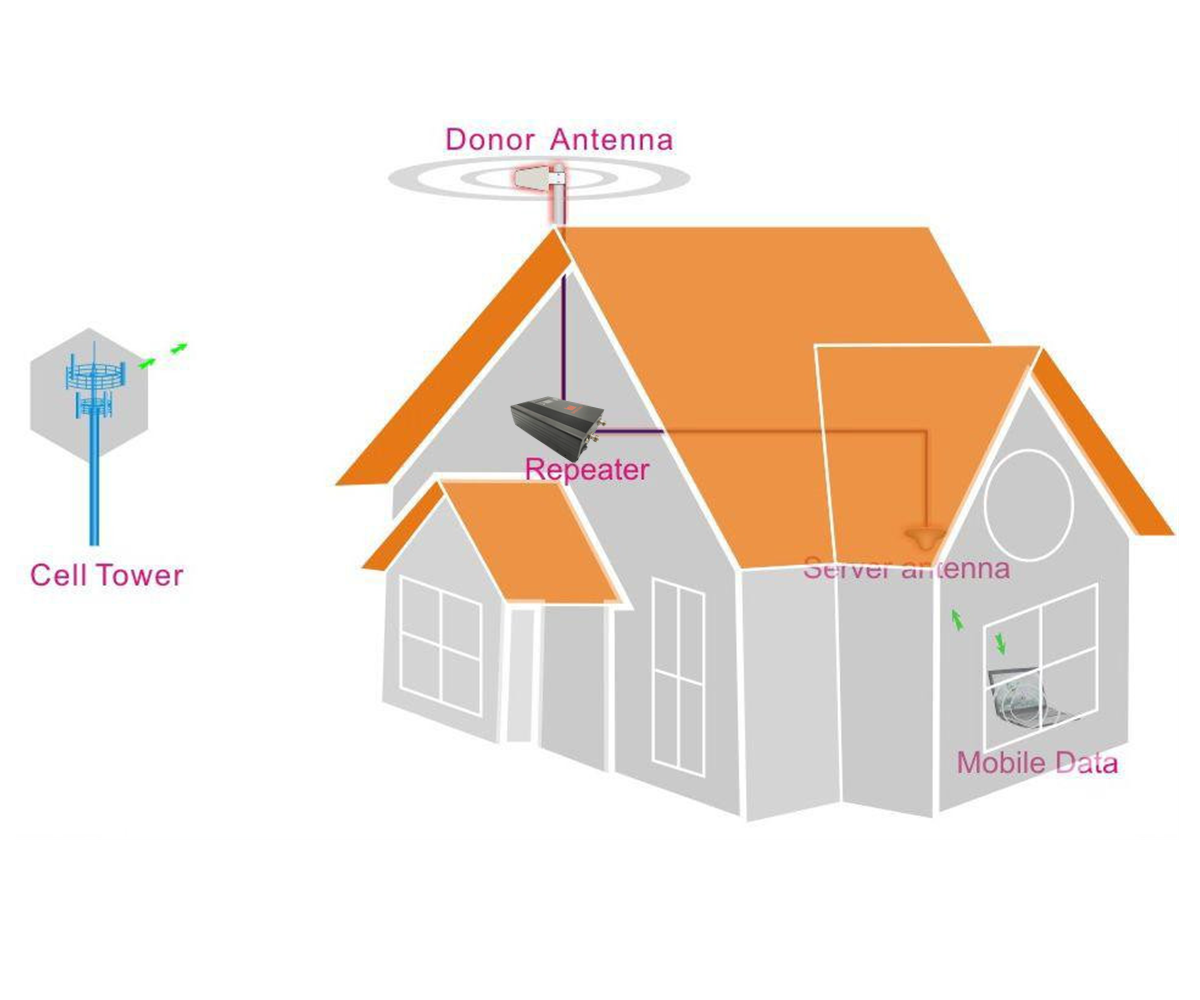

If you have a poor cellular signal, a cell phone signal booster is the answer. You are already paying a monthly fee for a service that either doesn't work or works sporadically. Cell phone boosters provide consistent, reliable cell service for one flat price.
Cell phone signal boosters are also called cell phone boosters, repeaters, signal amplifiers, and network extenders. They boost 4G LTE signals across all major North American carriers. A cell phone signal booster will end your dropped phone calls, unsent texts, and slow data speeds. You will never have a weak signal or dead zones again.
