| Quantity: | |
|---|---|
China
Greetwin
SGS, ISO9001,CE
GW-27G
1
US $131-$141/ Piece
Neutral Packing
15work days
L/C, T/T
2, 000PCS/Month
| Frequency Range | Uplink | Downlink | |||
| 900MHz | 880 - 915MHz | 925 - 960MHz | |||
| Max. Gain | 75dB±2dB | 80dB±2dB | |||
| Max. Output Power | 20dBm±2dBm | 27dBm±2dBm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| ALC | >25dB | ||||
| Ripple in Band | ≤ 8dB | ||||
| Noise Figure | ≤ 6dB | ||||
| VSWR | ≤ 2.0 | ||||
| Intermodulation | ≤ -40dBc | ||||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Impedance | 50 ohm | ||||
| Power Supply | AC 90-264V,DC 9V/5A | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Red | Self oscillation or Strong input signal | |||
| Green | Normal | ||||
| Mechanical Specification | |||||
| RF Connector | N-Female | ||||
| Switch | Power Switch,Manual Gain Control Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C ~ +55°C | ||||
| Environment Conditions | IP40 | ||||
| Installation Type | Wall Installation | ||||
| Size | 268mm*58mm*189mm | ||||
| Weight | < 4.1Kg | ||||
Features
1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extending of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 3000~6000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
Advantages

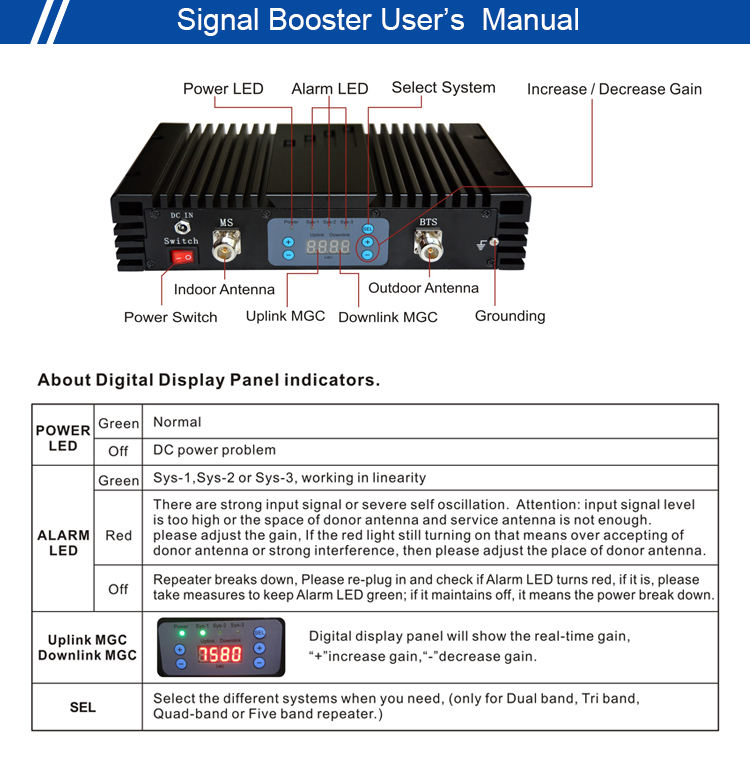

Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LED Digital Panel.
Set the technical parameters simple and efficient, this is easier than DIP Switch.

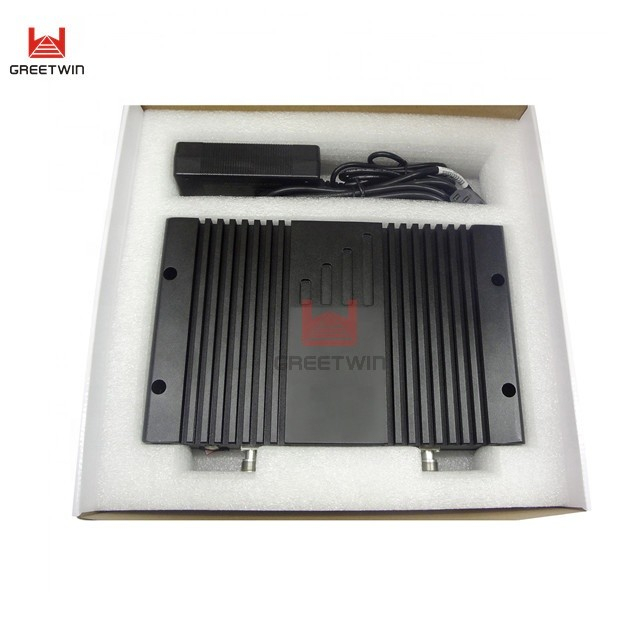

Standard Package
1) AC90-264V, DC 9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS

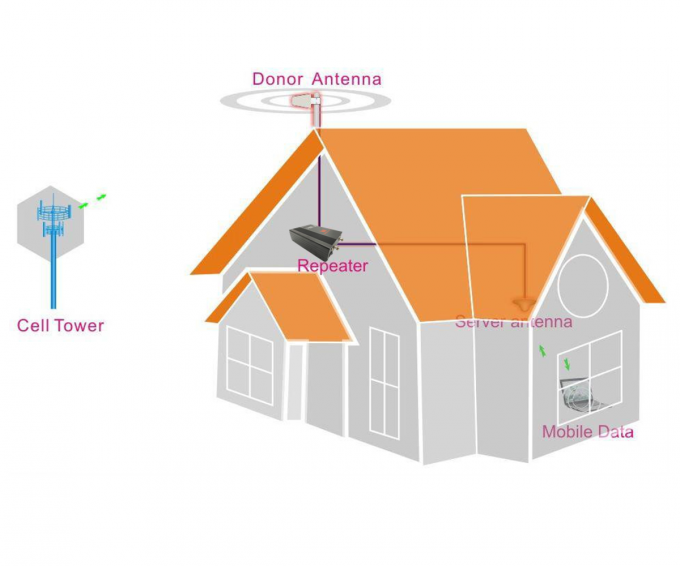

Application Diagram
We manufacture Signal Boosters as your requirements.
Support Frequencies:
Single Band, Dual Band, Tri Band, Quad Band, Quint band for your options.
Single band:
Tetra400MHz, CDMA450 MHz, LTE700MHz, LTE800MHz, iDEN800, CDMA 800/GSM850 MHz, GSM 900MHz, EGSM900, AWS1700/2100MHz, DCS1800 MHz, LTE1800 MHz, PCS1900 MHz, 3G WCDMA 2100 MHz, LTE2600MHz, etc.
Dual band:
GSM900+1800, EGSM900+1800, GSM900+PCS1900, GSM900+ LTE2600, GSM900+3G 2100, EGSM900+WCDMA, GSM850+PCS1900, GSM850+ AWS1700, CDMA800+WCDMA, CDMA800+1800,1800+3G 2100, 2100+LTE2600, LTE700+PCS1900,
LTE800+EGSM900, etc.
Tri band:
GSM900+DCS1800+3G2100, 1800+2100+LTE2600, LTE800+GSM900+1800,
GSM900+1800+LTE2600, GSM900+2100+LTE2600, EGSM900+WCDMA+LTE2600, GSM850+PCS1900+AWS1700, GSM850+PCS1900+LTE2600,
LTE700+PCS1900+AWS1700, etc.
Quad band:
GSM900+1800+2100+LTE2600, EGSM900+1800+2100+LTE2600,
LTE800+GSM900+1800+WCDMA, LTE800+EGSM900+1800+WCDMA, LTE800+GSM900+WCDMA+LTE2600, LTE800+EGSM900+WCDMA+LTE2600, etc.
Quint band:
LTE800+GSM900+1800+2100+LTE2600
LTE800+EGSM900+1800+2100+LTE2600
LTE700(12/17)+ LTE700(14)+GSM850+PCS1900+AWS1700/2100,etc.
The Signal Booster Should be Compatible with the Frequencies used in your Country.
Please contact GREETWIN TECH for details.
