| Quantity: | |
|---|---|
China
Greetwin
SGS, ISO9001,CE
GW-23ED-ASC
1
US $ 122.5-142.5 / PC
Neutral Packing
15work days
L/C, T/T
2, 000PCS/Month

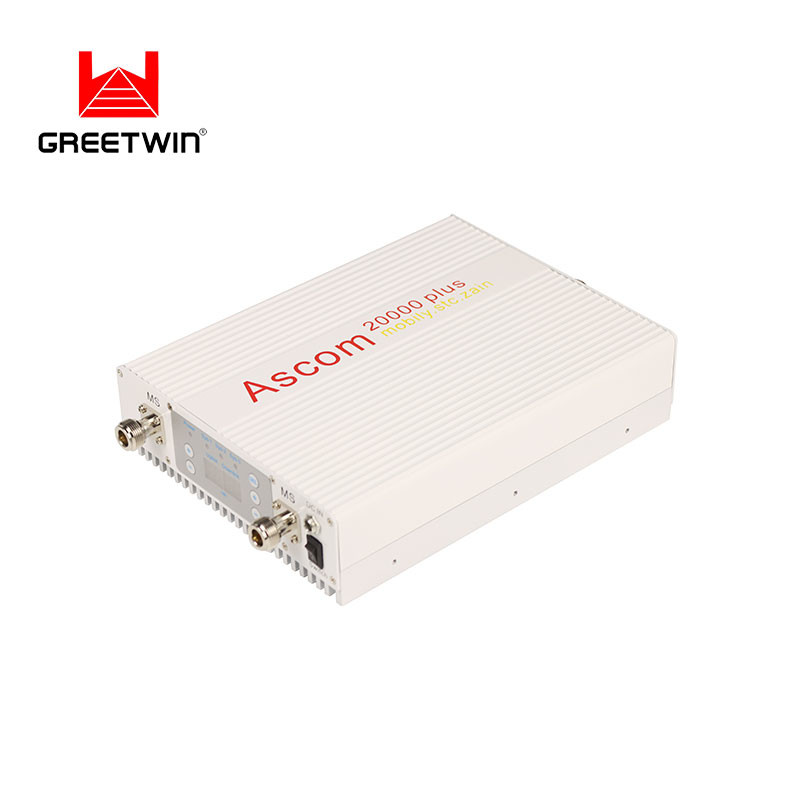

Greetwin Ascom 23dBm Signal Booster EGSM DCS 900 1800 4G Signal Booster for Mobile B8 B3 Signal Booster

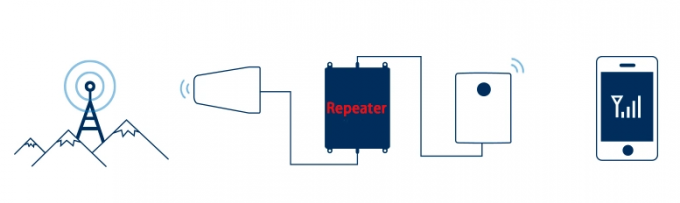

Indoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.
Features:
1. Cost effective solution for weak signal zones,
2. Compact size, low power consumption, easy installation, great cover.
Expansion and extention of the signal of base station.
Optimization of the quality of the signal and source
3. Cover about 900~10000 m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.
| Frequency Range | Uplink | Downlink | |||
| EGSM900 | 880-915MHz | 925-960MHz | |||
| DCS1800 | 1710-1785MHz | 1805-1880MHz | |||
| Gain | 70dB±2db | 75dB±2db | |||
| Output Power | 20dBm±2dbm | 23dBm±2dbm | |||
| Band width | Wide Band | ||||
| Manual Gain Control | 31dB / 1dB Step | ||||
| ALC | >25dB | ||||
| Ripple in-band | ≤ 6dB | ||||
| Return loss | ≤ -10dB | ||||
| Noise Figure | ≤ 6dB | ||||
| Spurious Emission &Intermodulation | 9KHz~1GHz | ≤ -36dBm | |||
| 1~12.75GHz | ≤ -30dBm | ||||
| Time Delay | ≤ 1.5 μs | ||||
| Frequency stability | ≤ 0.01ppm | ||||
| MTBF | > 50000 hours | ||||
| Power Supply | AC100-240V,DC9V/5A | ||||
| Power LED | Power indicator | ||||
| Alarm LED | Red | Autoexcitation or High Power | |||
| Green | Standard | ||||
| Mechanical Specification | |||||

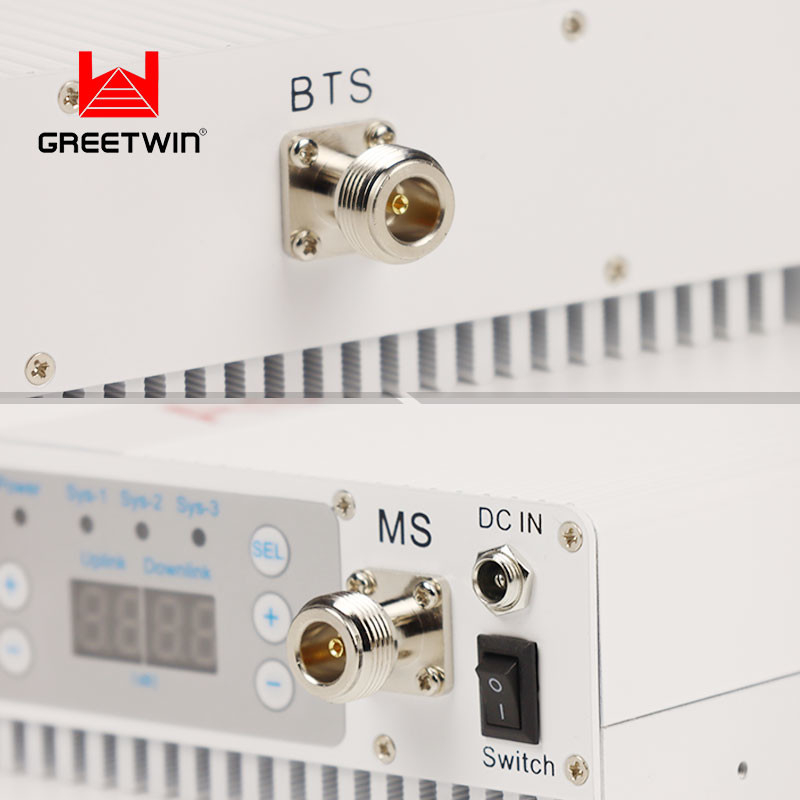

| RF Connector | N-Female | ||||
| Switch | Power SwitchManual Gain Control Switch | ||||
| Cooling | Heatsink Convection cooling | ||||
| Impedance | 50 ohm | ||||
| Humidity | < 90% | ||||
| Operating Temperature | -10°C~55°C | ||||
| Environment Conditions | IP40 | ||||
| Size | 250mm*170mm*53mm | ||||
| Weight | < 3.5Kg | ||||
