| Quantity: | |
|---|---|
China
Greetwin
SGS, ISO9001,CE
GW-33DWL
1
Neutral Packing
15work days
L/C, D/A, D/P, T/T, Western Union, MoneyGram
1000

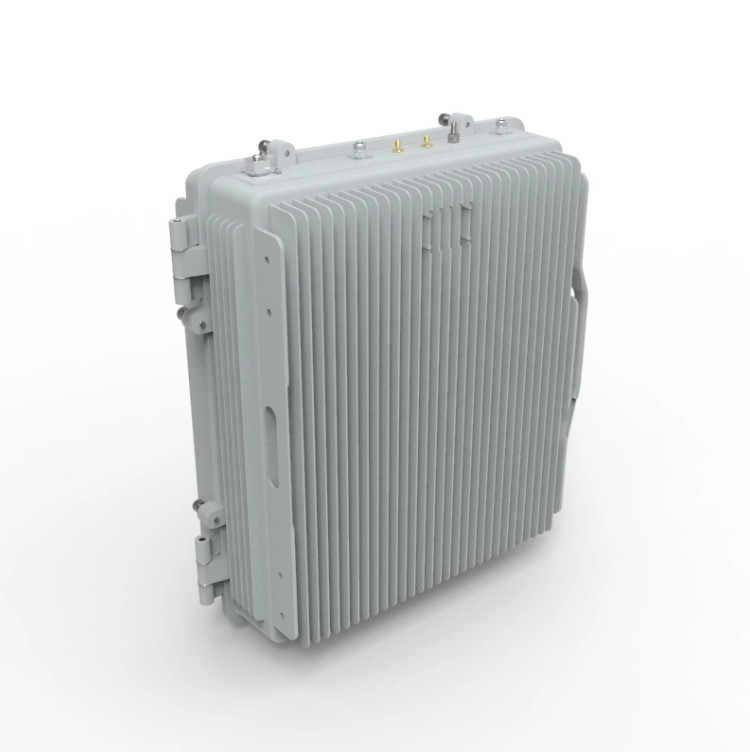

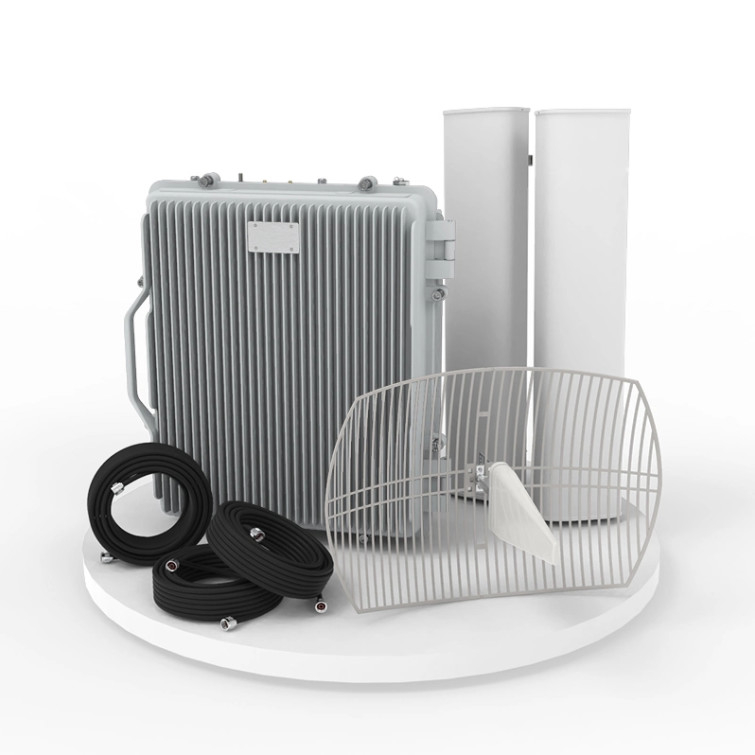

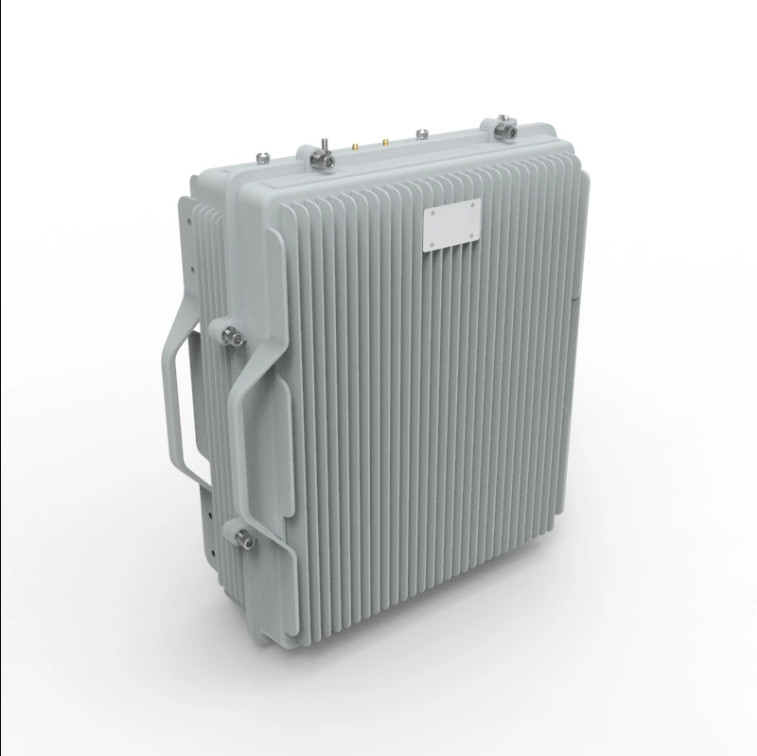

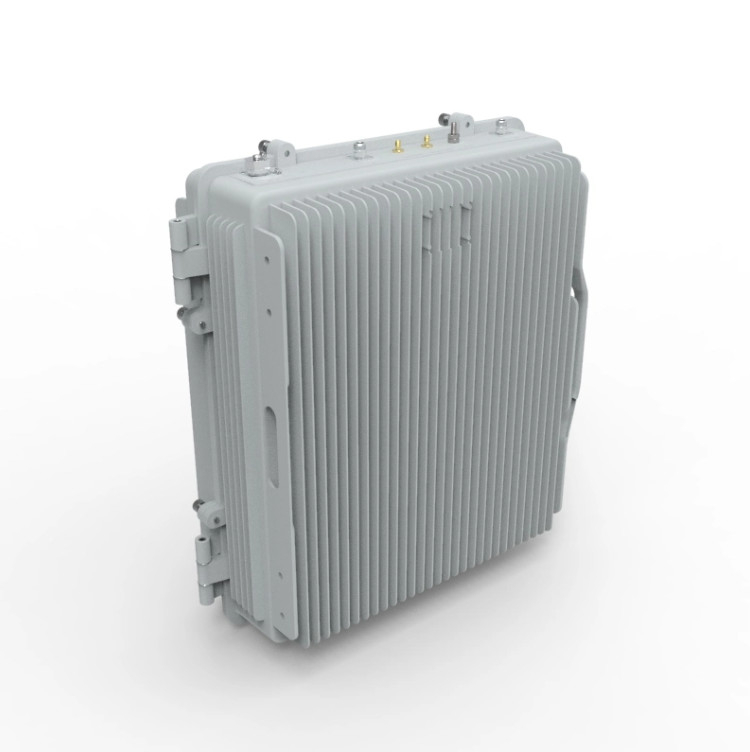

Greetwin High Power Professional 2W Tri-Band 1800 2100 2600 MHz 33dBm Signal Repeater
| Frequency range | Uplink (UL) | Downlink (DL) | |
| DCS 1800 MHz | 1710MHz - 1785MHz | 1805MHz - 1880MHz | |
| WCDMA 2100 MHz | 1920MHz - 1980MHz | 2110MHz - 2170MHz | |
| LTE 2600 MHz | 2500MHz - 2570MHz | 2620MHz - 2690MHz | |
| Bandwidth | 25 MHz | 25 MHz | |

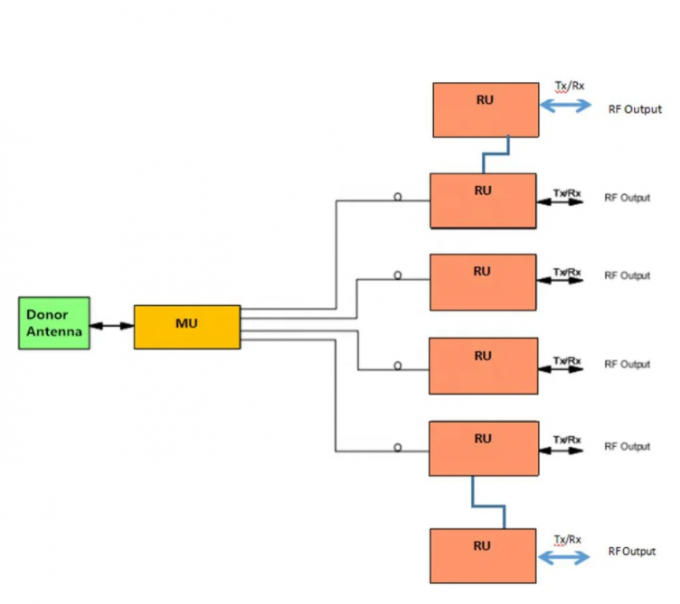

| Output Power | MU | -10 ± 2dBm | - |
| | RU | -10dBm | 43 ± 2dBm |
| Gain | MU + RU | - | 90 ± 2dB |
| Ripple in band | ≤ 6dB | ≤ 6dB | |
| VSWR | ≤ 1.5 | ≤ 1.5 | |
| Max Input Power without Damage | -10dBm | 10dBm | |
| Inter-modulation Products | 9KHz~1GHz | ≤ -36dBm | ≤ -36dBm |
| | 1GHz~12.75GHz | ≤ -30dBm | ≤ -30dBm |
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | ≤ -36dBm |
| | 1GHz~12.75GHz | ≤ -30dBm | ≤ -30dBm |
| EVM | ≤ 12.5% | ≤ 12.5% | |
| ATT (Gain Adjustable Range) (RU) | 0 ~ 30dB | 0 ~ 30dB | |
| ALC (AGC), Auto Gain (Level) Control Range | ≥ 20dB | ≥ 20dB | |
| ALC (AGC) active @ 10dB, output error | ≤ 2dB | ≤ 2dB | |
| Repeater Setting with Control Key | Yes | ||
| Local & Remote Control | Local | RJ-45 | |
| Remote | Built in Wireless (SMS or data) Modem | ||
| Optical Receiver Sensitivity | ≥ -20dBm | ||
| Transmission Distance | ≥ 20KM | ||
| Power Supply | | AC 100 ~ 240V | |
| Power Consumption | MU | ≤ 50w | |
| RU | ≤ 400w | ||
| RF Connector | N-Female (MU & RU) | ||
| Protection Grade | MU | IP30 | |
| RU | IP65 | ||
| Grounding | DC to Ground (MU & RU) | ||
| Relative Humidity | 5% ~ 95% | ||
| Operating Temperature | -20ºC ~ +55ºC | ||
| Size | MU | 485*305*44mm | |
| | RU | 450*350*190mm | |
| Weight | MU | < 6kg | |
| | RU | < 25kg | |
