| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-JMP68XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

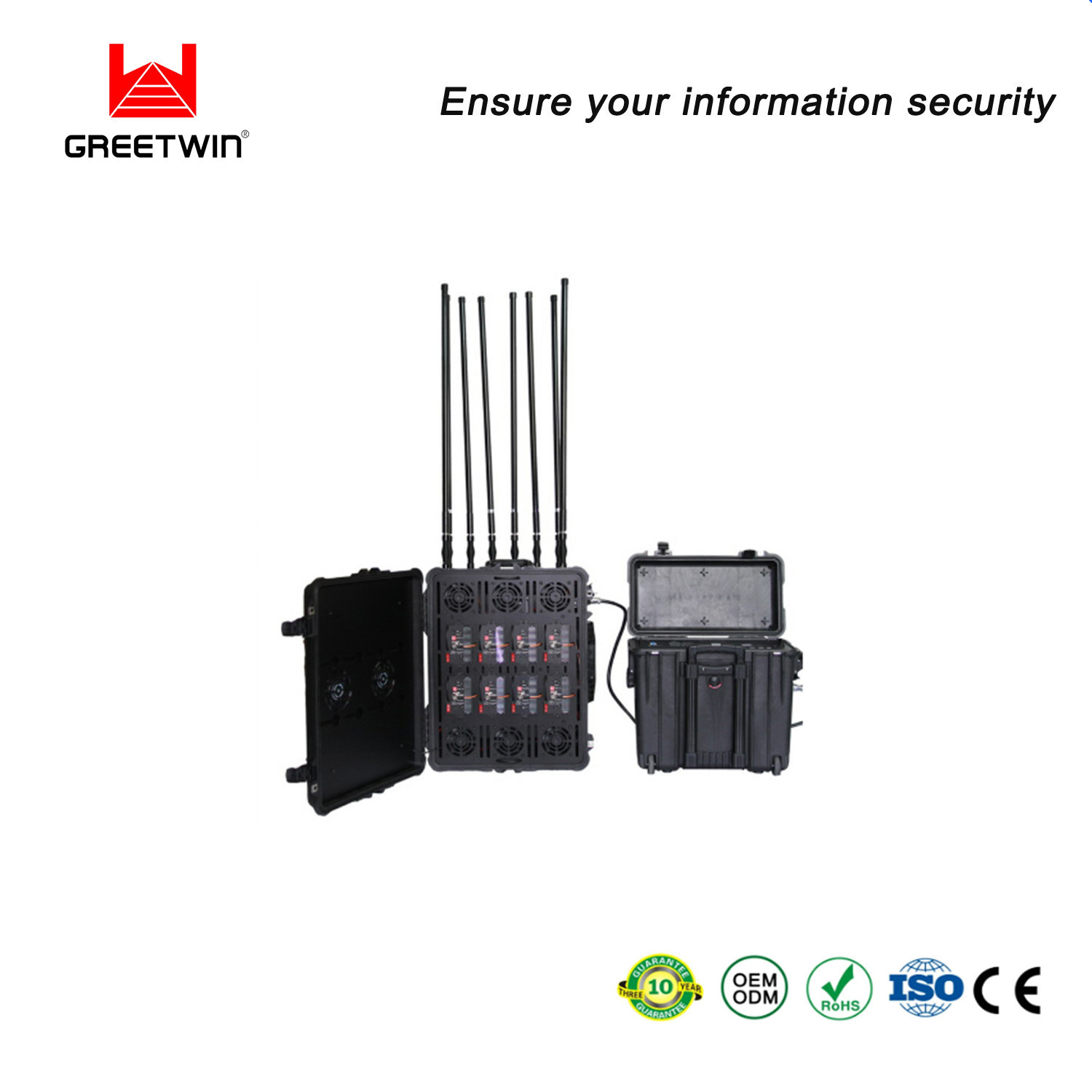

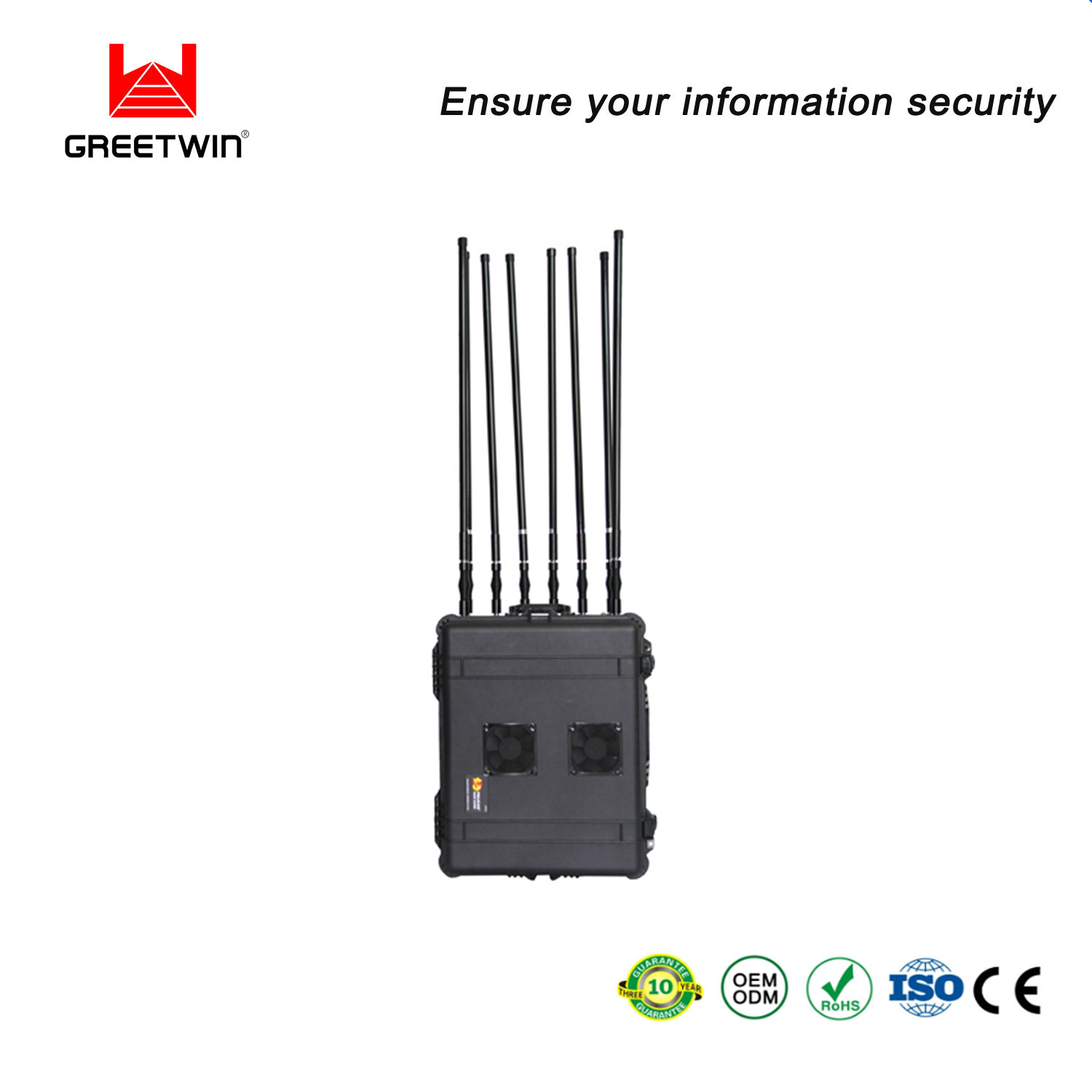

Portable Briefcase RCIED ,Briefcase Jammer is a wide-band portable jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Briefcase Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Briefcase Jammers are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border rossings, roadblocks, Embassies, Police and Government offices etc. Briefcase Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.
| GW-JMP68XF Europe ( 8 Bands) | GW-JMP68XF-5G America ( 8 Bands) | |
| 920-965MHz: 100W GSM 900 | 850-895MHz: 100W CDMA 900 | |
| 1800-1880MHz 100W DCS GSM 1800 | 1920-1990MHz 100W PCS CDMA 1900 | |
| 2100-2170MHz: 100W 3G UMTS | 2100-2170MHz: 100W 3G UMTS | |
| 2620-2690MHz: 100W 4G LTE & WiMax | 2500-2700MHz: 100W 4G LTE & WiMax | |
| 2400-2500MHz: 100W WiFi & Bluetooth | 2400-2500MHz: 100W WiFi & Bluetooth | |
| 790-830MHz: 100W 4G Low LTE | 700-800MHz: 100W 4G Low LTE | |
| 3400-3800MHz: 20W 5G | 3400-3700MHz: 20W 5G | |
| 400-480MHz: 100W UHF | 400-480MHz: 100W UHF | |
| (Option) 5.0-5.5GHz:15W, 5.5-6.0GHz:15W WiFi 11.a Civil Remote Contorl Toys: 200-300MHz:100W, 300 -400MHz:100W: GPS L1 L2 L3 L4 L5: 100W | (Option) 5.0-5.5GHz:15W, 5.5-6.0GHz:15W WiFi 11.a Civil Remote Contorl Toys: 200-300MHz:100W, 300 -400MHz:100W: GPS L1 L2 L3 L4 L5: 100W | |
| 720 W | 720 W | |
| Power supply: | AC adapter (AC220V-DC27V or 24V/ 45 Amp) or External Battery | |
| Jamming Range: | 500-1000 meters@ï¼75dBm | |
| Stand-alone modular design and individual power control. | ||
| Adjustable Output Power each Band/Channel | ||
| VSWR over protection for each modular. | ||
| Working status indicator for each band modular. | ||
| Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS | ||
| 450MHz/VHF/UHF/WiFi/GPS/4G WiMax, VHF, UHF | ||
| Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater. | ||
| Dimension:626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620 | ||
| Weight:45 Kg (approximately) just main unit not included antenna & all accessories | ||
| Operating temperature:-20â~ +60â | ||
| Humidity: 5% ~ 90% | ||
| Antennas Spec | 850-960Mhz : Omni | 5dBi, 650mm, 0.8Kg |
| 1500-1600Mhz : Omni | 5dBi, 650mm, 0.8Kg | |
| 1805-1990Mhz : Omni | 5dBi, 650mm, 0.8Kg | |
| 2000-2200Mhz : Omni | 6dBi, 650mm, 0.8Kg | |
| 2400-2500Mhz : Omni | 7dBi, 650mm, 0.8Kg | |
| 2600-2650Mhz : Omni | 7dBi, 650mm, 0.8Kg | |
| 3400-3800Mhz : Omni | 7dBi, 650mm, 0.8Kg | |
| 130-180/400-500MHz: Omni | 2-4 dBi, 900mm, 1.5Kg | |
| External Battery | B-50AH 27V/50AH LiFePo4 Battery | |
| Pelican Case 1440, 35kg Weight | ||
| Work 1-2 hours | ||
| Warranty: | 1 year | |
Portable Briefcase RCIED ,Briefcase Jammer is a wide-band portable jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Briefcase Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Briefcase Jammers are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border rossings, roadblocks, Embassies, Police and Government offices etc. Briefcase Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.
| GW-JMP68XF Europe ( 8 Bands) | GW-JMP68XF-5G America ( 8 Bands) | |
| 920-965MHz: 100W GSM 900 | 850-895MHz: 100W CDMA 900 | |
| 1800-1880MHz 100W DCS GSM 1800 | 1920-1990MHz 100W PCS CDMA 1900 | |
| 2100-2170MHz: 100W 3G UMTS | 2100-2170MHz: 100W 3G UMTS | |
| 2620-2690MHz: 100W 4G LTE & WiMax | 2500-2700MHz: 100W 4G LTE & WiMax | |
| 2400-2500MHz: 100W WiFi & Bluetooth | 2400-2500MHz: 100W WiFi & Bluetooth | |
| 790-830MHz: 100W 4G Low LTE | 700-800MHz: 100W 4G Low LTE | |
| 3400-3800MHz: 20W 5G | 3400-3700MHz: 20W 5G | |
| 400-480MHz: 100W UHF | 400-480MHz: 100W UHF | |
| (Option) 5.0-5.5GHz:15W, 5.5-6.0GHz:15W WiFi 11.a Civil Remote Contorl Toys: 200-300MHz:100W, 300 -400MHz:100W: GPS L1 L2 L3 L4 L5: 100W | (Option) 5.0-5.5GHz:15W, 5.5-6.0GHz:15W WiFi 11.a Civil Remote Contorl Toys: 200-300MHz:100W, 300 -400MHz:100W: GPS L1 L2 L3 L4 L5: 100W | |
| 720 W | 720 W | |
| Power supply: | AC adapter (AC220V-DC27V or 24V/ 45 Amp) or External Battery | |
| Jamming Range: | 500-1000 meters@ï¼75dBm | |
| Stand-alone modular design and individual power control. | ||
| Adjustable Output Power each Band/Channel | ||
| VSWR over protection for each modular. | ||
| Working status indicator for each band modular. | ||
| Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS | ||
| 450MHz/VHF/UHF/WiFi/GPS/4G WiMax, VHF, UHF | ||
| Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater. | ||
| Dimension:626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620 | ||
| Weight:45 Kg (approximately) just main unit not included antenna & all accessories | ||
| Operating temperature:-20â~ +60â | ||
| Humidity: 5% ~ 90% | ||
| Antennas Spec | 850-960Mhz : Omni | 5dBi, 650mm, 0.8Kg |
| 1500-1600Mhz : Omni | 5dBi, 650mm, 0.8Kg | |
| 1805-1990Mhz : Omni | 5dBi, 650mm, 0.8Kg | |
| 2000-2200Mhz : Omni | 6dBi, 650mm, 0.8Kg | |
| 2400-2500Mhz : Omni | 7dBi, 650mm, 0.8Kg | |
| 2600-2650Mhz : Omni | 7dBi, 650mm, 0.8Kg | |
| 3400-3800Mhz : Omni | 7dBi, 650mm, 0.8Kg | |
| 130-180/400-500MHz: Omni | 2-4 dBi, 900mm, 1.5Kg | |
| External Battery | B-50AH 27V/50AH LiFePo4 Battery | |
| Pelican Case 1440, 35kg Weight | ||
| Work 1-2 hours | ||
| Warranty: | 1 year | |
