| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-JBP90XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
20000pcs per Month
| Frequency | GW-JBP90XF Battery ( 3 Bands) | |
| 850-960MHz | 50W | |
| 1800-2000MHz | 50W | |
| 2100-2170MHz | 50W | |
| VHF 130-180MHz | Option 50W | |
| UHF: 420-480Mhz | Option 50W | |
| WiFi 2400-2480MHz | Option 30W | |
| GPS: L1 1575.42Mhz | Option 30W | |
| GPS: L2 1227.60MHz | Option 30W | |
| Total output power: | 150 W (Max 3 Bands) | |
| Power supply: | AC adapter (AC220V-DC27V or 24V/18Amp) | |
| Jamming Range: | 200-500 meters@ï¼75dBm | |
| Battery Operating Time | NO Battery | |
| Stand-alone modular design and individual power control. | ||
| Adjustable Output Power each Band/Channel | ||
| VSWR over protection for each modular. | ||
| Temperature over protection. | ||

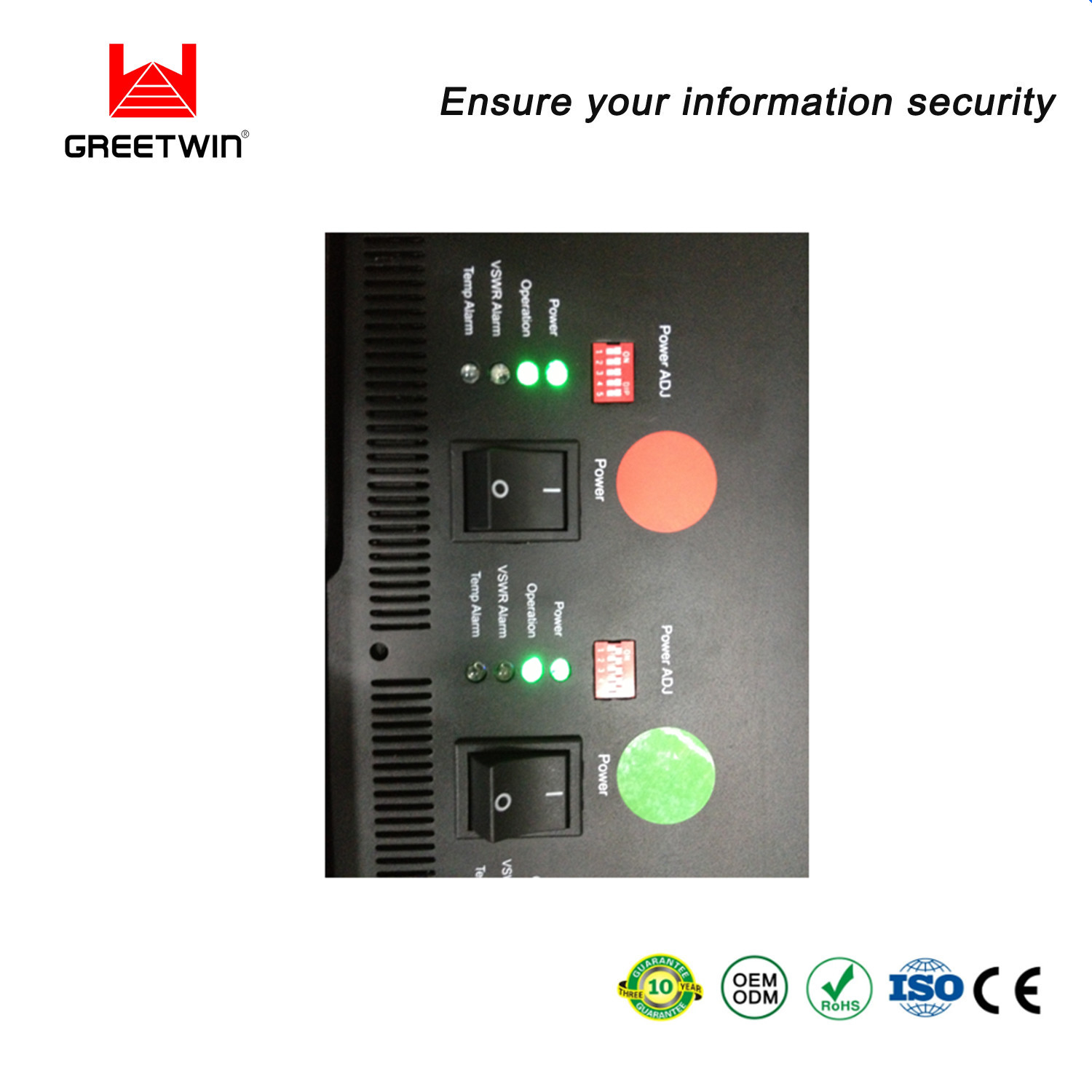

| Working status indicator for each band modular. | ||
| Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS | ||
| 450MHz/GPS L1:1575.42MHz/GPS L2:1227.6MHz/WiFi 2.4GHz | ||
| Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater. | ||
| Dimension:51cm(L)×43cm(W)×20cm(D) | ||
| Weight:30 Kg (approximately) just main unit not included antenna & all accessories | ||
| Operating temperature: -20â ~ +60â | ||
| Humidity: 5% ~ 90% | ||
| Antennas Spec | 130-180MHz :Omni 360 | 3dBi, 800mm long, 0.8Kg weight |
| | 420-480MHz :Omni 360 | 5dBi, 800mm long, 0.8Kg weight |
| | 850-960Mhz :Omni 360 | 6dBi, 650mm long, 0.8Kg weight |
| | 1800-1990Mhz :Omni 360 | 7dBi, 650mm long, 0.8Kg weight |
| | 2000-2200Mhz :Omni 360 | 8dBi, 650mm long, 0.8Kg weight |
| | 2400-2500Mhz :Omni 360 | 8dBi, 650mm long, 0.8Kg weight |
| Warranty: | 1 year | |
| Frequency | GW-JBP90XF Battery ( 3 Bands) | |
| 850-960MHz | 50W | |
| 1800-2000MHz | 50W | |
| 2100-2170MHz | 50W | |
| VHF 130-180MHz | Option 50W | |
| UHF: 420-480Mhz | Option 50W | |
| WiFi 2400-2480MHz | Option 30W | |
| GPS: L1 1575.42Mhz | Option 30W | |
| GPS: L2 1227.60MHz | Option 30W | |
| Total output power: | 150 W (Max 3 Bands) | |
| Power supply: | AC adapter (AC220V-DC27V or 24V/18Amp) | |
| Jamming Range: | 200-500 meters@ï¼75dBm | |
| Battery Operating Time | NO Battery | |
| Stand-alone modular design and individual power control. | ||
| Adjustable Output Power each Band/Channel | ||
| VSWR over protection for each modular. | ||
| Temperature over protection. | ||
| Working status indicator for each band modular. | ||
| Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS | ||
| 450MHz/GPS L1:1575.42MHz/GPS L2:1227.6MHz/WiFi 2.4GHz | ||
| Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater. | ||
| Dimension:51cm(L)×43cm(W)×20cm(D) | ||
| Weight:30 Kg (approximately) just main unit not included antenna & all accessories | ||
| Operating temperature: -20â ~ +60â | ||
| Humidity: 5% ~ 90% | ||
| Antennas Spec | 130-180MHz :Omni 360 | 3dBi, 800mm long, 0.8Kg weight |
| | 420-480MHz :Omni 360 | 5dBi, 800mm long, 0.8Kg weight |
| | 850-960Mhz :Omni 360 | 6dBi, 650mm long, 0.8Kg weight |
| | 1800-1990Mhz :Omni 360 | 7dBi, 650mm long, 0.8Kg weight |
| | 2000-2200Mhz :Omni 360 | 8dBi, 650mm long, 0.8Kg weight |
| | 2400-2500Mhz :Omni 360 | 8dBi, 650mm long, 0.8Kg weight |
| Warranty: | 1 year | |
