| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-JMP-DDS68L
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

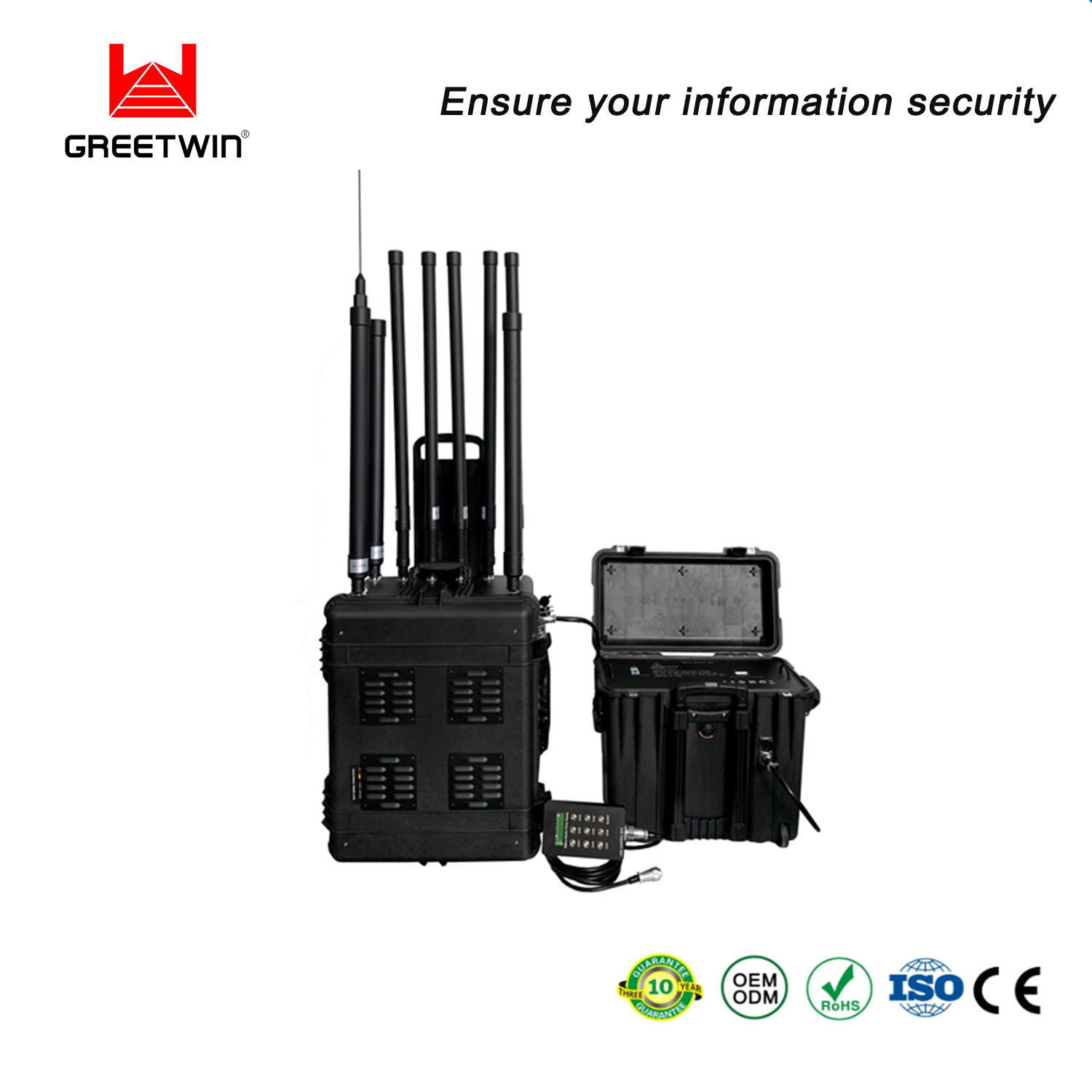

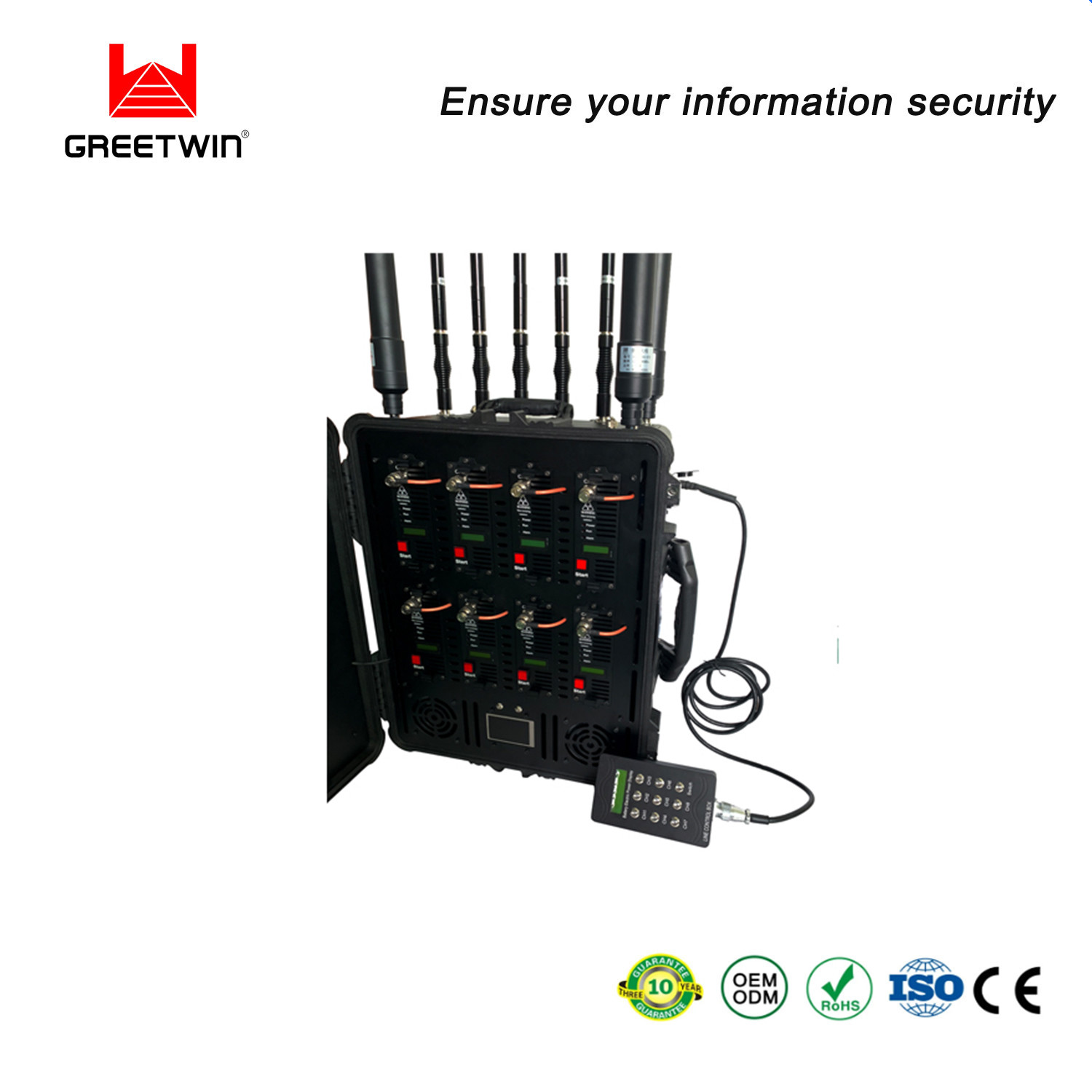

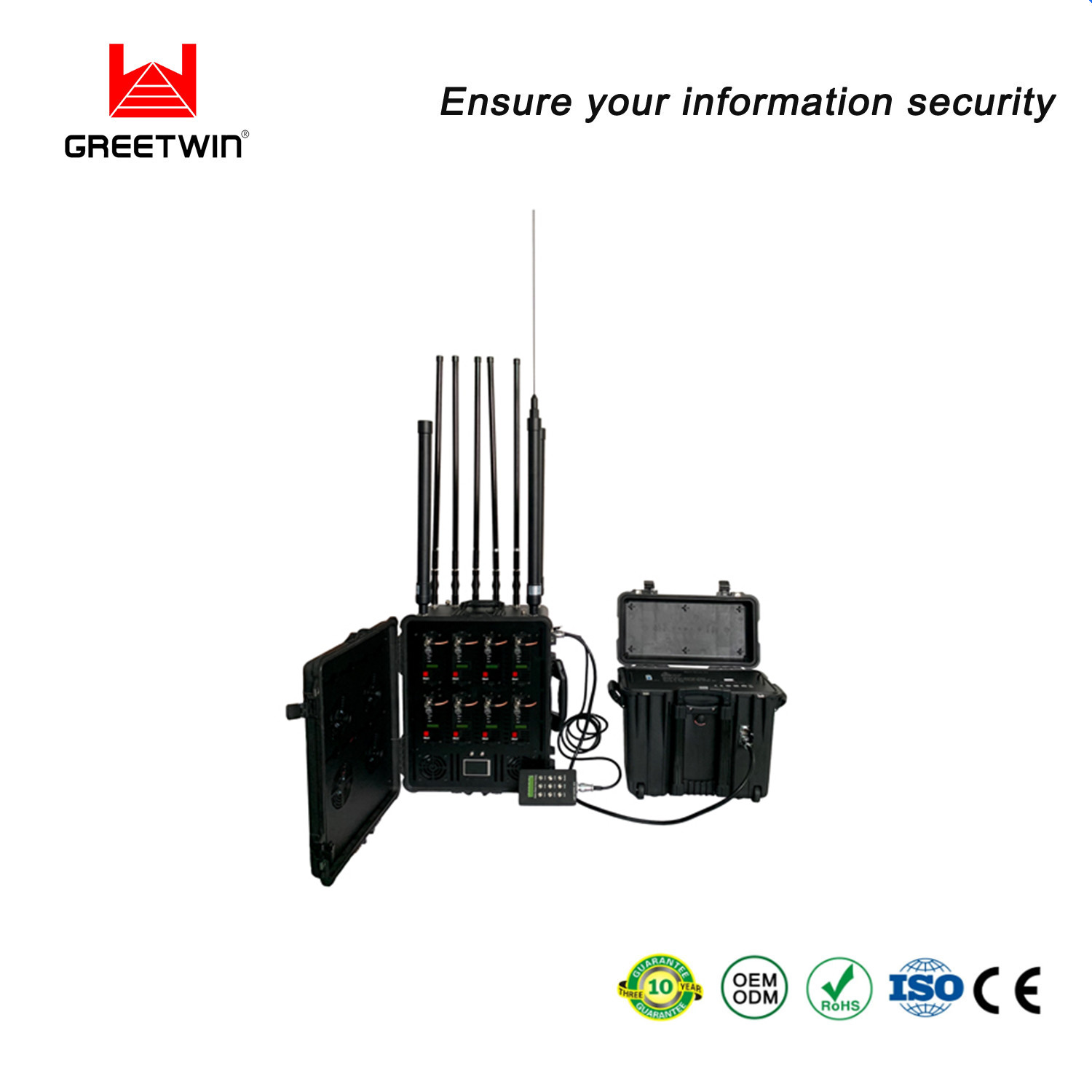

DDS High Power Blocker Multi-Band Vehicle Bomb 360W Signal Cell Phone Signal Jammer
Portable Pelican RCIED, DDS Jammer is a wide-band portable jamming system, designed for Bomb disposal squads, VIP protection, Special Police (S.W.A.T.), military security force, bomb squads, anti-terror units, anti-drug units, border control units, checkpoint personnel, these types of law enforcement personnel who benefit greatly from deployment of any of these best-in-class portable RF jamming solutions.
They can conduct the law enforcement process more effectively to reduce the chance that the criminals leak the information.
| GW-JMP-DDS68L Europe ( 8 Bands) |
| 20-100MHz: 50W |
| 27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control |
| 100-300MHz 50W VHF |
| Low-power transmitters |
| 300-500MHz: 50W |
| Walky-Talky, 315/433MHz Car Remote Control |
| 8000-1000MHz: 50W |
| CDMA GSM |
| 1800-2000MHz: 50W |
| DCS 4G LTE |
| 2000-2200MHz 50W |
| 3G |
| 2400-2500MHz: 20W |
| WiFi Bluetooth, WLAN |
| 2500-2700MHz: 40W |
| 4G LTE & WiMax |
| (Option) : 2.4GHz: 100W, GPS L1+ Glonass L1 500-1700MHz, GPS L2 + Glonass L2: 1100-1300MHz, GPS L3+L4, GPS L5: 80W (Can be no Gap from 20-2700MHz) |
| 360 W |
| Power supply: |
| Jamming Range: |
| Stand-alone modular design and individual power control. |
| Antenna: High Gain Omnidirectional |
| Jamming Frequency Bands Number: more than 20 bands |
| RJ485 Protocol : Can control all 8 modules by one RJ485 connector (Not like RS-232 needs to connect each module one by one). One Computer interface control all 8 bands |
| Each module has one LED show Frequency, ON/OFF Status, Output power |
| One Main LED to show all 8 bands/modules status: Frequency, Four Windows setting, Output power, VSWR, Working Voltage, Working current Amp, Temperature |
| (Do not need Computer to check one module by one module status) |
| Adjustable the Frequency and Output Power each Band/Channel by Computer |
| VSWR over protection for each modular. |
| Working status indicator for each band modular. |
| Dimension:626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620 |
| Weight:36 Kg (approximately) just main unit not included antenna & all accessories |
| Operating temperature: -35â ~ +80â |
| Humidity: 5% ~ 90% |
| External Battery |
| Warranty:1 year |
To protect military and VIP team as well as some important place from the road-side remote improvised explosive device (RCIED) attacks is becoming a global challenges and tremendous task in security fileds. Vehicular IED Jammer is specially customized to accommodate a broad-band bomb jamming system which simultaneously covers the relevant bands of radio frequencies .
It is designed to be mounted in the trunk of vehicle to prevent the criminals or terrorists who are using to detonate RCIED.
As to the different intensity of the field environment signal, the equipment can be used to cut off GSM, CDMA,GPS,DCS, PHS, 2.4G, 3G, 4G, 5.8G and other wireless communication equipment within a radius of 100-1000 meters to ensure the effectiveness of signal control.
Meanwhile, according to the actual situation of the user's target area, different vehicle models can be selected for installation.
Application
Mine clearance teams, military forces, border patrol, bomb detection teams, VIP security forces, Law Enforcement Agencies, EOD technicians, Government Contractors, and Government Agencies.
System Features
Modular design, independent work between modules, more efficient performanceSegmented block, jamming downlink signal only, do not affect operator uplink signals, to ensure the validity of the signal block, and also no harm to human bodyFrequency band can be customized according to the needs of users, including GSM, CDMA,GPS,DCS, PHS 2.4G,3G, 4G, 5.8G and other wireless communication equipment including mobile phone signal, uav signal, WiFi, bluetooth, Walkie-Talkie and other wireless communication equipmentDirectional antenna or omni-directional antenna can be selected according to actual use requirements. The antenna is connected with the host via corrugated cable, with fixed interface for easy disassembly.The shell of the whole machine adopts aluminum alloy wiredrawing shell to ensure the heat dissipation and effectively improve the isolation degree between each module. At the same time convenient installation, all kinds of vehicle models can be installed.Built-in metal industrial switching power supply ensures the service life and jamming effect of the equipment. Can ensure continuous uninterrupted work for more than 3 years, the maximum extent to ensure the service life of the equipment, ensure that each channel has enough bandwidth power, to ensure the jamming effect.
