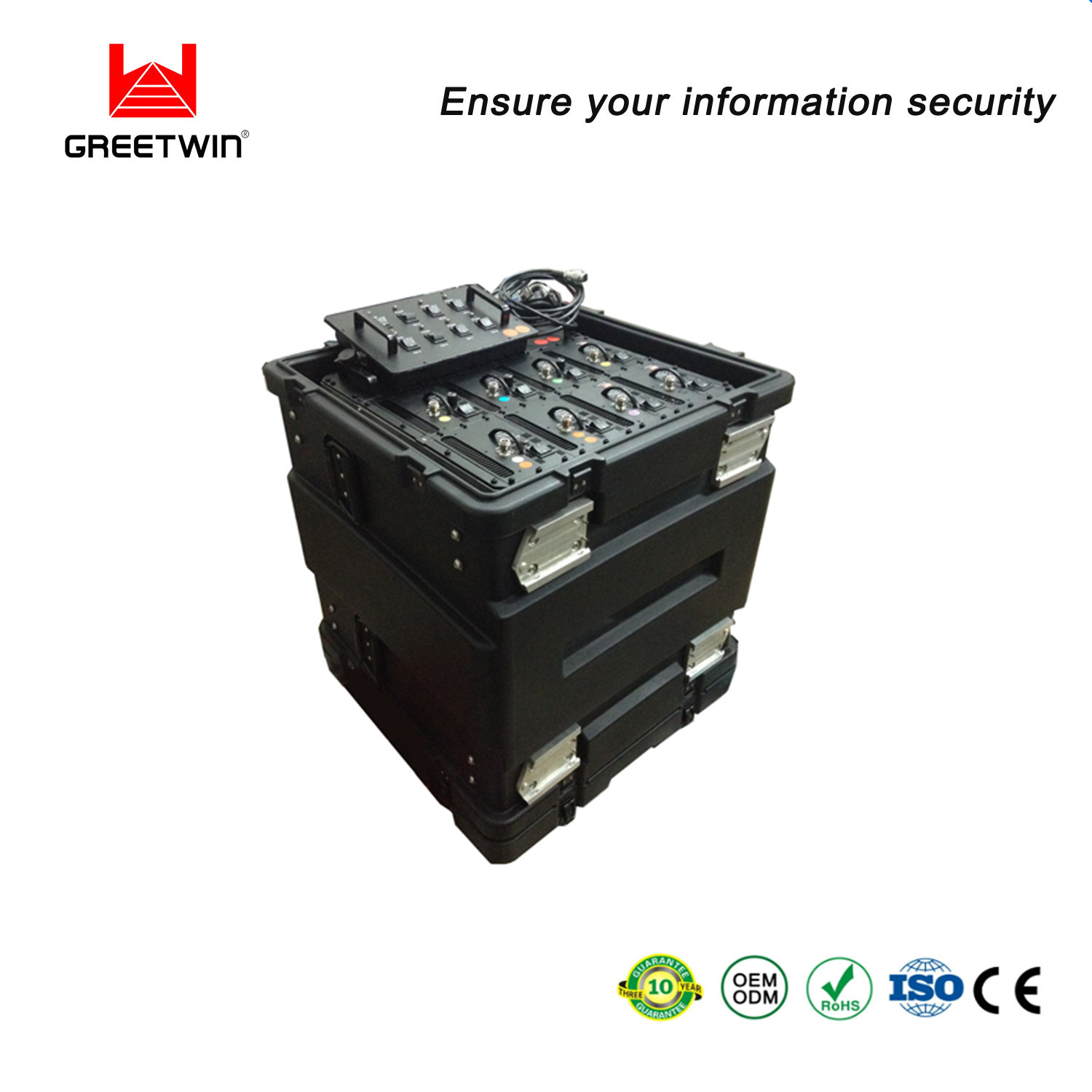

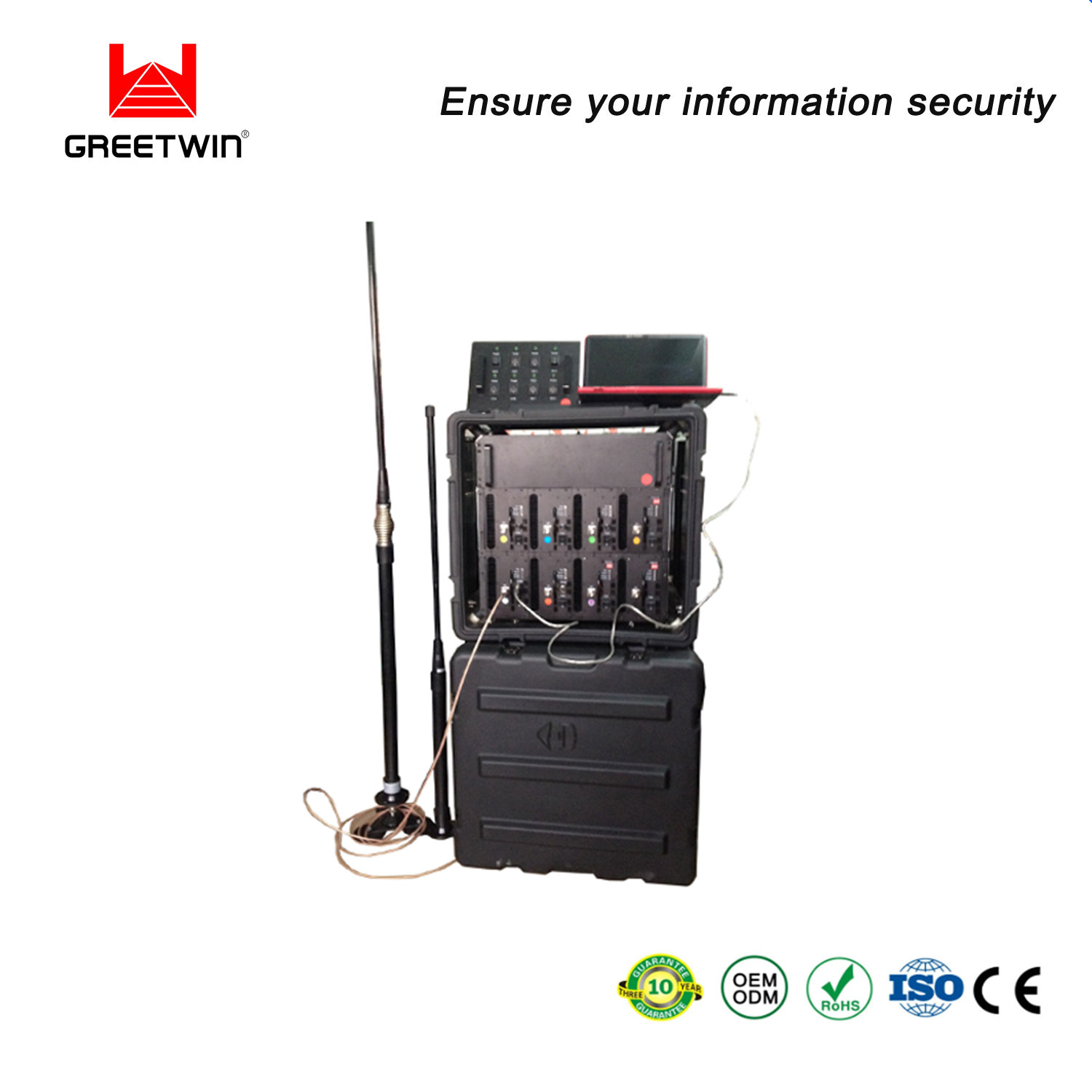

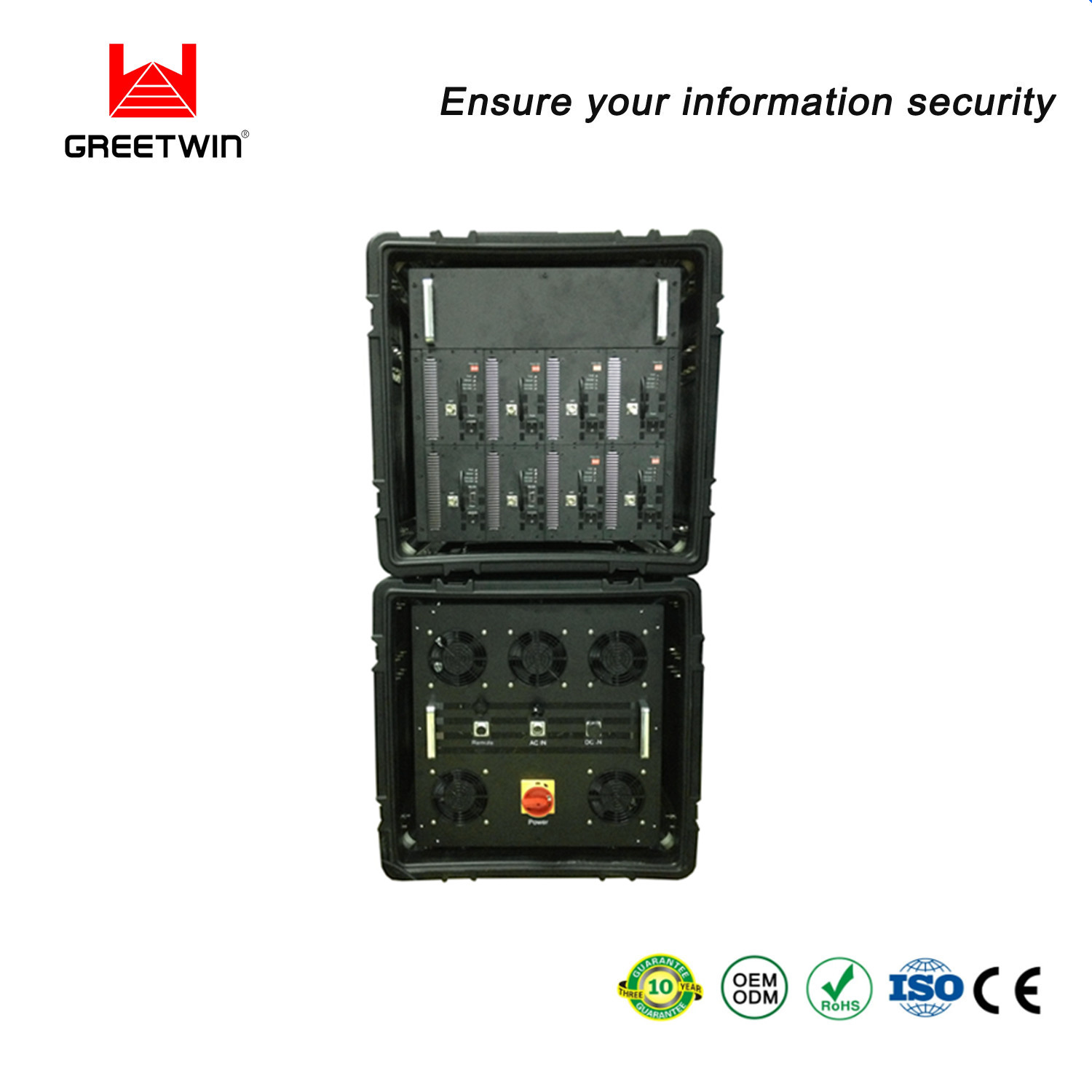

20MHz-2700MHz 590w Military Signal Blocker Portable RCIED Mobile Phone Jammer

Basic Information
Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001
Model Number: GW-UAV28XF
Minimum Order Quantity: 1pcs
Price: Contact Us
Packaging Details: Box with PE Foam
Delivery Time: 3 Working Days After Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20000pcs per Month
Jamming Range: 500-1000 Meters@-75dBm Power Supply:: AC Adapter (AC220V-DC27V Or 24V/ 60-70 Amp)
Dimension: 860mm(L)×620mm(W)×690mm(H) Weight: 75 Kg (approximately) Just Main Unit Not Included Antenna & All Accessories
Operating Temperature: -20℃~ +60℃ Humidity: 5% ~ 90%
Antenna: External Omni 750mm Long Or Directional Patch Panel Antennas
High Light:

590w Military Signal Blocker

,

2700MHz Military Signal Blocker

,

RCIED Mobile Phone Jammer

Military Police Government Convoy Jamming Portable RCIED Mobile Phone Pelican Jammer 20MHz-2700MHz, Max 590w 8 Bands



Details





RCIED Jammer is a wide-band Vehicle jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. RCIED Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. RCIED Jammers are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border rossings, roadblocks, Embassies, Police and Government offices etc. RCIED Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.



DDS-8028C ( 8 Bands)

DDS 20-100MHz 100W

Civil Remote Contorl Toys,

DDS 100-500MHz 100W:

VHF/UHF, Walkie-Talkie, 350MHz TETRA, RC Devices,

920-965MHz: 100W

GSM 900

1800-1880MHz 100W

DCS 1800

2100-2170MHz: 100W

3G UMTS

1520-1670MHz: 30W

GPS L1. SAT cell phones.

2400-2500MHz: 30W

WiFi 11.b, g

3.4-3.6GHz: 10W
570 W
Power supply: AC adapter (AC220V-DC27V or 24V/ 60-70 Amp)
Jamming Range: 500-1000 meters@-75dBm



















































Stand-alone modular design and individual power control.
Adjustable Output Power each Band/Channel
Remote Control by wired 5 Meters Cable
VSWR over protection for each modular.
Working status indicator for each band modular.
Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS
450MHz/VHF/UHF/WiFi/GPS/4G WiMax
Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater.
Dimension:860mm(L)×620mm(W)×690mm(H)
Weight:75 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20℃~ +60℃
Humidity: 5% ~ 90%
Antennas Spec DDS 20-100Mhz : Omni 2dBi, 1820mm, 2.5Kg
  DDS 100-500Mhz : Omni 3dBi, 1215mm, 1.5Kg
  850-960Mhz : Omni 5dBi, 650mm, 0.8Kg
  1500-1600Mhz : Omni 5dBi, 650mm, 0.8Kg
  1805-1990Mhz : Omni 5dBi, 650mm, 0.8Kg
  2000-2200Mhz : Omni 6dBi, 650mm, 0.8Kg
  2400-2500Mhz : Omni 7dBi, 650mm, 0.8Kg
  3.4-3.6GHz : Omni 10 dBi, 650mm, 0.8Kg
Warranty: 1 year
