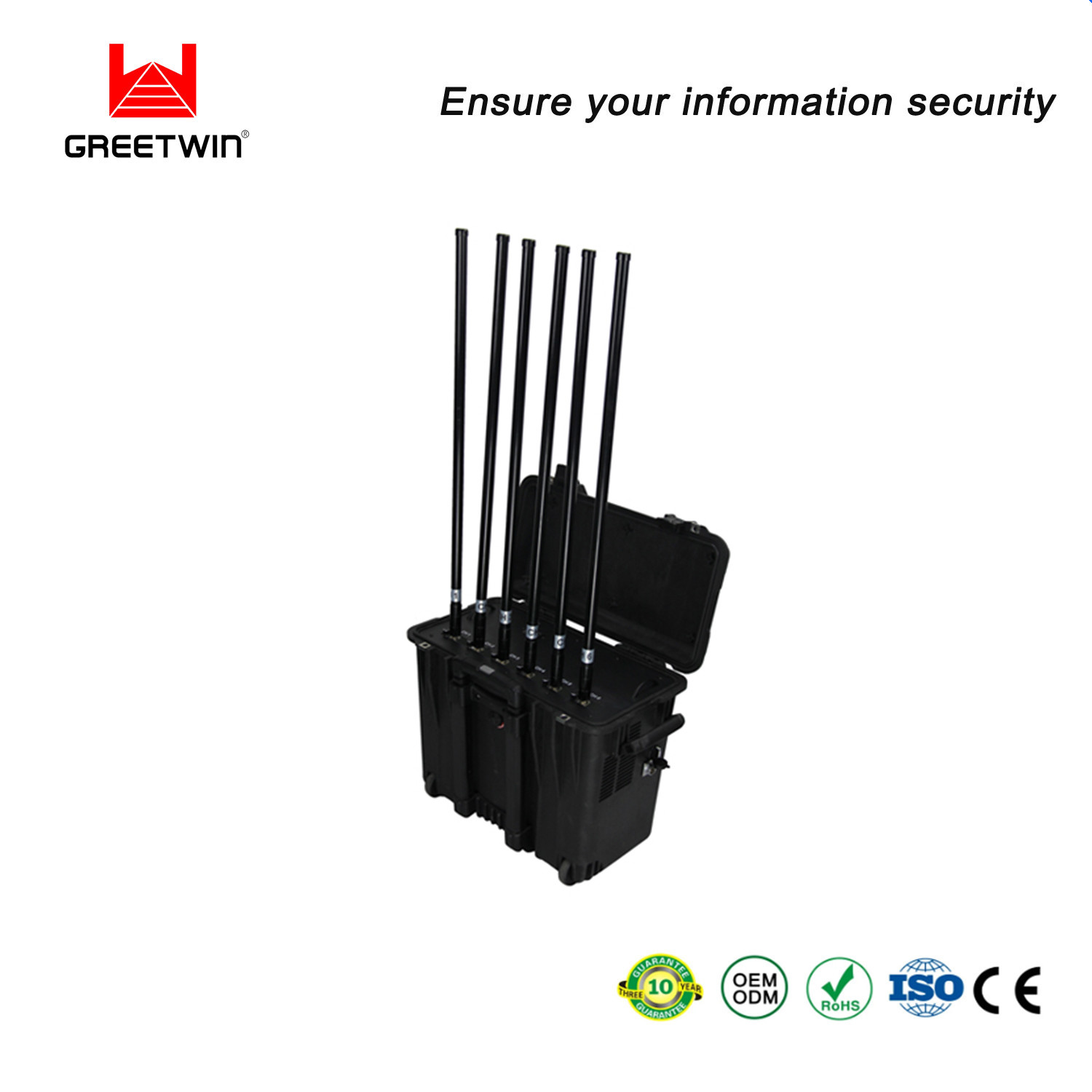

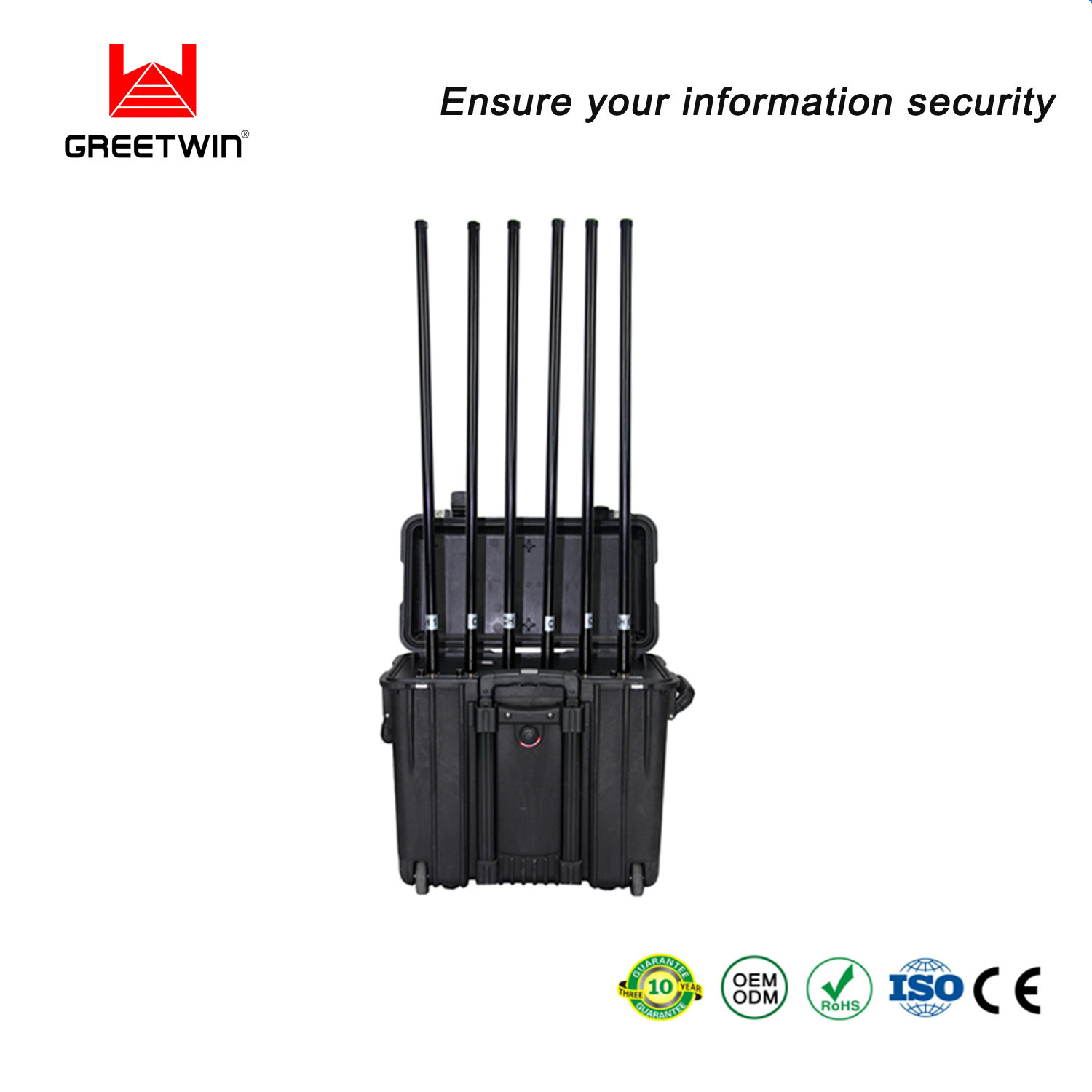

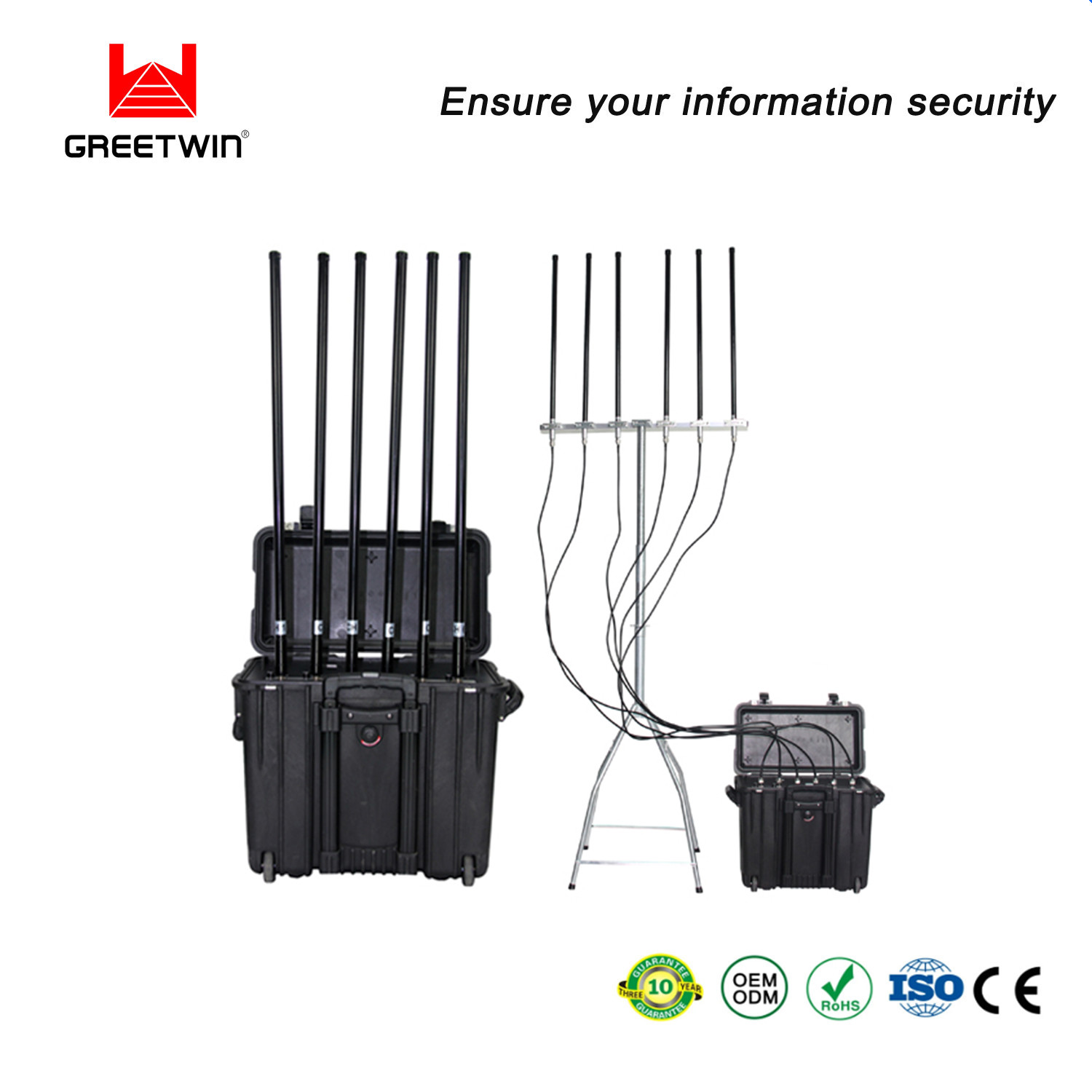

Mobile Phone 6 Bands Pelican 1440 Omni or Directional Antennas Built-in Battery
| PCB–3086A USA | PCB–3086E E4G | PCB–3086E GL |
| (6 bands) | 4G (6 bands) | VHF UHF (6 bands) |
| 850-895MHz 25W | 920-960MHz: 25W | 920-960MHz: 25W |
| GSM900 | GSM900 | |
| 1920-2000MHz | 1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz 20 W PCS GSM 1800 |
| 20 W | ||
| 2100-2170MHz | 2100-2170MHz 30 W | 2100-2170MHz 30 W |
| 30 W 3G UMTS | 3G UMTS | 3G UMTS |
| 700-800MHz:15W | 2620-2690MHz:20W | 2620-2690MHz20W |
| iPhone (AT&T & Verizon) | 4G LTE High | 4G LTE High |
| 2500-2700MHz:20W | 790-870MHz:20W | 173MHz:30W |
| 4G WiMax Sprint+WiFi | 4G LTE Low | LoJack 173 |
| 2400-2500MHz:20W | 2400-2500MHz: 20 W | GPS L1 1575MH: 40W |
| WiFi 11.b,g & Buletooth | WiFi 11.b, g | (1520-1670MHz: 40W) |
| Total : 185W | Total : 205 W | Total : 175 W |
| Option: 5.8GHz: 2.0W, GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, 4G 2620-2690MHz: 20W, LoJack 173MHz: 30W | ||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | ||
| 100% Safe VSWR over protection (Isolator) for each modular | ||
| Battery | +24V / 20AH LiFePO4 can work 1 Hours (PCB-3078B) | |
| Power supply: | AC110 or 220-240V /DC 27V | |
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | |
| Weight | PCB-3086B 26kg | |
| Dimension: | 500 x 305 x 457 mm (Pelican 1440 Case only ) | |
| Working time: | Without the time limit, May continue to work, | |
| Antenna | External Omni 750mm long or Directional Patch Panel Antennas | |
| Warranty: | 1 year | |
