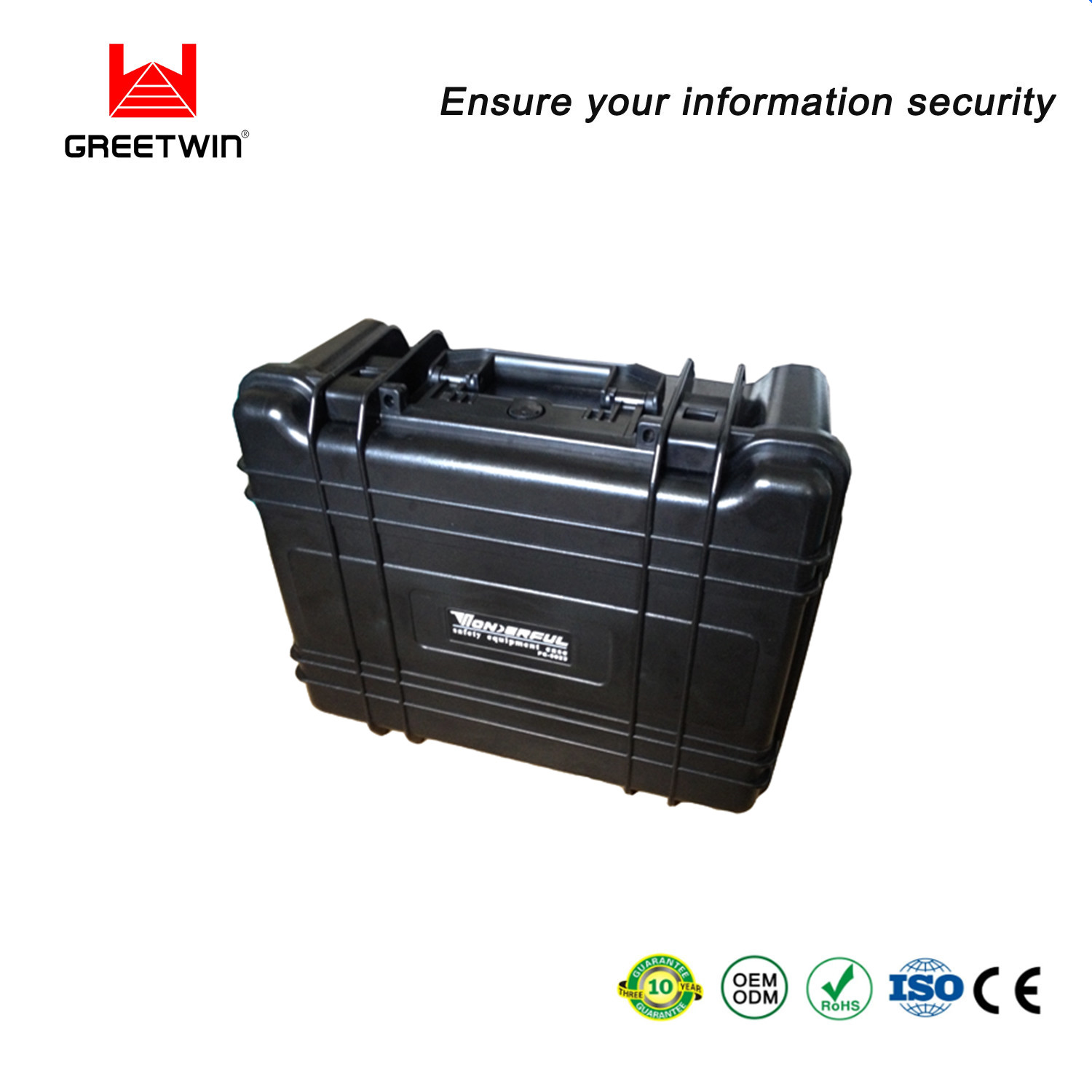

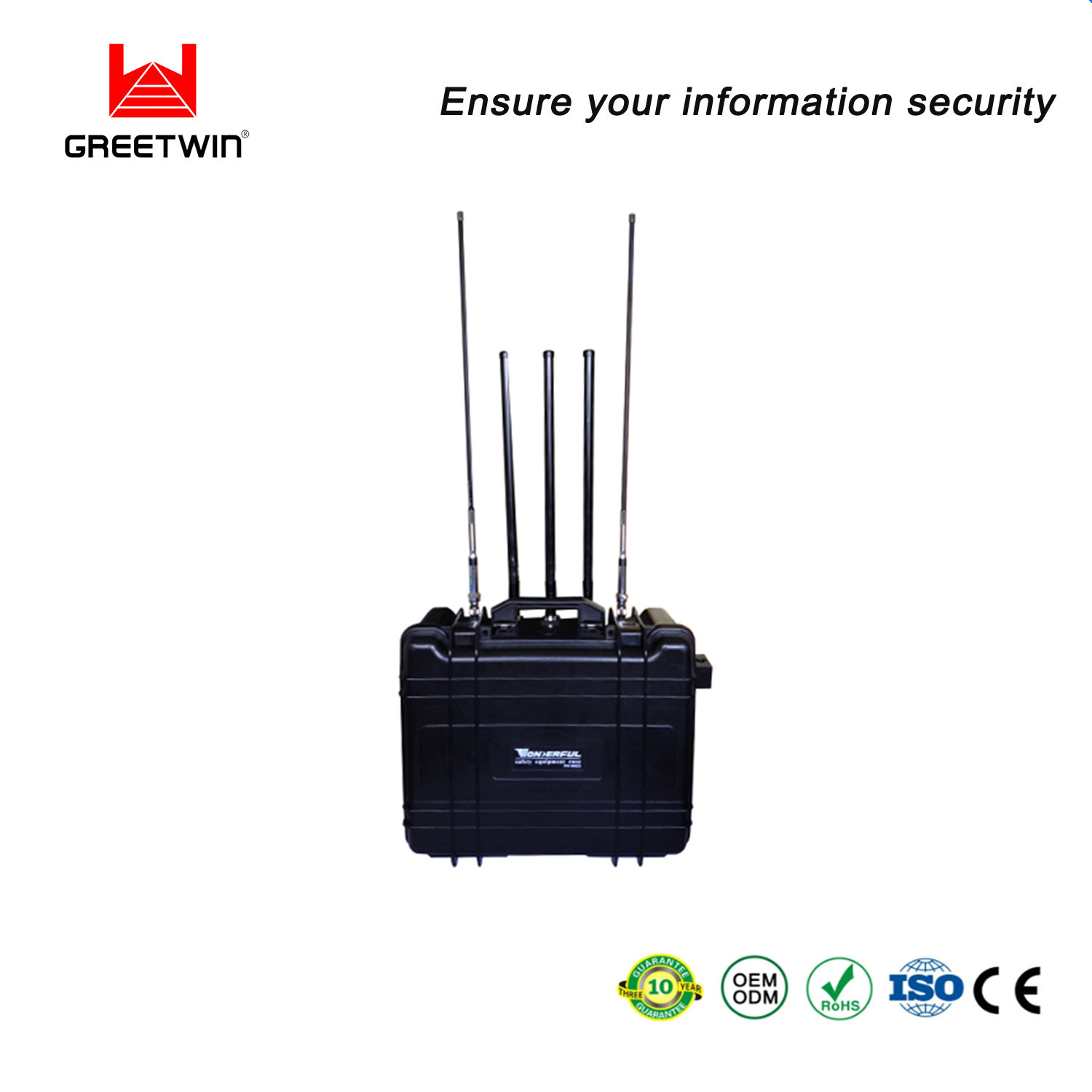

Drone Signal Jammer Used For Counter Protection Uavs Drones Jamming Drone Signals/Anti Uav Defense System
| GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | |
| (4 bands) | (4 bands) | (4 bands) | (5 bands) | (5 bands) | |
| 850-895MHz: | 850-895MHz | 850-895MHz 25W | 850-895MHz | 850-895MHz | |
| 25W | 25W | (920-965MHz) | 25W | 25W | |
| (920-965MHz) | (920-965MHz) | (920-965MHz) | |||
| 920-960MHz: 25W | 1920-1990MHz 15W | 1920-1990MHz 15W | 1920-1990MHz 15W | 1920-1990MHz 15W | |
| (1800-1880MHz) | (1800-1880MHz) | (1800-1880MHz) | (1800-1880MHz) | ||
| 1800-2000MHz | 2100-2170MHz 15W | 2100-2170MHz 15W | 2100-2170MHz 15W | 2100-2170MHz 15W | |
| 15 W | |||||
| 2100-2170MHz | 2400-2500MHz: 8W | GPS L1 1575MH: 8W | 2400-2500MHz: 8W | VHF 130-180MHz | |
| 15 W | Walkie Talkie:20W | ||||
| N/A | N/A | N/A | 2620-2690MHz | UHF 420-480MHz | |
| 4G :5W | Walkie Talkie:20W | ||||
| Total : 80 W | Total : 63 W | Total : 63 W | Total : 68 W | Total : 95 W | |
| Option: GPS L2 L3 L4 L5: 8W, VHF 130-180MHz: 20W, UHF 420-480MHz: 20W, | |||||
| 4G 2620-2690MHz: 5W, LoJack 173MHz: 20W | |||||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||||
| VSWR over protection for each modular | |||||
| Battery | +24V / 45AH LiFePO4 can work 3-5 Hours. | ||||
| Power supply: | AC110 or 220-240V /DC 27V | ||||
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | ||||
| Weight | 25Kg | ||||
| Dimension: | 518 x 428 x 228 mm (Case only ) | ||||
| Working time: | Without the time limit, May continue to work, | ||||

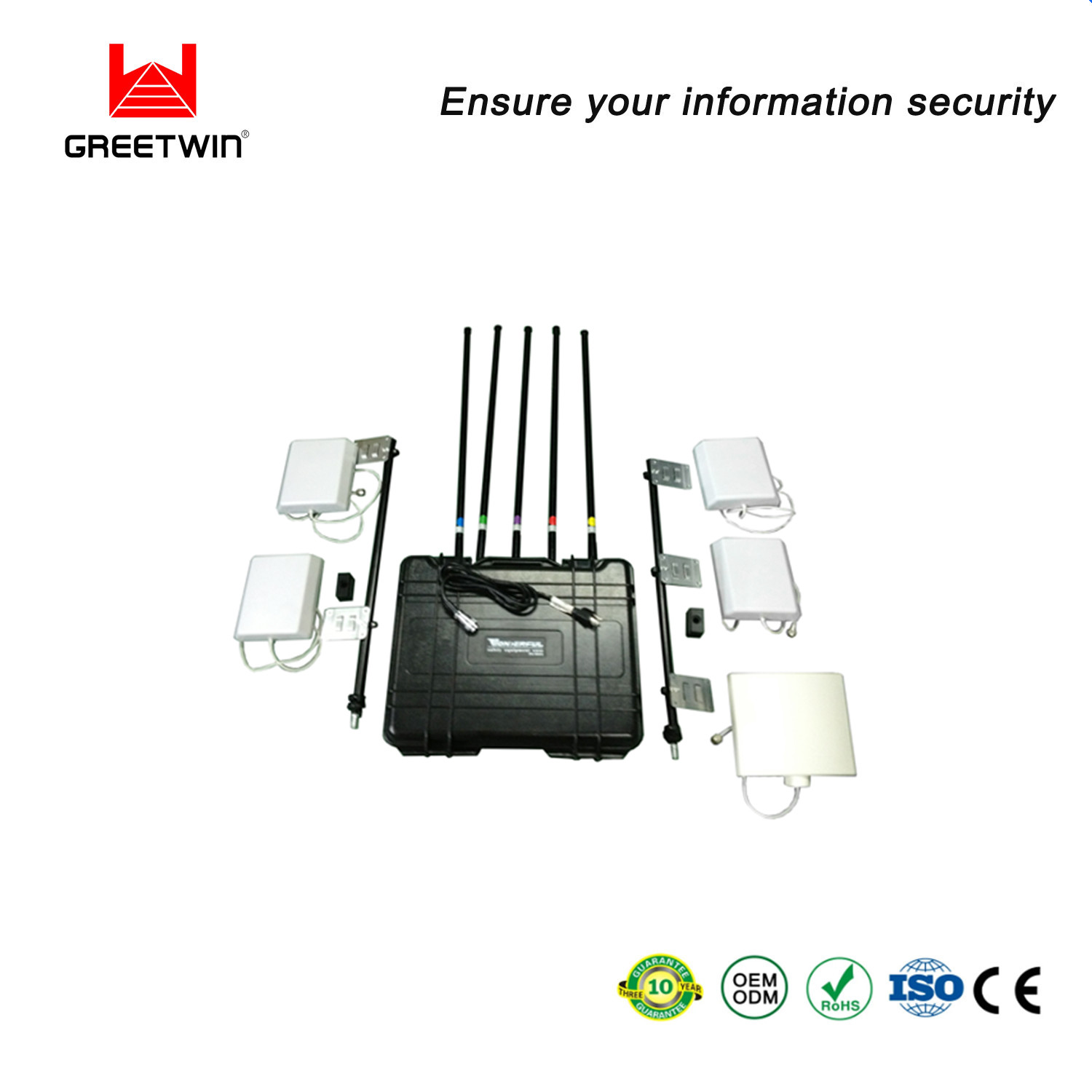

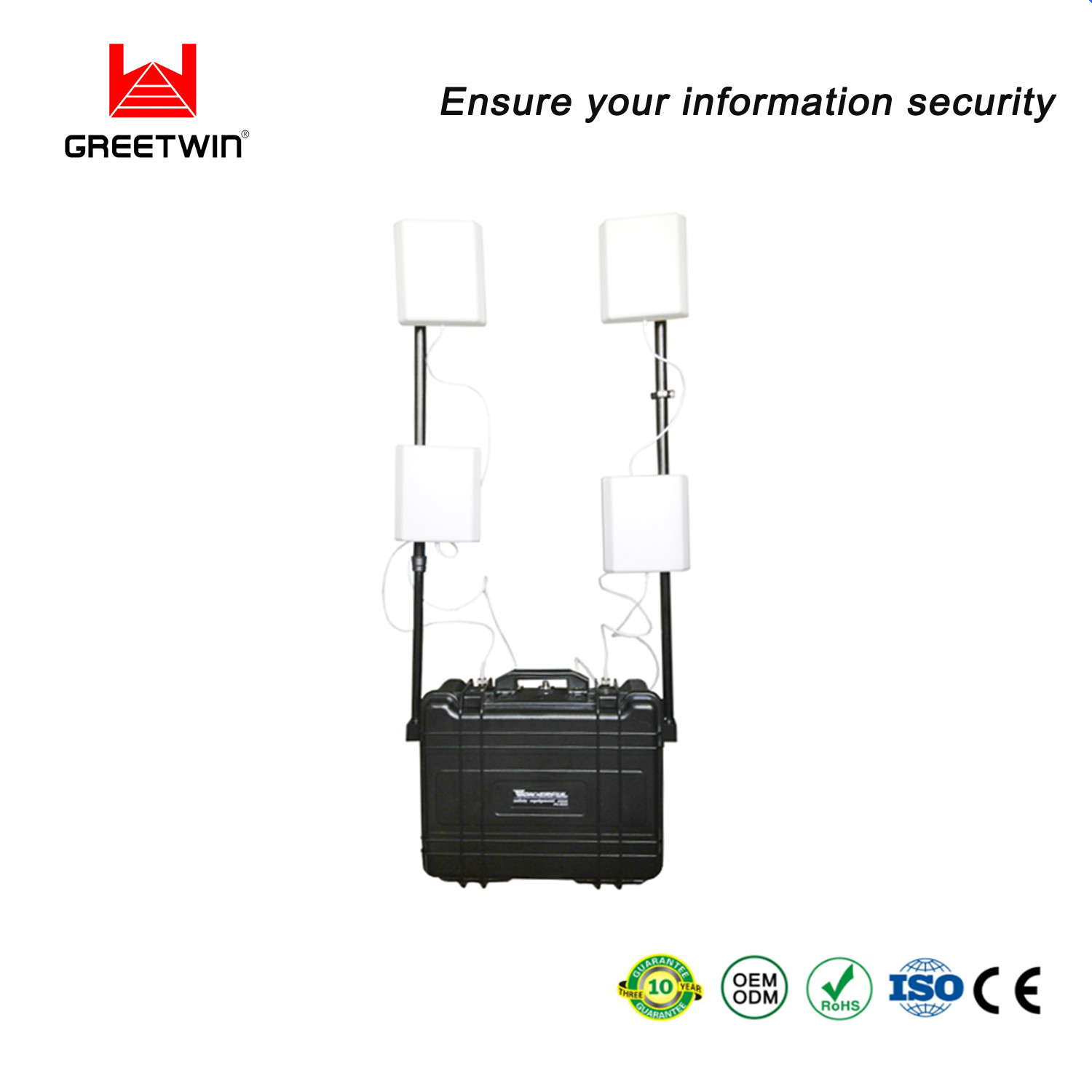

| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||||
| (Both omni and directional antennas with frame are inlcuded) | |||||
| Warranty: | 1 year | ||||
