| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-UAV10XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

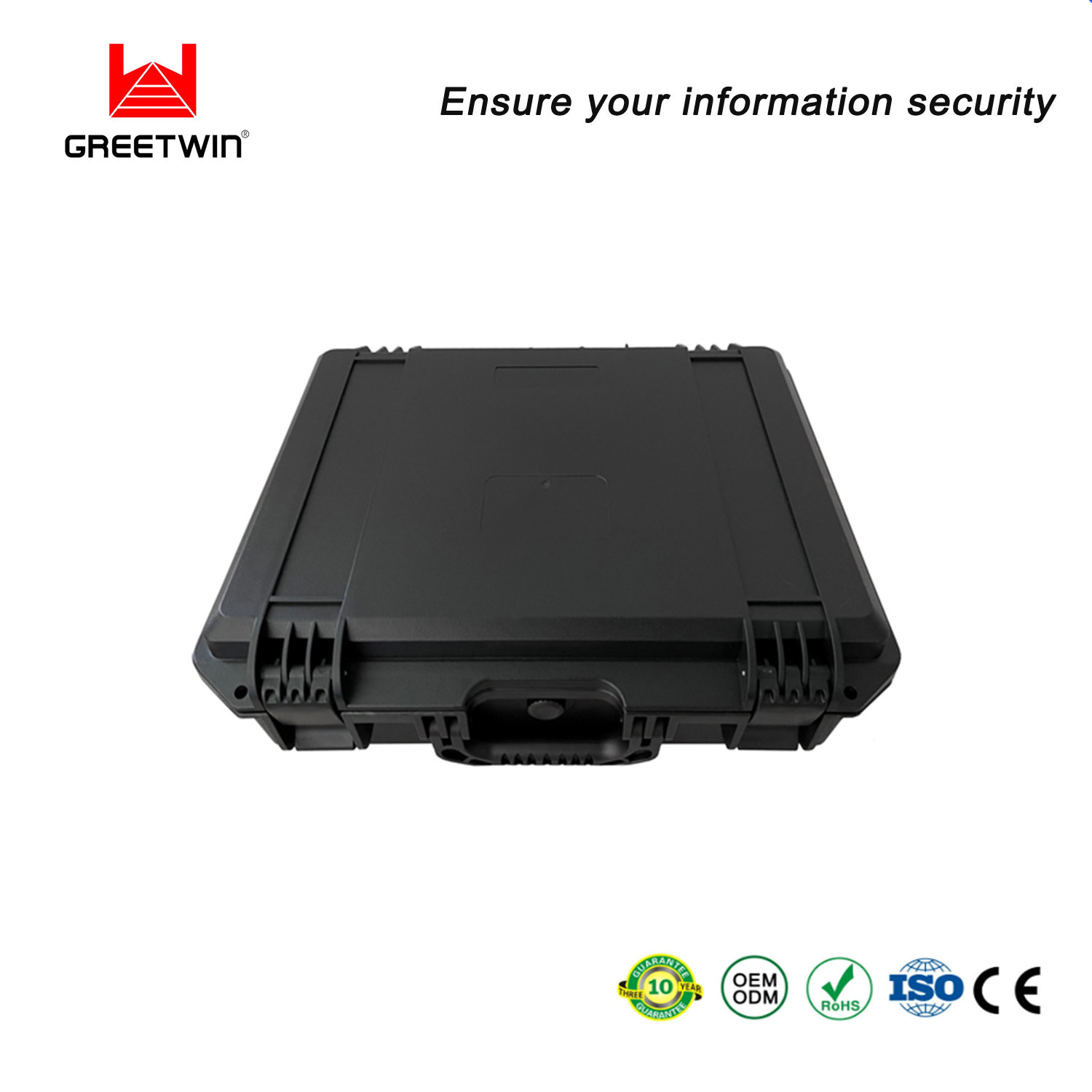

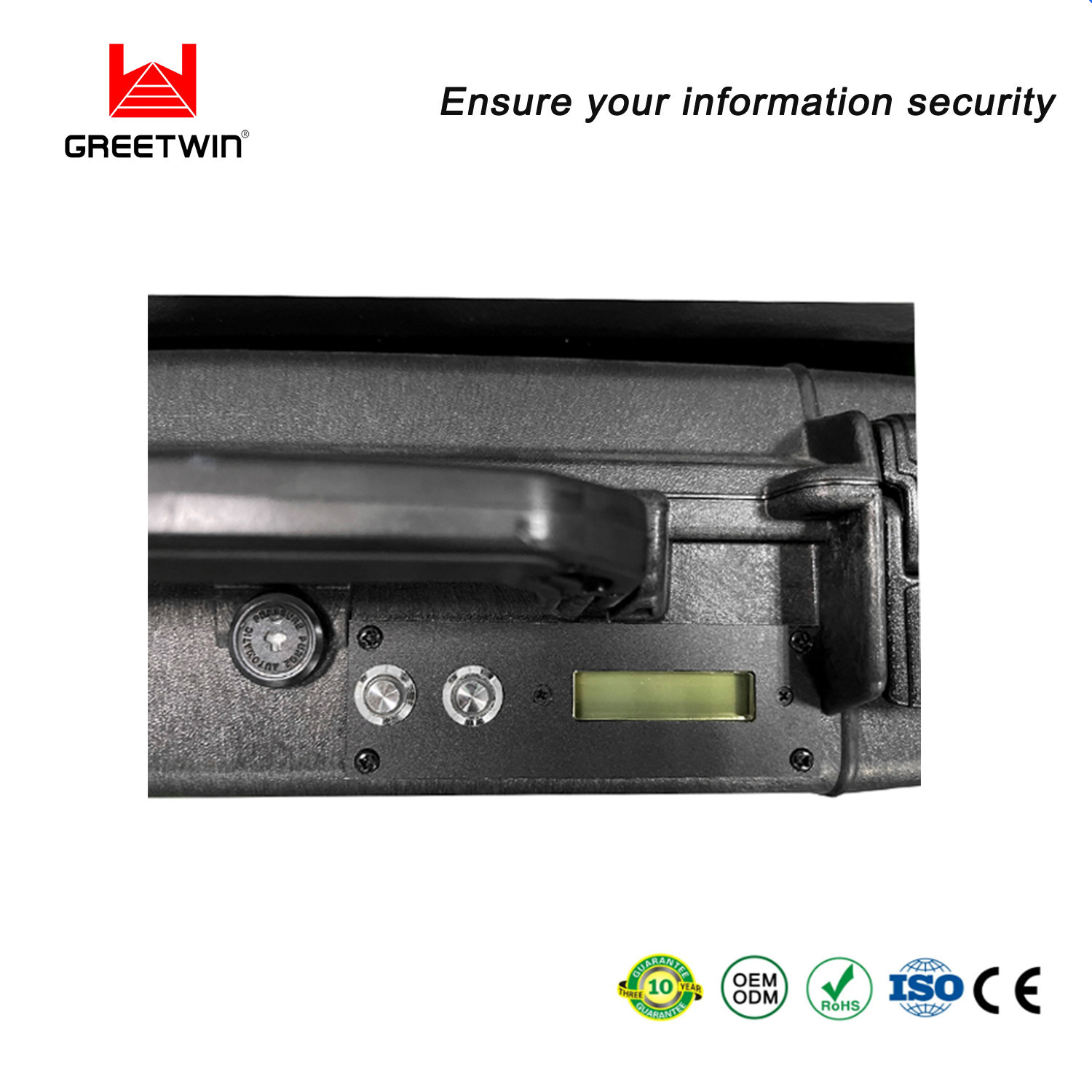

Portable Drone Defender Anti Uav Counter Drone Jammer
| GW-UAV10XF 10 Bands Europe | GW-UAV10XF 10 Bands America | ||||
| 920-960MHz: 10W | Built-in Directional Antennas for these 10 bands | 850-895MHz 10W | Built-in Directional Antennas for these 10 bands | ||
| GSM900 | CDMA | ||||
| 1800-1920MHz 10 W DCS GSM 1800 | 1800-2000MHz 10 W | ||||
| DCS PCS | |||||
| 2100-2170MHz 10 W | 2100-2170MHz 10W 3G UMTS | ||||
| 3G UMTS | |||||
| 2570-2690MHz:8W | 2500-2700MHz:8W | ||||
| 4G LTE High | 4G High | ||||
| 758-825MHz:10W | 725-805MHz:10W | ||||
| 4G LTE Low + 5G LTE | 4G Low | ||||
| 2300-2500MHz: 8 W | 2300-2500MHz: 8 W | ||||
| WiFi 11.b, g | WiFi 11.b, g | ||||
| 3400-3600MHz: 8W 5G LTE | 610-652MHz: 10W | ||||
| 5G LTE | |||||
| 3600-3800MHz: 8W 5G LTE | 1570-1620MH: 10W | ||||
| GPS L1 + Glonass L1 | |||||
| 1450-1620MH: 10W | 850-895MHz 10W | ||||
| GPS L1 + Glonass L1, 5G LTE | CDMA | ||||
| 5.1-5.9GHz: 4W | 5.1-5.9GHz: 4W | ||||
| WiFi 11.a | WiFi 11.a | ||||
| Total : 86W | Total : 90W | ||||
| Battery | 1-2 Hours Working Time | ||||
| Power supply: | AC110 or 220-240V /DC 27V or External AC110-220V Power Supplier | ||||
| Jamming Range | Radius 30~100 meters (-75dBm@Omnidirectional antennas) | ||||
| Weight | 9.6 kg | ||||
| 415 mm(L)×340mm(W)× 174 mm(H) | |||||
Antennas Specification
Electrical Specifications
Frequency Range
750-830/920-965/1450-1620/1805-1900/2100-2170/2300-2500/2560-2700/3400-3600/3600-3800/5100-5900MHz
Gain(dBi)
8/12±1dBi
VSWR
≤1.5/2.0
Polarization
Vertical+±45°
Horizontal Beamwidth(0º)
60-65±8º
Vertical Beamwidth(0º)
≥15±5º
Front-to-back ratio(dB)
≥20-30
Input Impedance(Ω)
50Ω
Maximum input power(W)
100W
Input connector type
10*SMA-J RG316
Lightning Protection
DC Ground
Mechanical Specifications
Dimensions mm(Height/Width/Depth)
375*280*40mm
Antenna weight(kg)
0.8Kg
Rated Wind Velocity(m/s)
60m/s
Operational Humidity(ï¼ )
10- 95
Radome material
ABS
Operating temperature(ºC)
-30ï½70 º
Mounting hardware(mm)
ï¿ 30ï½ï¿ 75
Mechanical tilt(º)
0-10º
