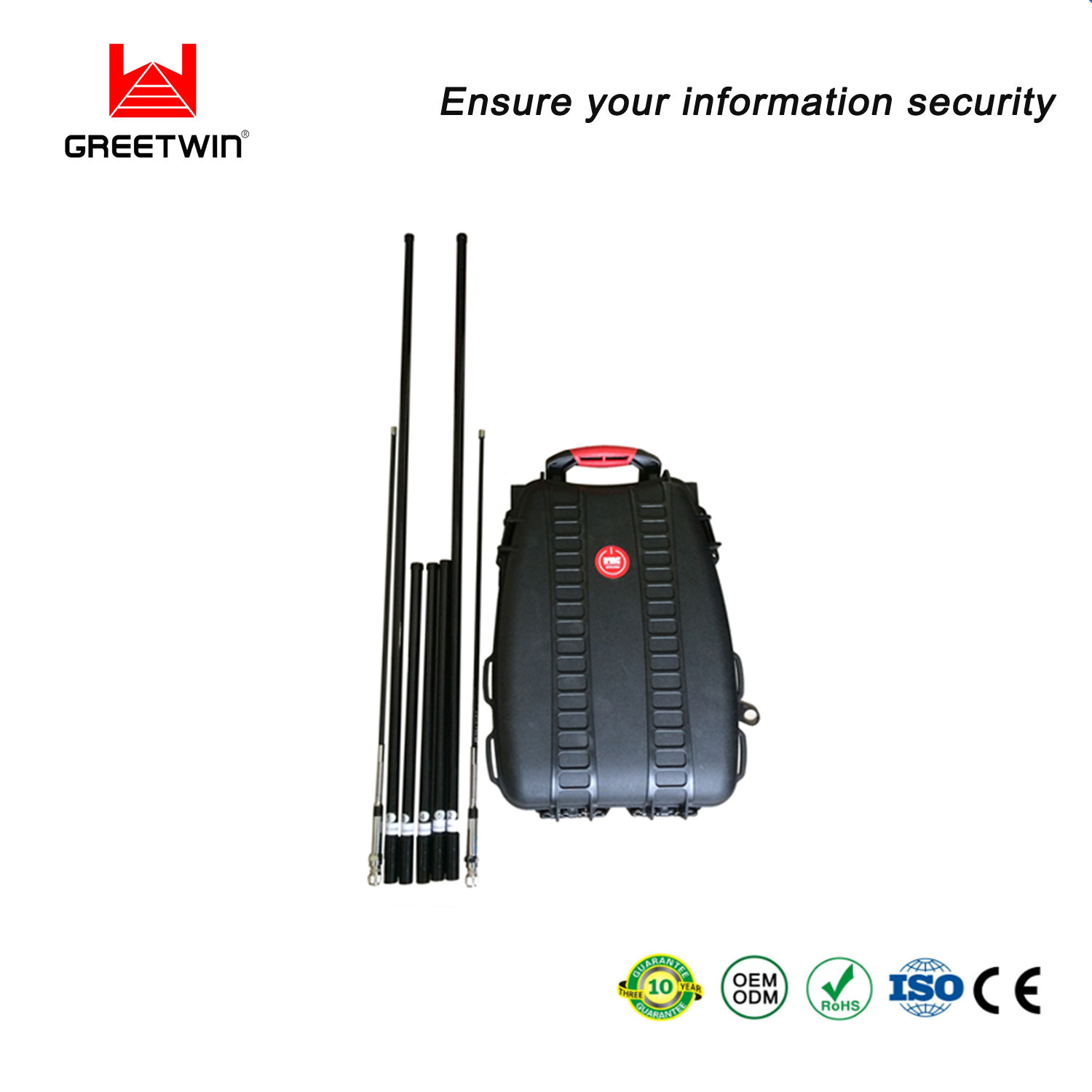

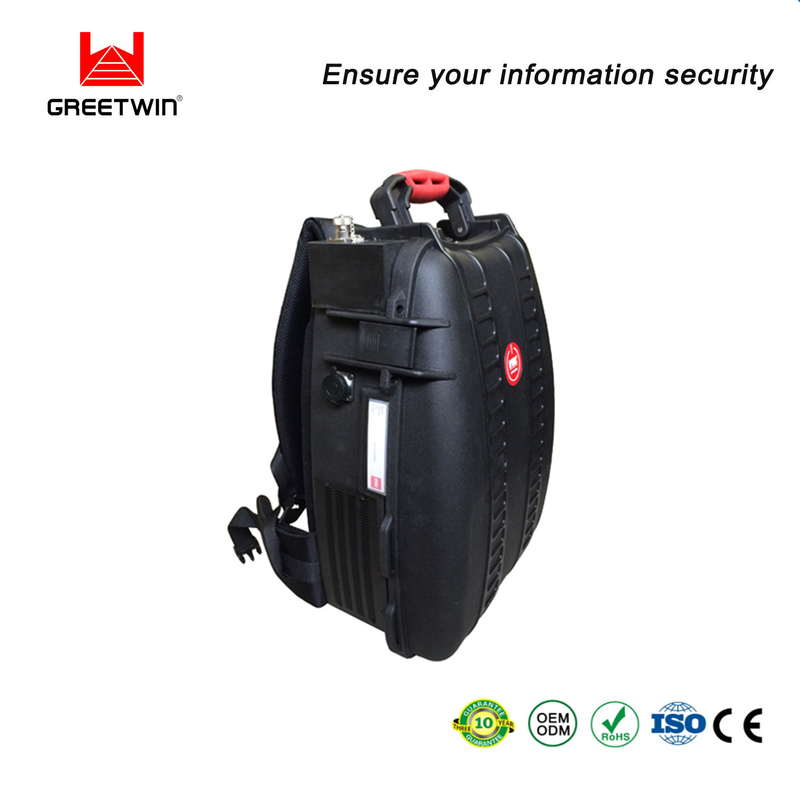

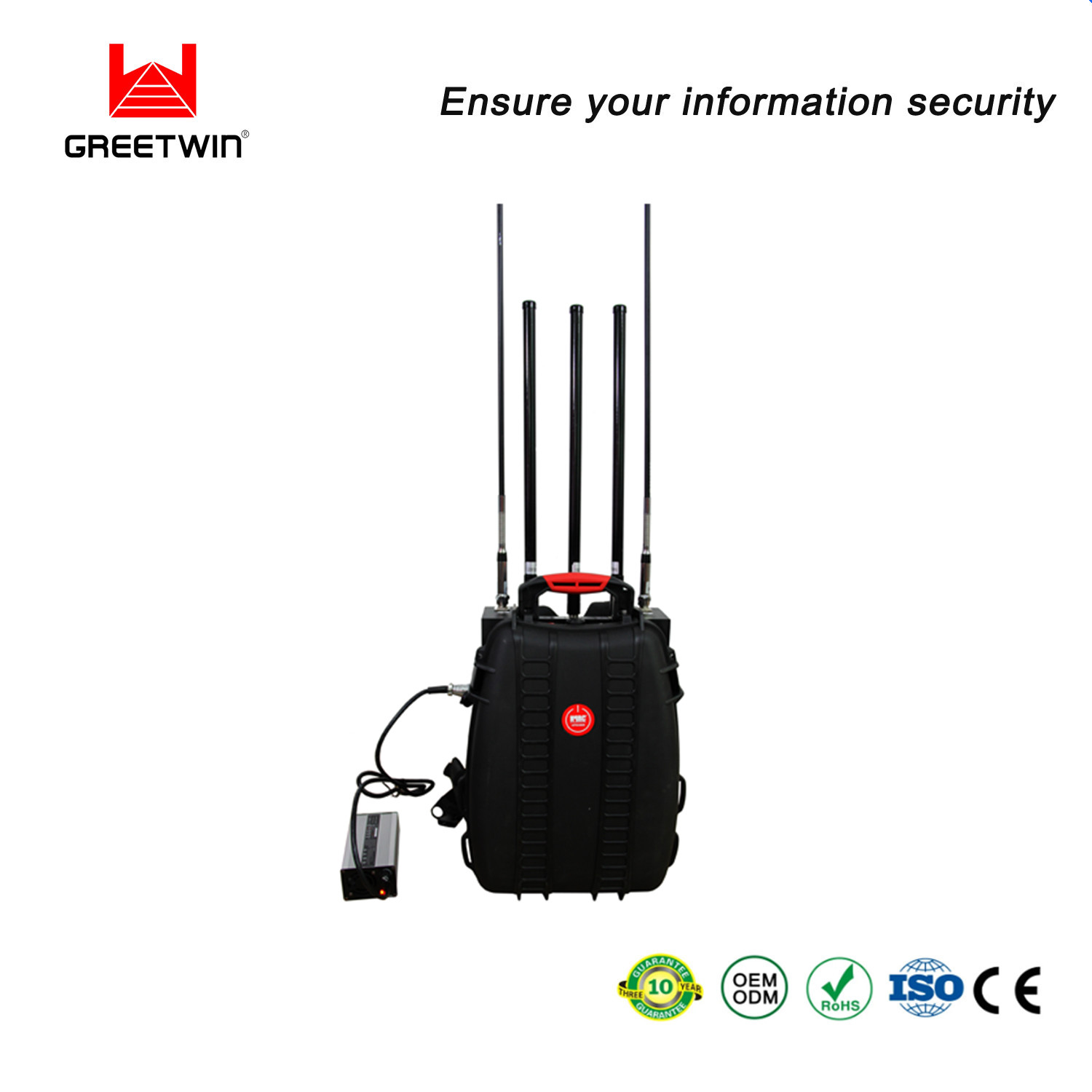

Max 130W 5 Bands Back Pack VHF UHF Mobile Phone Wifi GPS L1 Portable Built-in Batter Signal Blocker
Details
| PCB-4035E Europe 900MHz | PCB-4035A America 850MHz | PCB-4035 Eur GPS L1 | PCB-4035VU VHF UHF | |
| 920-960MHz: 25W GSM900 | 850-895MHz 25W | 920-960MHz: 25W GSM900 | 920-960MHz: 25W GSM900 | |
| 1800-1880MHz 20 W PCS GSM 1800 | 1920-1990MHz 20 W | 1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz 20 W PCS GSM 1800 | |
| 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30 W 3G UMTS | |
| 2620-2690MHz:20W 4G LTE High (2400-2690MHz:20W) | 700-800MHz:15W (AT&T & Verizon) | GPS L1 1575MH: 40W (1520-1670MHz: 30W) | 130-180MHz: 20W VHF Walkie Talkie | |
| 790-870MHz:20W 4G LTE Low | 2500-2700MHz:20W 4G WiMax Sprint+WiFi (2400-2700MHz:20W) | GPS L2 1227MH: 15W | 420-480MHz: 20W UHF Walkie Talkie | |
| Total : 115 W | Total : 110 W | Total : 130 W | Total : 115 W | |
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, 4G 2620-2690MHz: 15W, LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W | ||||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) 100% Safe VSWR over protection (Isolator) for each modular | ||||
| Power supply: | AC adapter (AC220V/110V-DC27V or 27V/18Amp) | |||
| Jamming Range: | 50-150 meters@ï¼75dBm | |||
| Battery Operating Time | 1- 2 Hours (more option about battery working time) | |||
| Temperature over protection. | ||||
| Working status indicator for each band modular. | ||||
| Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS | ||||
| VHF / UHF/ 450MHz/WiFi 2.4GHz / GPS L1 L2 | ||||
| Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater. | ||||
| Dimension:390 x 340 x 130 mm (H × W × D) | ||||
| Weight:15 Kg (approximately) just main unit not included antenna & all accessories | ||||
| Operating temperature: -20â ~ +60â | ||||
| Humidity: 5% ~ 90% | ||||
| Antennas Spec | 450-470Mhz :Omni 360 | 4dBi, 110cm long, 0.8Kg weight | ||
| | 851-960Mhz :Omni 360 | 5dBi, 50cm long, 0.8Kg weight | ||
| | 1805-1990Mhz :Omni 360 | 6dBi, 50cm long, 0.8Kg weight | ||
| | 130-180Mhz :Omni 360 | 3dBi, 110 cm long, 0.8Kg weight | ||
| | 2100-2170MHz: Omni 360 | 6dBi, 50cm long, 0.8Kg weight | ||
| | 2400-2500Mhz :Omni 360 | 8dBi, 50cm long, 0.8Kg weight | ||
| Military Antenna: | 130-180MHz: Omni 360 | 2dBi 55cm Long 0.4kg weight | ||
| (See photo) | 400-480MHz: Omni 360 | 3dBi 55cm Long 0.4kg weight | ||
| Warranty: | 1 year | |||
