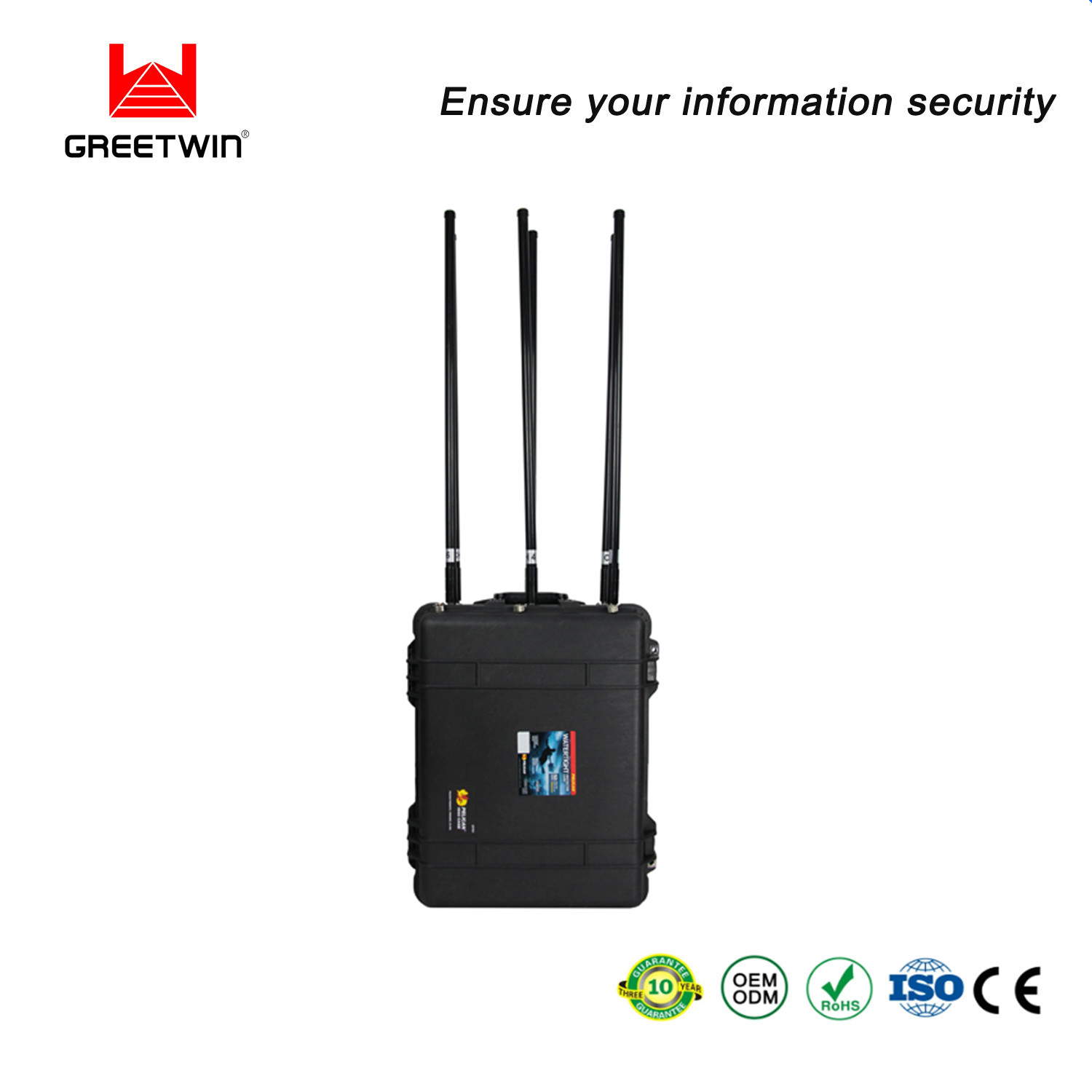

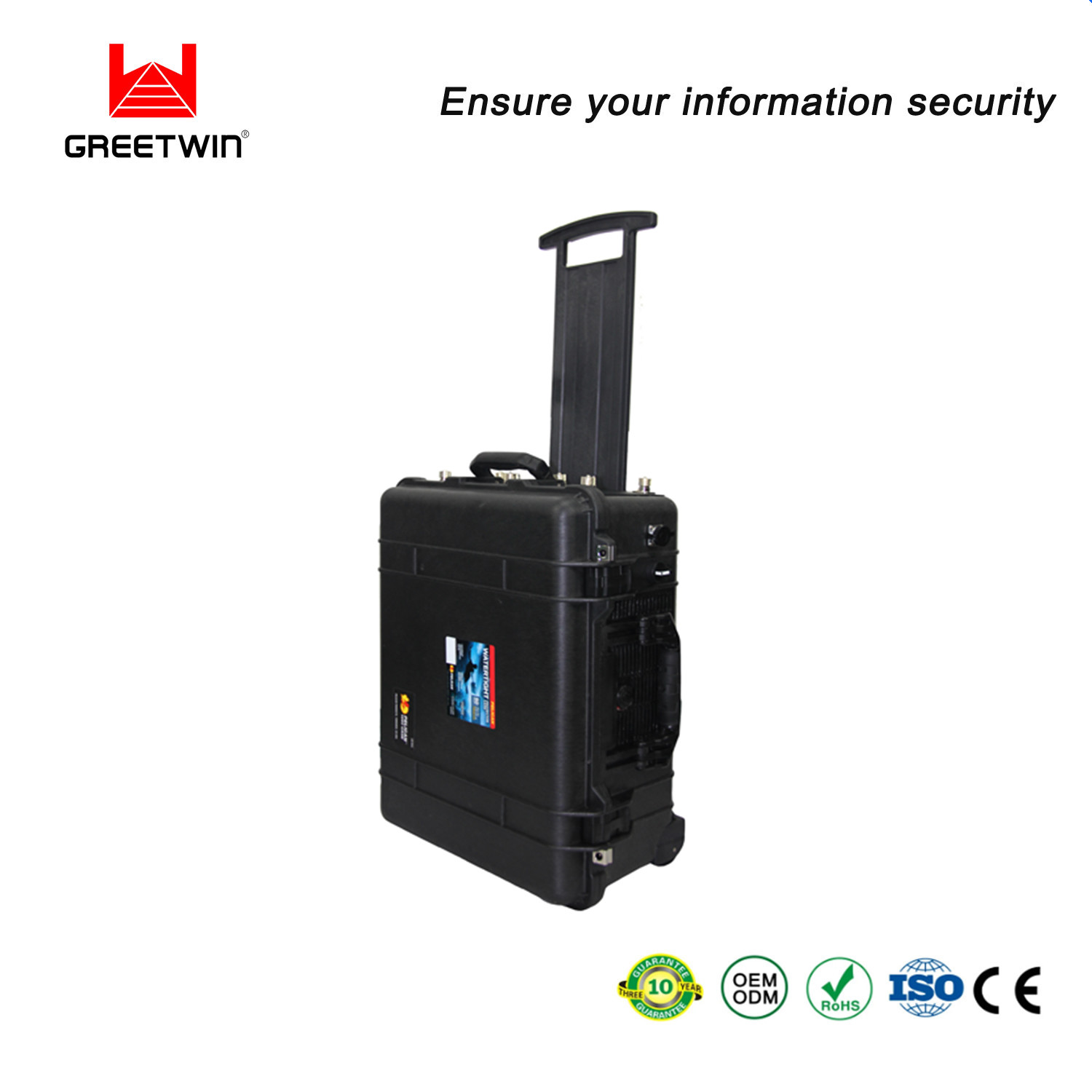

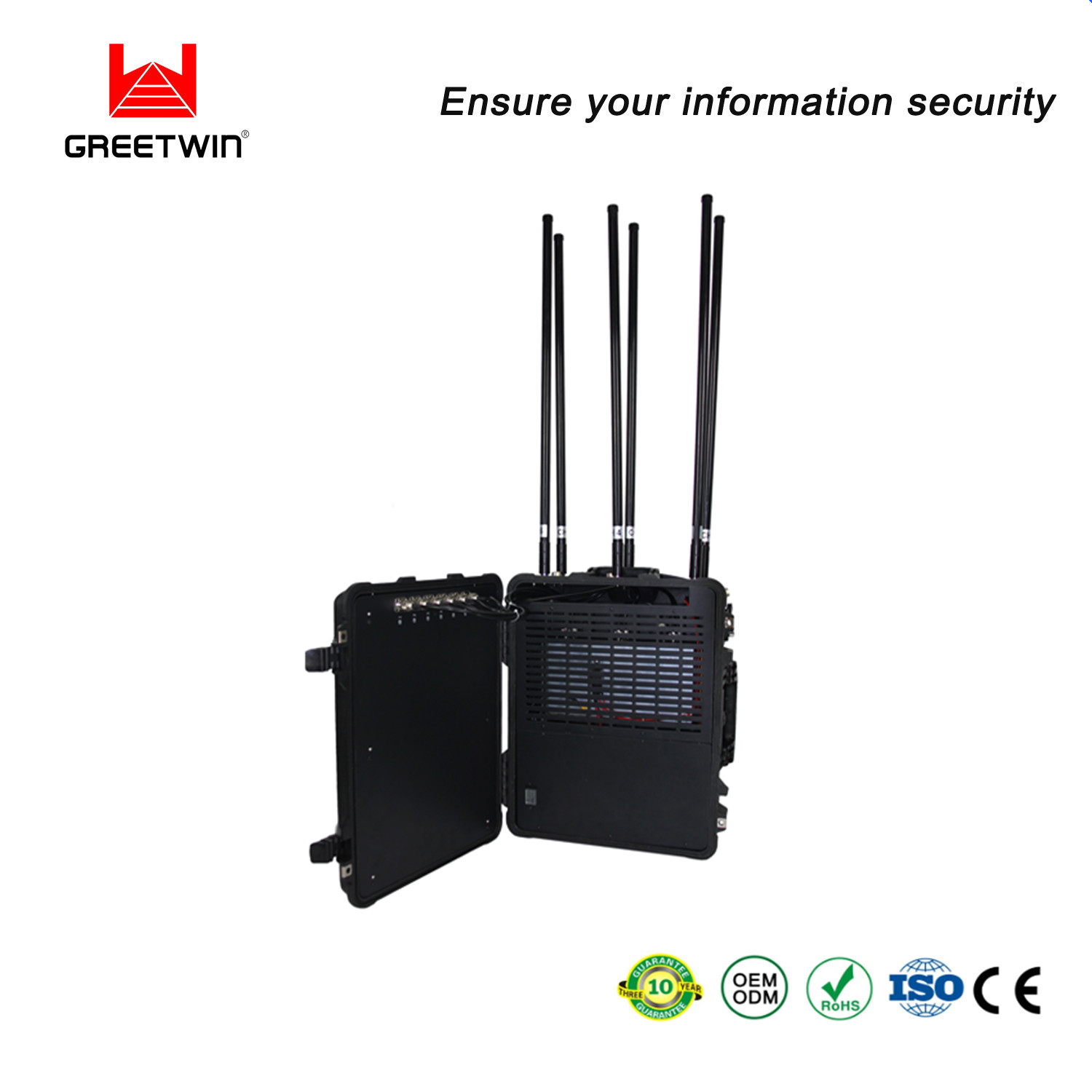

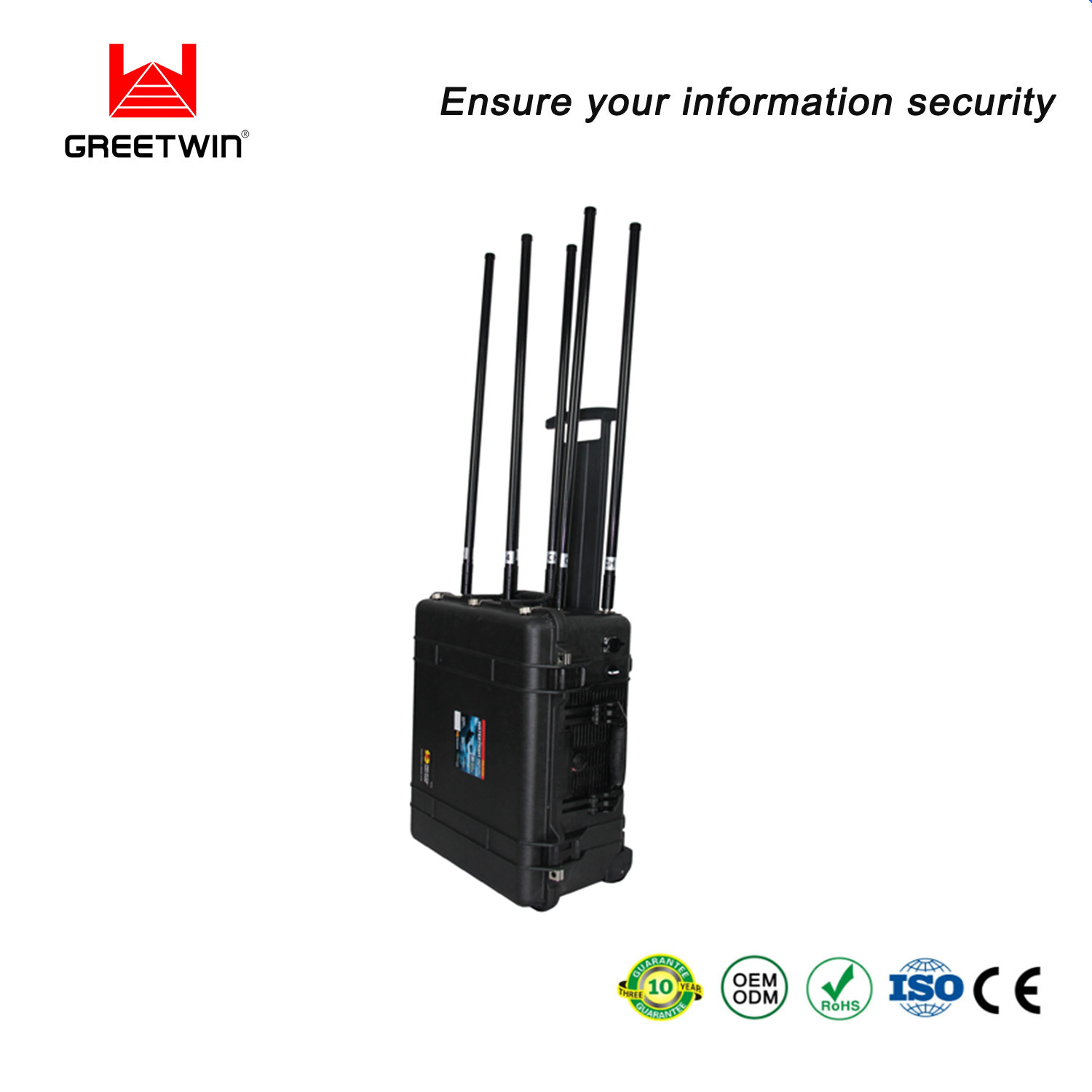

Mobile Phone 8 Bands Pelican 1560 Omni or Directional Antennas Built-in Battery Signal Jammer
| PCB–3088A USA GPS (8 bands) | PCB–3088E EGL 4G (8 bands) | PCB–3088E GPS GPS (8 bands) | PCB–3088E VU VHF UHF (8 bands) | ||
| 850-895MHz 25W | 920-960MHz: 25W GSM900 | 920-960MHz: 25W GSM900 | 920-960MHz: 25W GSM900 | ||
| 1800-2000MHz 20 W | 1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz 20 W PCS GSM 1800 | ||
| 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30 W 3G UMTS | ||
| 700-800MHz:15W iPhone (AT&T & Verizon) | 2620-2690MHz:20W 4G LTE High | 2620-2690MHz20W 4G LTE High | 2620-2690MHz20W 4G LTE High | ||
| 2500-2700MHz:20W 4G WiMax Sprint+WiFi | 790-870MHz:20W 4G LTE Low | 790-870MHz:20W 4G LTE Low | 790-870MHz:20W 4G LTE Low | ||
| 2400-2500MHz:20W WiFi 11.b,g & Buletooth | 2400-2500MHz: 20 W WiFi 11.b, g | 2400-2500MHz: 20W WiFi 11.b, g | 2400-2500MHz: 20W WiFi 11.b, g | ||
| GPS L1 1575MH: 40W (1520-1670MHz: 30W) | 173MHz:30W LoJack 173 | GPS L1 1575MH: 40W (1520-1670MHz: 10W) | 130-180MHz: 20W VHF Walkie Talkie | ||
| GPS L2 1227MH: 15W
| GPS L1 1575MH: 40W (1520-1670MHz: 40W) | GPS L2 1227MH: 15W
| 420-480MHz: 20W UHF Walkie Talkie | ||
| Total : 185W | Total : 205 W | Total : 190 W | Total : 175 W | ||
| Option: 5.8GHz: 2.0W, GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, 4G 2620-2690MHz: 20W, LoJack 173MHz: 30W | |||||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||||
| Battery | +24V / 20AH LiFePO4 can work 40-60 Minutes (PCB-3088B) | ||||
| Power supply: | AC110 or 220-240V /DC 27V | ||||
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | ||||
| Weight | PCB-3088B 33kg | ||||
| Dimension: | 560 x 455 x 265 mm (Pelican 1560 Case only ) | ||||
| Working time: | Without the time limit, May continue to work, | ||||
| Antenna | External Omni 750mm long or Directional Patch Panel Antennas | ||||
| Warranty: | 1 year | ||||
