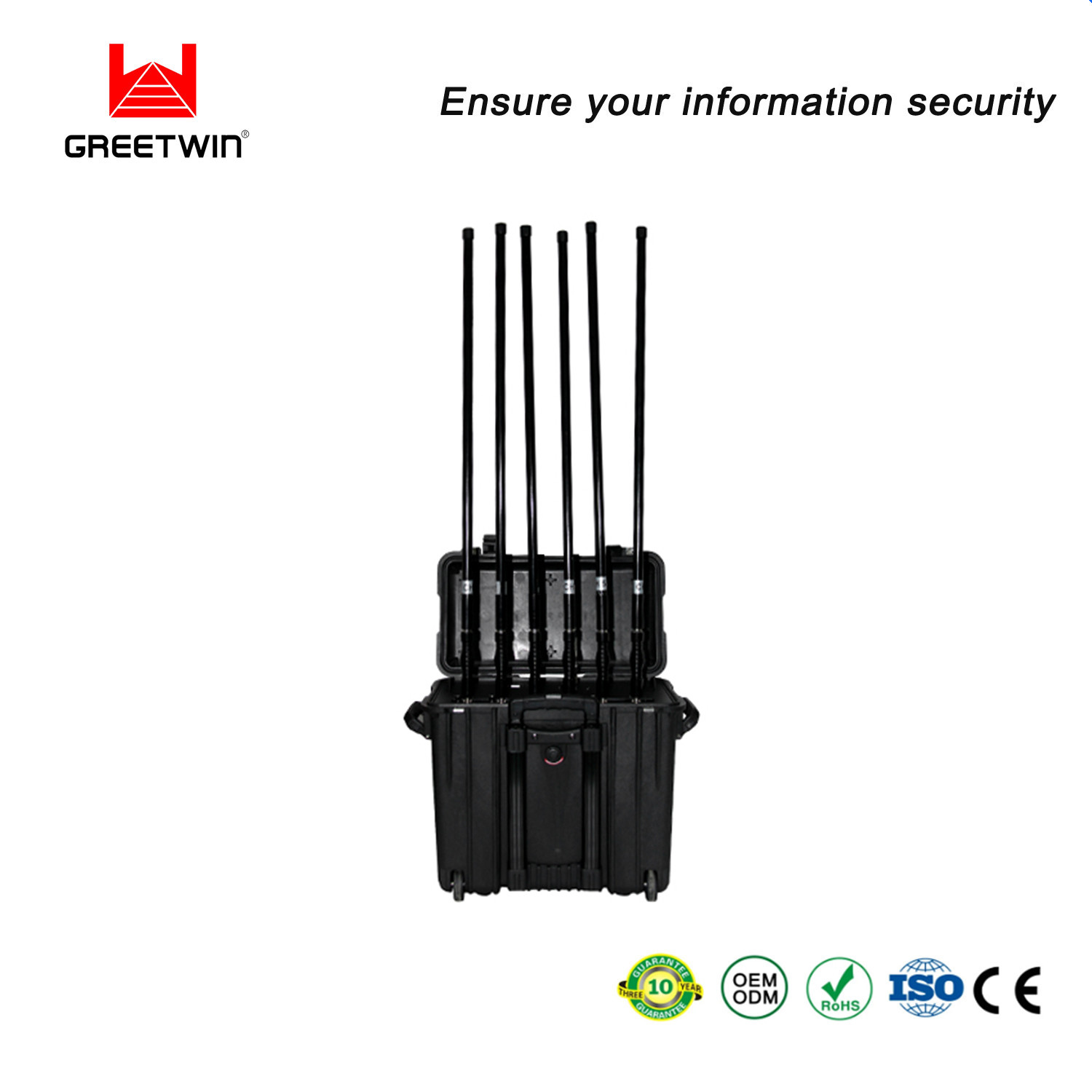

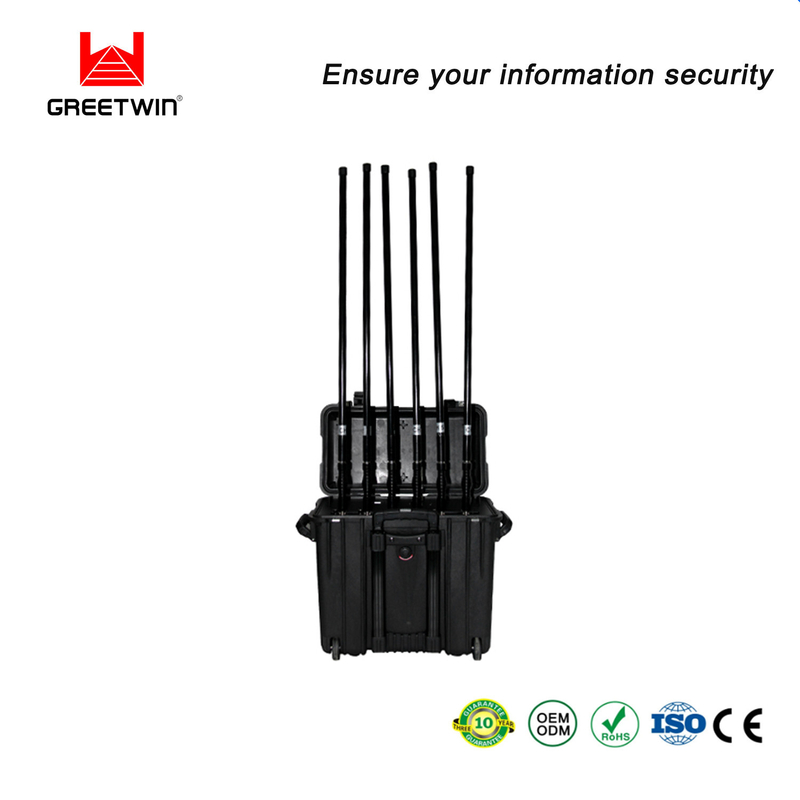

Anti-Drone UAV 7Bands Pelican 1440 3x Higher Gain Directional Antennas Cover 180 Degrees Built-in Battery Jammer
Details
| PDJ–3087B-HGA-433 (7 bands) | |||
| One Directional Antenna with Three Bands to Cover 90 Degrees | 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth | ||
| GPS L1 + GLONASS L1 :40W 1570-1620MHz | |||
| 5.7GHz-5.9GHz: 2.0W WiFi 11.a | |||
| One Directional Antenna with Three Bands to Cover 90 Degrees | 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth | ||
| GPS L1 + GLONASS L1 :40W 1570-1620MHz | |||
| 5.7GHz-5.9GHz: 2.0W WiFi 11.a | |||
| Omni Antenna with Magnetic Base (cover 360 degree) | 433MHz: 20W Remote Control (cover 360 degree) | ||
| Total Two Directional Antennas to cover all 180 Degrees | Total : 148 W | ||
| Option: GPS L2 L3 L4 L5: 15W, 5.8GHz: 15.0W, 860-920MHz:25W, 433MHz: 20W | |||
| Cover Most Commercial Used Drones / UAVs Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series... Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) 100% Safe VSWR over protection (Isolator) for each modular | |||
| Battery | +24V / 20AH LiFePO4 can work 40-60 Minutes (PCB-3077B) | ||
| Power supply: | AC110 or 220-240V /DC 27V | ||
| Jamming Range | Radius 1000-3000+ Meters | ||
| Weight | PCB-3087B-HGA-433 25kg (Main Jammer only) | ||
| Dimension: | 500 x 305 x 457 mm (Pelican 1440 Case only ) | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | Directional Patch Panel Antennas | ||
| Warranty: | 1 year | ||
HIGHER GAIN DIRECTIONAL ANTENNA THREE BANDS IN ONE ANTENNA
ELECTRICAL SPECIFICATIONS
Frequency Range------------------------- 1570-1620MHz/2400-2500MHz/5100-5900MHz
Impedance---------------------------------- 50 Ohm
VSWR---------------------------------------- ≤1.5
Gain------------------------------------------- 14dBi (1570-1620MHz):16 dBi (2400-2500MHz)
18 dBi (5100-5900MHz)
Front to Back Ratio----------------------- ï¼24dB
Polarization--------------------------------- ±45°
Horizontal 3dB Beam Width------------ (1570-1620):90° (2400-2500):90°
(5100-5900):90°
Vertical 3dB Beam Width--------------- (1570-1620):15° (2400-2500):15°
(515900-00):15°
Maximum Input Power------------------- 200W
Lightning Protection------------------------ Direct Ground
Connector Place--------------------------- Bottom
Connector----------------------------------- N-Female
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)------------------------- 745*180*80mm
Three Bands in One Antennas
Total 2 x Antennas
6 Band PCB-3077B-HGA-433
Weight------------------------------------------ 4.0 kgRated Wind Velocity------------------------ 60m/s
Operating Temperature-------------------- -40â-60â
Mounting Hardware------------------------- Ø50-Ø75mm
Radiating Element Material--------------- Zinc Alloy,Aluminum Alloy
Reflector Material--------------------------- Aluminum Alloy
Radome Material---------------------------- PVC
Radome Color-------------------------------- Gray
