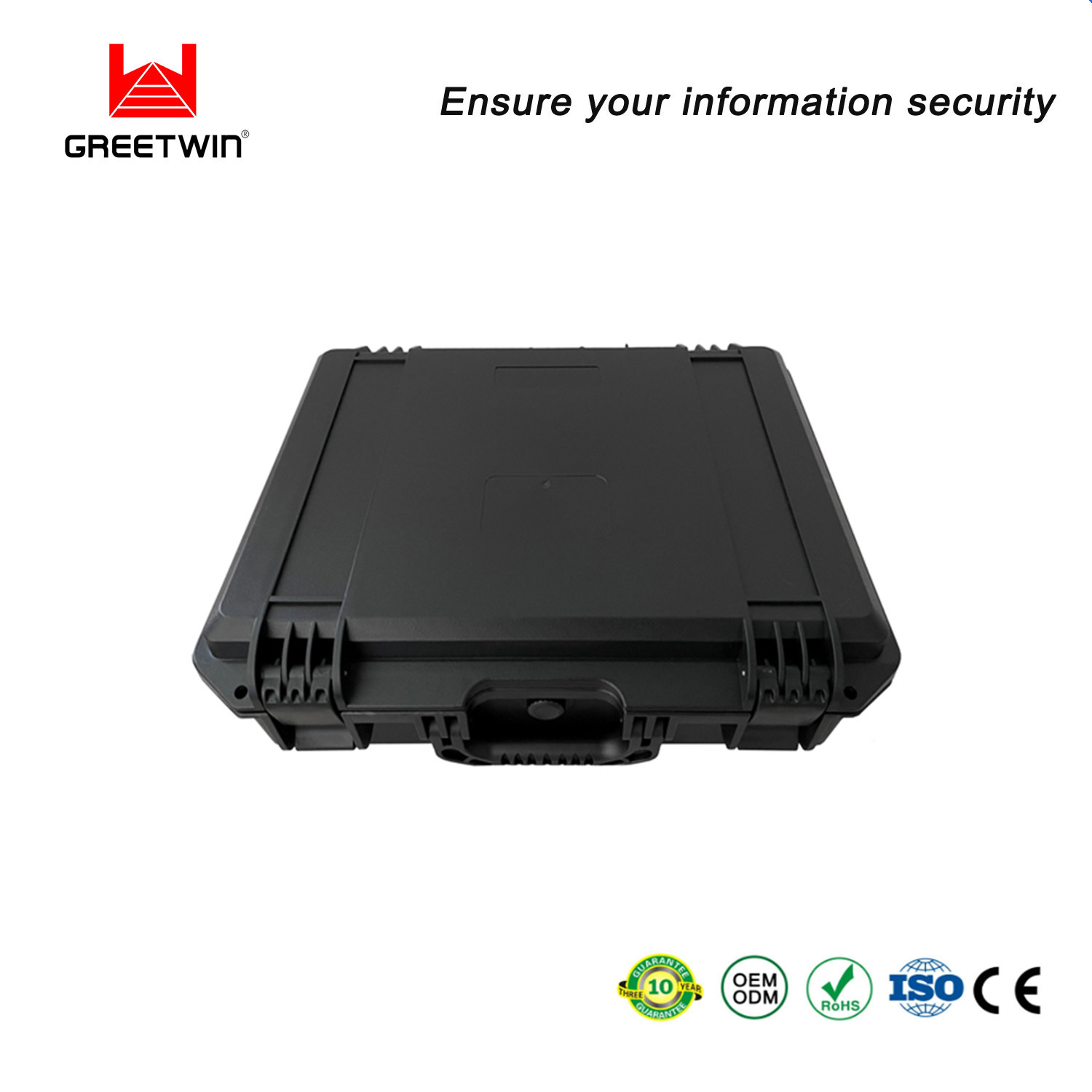

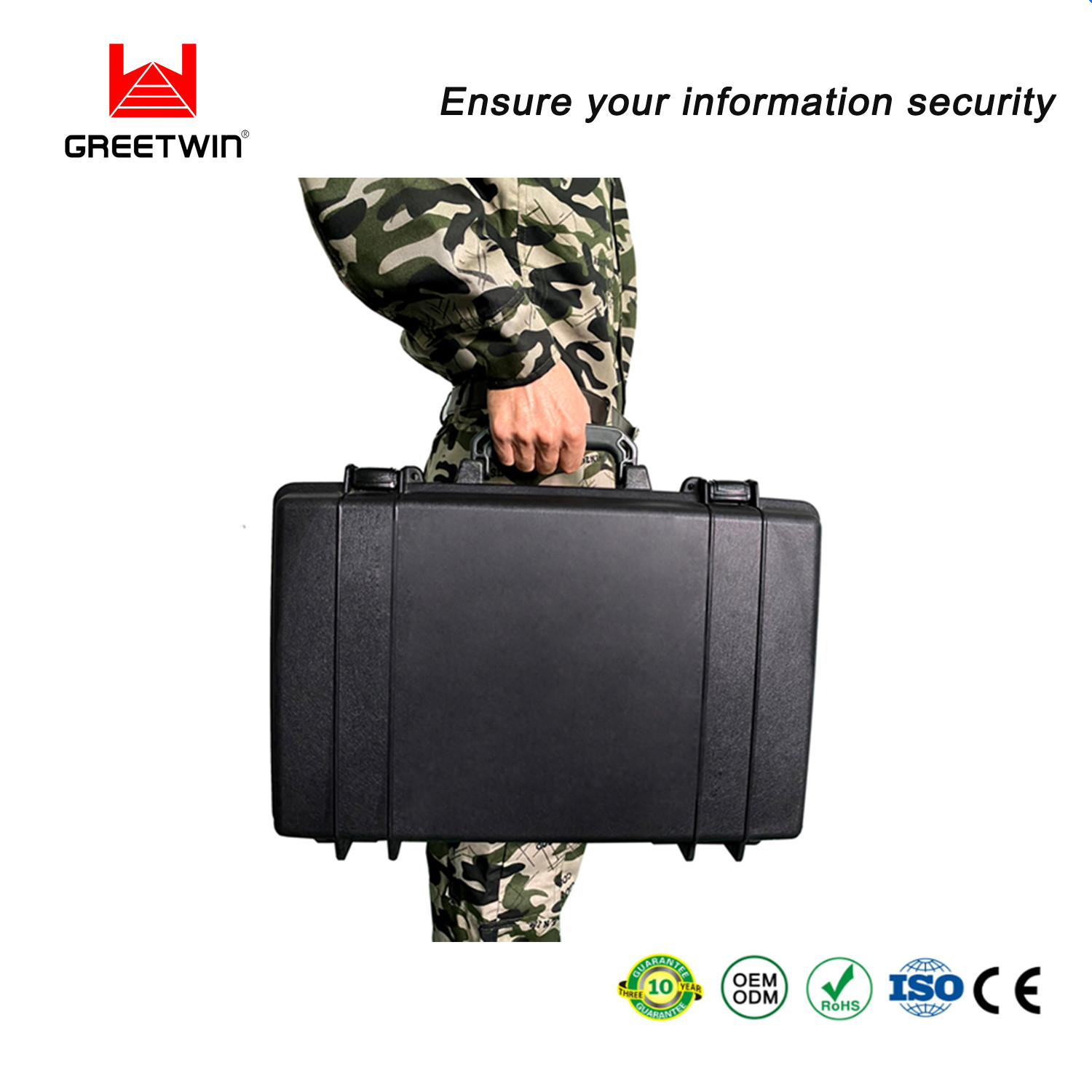

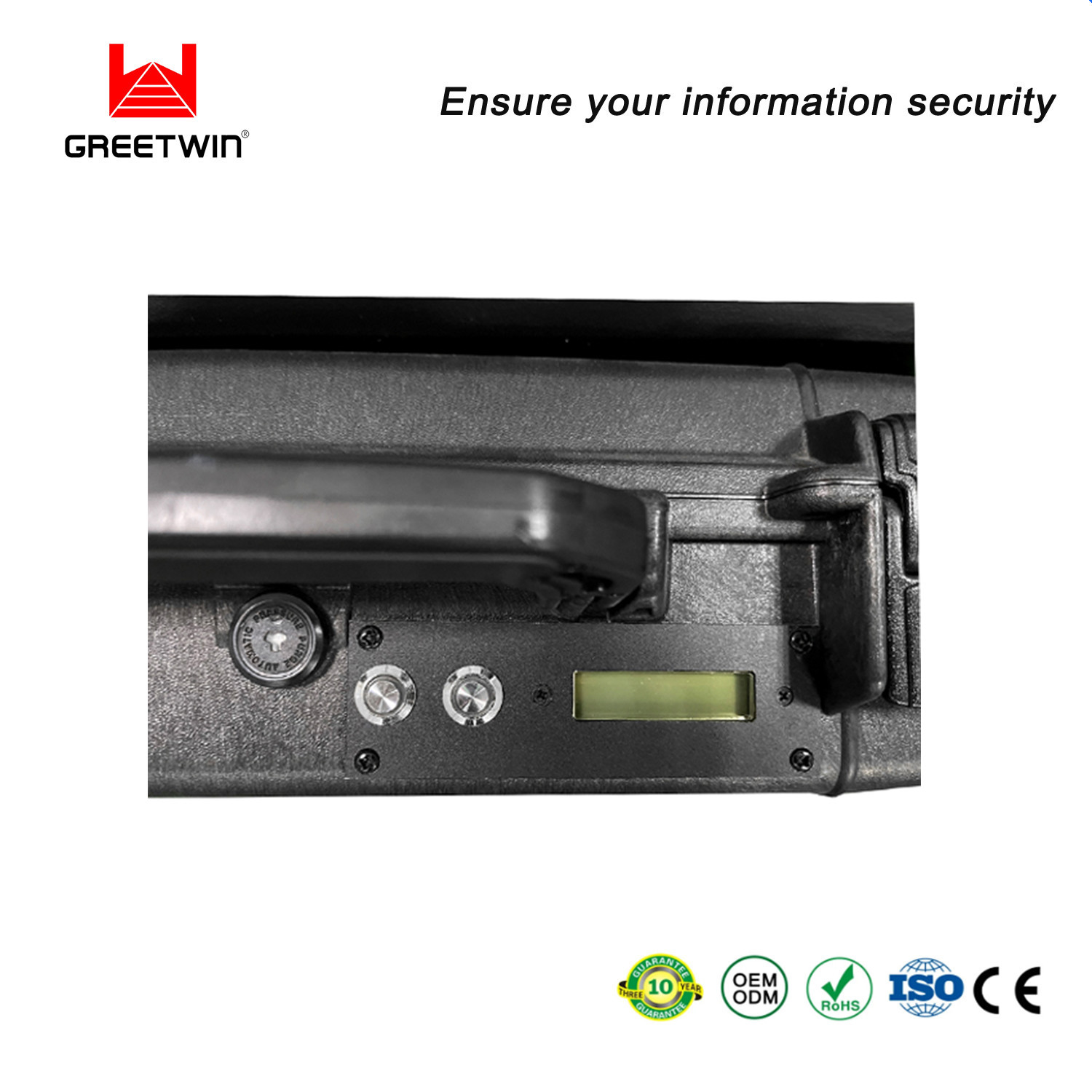

Military Police Goverment Convoy Jammer Portble RCIED Mobile Phone Pelican Jammer 20MHz - 2700MHz Max 590w 8 Band
Details
| PCB–2010B-E 10 Bands Europe | PCB–2010B-A 10 Bands America | ||||
| 920-960MHz: 10W GSM900 |
Built-in Directional Antennas for these 10 bands | 850-895MHz 10W CDMA |
Built-in Directional Antennas for these 10 bands | ||
| 1800-1920MHz 10 W DCS GSM 1800 | 1800-2000MHz 10 W DCS PCS | ||||
| 2100-2170MHz 10 W 3G UMTS | 2100-2170MHz 10W 3G UMTS | ||||
| 2570-2690MHz:8W 4G LTE High | 2500-2700MHz:8W 4G High | ||||
| 758-825MHz:10W 4G LTE Low + 5G LTE | 725-805MHz:10W 4G Low | ||||
| 2300-2500MHz: 8 W WiFi 11.b, g | 2300-2500MHz: 8 W WiFi 11.b, g | ||||
| 3400-3600MHz: 5W 5G LTE | 610-652MHz: 10W 5G LTE | ||||
| 3600-3800MHz: 5W 5G LTE | 1570-1620MH: 10W GPS L1 + Glonass L1 | ||||
| 1450-1620MH: 10W GPS L1 + Glonass L1, 5G LTE | 850-895MHz 10W CDMA | ||||
| 5.1-5.9GHz: 4W WiFi 11.a | 5.1-5.9GHz: 4W WiFi 11.a | ||||
| Total : 80W | Total : 90W | ||||
| Battery | 1-2 Hours Working Time | ||||
| Power supply: | AC110 or 220-240V /DC 27V | ||||
| Jamming Range | Radius 30~100 meters (-75dBm@Omnidirectional antennas) | ||||
| Weight | 8 kg | ||||
| 380 mm(L)×180mm(W)× 135mm(H)<span color:blue;"=""> | |||||
Antennas Specification
| Electrical Specifications | ||
| Frequency Range | 750-830/920-965/1450-1620/1805-1900/2100-2170/2300-2500/2560-2700/3400-3600/3600-3800/5100-5900MHz | |
| Gain(dBi) | 8/12±1dBi | |
| VSWR | ≤1.5/2.0 | |
| Polarization | Vertical+±45° | |
| Horizontal Beamwidth(0º) | 60-65±8º | |
| Vertical Beamwidth(0º) | ≥15±5º | |
| Front-to-back ratio(dB) | ≥20-30 | |
| Input Impedance(Ω) | 50Ω | |
| Maximum input power(W) | 100W | |
| Input connector type | 10*SMA-J RG316 | |
| Lightning Protection | DC Ground | |
| Mechanical Specifications | ||
| Dimensions mm(Height/Width/Depth) | 375*280*40mm | |
| Antenna weight(kg) | 0.8Kg | |
| Rated Wind Velocity(m/s) | 60m/s | |
| Operational Humidity(ï¼ ) | 10- 95 | |
| Radome material | ABS | |
| Operating temperature(ºC) | -30ï½70 º | |
| Mounting hardware(mm) | ï¿ 30ï½ï¿ 75 | |
| Mechanical tilt(º) | 0-10º | |
