| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-UAV45XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month
High Power Desktop Signal Jammer Bluetooth LOJACK 868 433 315 Cell Phone Block 2G 3G 4G 5G
This Selectable Portable 3G Cell Phone WiFi Jammer & GPS Signal Jammer that you are viewing here is the new designed signal jammer that is designed with the ability to cut off the signals of GSM, DCS, PCS, 3G,4G, 4G LTE,4G WiMax and WiFi , i at the same time.
The powerful jammer has a wide affected frequency ranges to include CDMA/GSM, DCS/PCS, 3G, 4G LTE, 4G Wimax and WiFi . It also has a jamming range up to 20m, depending on the signal strength in the given area. Within the range, just turn on the jammer, all wireless connection to 2G, 3G, 4G or WiFi network will be disabled at the same time. Also, the jammer is a selectable unit. In other word, user can choose to allow operation of one or a few of frequency bands. Adjustment of ON or OFF any of the single bands will not cause any disruption to the operation of others..
More details and specifications of this selectable handheld 2G 3G 4G WiFi jammer are just as follows, if you want to know more just come and get the overall information.
| GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | |
| (4 bands) | (4 bands) | (4 bands) | (5 bands) | (5 bands) | |
| 850-895MHz: | 850-895MHz | 850-895MHz 25W | 850-895MHz | 850-895MHz | |
| 25W | 25W | (920-965MHz) | 25W | 25W | |
| (920-965MHz) | (920-965MHz) | (920-965MHz) | |||
| 920-960MHz: 25W | 1920-1990MHz 15W | 1920-1990MHz 15W | 1920-1990MHz 15W | 1920-1990MHz 15W | |
| (1800-1880MHz) | (1800-1880MHz) | (1800-1880MHz) | (1800-1880MHz) | ||
| 1800-2000MHz | 2100-2170MHz 15W | 2100-2170MHz 15W | 2100-2170MHz 15W | 2100-2170MHz 15W | |
| 15 W | |||||
| 2100-2170MHz | 2400-2500MHz: 8W | GPS L1 1575MH: 8W | 2400-2500MHz: 8W | VHF 130-180MHz | |
| 15 W | Walkie Talkie:20W | ||||
| N/A | N/A | N/A | 2620-2690MHz | UHF 420-480MHz | |
| 4G :5W | Walkie Talkie:20W | ||||
| Total : 80 W | Total : 63 W | Total : 63 W | Total : 68 W | Total : 95 W | |
| Option: GPS L2 L3 L4 L5: 8W, VHF 130-180MHz: 20W, UHF 420-480MHz: 20W, | |||||
| 4G 2620-2690MHz: 5W, LoJack 173MHz: 20W | |||||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||||
| VSWR over protection for each modular | |||||
| Battery | +24V / 45AH LiFePO4 can work 3-5 Hours. | ||||
| Power supply: | AC110 or 220-240V /DC 27V | ||||
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | ||||
| Weight | 25Kg | ||||
| Dimension: | GW-UAV45XF 518 x 428 x 228 mm (Case only ) | ||||
| Working time: | Without the time limit, May continue to work, | ||||

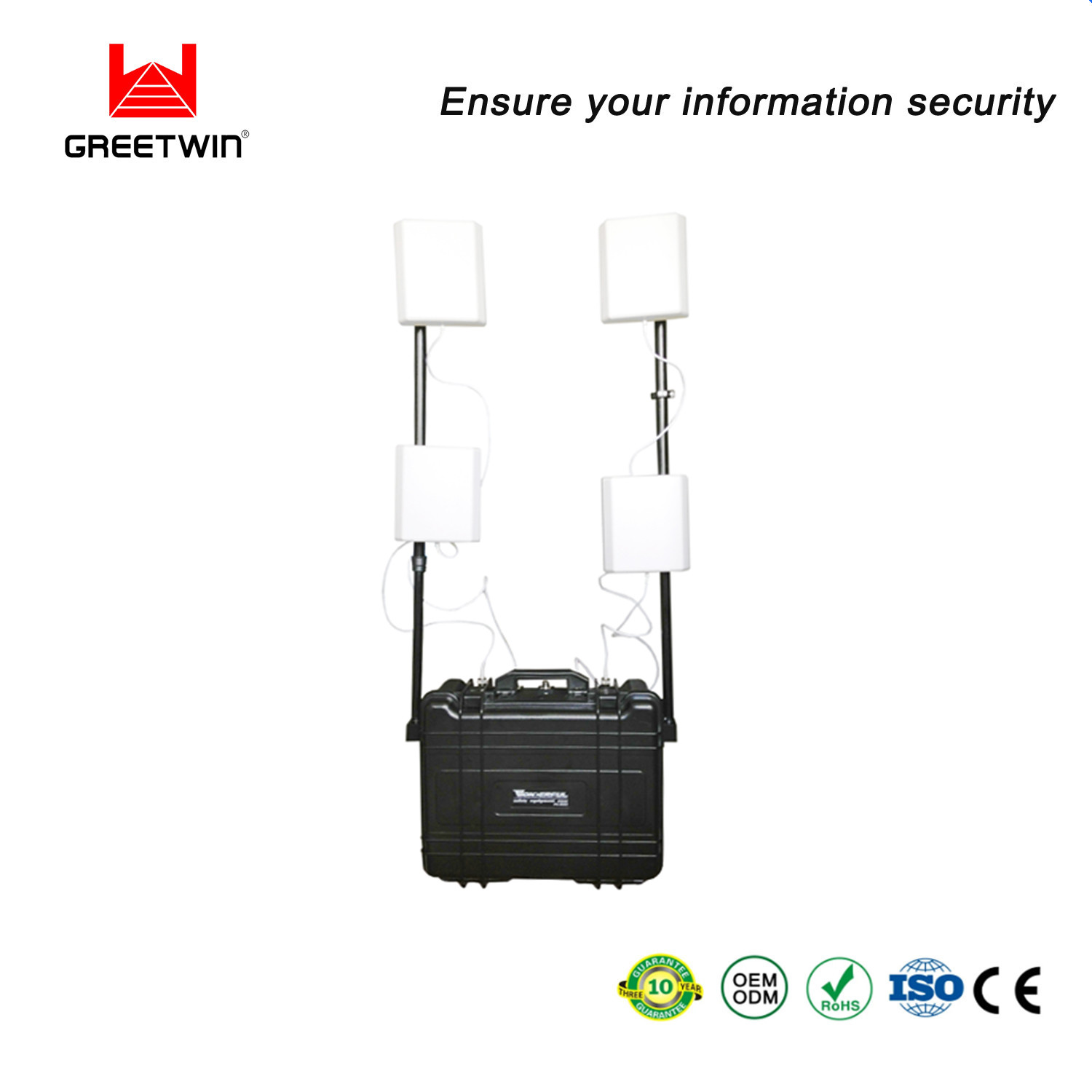

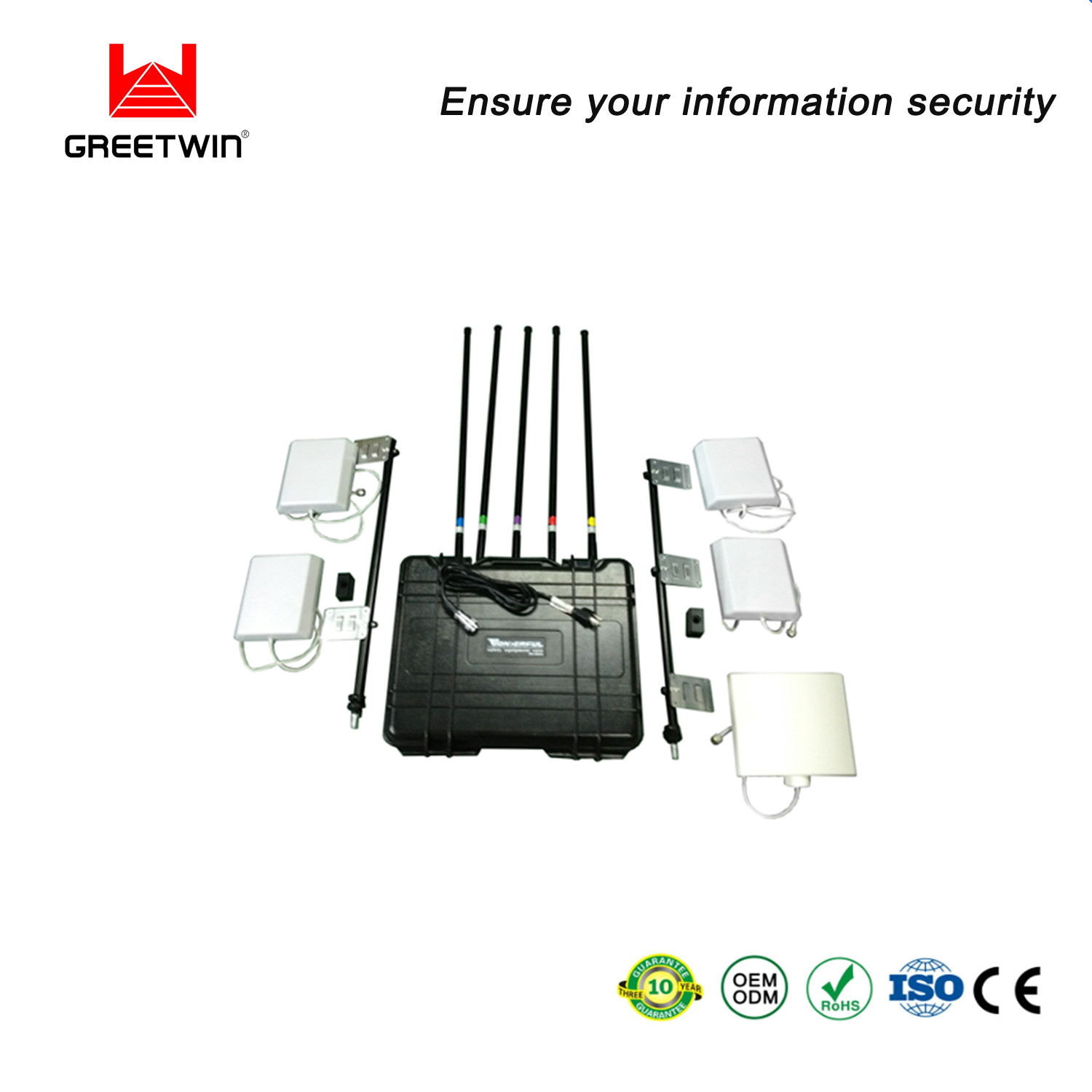

| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||||
| (Both omni and directional antennas with frame are inlcuded) | |||||
| Warranty: | 1 year | ||||
Method of Installation:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes in the selected place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN connected with Power adaptor.
High Power Desktop Signal Jammer Bluetooth LOJACK 868 433 315 Cell Phone Block 2G 3G 4G 5G
This Selectable Portable 3G Cell Phone WiFi Jammer & GPS Signal Jammer that you are viewing here is the new designed signal jammer that is designed with the ability to cut off the signals of GSM, DCS, PCS, 3G,4G, 4G LTE,4G WiMax and WiFi , i at the same time.
The powerful jammer has a wide affected frequency ranges to include CDMA/GSM, DCS/PCS, 3G, 4G LTE, 4G Wimax and WiFi . It also has a jamming range up to 20m, depending on the signal strength in the given area. Within the range, just turn on the jammer, all wireless connection to 2G, 3G, 4G or WiFi network will be disabled at the same time. Also, the jammer is a selectable unit. In other word, user can choose to allow operation of one or a few of frequency bands. Adjustment of ON or OFF any of the single bands will not cause any disruption to the operation of others..
More details and specifications of this selectable handheld 2G 3G 4G WiFi jammer are just as follows, if you want to know more just come and get the overall information.
| GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | GW-UAV45XF | |
| (4 bands) | (4 bands) | (4 bands) | (5 bands) | (5 bands) | |
| 850-895MHz: | 850-895MHz | 850-895MHz 25W | 850-895MHz | 850-895MHz | |
| 25W | 25W | (920-965MHz) | 25W | 25W | |
| (920-965MHz) | (920-965MHz) | (920-965MHz) | |||
| 920-960MHz: 25W | 1920-1990MHz 15W | 1920-1990MHz 15W | 1920-1990MHz 15W | 1920-1990MHz 15W | |
| (1800-1880MHz) | (1800-1880MHz) | (1800-1880MHz) | (1800-1880MHz) | ||
| 1800-2000MHz | 2100-2170MHz 15W | 2100-2170MHz 15W | 2100-2170MHz 15W | 2100-2170MHz 15W | |
| 15 W | |||||
| 2100-2170MHz | 2400-2500MHz: 8W | GPS L1 1575MH: 8W | 2400-2500MHz: 8W | VHF 130-180MHz | |
| 15 W | Walkie Talkie:20W | ||||
| N/A | N/A | N/A | 2620-2690MHz | UHF 420-480MHz | |
| 4G :5W | Walkie Talkie:20W | ||||
| Total : 80 W | Total : 63 W | Total : 63 W | Total : 68 W | Total : 95 W | |
| Option: GPS L2 L3 L4 L5: 8W, VHF 130-180MHz: 20W, UHF 420-480MHz: 20W, | |||||
| 4G 2620-2690MHz: 5W, LoJack 173MHz: 20W | |||||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||||
| VSWR over protection for each modular | |||||
| Battery | +24V / 45AH LiFePO4 can work 3-5 Hours. | ||||
| Power supply: | AC110 or 220-240V /DC 27V | ||||
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | ||||
| Weight | 25Kg | ||||
| Dimension: | GW-UAV45XF 518 x 428 x 228 mm (Case only ) | ||||
| Working time: | Without the time limit, May continue to work, | ||||
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||||
| (Both omni and directional antennas with frame are inlcuded) | |||||
| Warranty: | 1 year | ||||
Method of Installation:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes in the selected place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN connected with Power adaptor.
