| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-UVA60XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
20000pcs per Month

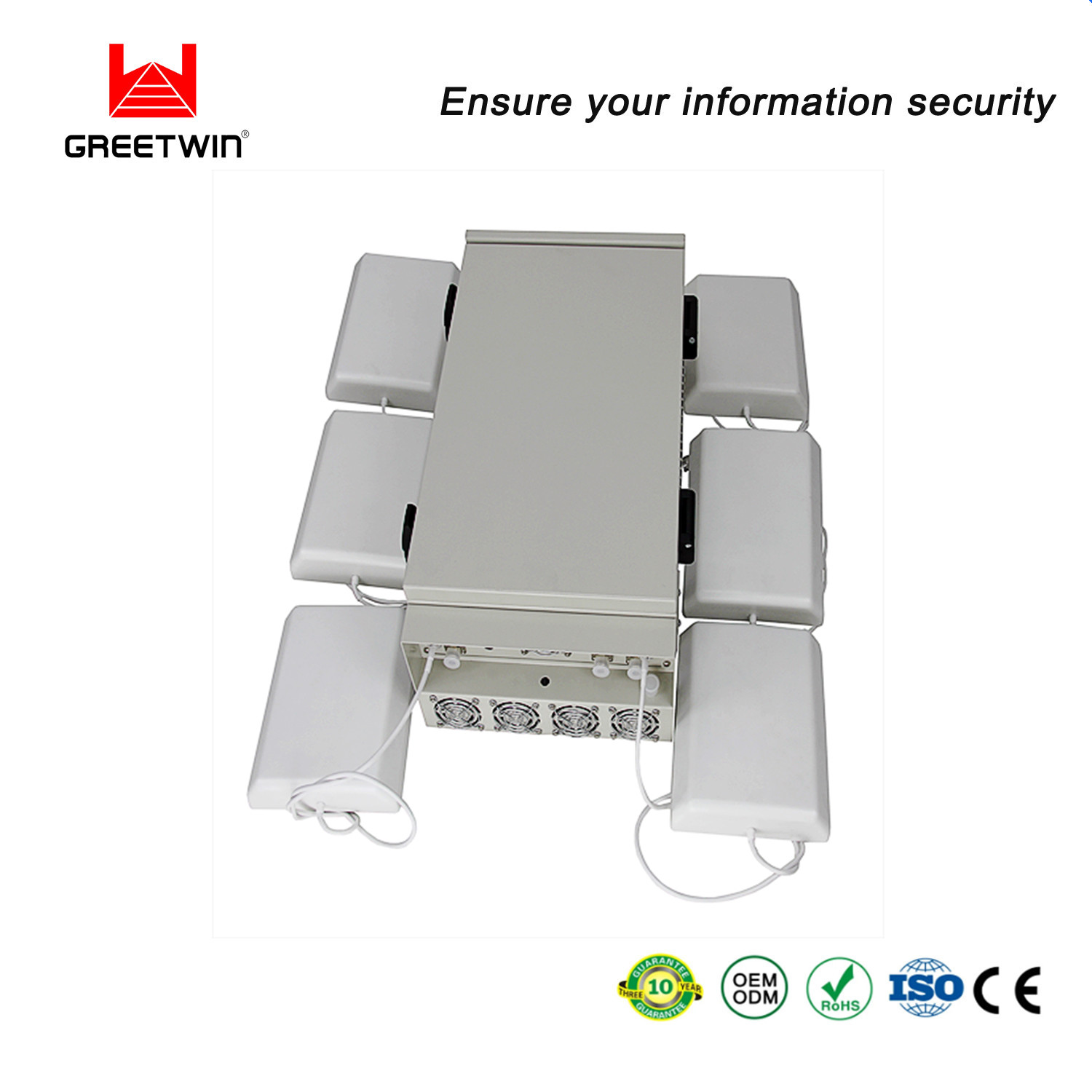

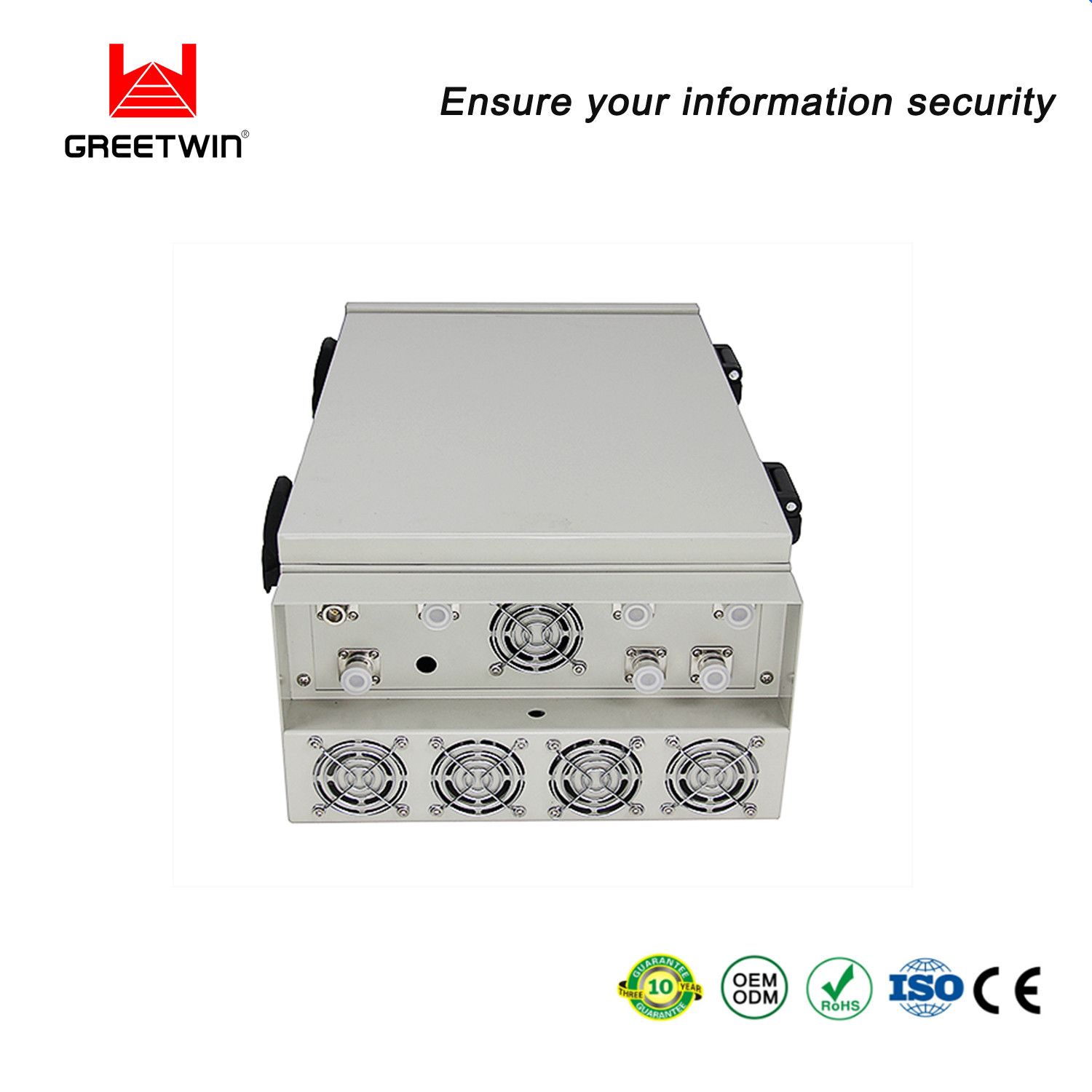

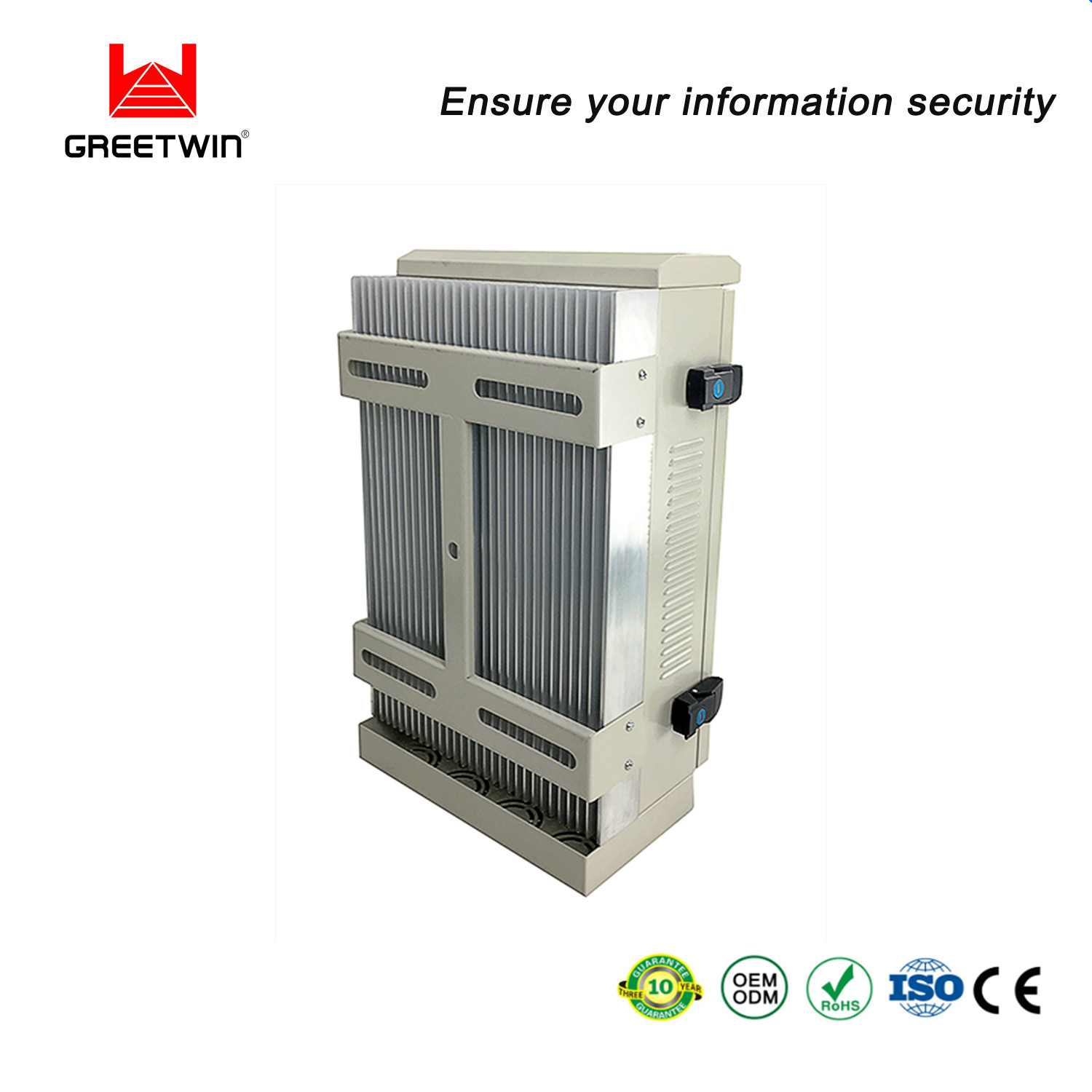

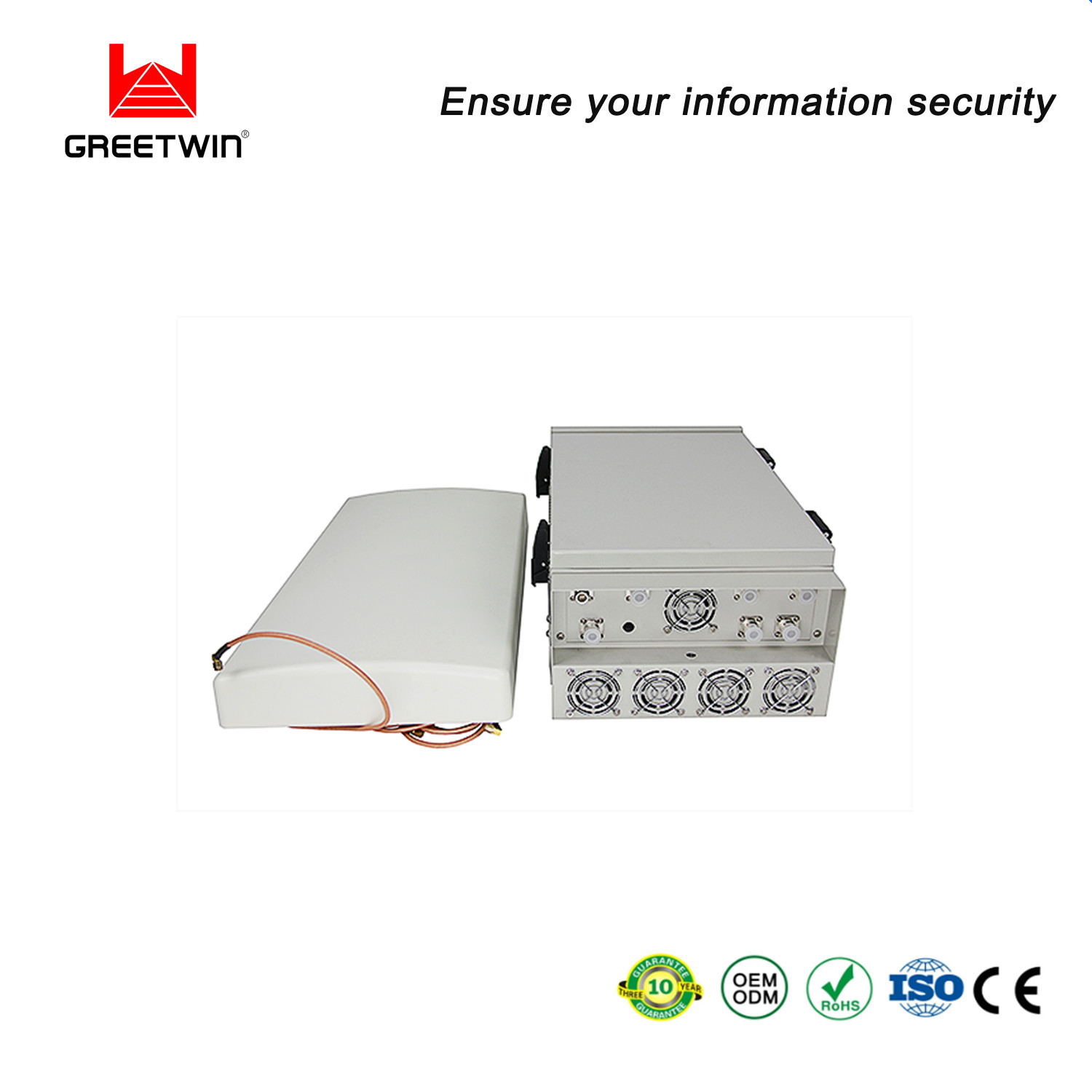

2G 3G 4G Cell Phone Signal Blocker WiFi Bluetooth Signal RF Jammer
| GW-UVA60XF USA | GW-UVA60XF Eur | GW-UVA60XF Lojack | GW-UVA60XF |
| (6 bands) | 4G (6 bands) | GPS (6 bands) | VHF UHF (6 bands) |
| 850-895MHz 25W | 920-960MHz: 25W | 920-965MHz: 25W | 920-965MHz: 25W |
| GSM900 | (850-895MHz 25W) | (850-895MHz 25W) | |
| 1800-2000MHz | 1800-1880MHz 20W PCSGSM 1800 | 1800-1880MHz:20W | 1800-1880MHz:20W |
| 20 W | (1920-1990MHz 20W) | (1920-1990MHz 20W) | |
| 2100-2170MHz | 2100-2170MHz 30 W | 2100-2170MHz 30W | 2100-2170MHz 30W |
| 30 W 3G UMTS | 3G UMTS | 3G UMTS | 3G UMTS |
| 700-800MHz:15W | 2620-2690MHz:20W | 2620-2690MHz: 20W | 2620-2690MHz:20W |
| iPhone (AT&T & Verizon) | 4G LTE High | 4G LTE High | 4G LTE High |
| 2500-2700MHz:20W | 790-870MHz:20W | 173MHz:30W | 130-180MHz: 20W |
| 4G WiMax Sprint+WiFi | 4G LTE Low | LoJack 173 | VHF Walkie Talkie |
| 2400-2500MHz:20W | 2400-2500MHz: 20W | GPS L1 1575MH: 40W | 420-480MHz: 20W |
| WiFi 11.b,g & Buletooth | WiFi 11.b, g | (1520-1670MHz: 40W) | UHF Walkie Talkie |
| Total : 130W | Total : 135 W | Total : 165 W | Total : 135 W |
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, | |||
| 4G 2620-2690MHz: 20W, LoJack 173MHz: 30W, 4G LTEUSAIphone 700-800MHz: 15W | |||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||
| 100% Safe VSWR over protection (Isolator) for each modular | |||
| Option: Remote Control 10-30m | |||
| Power supply: | AC110 or 220-240V /DC 27V | ||
| Jamming Range | Radius 100~300 meters (-75dBm@Omnidirectional antennas) | ||
| Weight | 22Kg | ||
| Dimension: | 520 x 340 x 200mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||
| Warranty: | 1 year | ||
Frequency Range------------------------- 700-965/1710-2700MHz
Impedance---------------------------------- 50 Ohm
VSWR---------------------------------------- ≤1.5
Gain------------------------------------------- (700-965):2×10dBi (1710-2700):2×12dBi
Front to Back Ratio----------------------- ï¼25dB
Polarization--------------------------------- ±45°
Horizontal 3dB Beam Width------------ (806-960):90° (1710-2500):90°
Vertical 3dB Beam Width--------------- (806-960):50° (1710-2500):30°
Maximum Input Power------------------- 200W
Lighting Protection------------------------ Direct Ground
Connector Place--------------------------- Bottom
Connector----------------------------------- N-Female
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)------------------------- 680*280*80mm
Weight------------------------------------------ 6kg
Rated Wind Velocity------------------------ 60m/s
Operating Temperature-------------------- -40â-60â
Mounting Hardware------------------------- Ø40-Ø75mm
Radiating Element Material--------------- Zinc Alloy,Aluminum Alloy
Reflector Material--------------------------- Aluminum Alloy
Radome Material---------------------------- PVC
Radome Color-------------------------------- Gray
