| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001,CE
GW-UVA80XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

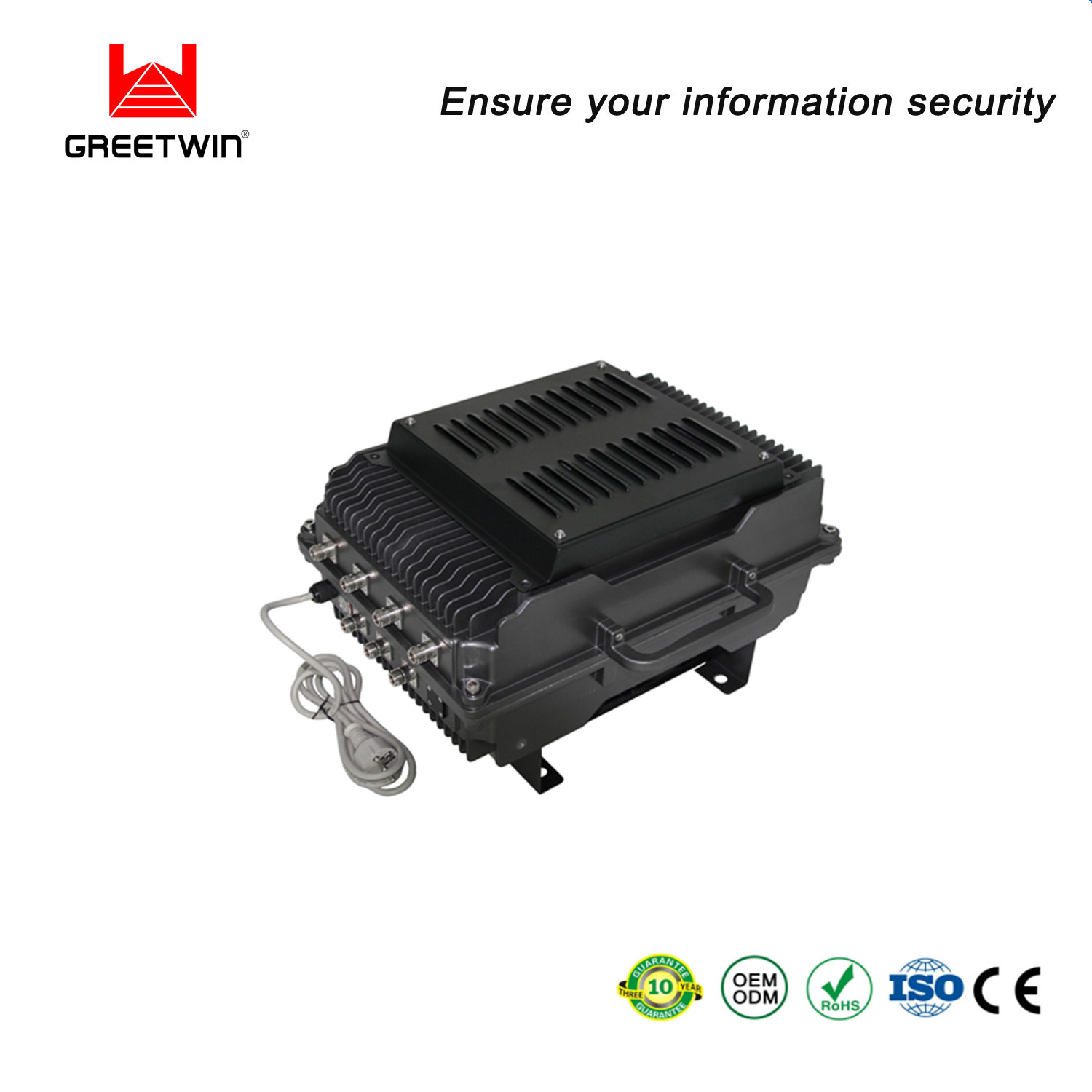

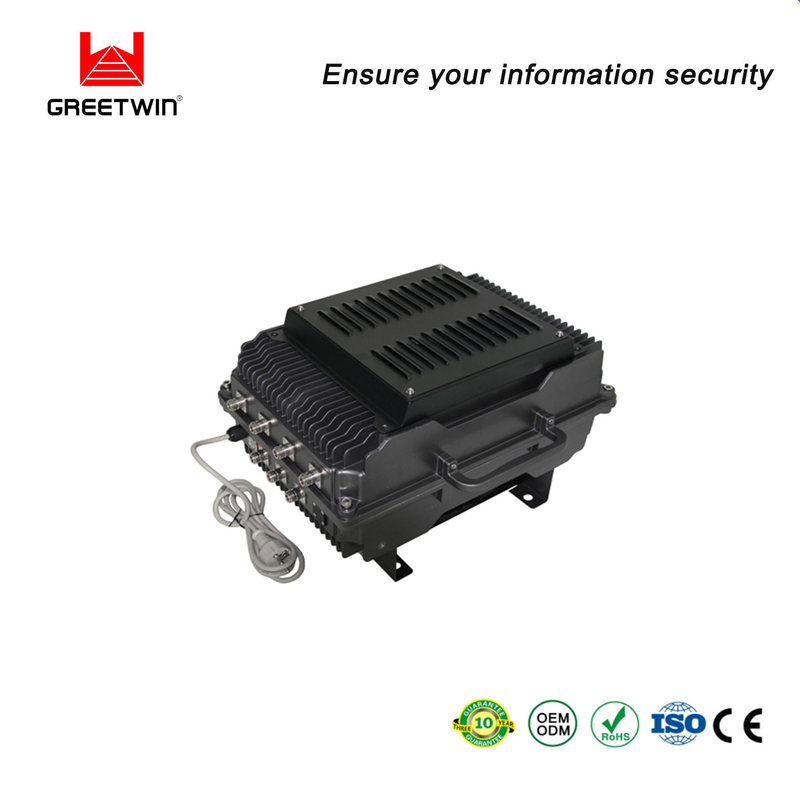

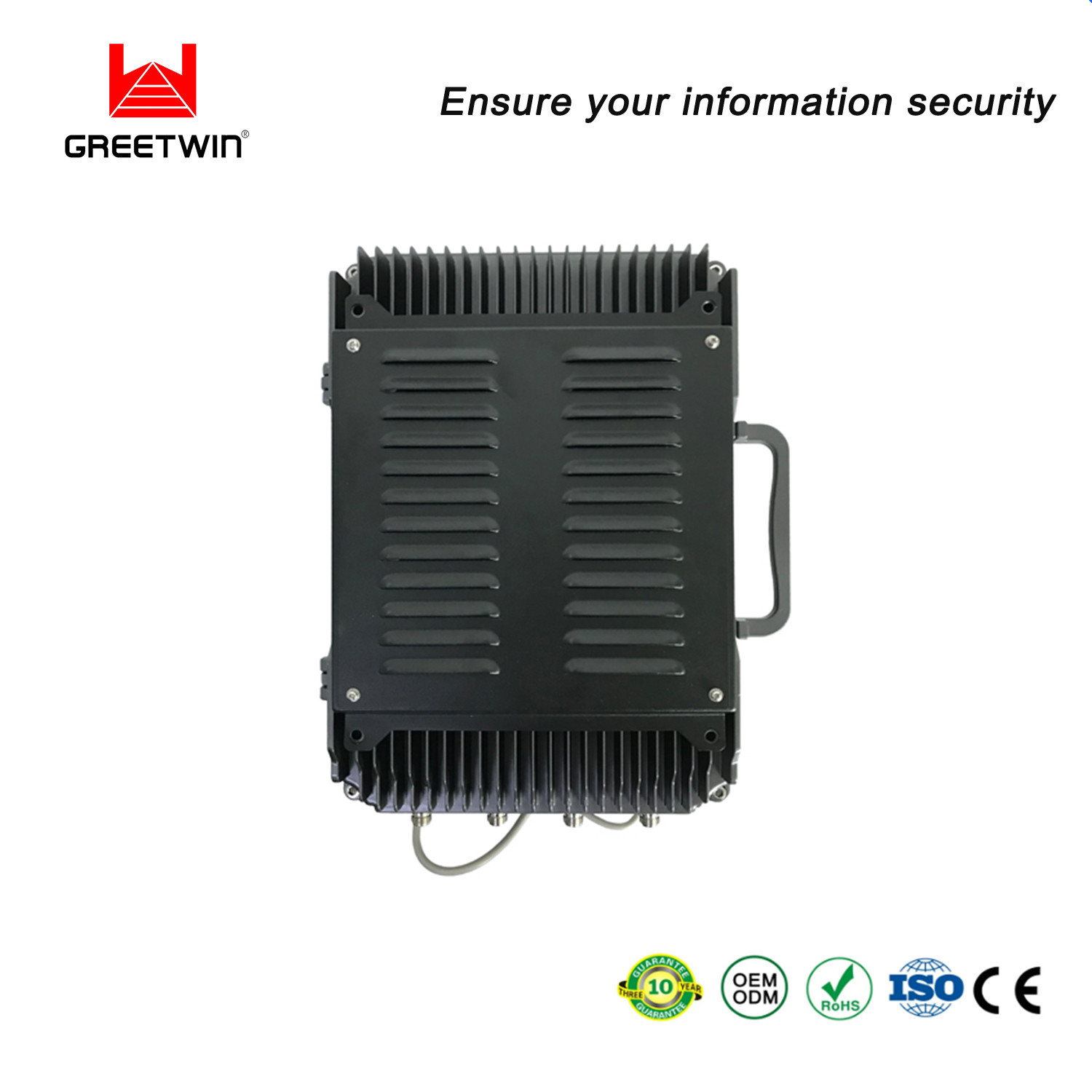

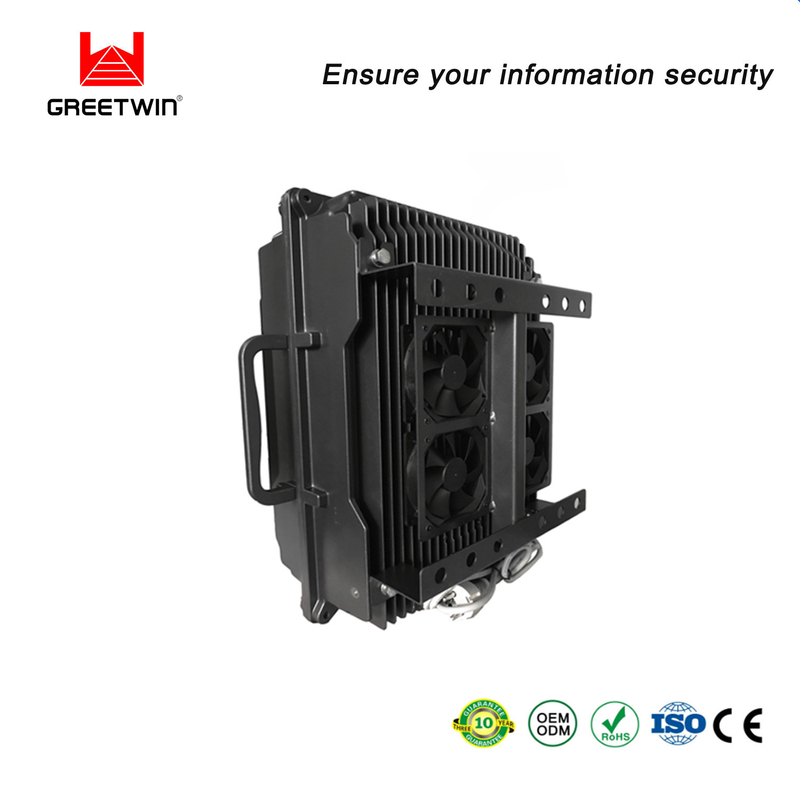

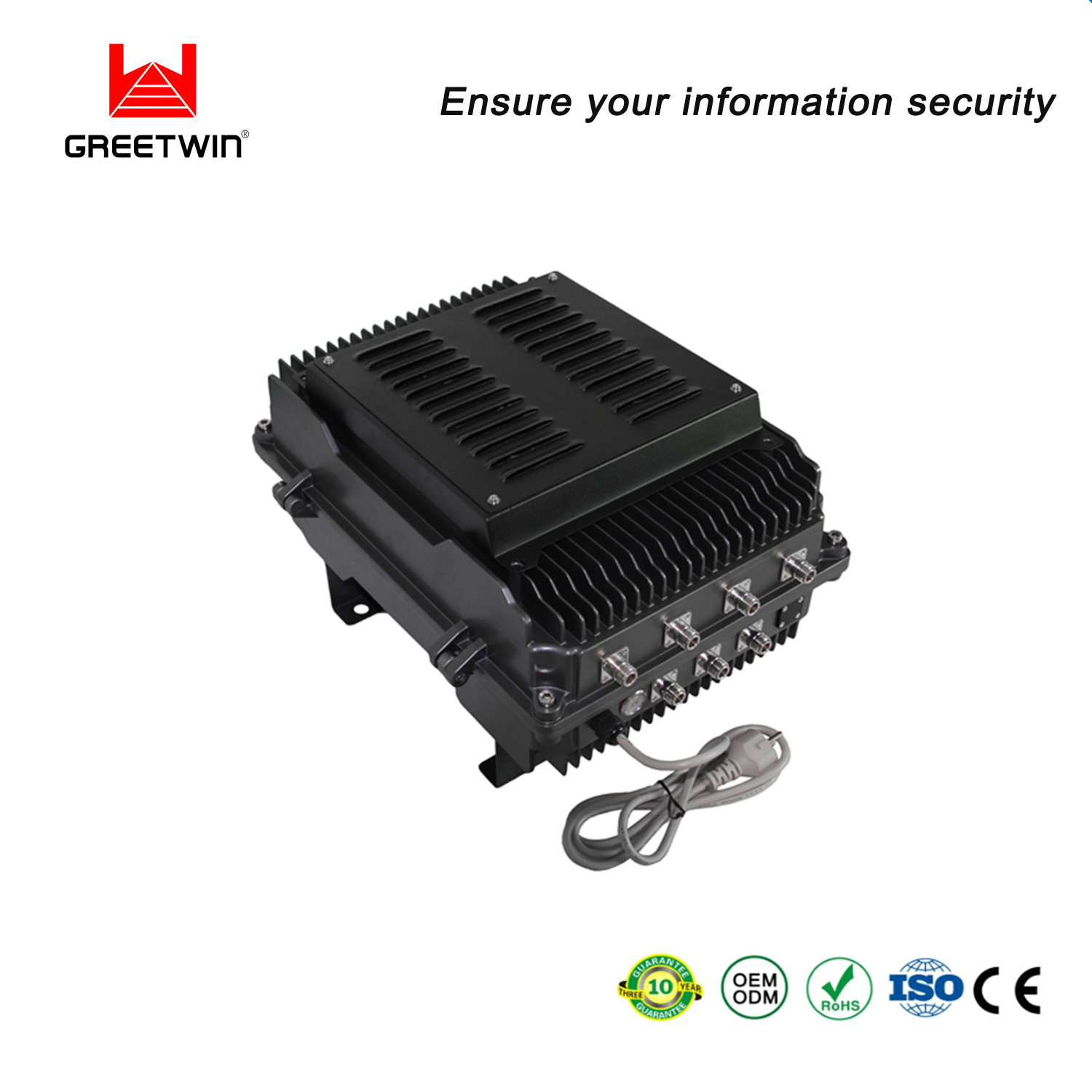

135w Mobile Phone Signal Wifi 2G 3G 4G 6 Bands Waterproof Ourdoor Signal Blocker
| CPB–3080A USA (6 bands) | CPB–3080E Eur 4G (6 bands) | CPB–3080GL Lojack GPS (6 bands) | CPB–3080VU VHF UHF (6 bands) |
| 850-895MHz 25W | 920-960MHz: 25W GSM900 | 920-965MHz: 25W (850-895MHz 25W) | 920-965MHz: 25W (850-895MHz 25W) |
| 1800-2000MHz 20 W | 1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz:20W (1920-1990MHz 20W) | 1800-1880MHz:20W (1920-1990MHz 20W) |
| 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30 W 3G UMTS | 2100-2170MHz 30W 3G UMTS | 2100-2170MHz 30W 3G UMTS |
| 700-800MHz:15W iPhone (AT&T & Verizon) | 2620-2690MHz:20W 4G LTE High | 2620-2690MHz: 20W 4G LTE High | 2620-2690MHz:20W 4G LTE High |
| 2500-2700MHz:20W 4G WiMax Sprint+WiFi | 790-870MHz:20W 4G LTE Low | 173MHz:30W LoJack 173 | 130-180MHz: 20W VHF Walkie Talkie |
| 2400-2500MHz:20W WiFi 11.b,g & Buletooth | 2400-2500MHz: 20W WiFi 11.b, g | GPS L1 1575MH: 40W (1520-1670MHz: 40W) | 420-480MHz: 20W UHF Walkie Talkie |
| Total : 130W | Total : 135 W | Total : 165 W | Total : 135 W |
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, 4G 2620-2690MHz: 20W, LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W | |||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) 100% Safe VSWR over protection (Isolator) for each modular Option: Remote Control 10-30m | |||
| Power supply: | AC110 or 220-240V /DC 27V | ||
| Jamming Range | Radius 100~300 meters (-75dBm@Omnidirectional antennas) | ||
| Weight | 19Kg | ||
| Dimension: | 470 x 380 x 290mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||
| Warranty: | 1 year | ||
STANDARD DIRECTIONAL ANTENNA
ELECTRICAL SPECIFICATIONS
Frequency Range----------------------- 700-965/1710-2700 MHz
Impedance--------------------------------- 50 Ohm
VSWR--------------------------------------- ≤1.5
Gain------------------------------------------ 7 dBi (700-1000MHz)/8 dBi (1710-2700MHz)
Polarization-------------------------------- Vertical
Maximum Input Power----------------- 100 W
Horizontal 3dB Beam Width--------- 95°±15°/ 75°±12°
Vertical 3dB Beam Width------------- 65°/ 60°
Connector----------------------------------- N-Female
Cable----------------------------------------- RG-58/U White, L=200 mm
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)---------------------- 208×178×44 mm
Weight---------------------------------------- 575g
Radiating Element Material----------- Aluminum Alloy
Reflector Material------------------------- Aluminum Alloy
Radome Material-------------------------- ABS
Radome Color------------------------------ White
OPTION: HIGHER GAIN DIRECTIONAL ANTENNA TWO BANDS IN ONE ANTENNA
ELECTRICAL SPECIFICATIONS
Frequency Range------------------------- 700-965/1710-2700MHz
Impedance---------------------------------- 50 Ohm
VSWR---------------------------------------- ≤1.5
Gain------------------------------------------- (700-965):2×10dBi (1710-2700):2×12dBi
Front to Back Ratio----------------------- ï¼25dB
Polarization--------------------------------- ±45°
Horizontal 3dB Beam Width------------ (806-960):65° (1710-2500):65°
Vertical 3dB Beam Width--------------- (806-960):50° (1710-2500):30°
Maximum Input Power------------------- 200W
Lighting Protection------------------------ Direct Ground
Connector Place--------------------------- Bottom
Connector----------------------------------- N-Female
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)------------------------- 680*280*80mm
Weight------------------------------------------ 6kg
Rated Wind Velocity------------------------ 60m/s
Operating Temperature-------------------- -40â-60â
Mounting Hardware------------------------- Ø40-Ø75mm
Radiating Element Material--------------- Zinc Alloy,Aluminum Alloy
Reflector Material--------------------------- Aluminum Alloy
Radome Material---------------------------- PVC
Radome Color-------------------------------- Gray
