| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001,CE
GW-UVA67XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

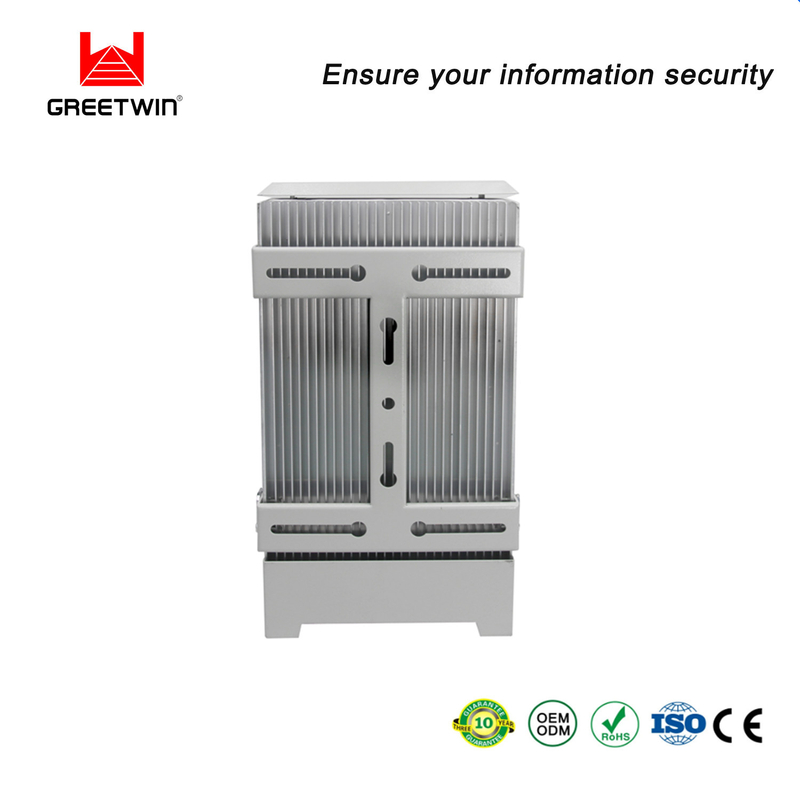

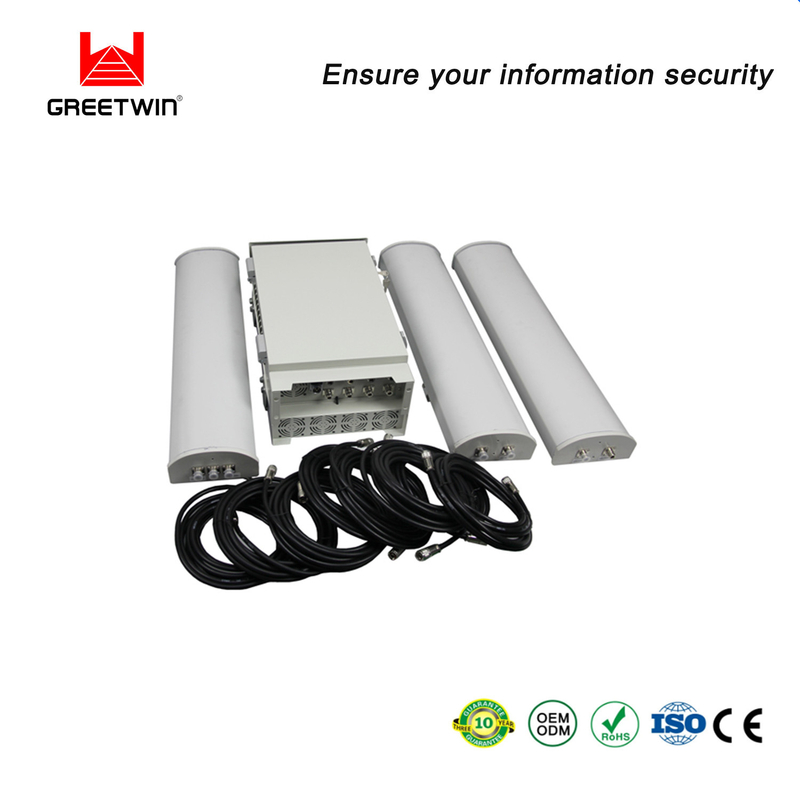

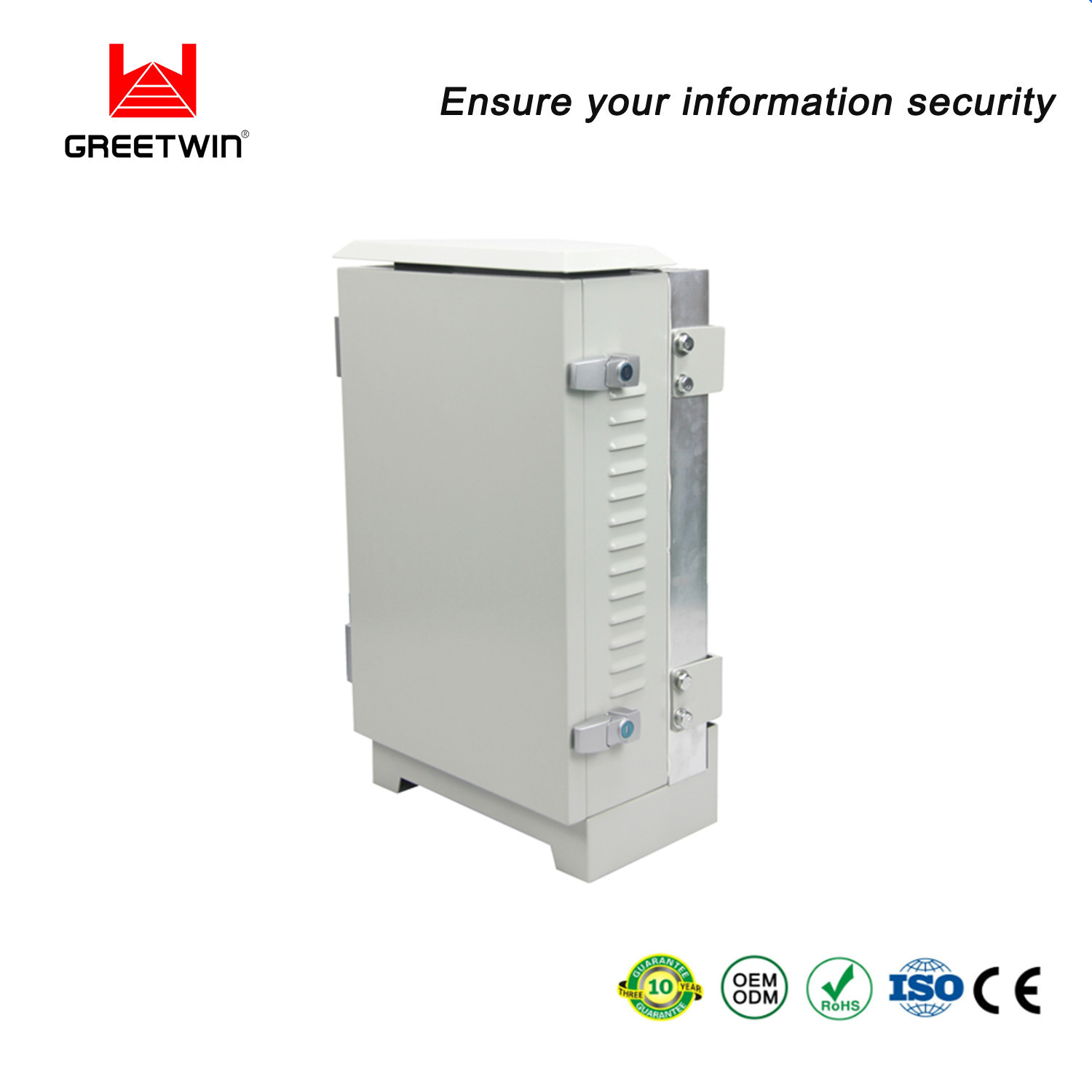

7 Bands Mobiles Phone 4G Waterproof For Jail Porject Signal Blocker Jammer
HIGHER GAIN DIRECTIONAL ANTENNA TWO BANDS IN ONE ANTENNA
ELECTRICAL SPECIFICATIONS
Frequency Range------------------------- 700-965/1710-2700MHz
Impedance---------------------------------- 50 Ohm
VSWR---------------------------------------- ≤1.5
Gain------------------------------------------- (700-965):2×10dBi (1710-2700):2×12dBi
Front to Back Ratio----------------------- ï¼25dB
Polarization--------------------------------- ±45°
Horizontal 3dB Beam Width------------ (806-960):65° (1710-2500):65°
Vertical 3dB Beam Width--------------- (806-960):50° (1710-2500):30°
Maximum Input Power------------------- 200W
Lighting Protection------------------------ Direct Ground
Connector Place--------------------------- Bottom
Connector----------------------------------- N-Female
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)------------------------- 745*180*80mm
Rated Wind Velocity------------------------ 60m/S
Weight------------------------------------------ 6kg
Operating Temperature-------------------- -40â-60â
Mounting Hardware------------------------- ?40-?75mm
Radiating Element Material--------------- Zinc Alloy,Aluminum Alloy
Reflector Material--------------------------- Aluminum Alloy
Radome Material---------------------------- PVC
Radome Color-------------------------------- Gray
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
