| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-UVA67XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

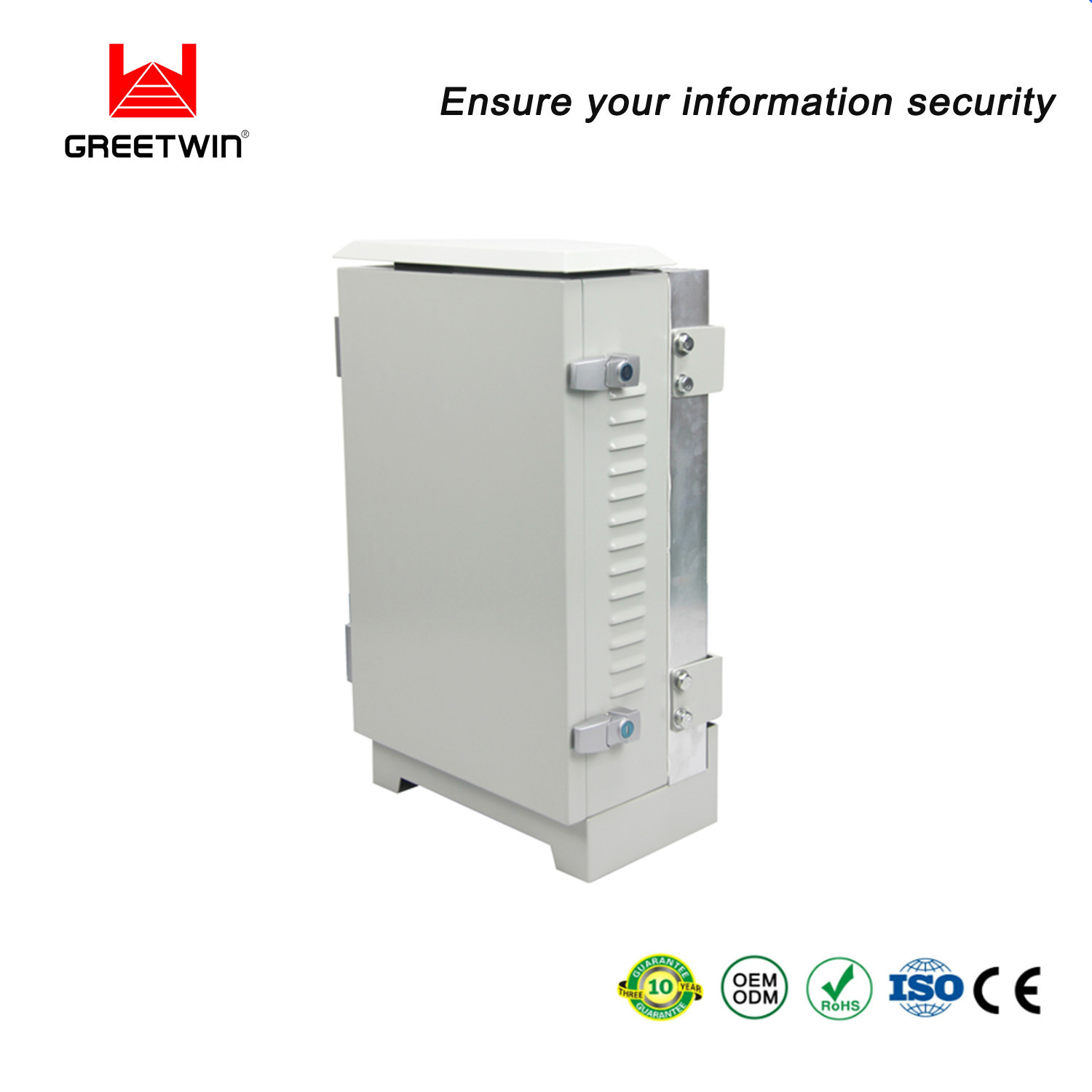

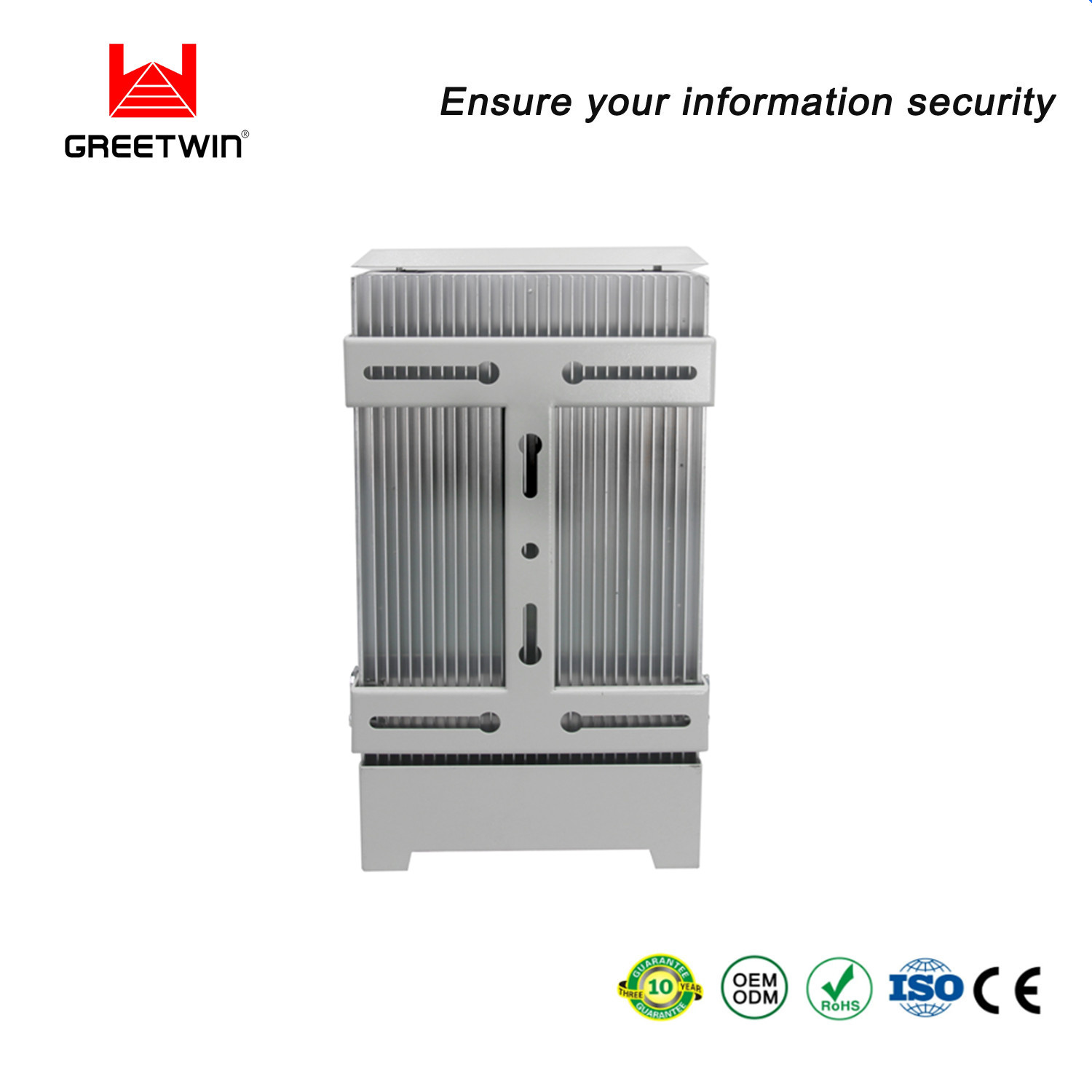

High Power Mobile Phone 3G 4G GSM CDMA Signal Jammer Blocker/WiFi Jammer/GPS Jammer/Lojack Jammer
| Details | ||
| GW-UVA67XF (7 bands) | ||
| 758-803MHz: 30W | ||
| 851-869MHz 30 W | ||
| 869-894MHz 30 W | ||
| 1930-1990MHz:20W | ||
| 2110-2155MHz:20W | ||
| 700-806MHz: 30W | ||
| 2500-2690MHz: 20W | ||
| Total : 180 W | ||
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, | ||
| 4G 2620-2690MHz: 20W, LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W | ||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | ||
| 100% Safe VSWR over protection (Isolator) for each modular | ||
| Option: Remote Control 10-30m | ||
| Power supply: | AC110 or 220-240V /DC 27V | |
| Jamming Range | Radius 100~300 meters (-75dBm@ Antennas) | |
| Weight | 22Kg | |
| Dimension: | 520 x 340 x 200mm | |
| Working time: | Without the time limit, May continue to work, | |
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | |
| Warranty: | 1 year | |

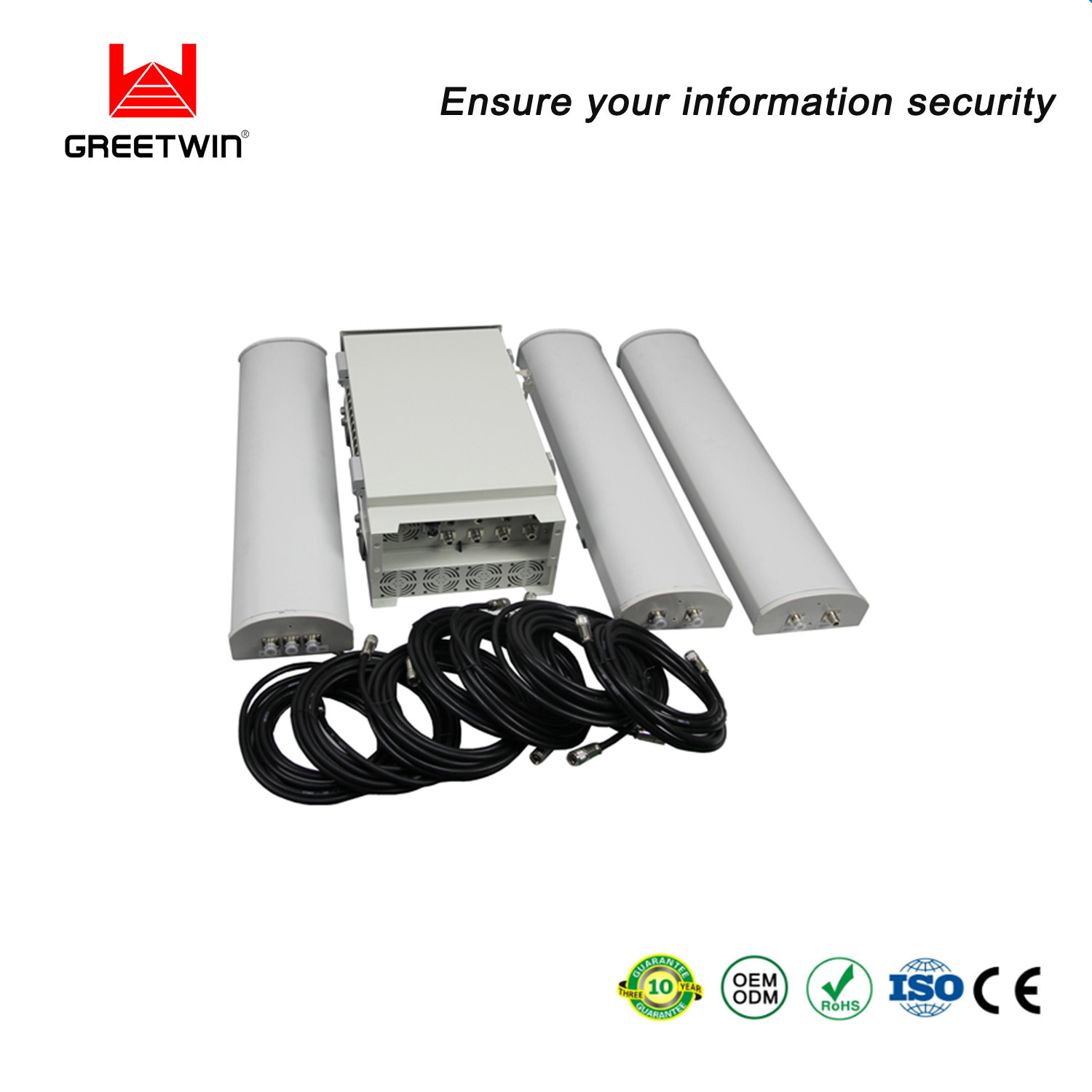

HIGHER GAIN DIRECTIONAL ANTENNA TWO BANDS IN ONE ANTENNA
ELECTRICAL SPECIFICATIONS
Frequency Range------------------------- 700-965/1710-2700MHz
Impedance---------------------------------- 50 Ohm
VSWR---------------------------------------- ≤1.5
Gain------------------------------------------- (700-965):2×10dBi (1710-2700):2×12dBi
Front to Back Ratio----------------------- ï¼25dB
Polarization--------------------------------- ±45°
Horizontal 3dB Beam Width------------ (806-960):65° (1710-2500):65°
Vertical 3dB Beam Width--------------- (806-960):50° (1710-2500):30°
Maximum Input Power------------------- 200W
Lighting Protection------------------------ Direct Ground
Connector Place--------------------------- Bottom
Connector----------------------------------- N-Female
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)------------------------- 745*180*80mm
Rated Wind Velocity------------------------ 60m/S
Weight------------------------------------------ 6kg
Operating Temperature-------------------- -40â-60â
Mounting Hardware------------------------- ?40-?75mm
Radiating Element Material--------------- Zinc Alloy,Aluminum Alloy
Reflector Material--------------------------- Aluminum Alloy
Radome Material---------------------------- PVC
Radome Color-------------------------------- Gray
