| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-JBP10
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

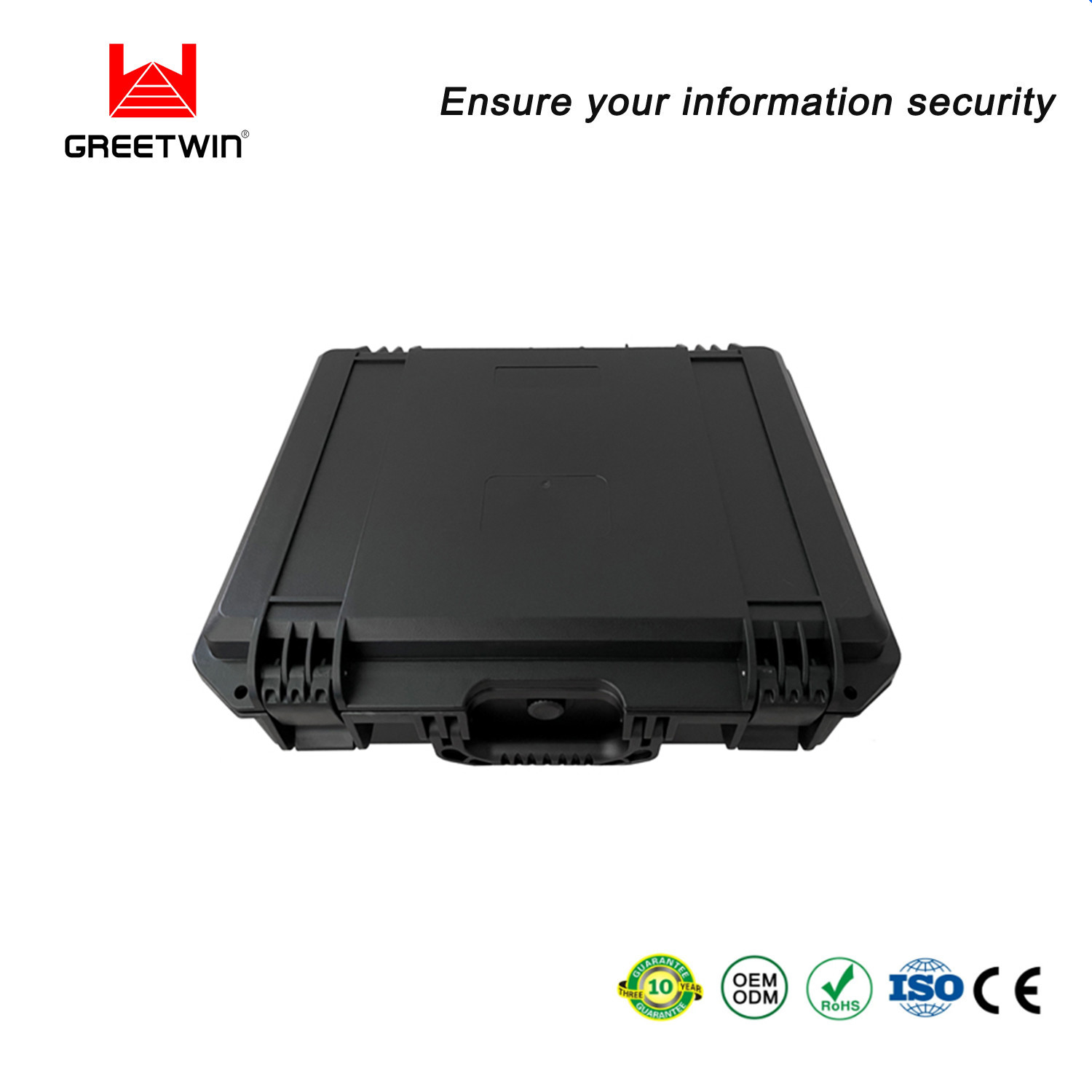

10 Bands Signal Jammer 90W Built-In Directional Antennas Ten Bands Built-In Battery
| GW-JBP10 10 Bands Europe | GW-JBP10 10 Bands America | |||
| 920-960MHz: 10W | Built-in Directional Antennas for these 10 bands | 850-895MHz 10W | Built-in Directional Antennas for these 10 bands | |
| GSM900 | CDMA | |||
| 1800-1920MHz 10 W DCS GSM 1800 | 1800-2000MHz 10 W | |||
| DCS PCS | ||||
| 2100-2170MHz 10 W | 2100-2170MHz 10W 3G UMTS | |||
| 3G UMTS | ||||
| 2570-2690MHz:8W | 2500-2700MHz:8W | |||
| 4G LTE High | 4G High | |||
| 758-825MHz:10W | 725-805MHz:10W | |||
| 4G LTE Low + 5G LTE | 4G Low | |||
| 2300-2500MHz: 8 W | 2300-2500MHz: 8 W | |||
| WiFi 11.b, g | WiFi 11.b, g | |||
| 3400-3600MHz: 8W 5G LTE | 610-652MHz: 10W | |||
| 5G LTE | ||||
| 3600-3800MHz: 8W 5G LTE | 1570-1620MH: 10W | |||
| GPS L1 + Glonass L1 | ||||
| 1450-1620MH: 10W | 850-895MHz 10W | |||
| GPS L1 + Glonass L1, 5G LTE | CDMA | |||
| 5.1-5.9GHz: 4W | 5.1-5.9GHz: 4W | |||
| WiFi 11.a | WiFi 11.a | |||
| Total : 86W | Total : 90W | |||
| Battery | 1-2 Hours Working Time | |||
| Power supply: | AC110 or 220-240V /DC 27V or External AC110-220V Power Supplier | |||
| Jamming Range | Radius 30~100 meters (-75dBm@Omnidirectional antennas) | |||
| Weight | 9.6 kg | |||
| Size | 415 mm(L)×340mm(W)× 174 mm(H) | |||
Antennas Specification
Electrical Specifications
Frequency Range:750-830/920-965/1450-1620/1805-1900/2100-2170/2300-2500/2560-2700/3400-3600/3600-3800/5100-5900MHz
Gain(dBi):8/12±1dBi
VSWR:≤1.5/2.0
Polarization:Vertical+±45°
Horizontal Beamwidth(0º):60-65±8º
Vertical Beamwidth(0º):≥15±5º
Front-to-back ratio(dB):≥20-30
Input Impedance(Ω):50Ω
Maximum input power(W):100W
Input connector type:10*SMA-J RG316
Lightning Protection:DC Ground
Mechanical Specifications:Dimensions mm(Height/Width/Depth)375*280*40mm
Antenna weight(kg):0.8Kg
Rated Wind Velocity(m/s):60m/s
Operational Humidity(ï¼ ):10- 95
Radome material:ABS
Operating temperature(ºC):-30ï½70 º
Mounting hardware(mm):ï¿ 30ï½ï¿ 75
Mechanical tilt(º):0-10º
