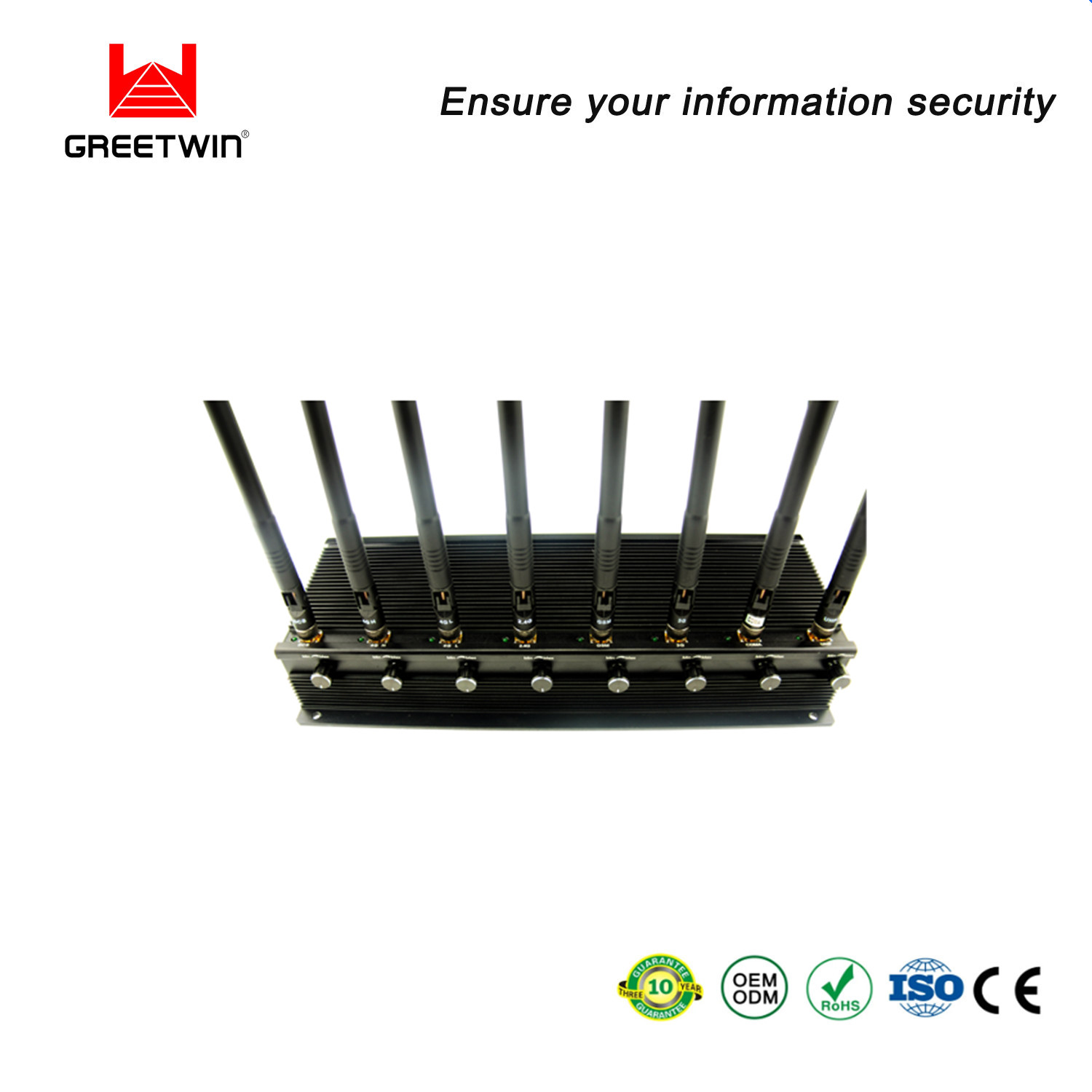

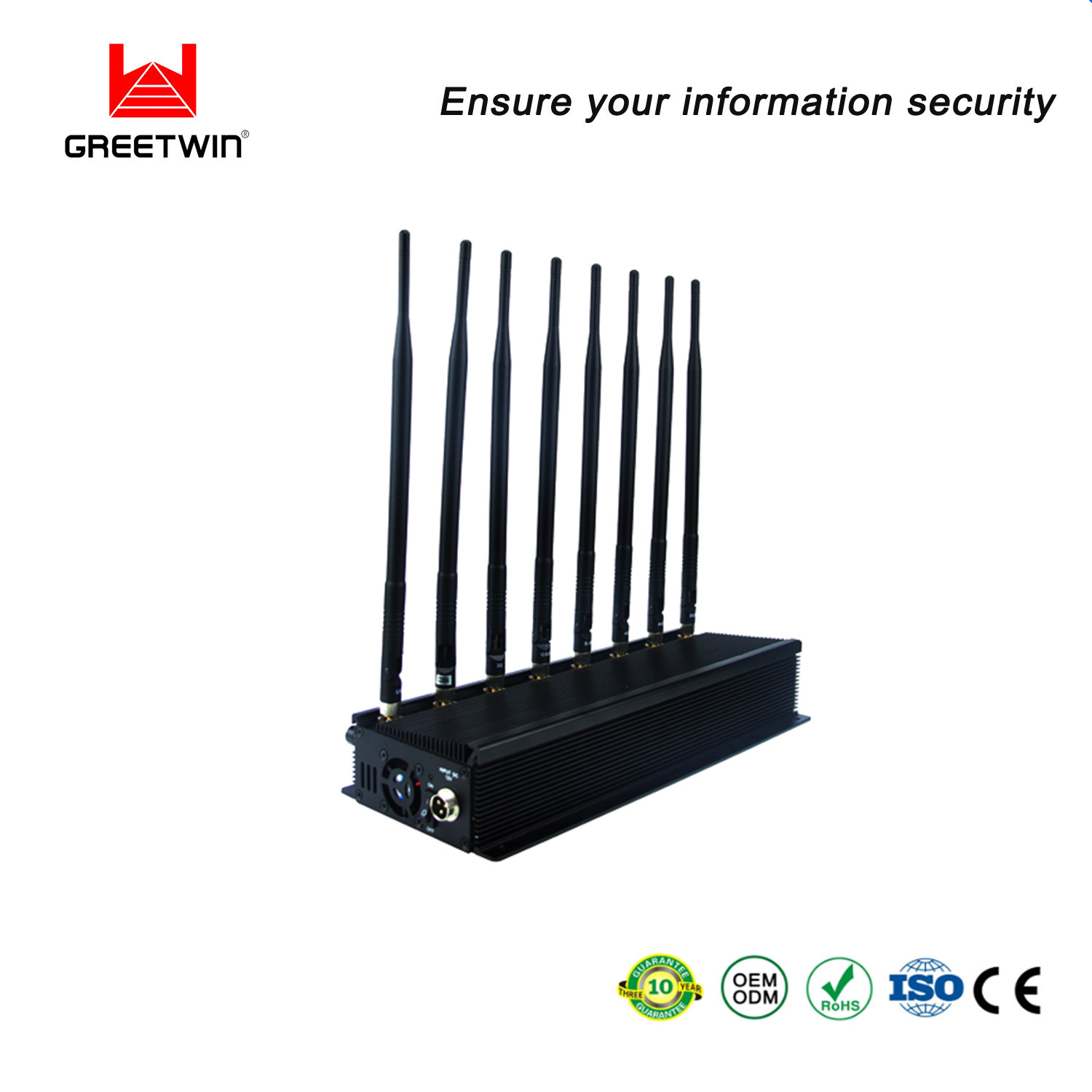

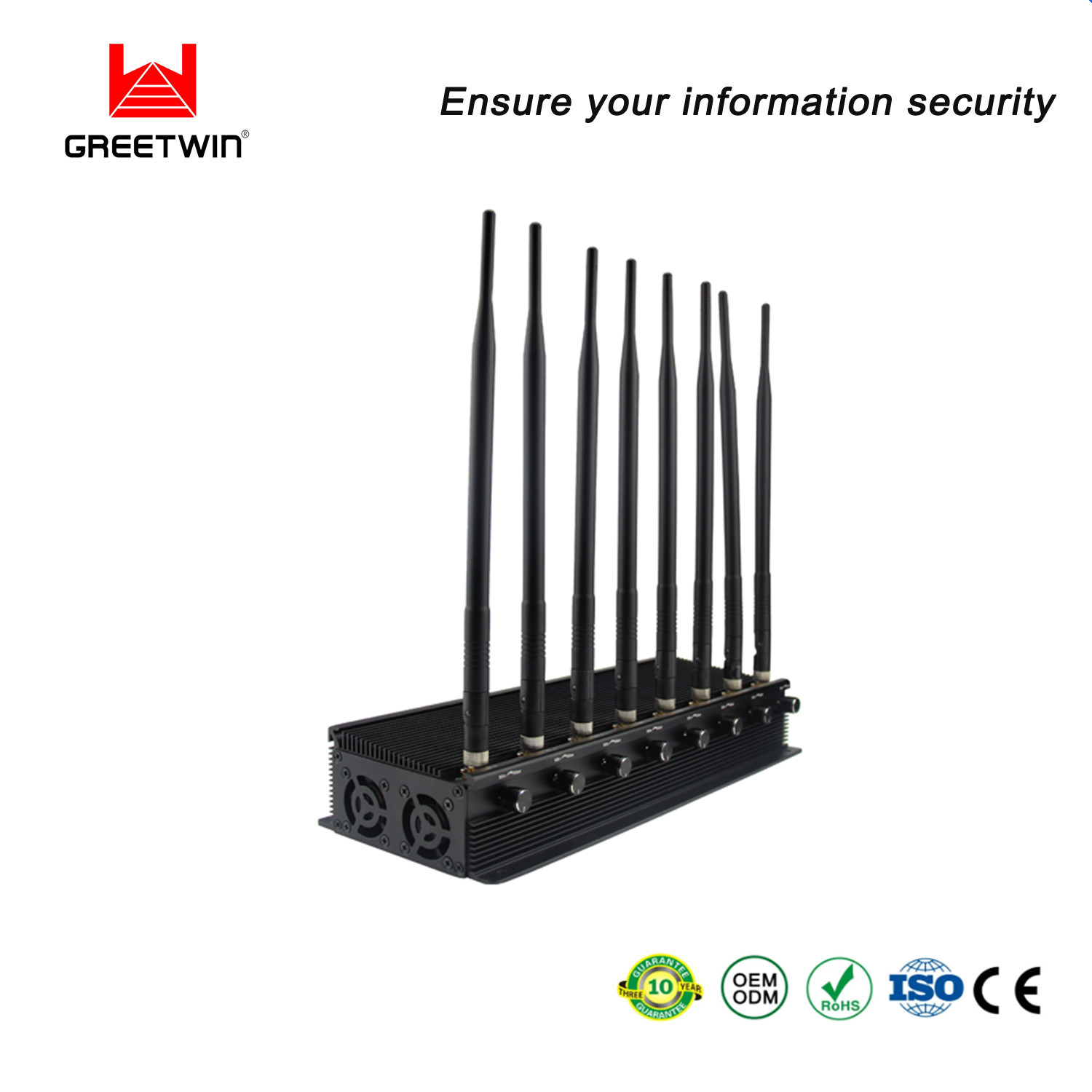

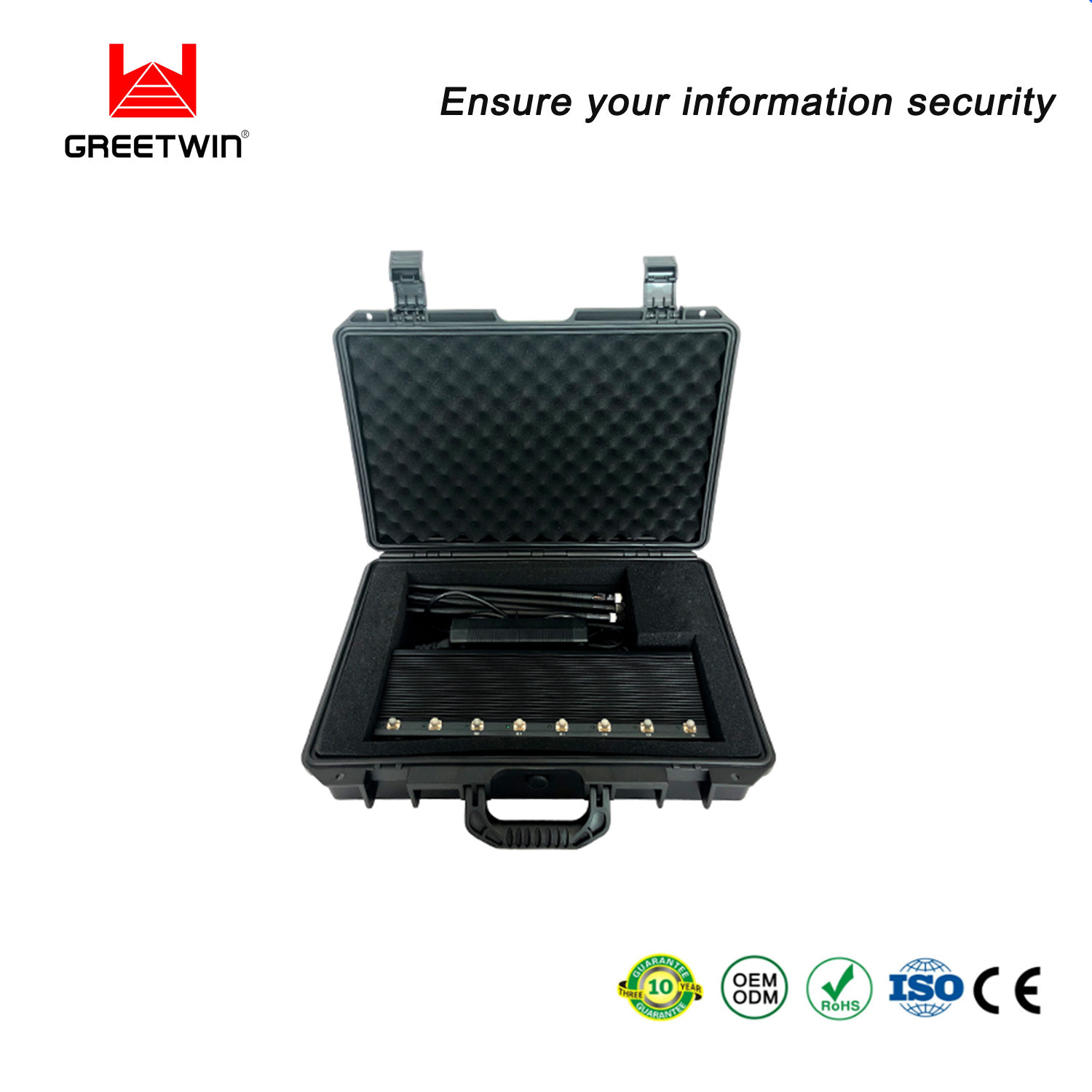

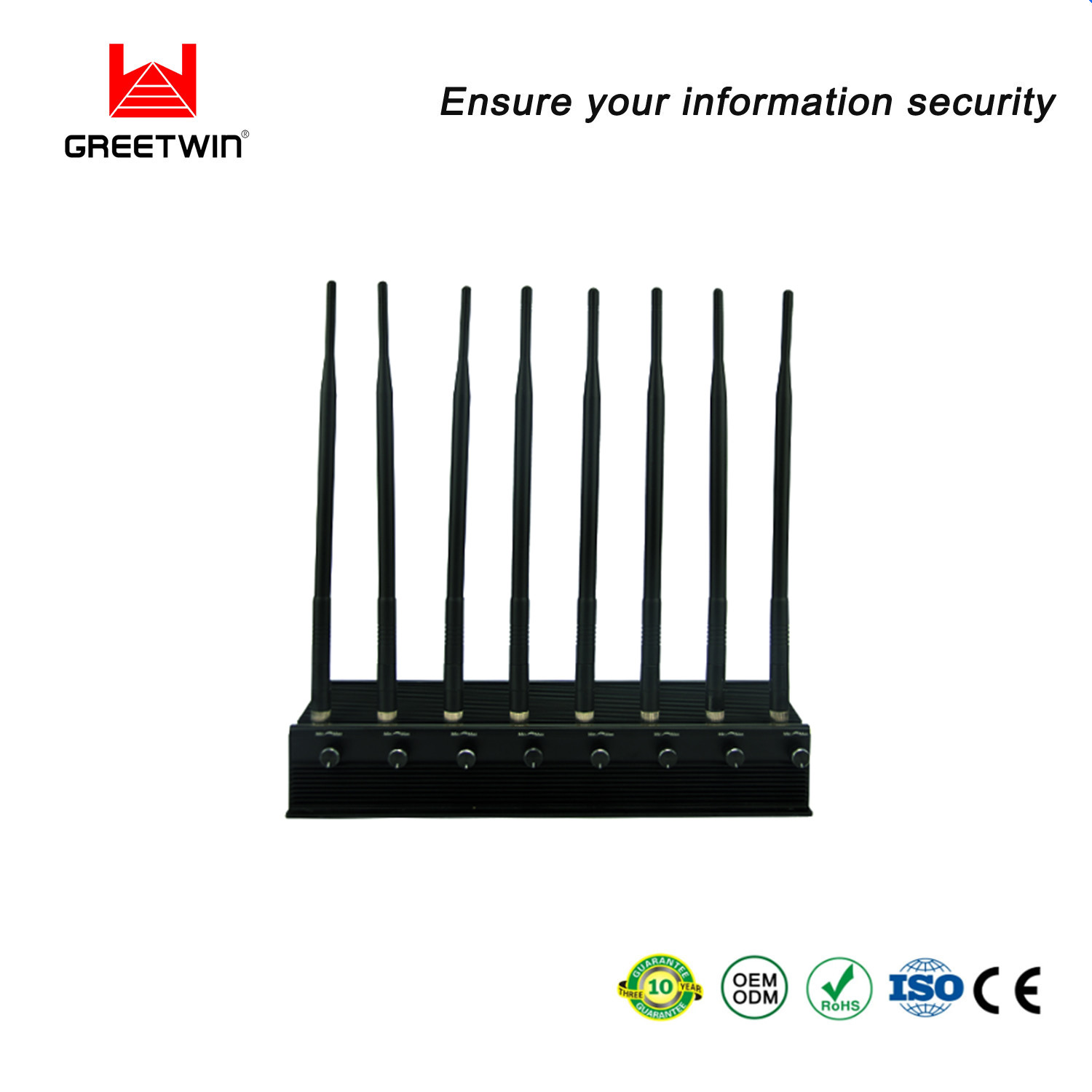

8 Antenna 2G 3G 4G Cell Phone Signal Blocker WiFi Bluetooth Signal RF Jammer
| GW-JA8HXF USA | GW-JA8HXF EUR | GW-JA8HXF GPS | GW-JA8HXF |
| ( 8 Bands) | ( 8 Bands) | ( 8 Bands) | ( 8 Bands) |
| 850-895MHz: 3W | 130-180MHz: 3W | GPS L1 1575.42 MHz±10MHz: 1.5W | 130-205MHz: 3W |
| 920-965MHz: 3W | 400-470MHz: 3W | GPS L2 1227.60 MHz±10MHz: 1.5W | 205-275MHz: 3W |
| 1800-1990MHz: 3W | 920-965MHz: 3W | GPS L3 1381.05 MHz±10MHz: 1.5W | 275-345MHz:3W |
| 2100-2170MHz: 3W | 1800-1890MHz: 3W | GPS L4 1379.913 MHz±10MHz: 1.5W | 345-415MHz: 3W |
| WiFi 2400-2480MHz:1.5W | 2100-2170MHz: 3W | GPS L5 1176.45 MHz±10MHz: 1.5W | 415-500MHz: 3W |
| 4G LTE USA iPhone (AT&T & Verizon) 700-800MHz: 2W | WiFi 2400-2480MHz:1.5W | 920-965MHz: 3W | 920-965MHz: 3W |
| (850-895MHz) | (850-895MHz) | ||
| 4G WiMAX USA Sprint 2500-2700MHz:1.0W | 4G LTE WiMAX2 Europe 2620-2690MHz: 1.0W | 1800-1890MHz: 3W | 1800-1890MHz: 3W |
| (1920-1990MHz) | (1920-1990MHz) | ||
| GPS: L1 1575.42Mhz: 1.5W | 790-870MHz | 2100-2170MHz: 3W | 2100-2170MHz: 3W |
| 4G LTE | |||
| Total: 18.0 W | Total: 19.0 W | Total 16.5 W | Total: 24.0 W |
| Option: Remote/Alarm Control 315MHz, 433MHz, 868MHz, GPS L2 L3 L4 L5,, LoJack 173MHz, | |||
| SAT Sattellite Phones 1520-1670MHz, 11.a WiFi 5.1-5.5GHz, 5.5-5.9GHz, 3.5-3.7GHz | |||
| All Frequency can mix very Flexible, Each module/Band is independent | |||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||
| Power supply: | AC100-240V or 12V Car Charger (300mm Long) | ||
| Jamming Range | Radius10~40 meters (-75dBm@Omnidirectional antennas) | ||
| Weight | 4.0Kg | ||
| Dimension: | 360*140*51mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | 210mm or 380mm Long | ||
| Warranty: | 1 year | ||
Features:
*Adjustable working range you can avoid blocking adjacent areas
*Friendly use and maintenance
*24/7hours working, Could continue to work
*Good cooling system with unique case as big heat sink and 3 fans inside
*Portability: Vehicular power cable included Could be used in Vehicle directly jamming car bomb
Applicable place:
It can be applied in a meeting room, conference room, museum, gallery, theater, concert hall, church, temple, restaurant, classroom, training center, factory, bank, train, car, bus, etc.
Specification:
Total Output Power:16 Watt
Output power Adjustable could adjust the jamming range
Cover Radius: 10-50m(under Signal level ≤-85dBm)@according to the signal density mobile network
Jamming type: Sweep Jamming
Antenna Type: 3dBi external omni-directional
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC -DC12V) and 12V car charger
Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe)
Operating Temp:-20 to +50ºC
Storage Temp:-40 to +60ºC
Humidity: 5%-80%
Dimension(LXWXH): 305 x 140x 51mm not include antennas
Inner box dimension:450x240x85mm
