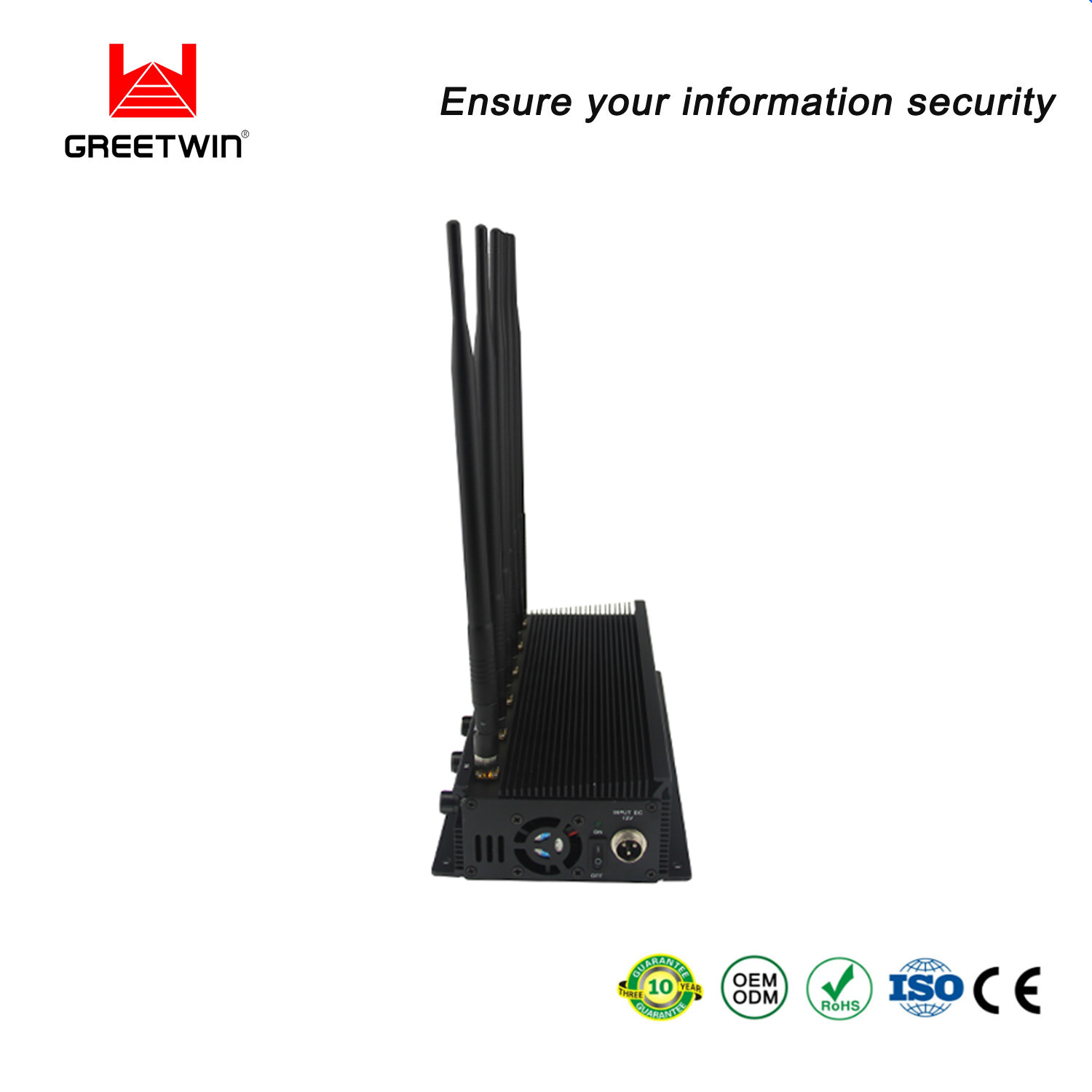

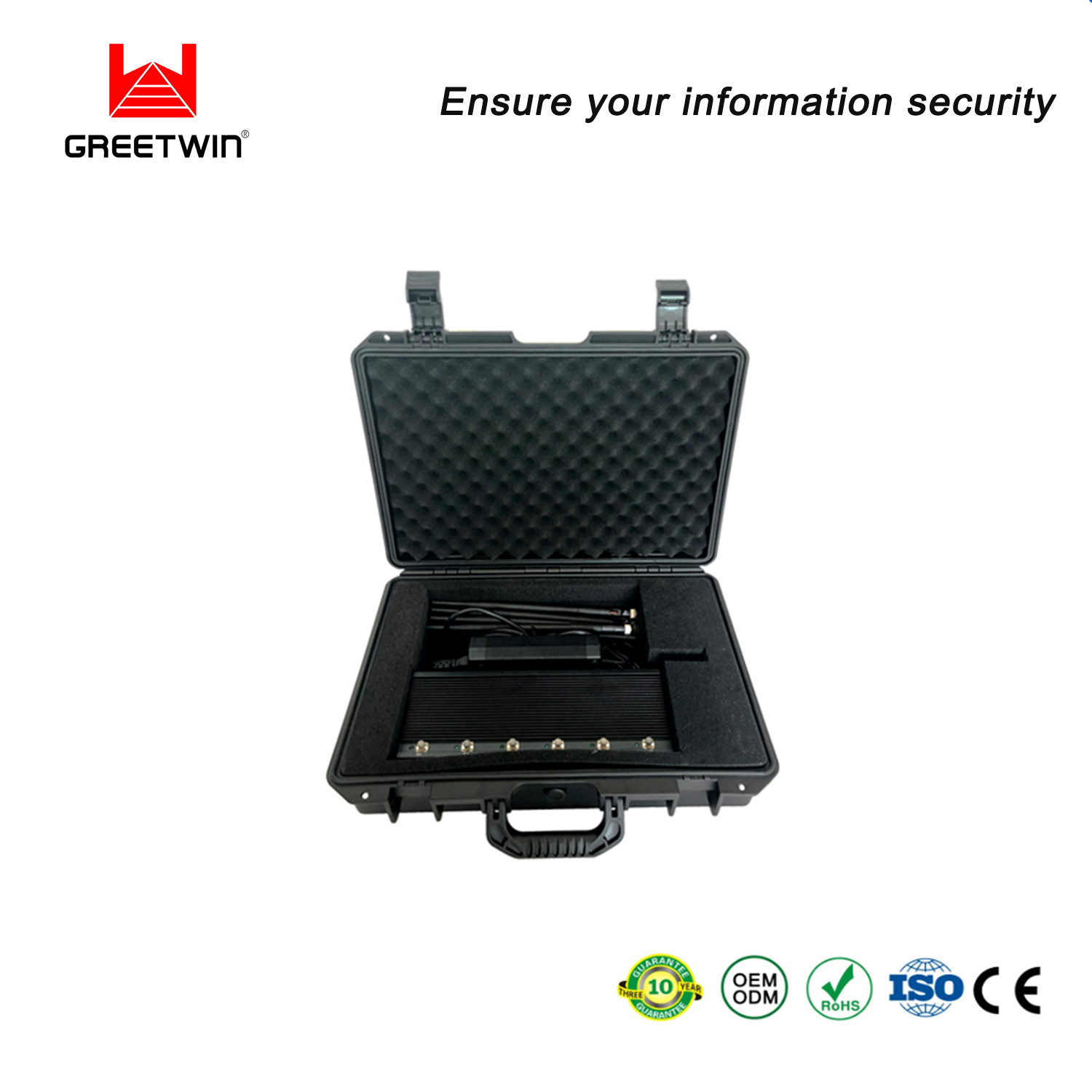

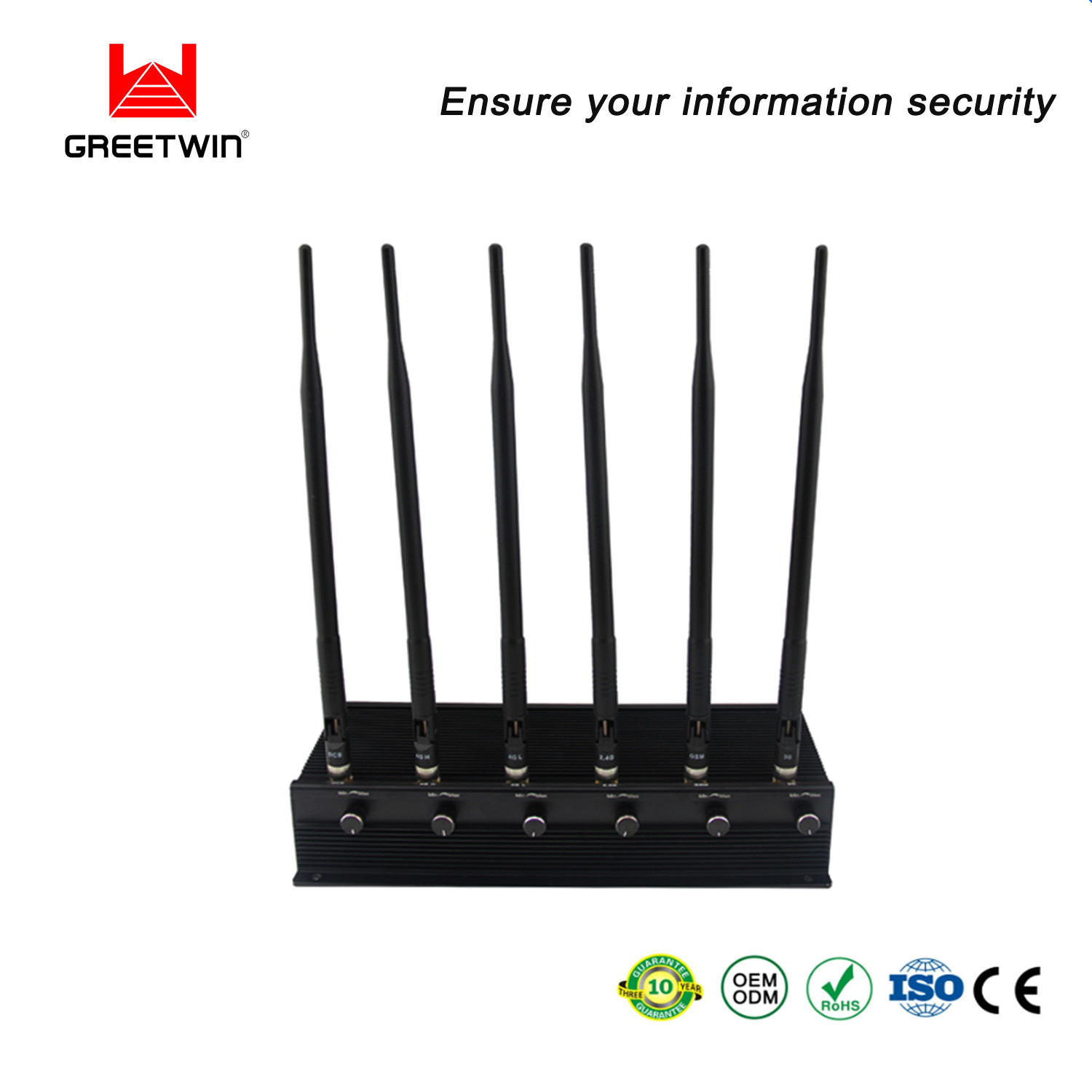

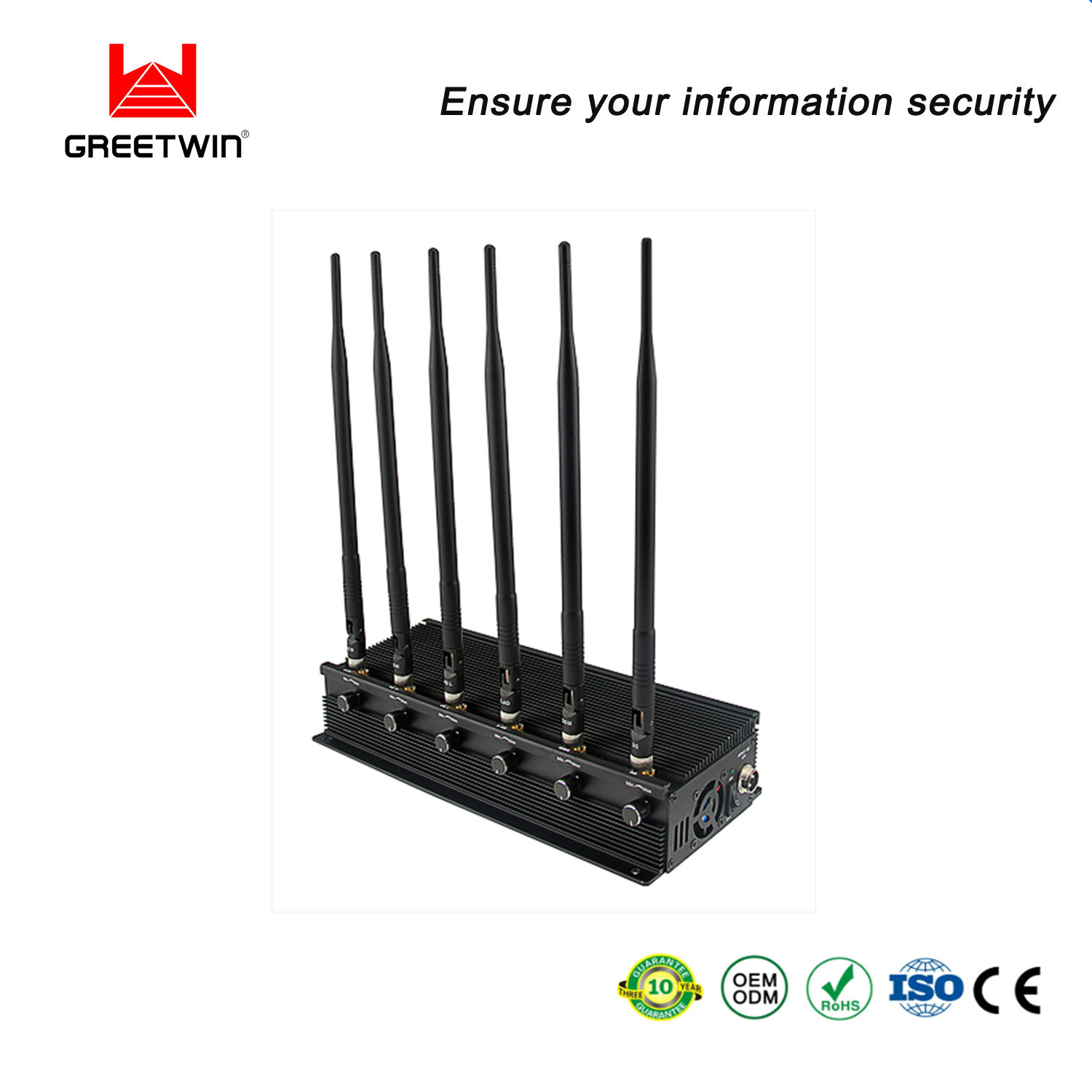

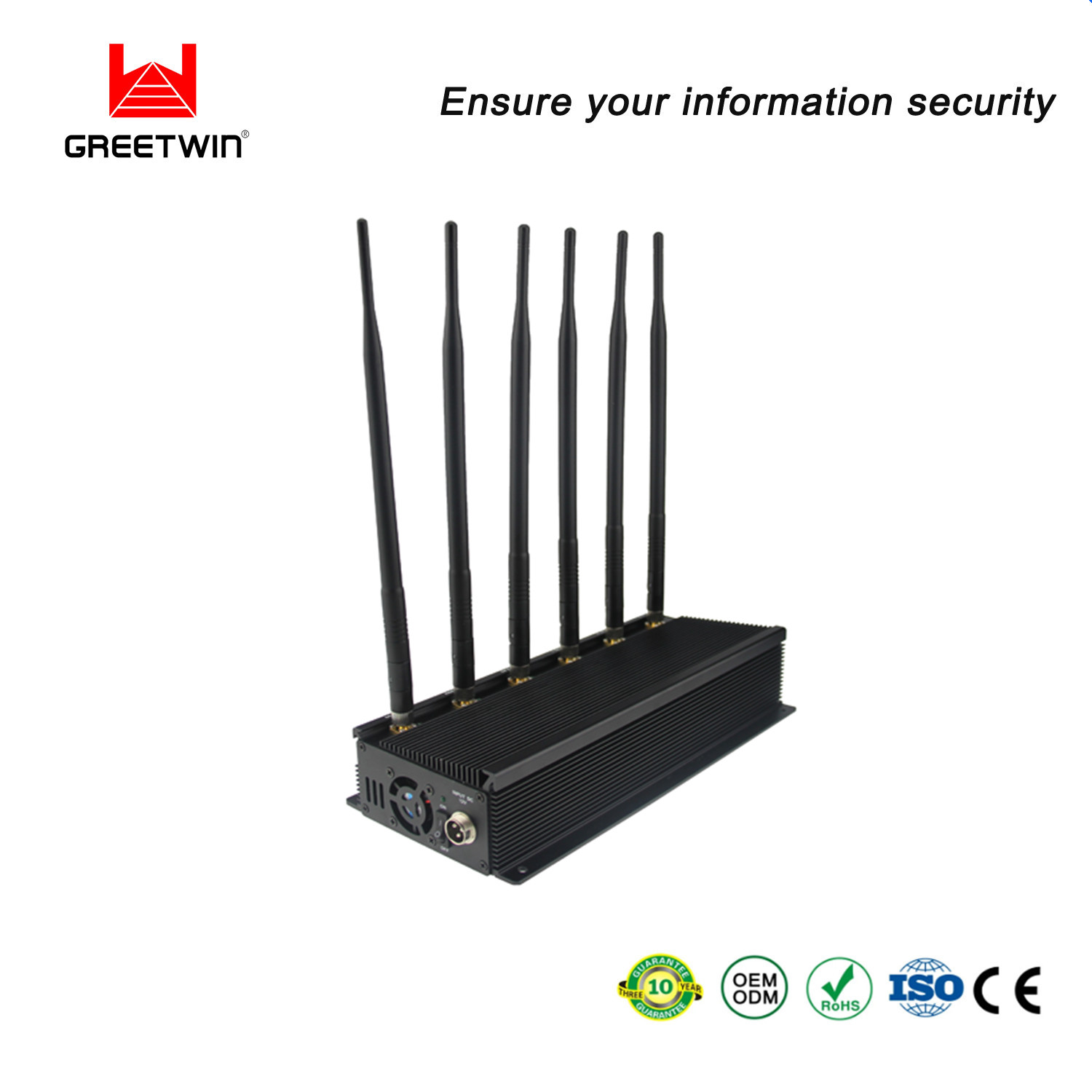

CDMA 2.5dBi Antennas Desktop Mobile Jammer UHF VHF LOJACK GPS Blocker

Quantity:
  • China

  • GREETWIN

  • SGS, ISO9001

  • GW-JA6XF

  • 1pcs

  • Contact Us

  • Box with PE Foam

  • 3 Working Days After Received Payment

  • T/T, L/C, Western Union, MoneyGram

  • 20000pcs per Month



6 Channels Desktop Antennas Mobile Jammer UHF VHF LOJACK GPS Blocker



This high power output of 18W so that this high power signal blocker owns up to 50 -60 meters jamming distance depending on the signal strength in the given area. Besides as this high power multi-purpose signal blocker owns 10 antennas so that it can cut off the signals of CDMA/GSM, DCS/PCS, 3G, WiFi, 4G LTE,4G Wimax, and WIFI UHF VHF,GPS Jammer at the same time, which is really powerful. what's more, the adjustable button has also been used on this high power signal blocker so that you can decide the jamming frequency bands and jamming distance according to your real situation.

Advantages and Features

1. All the RF frequencies only blocking the downlink band, never to the uplink.
2. Good cooling system. Work 24 hours/365days continuously.
3. Easy and Fast Installation.


Applications:


Meeting Room, Oil and Gas Storage Facilities and fields, Hospitals, Theatres, Recording Studios, Banks, Contract Tendering Rooms, Churches, Conference Rooms, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Prisons, Courts, Border Patrol and Drug Enforcement, Customs, House, Small prison areas.





GW-JA6XF USA GW-JA6XF EUR GW-JA6XF GW-JA6XF GPS GW-JA6XF
Cell 4G WiFi Cell 4G WiFi VHF UHF Cell L1 L2 L3 L4 L5 Low Freq
850-895MHz: 3W 790-870MHz: 3W 135-180MHz: 3W GPS L1 1575.42 MHz±10MHz: 1.5W 130-205MHz: 3W
4G LTE
920-965MHz: 3W 920-965MHz: 3W 400-480MHz: 3W GPS L2 1227.60 MHz±10MHz: 1.5W 205-275MHz: 3W
1800-1990MHz: 3W 1800-1890MHz: 3W 850-895MHz: 3W GPS L3 1381.05 MHz±10MHz: 1.5W 275-345MHz:3W
2100-2170MHz: 3W 2100-2170MHz: 3W 920-965MHz: 3W GPS L4 1379.913 MHz±10MHz: 1.5W 345-415MHz: 3W
4G LTE USA iPhone (AT&T & Verizon) 700-800MHz: 2W WiFi 2400-2480MHz:1.5W 1800-1990MHz: 3W GPS L5 1176.45 MHz±10MHz: 1.5W 415-500MHz: 3W
WiFi + 4G WiMAX Sprint 2400-2600MHz:1.0W 4G LTE WiMAX2 Europe 2620-2690MHz: 1.0W 2100-2170MHz: 3W GPS L1 1575.42 MHz±10MHz: 1.5W 850-965MHz: 3W (920-965MHz)
Total: 15.0 W Total: 14.5 W Total 18.0 W Total 9.0 W Total: 18.0 W
Option: Remote/Alarm Control 315MHz, 433MHz, 868MHz, GPS L2 L3 L4 L5,, LoJack 173MHz,
SAT Sattellite Phones 1520-1670MHz
All Frequency can mix very Flexible, Each module/Band is independent
Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
Power supply: AC100-240V or 12V Car Charger (300mm Long)
Jamming Range Radius10~40 meters (-75dBm@Omnidirectional antennas)
Weight 3.0Kg
Dimension: 305*140*51mm
Working time: Without the time limit, May continue to work,
Antenna 210mm long for higher frequency / 380mm Long for lower frequency
Warranty: 1 year
External Battery 12V/20AH + 6A Battery charger Can work 4-6 hours
