| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001
GW-JA4XF
1pcs
Contact Us
Box with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
20000pcs per Month

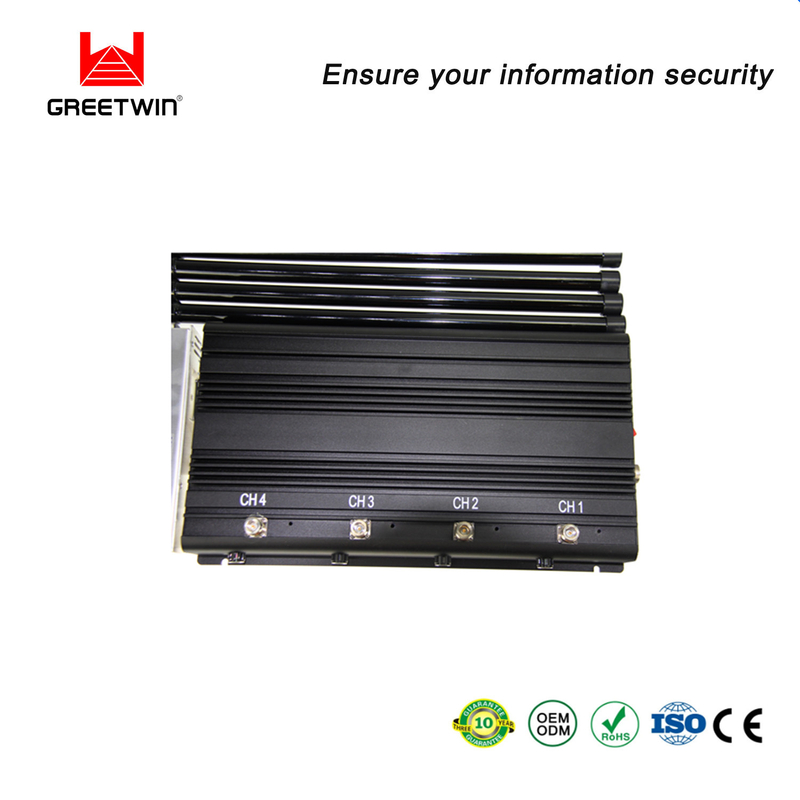

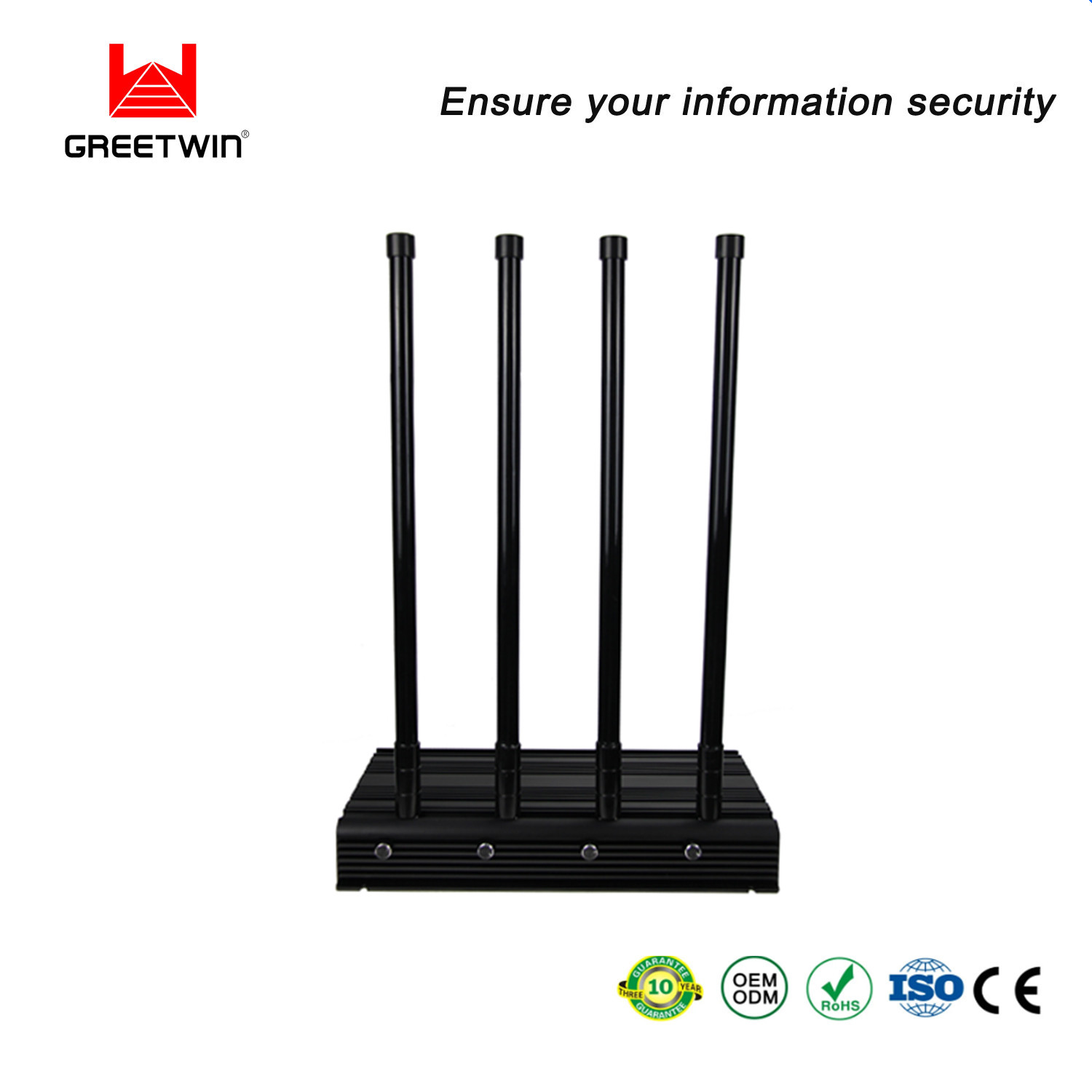

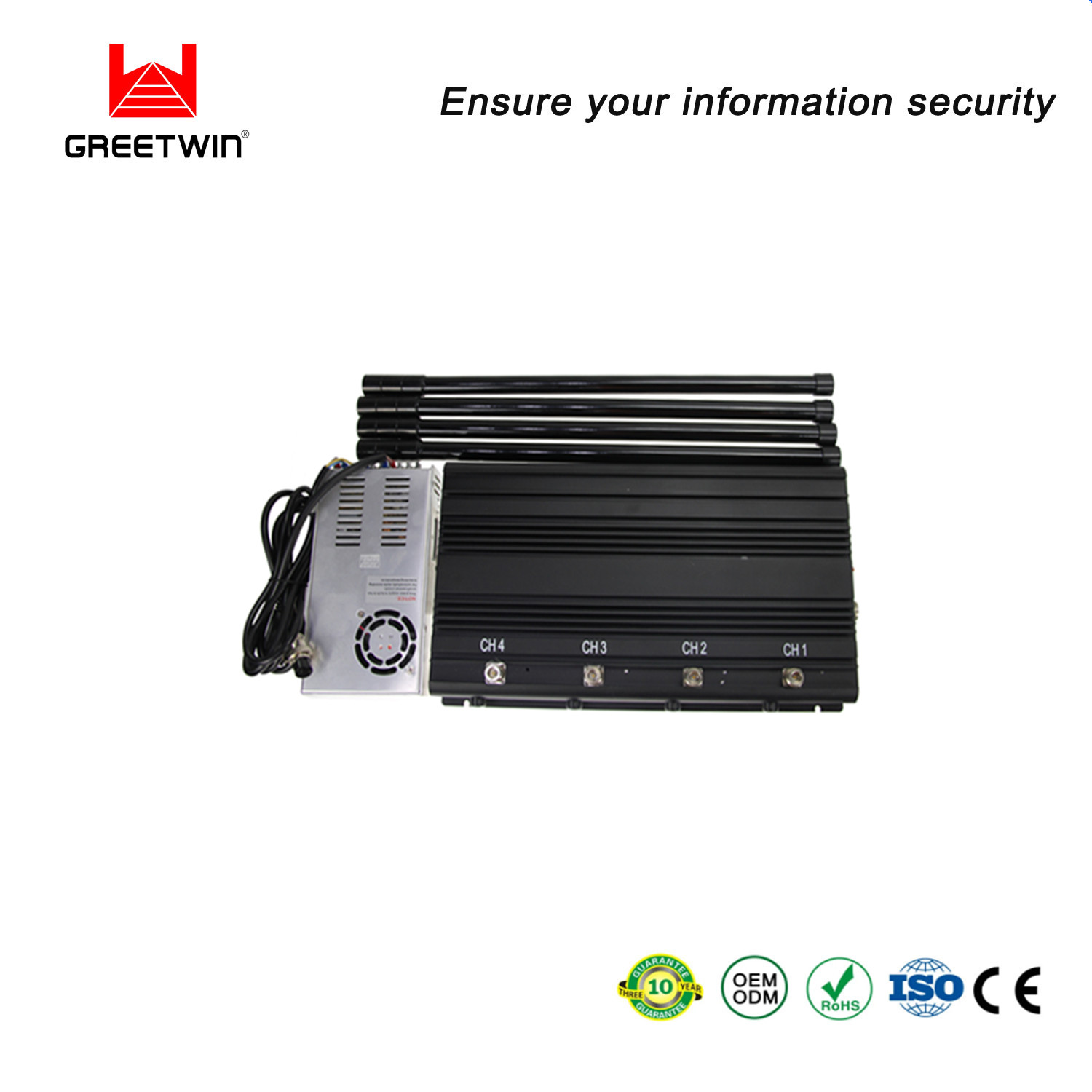

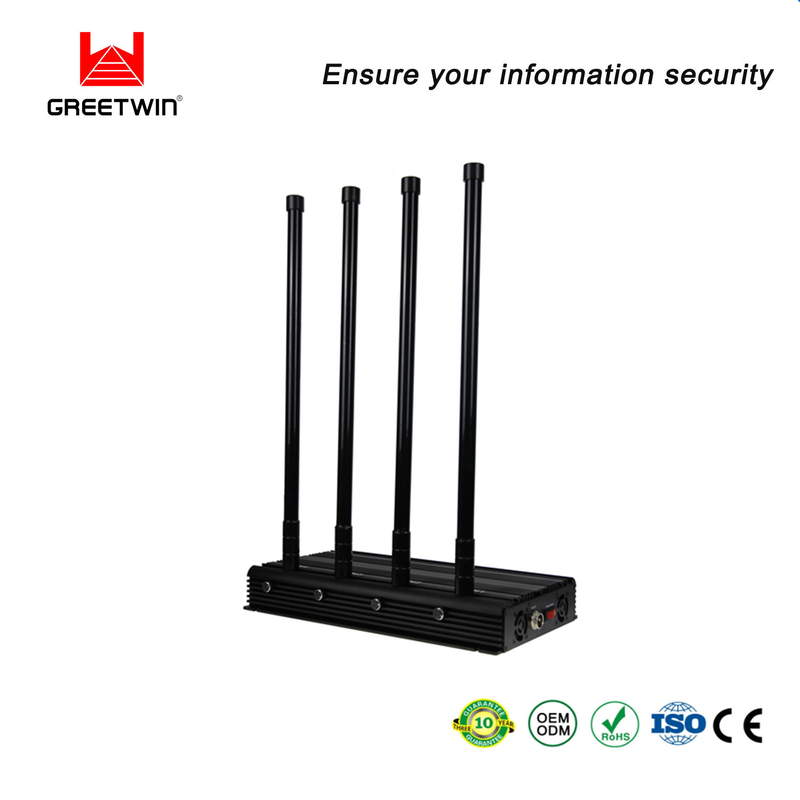

4 Antennas VHF UHF 2g 3G 4G 5g Mobile Phone Signal Blocker All GPS L1 L2 L5 Lojack WiFi GPS RF 315/433/868MHz Jammer
| GW-JA4 USA | GW-JA4 Eur | GW-JA4 | GW-JA4 VU |
| (4 bands) | (4 bands) | GPS (4 bands) | VHF UHF (4 bands) |
| 850-895MHz 25W | 920-960MHz: 25W | 920-965MHz: 25W | 920-965MHz: 25W |
| CDMA 850 | GSM900 | (850-895MHz 25W) | (850-895MHz 25W) |
| 1920-2000MHz 20 W | 1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz:20W | 1800-1880MHz:20W |
| PCS CDMA1900 | (1920-1990MHz 20W) | (1920-1990MHz 20W) | |
| 2100-2170MHz 30W | 2100-2170MHz 30 W | 2100-2170MHz 30W | 2100-2170MHz 30W |
| 3G UMTS | 3G UMTS | 3G UMTS | 3G UMTS |
| 2400-2500MHz:20W | 2400-2500MHz:20W | 2620-2690MHz: 20W | GPS L1 1575MH: 40W |
| WiFi 11.b,g & Buletooth | WiFi 11.b,g & Buletooth | 4G LTE High | (1520-1670MHz: 40W |
| Total : 95W | Total : 95 W | Total : 95 W | Total : 115 W |
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, | |||
| LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W, 1700-1800MHz:20W | |||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||
| 100% Safe VSWR over protection (Isolator) for each modular | |||
| Option: Can make DC 12V, to use Car battery | |||
| Power supply: | AC110 or 220-240V /DC 27V, Can make DC 12V for using Car Battery | ||
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | ||
| Weight | 5.0 Kg | ||
| Dimension: | 410 x 340 x 110mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||
| Warranty: | 1 year | ||
Product description:
This is the latest designed with 4 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Advantages:
Full bands 4 chancel design, Customized for special frequency range
High output power, Total up to: 95W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power
OEM Customized Service
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
4 Antennas VHF UHF 2g 3G 4G 5g Mobile Phone Signal Blocker All GPS L1 L2 L5 Lojack WiFi GPS RF 315/433/868MHz Jammer
| GW-JA4 USA | GW-JA4 Eur | GW-JA4 | GW-JA4 VU |
| (4 bands) | (4 bands) | GPS (4 bands) | VHF UHF (4 bands) |
| 850-895MHz 25W | 920-960MHz: 25W | 920-965MHz: 25W | 920-965MHz: 25W |
| CDMA 850 | GSM900 | (850-895MHz 25W) | (850-895MHz 25W) |
| 1920-2000MHz 20 W | 1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz:20W | 1800-1880MHz:20W |
| PCS CDMA1900 | (1920-1990MHz 20W) | (1920-1990MHz 20W) | |
| 2100-2170MHz 30W | 2100-2170MHz 30 W | 2100-2170MHz 30W | 2100-2170MHz 30W |
| 3G UMTS | 3G UMTS | 3G UMTS | 3G UMTS |
| 2400-2500MHz:20W | 2400-2500MHz:20W | 2620-2690MHz: 20W | GPS L1 1575MH: 40W |
| WiFi 11.b,g & Buletooth | WiFi 11.b,g & Buletooth | 4G LTE High | (1520-1670MHz: 40W |
| Total : 95W | Total : 95 W | Total : 95 W | Total : 115 W |
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, | |||
| LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W, 1700-1800MHz:20W | |||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF) | |||
| 100% Safe VSWR over protection (Isolator) for each modular | |||
| Option: Can make DC 12V, to use Car battery | |||
| Power supply: | AC110 or 220-240V /DC 27V, Can make DC 12V for using Car Battery | ||
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | ||
| Weight | 5.0 Kg | ||
| Dimension: | 410 x 340 x 110mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||
| Warranty: | 1 year | ||
Product description:
This is the latest designed with 4 Antennas all-in-one for mobile phone 5GLTE GSM 3G 4GLTE signals which bring us a strong jamming ability. And it can not only cut off all 5G 3G 4G mobile phone signals, but also jam Wi-Fi2.4G/5GHz GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. Full bands jammer is power full to blocks all the signals, Jamming frequencies the jamming radius up to 40meters
Advantages:
Full bands 4 chancel design, Customized for special frequency range
High output power, Total up to: 95W , jamming up to 40m (Still depends on the strength signal in given area)
External Omni-directional antennas all the TX frequency covered down link only
With Car storage battery Charger DC12V can be used in car
Built-in good cooling system inside, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
2-5meters with Infrared Remote Control Turn ON /OFF Power
OEM Customized Service
Silkscreen OEM service can be offered
Application
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument
