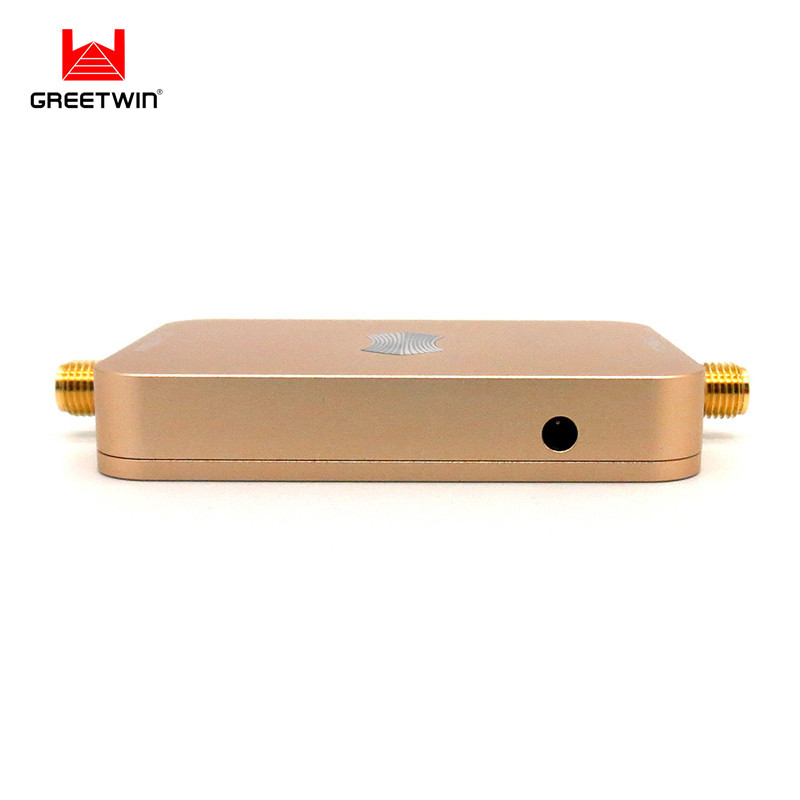

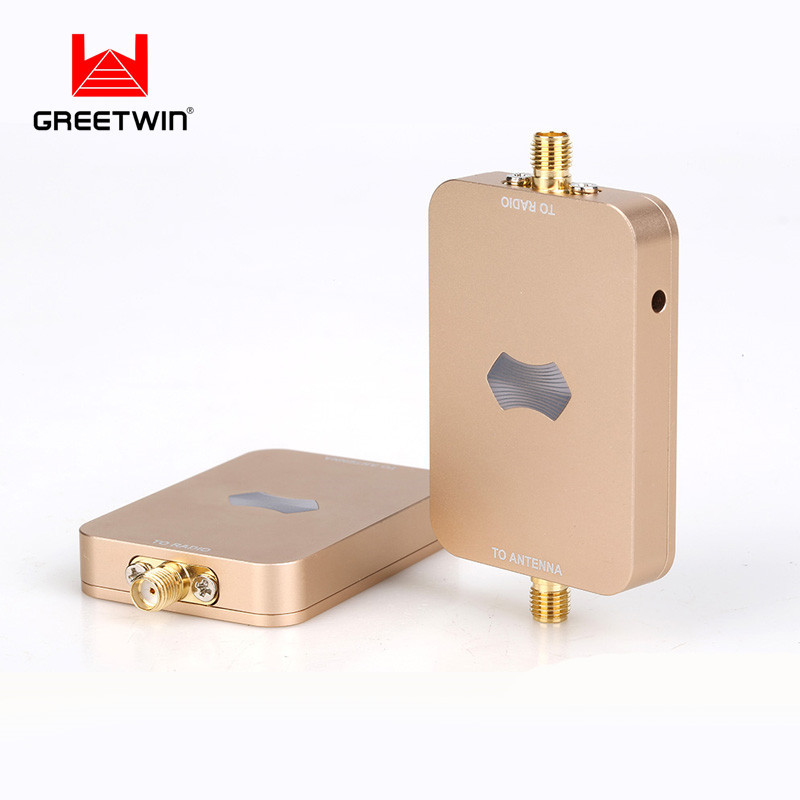

5.8GHz Dual Band 2w Drones UAV FPV Wifi Repeater Cast Aluminum

Basic Information
Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001,CE,ROHS
Model Number: GW-RC58G2W
Minimum Order Quantity: 1pcs
Price: $82.2-$88.2/ PC

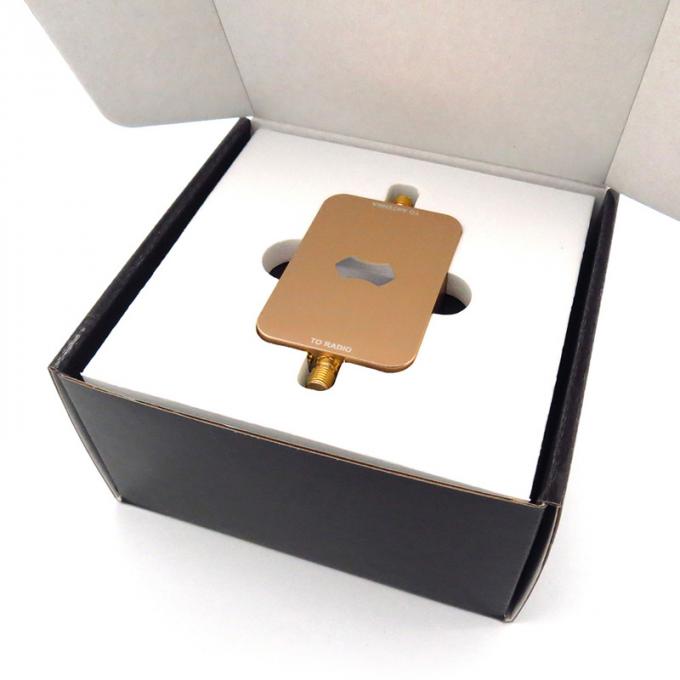

Packaging Details: Carton with PE Foam
Delivery Time: 3 Working Days After Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 5000pcs per Month
Product Name: Drones UAV FPV Wifi Repeater Input Power: 33dBm
Weight: 46g Dimensions: 73*38*10mm
Channel Width: 20/40/80MHz Quality Warranty: 12 Months
High Light:

2w Drones FPV Wifi Repeater

,

UAV FPV Wifi Repeater

,

5.8GHz Dual Band Wifi Repeater



Product Description

1,Product Details



wireless repeater wifi 5.8GHz wifi dual-band 2w drones UAV FPV wifi repeater



Booster Model GW-RC58G2W
Operating range 2.4~2.5 GHz, 5.0~5.875 GHz
Operation mode

Bi-directional, half-duplex, time division duplex senses RF,

carrier from a transmitter and automatically switch receiving

to transmitting mode.

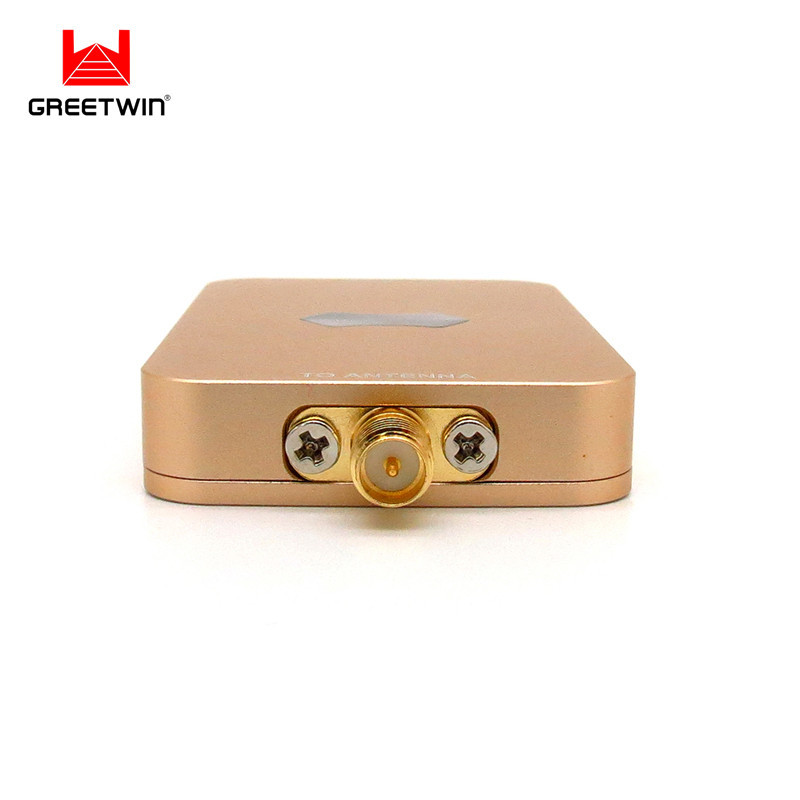

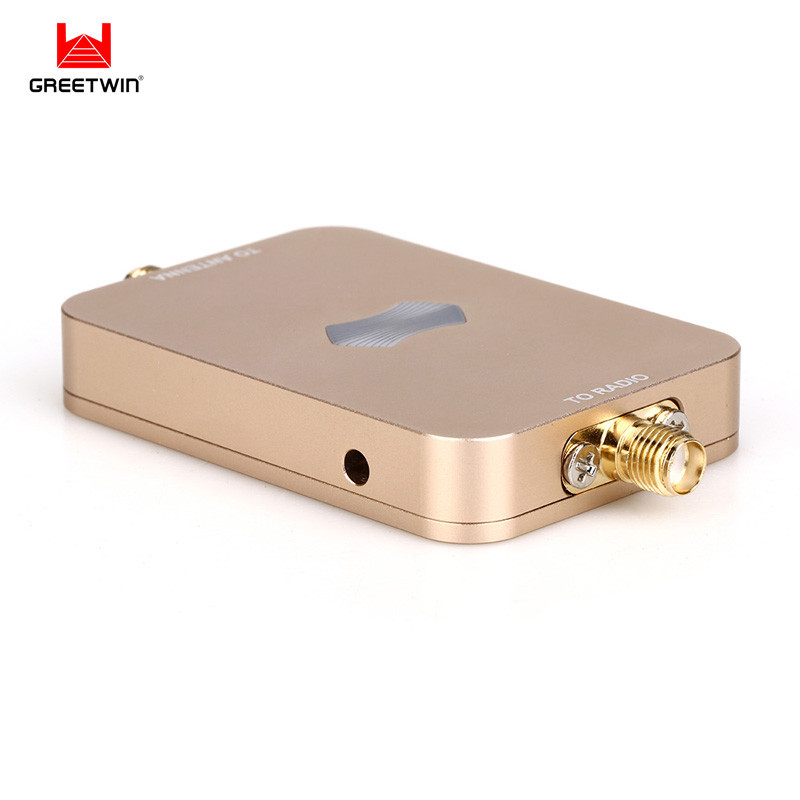

Connector type SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)
Output power 2000mW (33dBm)
Input power 0~20 dBm
Transmit gain 15-18dB
Receiver gain ≤ 12 dB
Noise figure ≤3.5 dB typical
Frequency response ±1dB over operating range
Supported voltages 5V~16V/2A DC
Operating Temperature -20°C to + 70°C
Operating humidity Up to 75% relative humidity
Material Cast aluminum
Booster weight 46g
Booster size 73*38*10mm

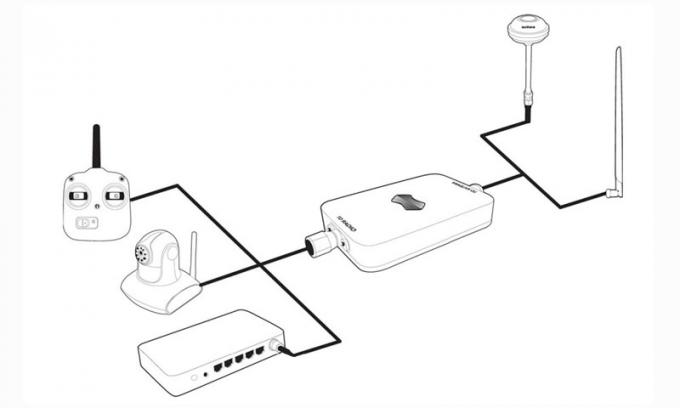

Application Diagram



5.8GHz Dual Band 2w Drones UAV FPV Wifi Repeater Cast Aluminum 1





5.8GHz Dual Band 2w Drones UAV FPV Wifi Repeater Cast Aluminum 2

5.8GHz Dual Band 2w Drones UAV FPV Wifi Repeater Cast Aluminum 3

Company Information



custom feedback.jpg



Certifications



1565603859(1)_

FAQ

Q1. Could I get a sample before bulk order?

Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

This model is suitable for Asia, Europe, The Middle East, and Brazil, etc.

*For more details please contact us directly.



Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.



Q5.Shipment Date

Sample 1-3 business days
<50 pcs 7-15 days
50-200 pcs 15-24 days
>200 pcs Negotiate


Q6: Delivery Date of the sample by DHL/FedEx

Russia/Canada/Europe/Asia 3-5 days
Middle East/Latin American 3-6 days
African 5-7 days
