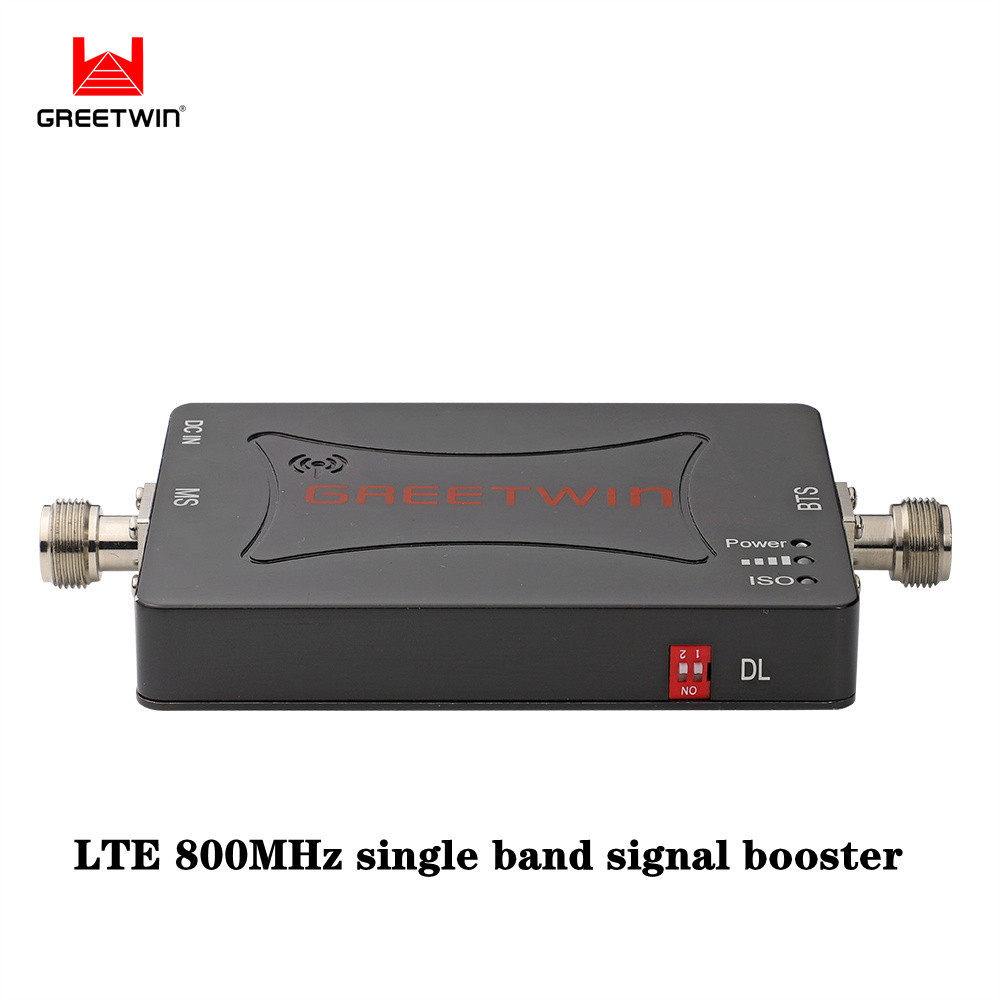

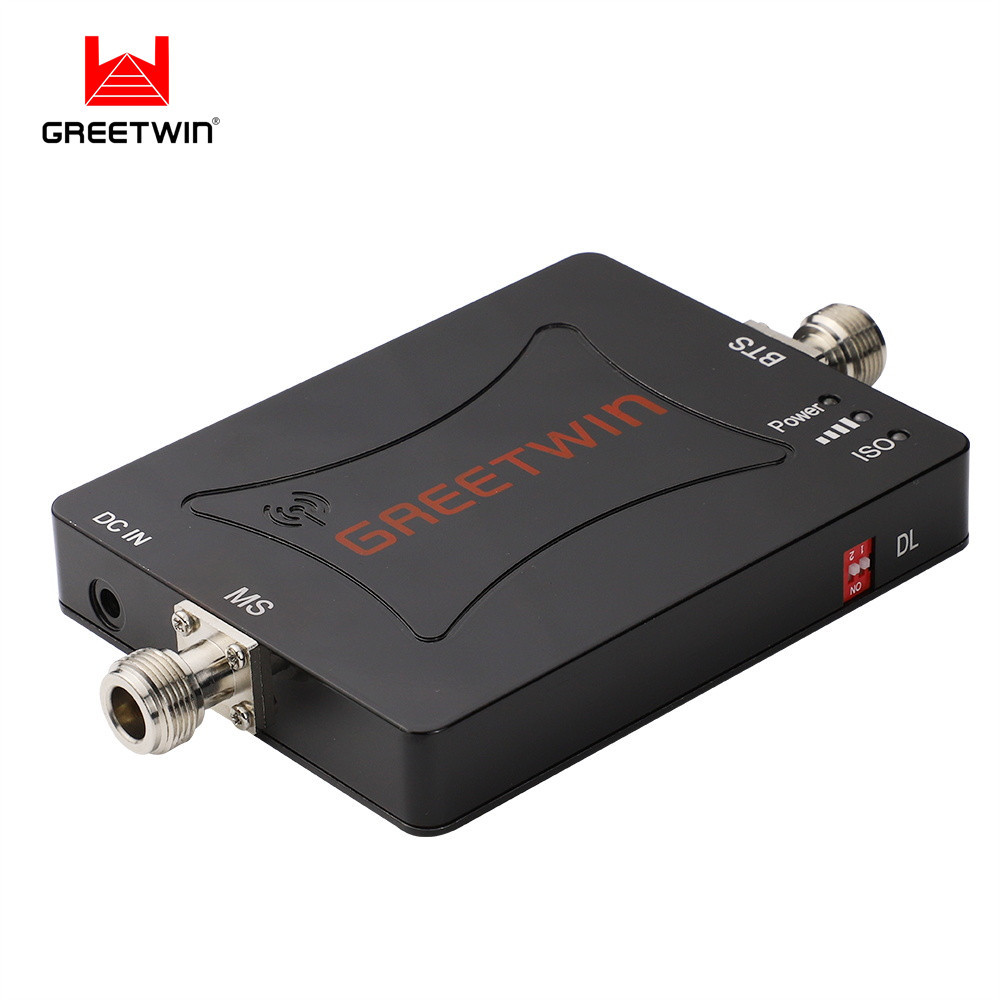

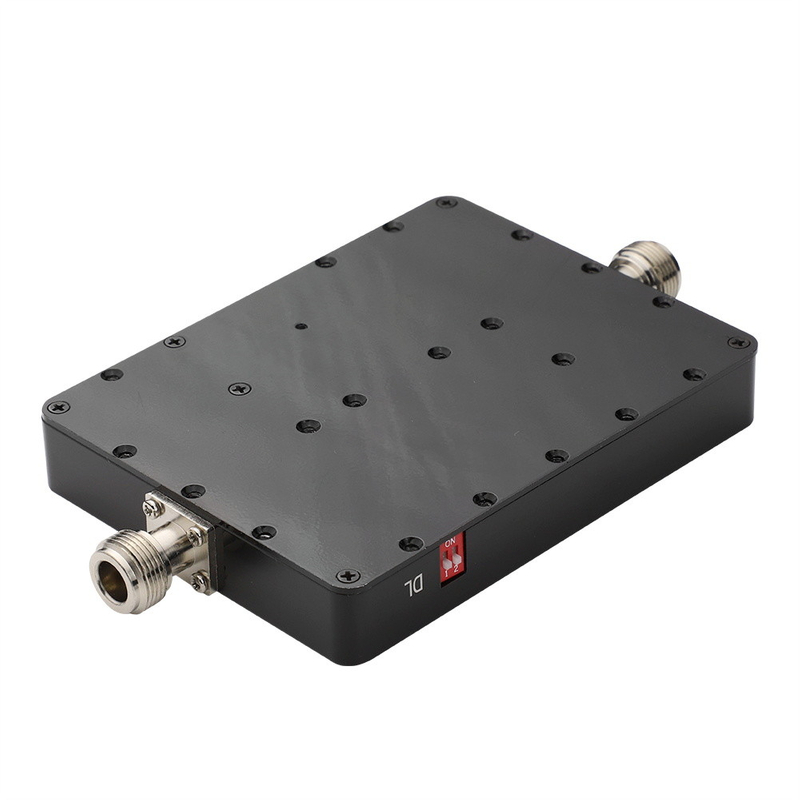

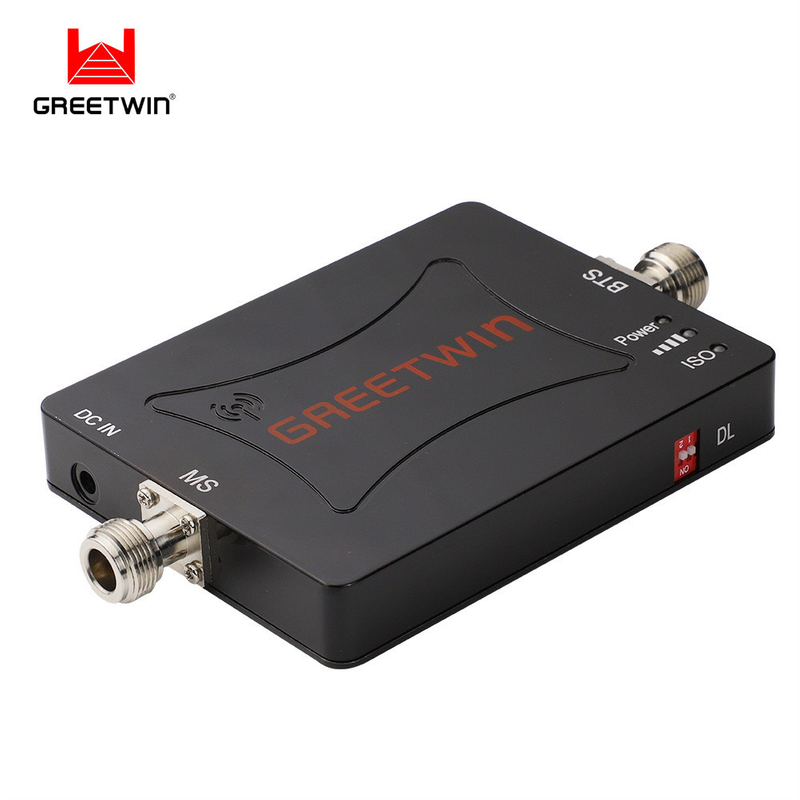

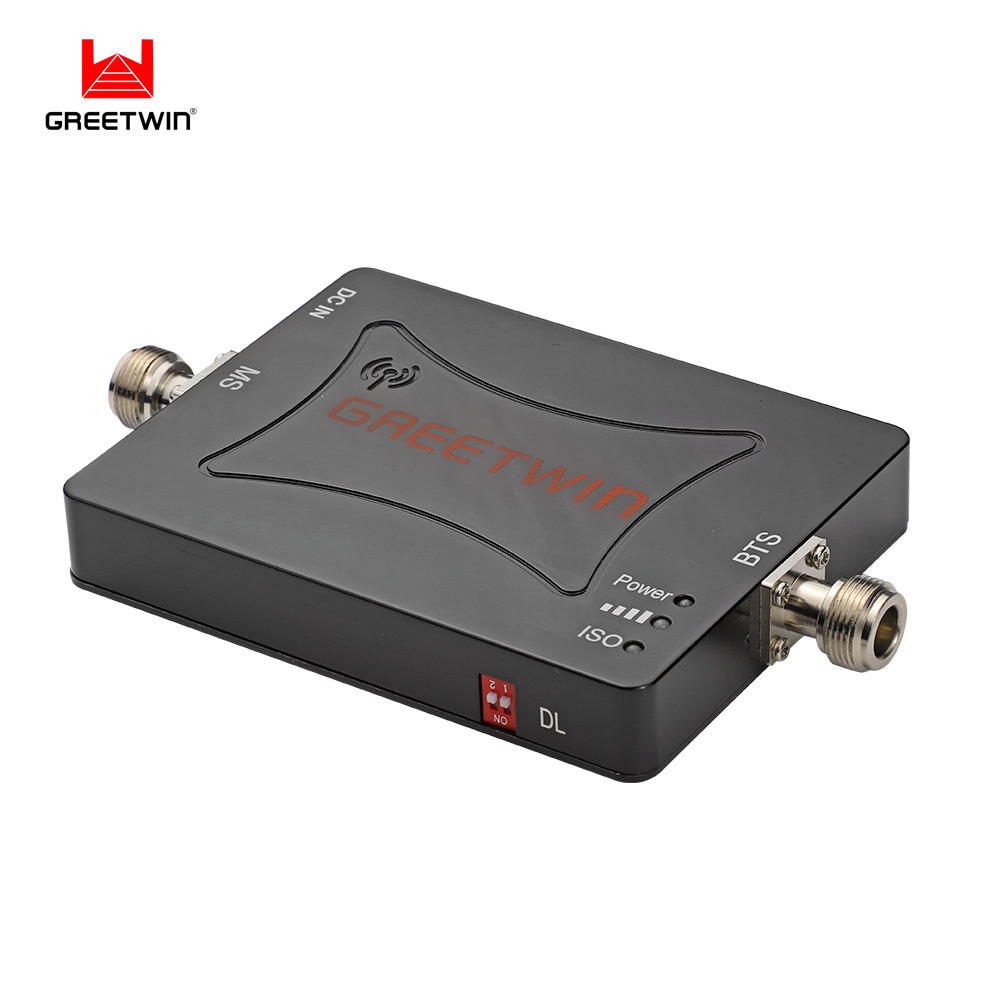

Greetwin Repeater 4g signal booster 27dBm single band lte 800MHz gsm signal booster
| Specification | Uplink | Downlink | |
| Frequency | LTE800MHz | 832-862Mhz | 791-821Mhz |
| Operation Bandwidth | Wide Band | ||
| Gain | ≥65dB | ||
| Output Power | ≥20dBm | ||
| MGC (Manual Gain Control) | 31dB Range/1dB step | ||
| Ripple in Band | 8dB | ||
| Noise Figure | ≤ 6dB | ||
| VSWR | ≤2.0 | ||
| Automatic Level Control | 25dB | ||
| Intermodulation Products | ≤ -40dBc | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm/30KHz | |
| 1GHz~12.75GHz | ≤ -30dBm/30KHz | ||
| Frequency stability | ≤ 0.01ppm | ||
| MTBF | > 50000 hours | ||
| Time Delay | ≤1.5μs | ||
| Impedance | 50Ω | ||
| Power Supply | Input: AC 110~240V; Output: DC 9V/5A | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Power Consumption | 25W | ||
| Operating Temperature | -10â~ +55â | ||
| Environment Conditions | IP40(Indoor) | ||
| Installation Type | Wall Installation | ||
| Dimensions (D x W x H ) | 118*91*18mm | ||
| Weight | ≤ 1KG | ||
It is one that extends cellular coverage where you need it. It does this at the lowest cost and most effective. Therefore, the best cell phone booster for each scenario would vary based on many factors. An important factor would be the signal strength outside. Another one would be sq. ft. coverage required.
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
This model is suitable for Asia, Europe, The Middle East, and Brazil, etc.
*For more details please contact us directly.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
Q5.Shipment Date
| Sample | 1-3 business days |
| <50 pcs | 7-15 days |
| 50-200 pcs | 15-24 days |
| >200 pcs | Negotiate |
Q6: Delivery Date of the sample by DHL/FedEx
| Russia/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 3-6 days |
| African | 5-7 days |
