| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001,CE,ROHS
GW-27L
1pcs
$140.76-$148.76/ PC

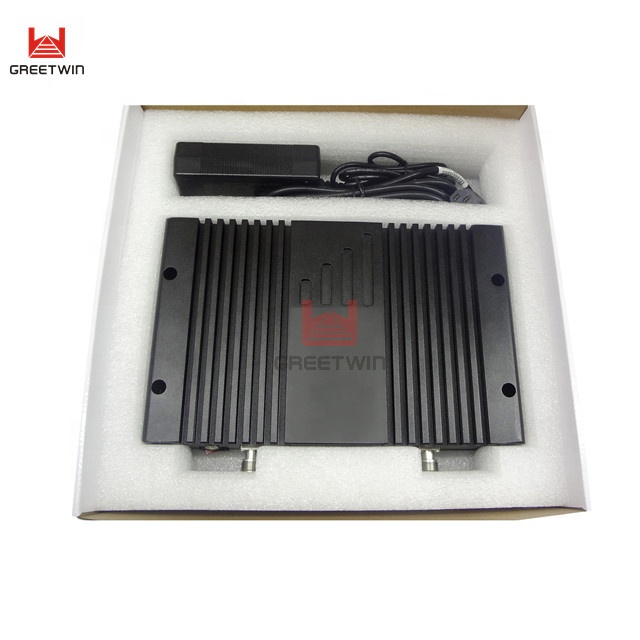

Carton with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
5000pcs per Month

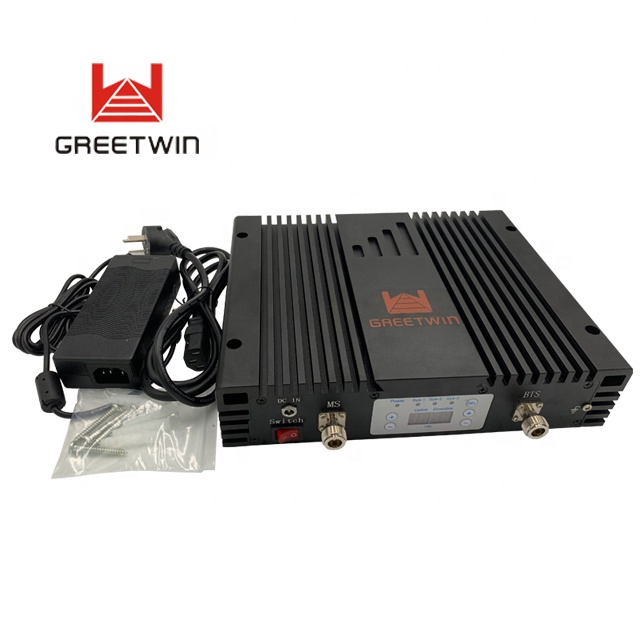

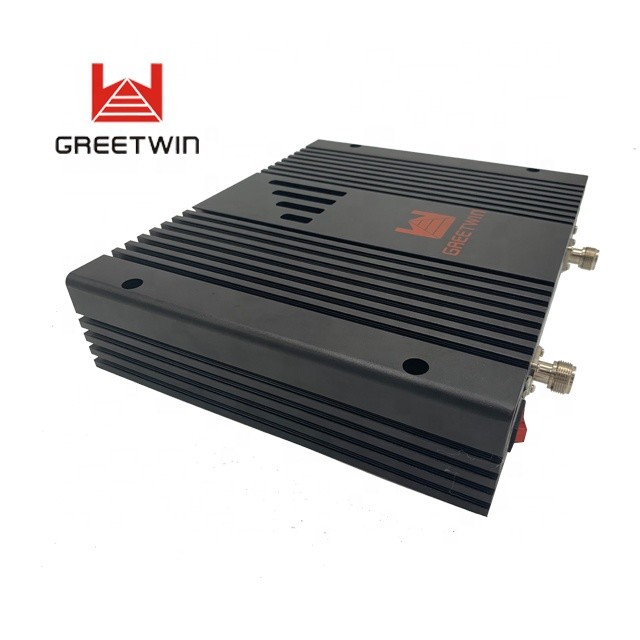

Greetwin Repeater 4g signal booster 27dBm single band lte 800MHz gsm signal booster
| Specification | Uplink | Downlink | |
| Frequency | LTE800MHz | 832-862Mhz | 791-821Mhz |
| Operation Bandwidth | Wide Band | ||
| Gain | ≥70dB | ≥80dB | |
| Output Power | ≥20dBm | ≥27dBm | |
| MGC (Manual Gain Control) | 31dB Range/1dB step | ||
| Ripple in Band | 8dB | ||
| Noise Figure | ≤ 6dB | ||
| VSWR | ≤2.0 | ||
| Automatic Level Control | 25dB | ||
| Intermodulation Products | ≤ -40dBc | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm/30KHz | |
| 1GHz~12.75GHz | ≤ -30dBm/30KHz | ||
| AGC Alarm | Alarm RED when ALC 5dB-10dB | ||
| ISO Alarm | Alarm RED when ALC 20dB-25dB, Then Repeater will Auto Shut Down. Auto restart after two minutes. | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Power Consumption | 25W | ||
| Operating Temperature | -10â~ +55â | ||
| Environment Conditions | IP40(Indoor) | ||
| Installation Type | Wall Installation | ||

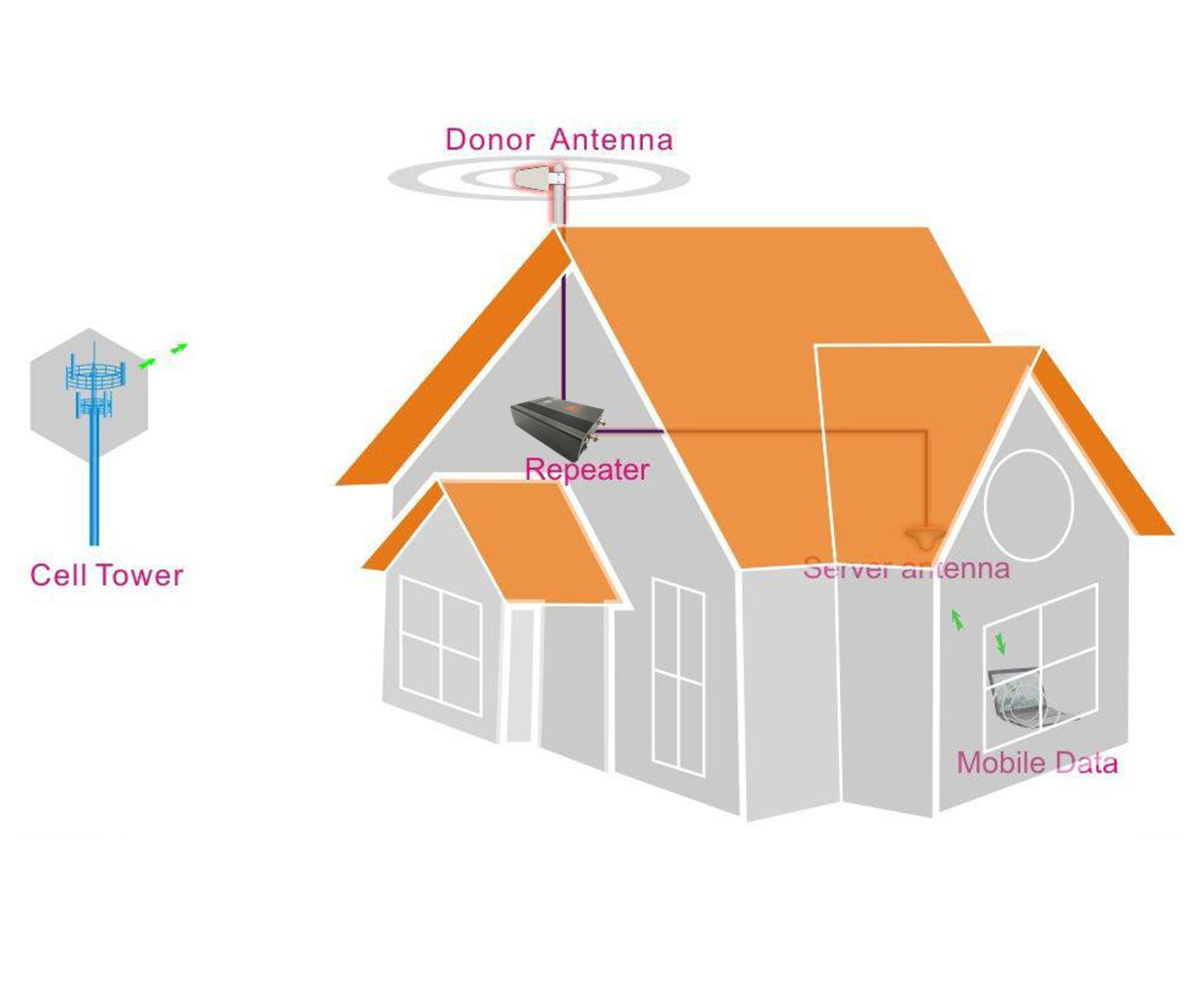

A strong cellular reception will help both indoors and in vehicles. It helps you to make the most of your mobile services. It enables clear talking. It powers fast Internet. It makes instant text messaging possible.
cell phone signal booster is a device that improves cellular signal strength.
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
This model is suitable for Asia, Europe, The Middle East, and Brazil, etc.
*For more details please contact us directly.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
Q5.Shipment Date
| Sample | 1-3 business days |
| <50 pcs | 7-15 days |
| 50-200 pcs | 15-24 days |
| >200 pcs | Negotiate |
Q6: Delivery Date of the sample by DHL/FedEx
| Russia/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 3-6 days |
| African | 5-7 days |
