China
GREETWIN
SGS, ISO9001,CE,ROHS
GW-17CDWL
1pcs
$68.7-$76.9/ PC
Carton with PE Foam
3 Working Days After Received Payment
5000pcs per Month

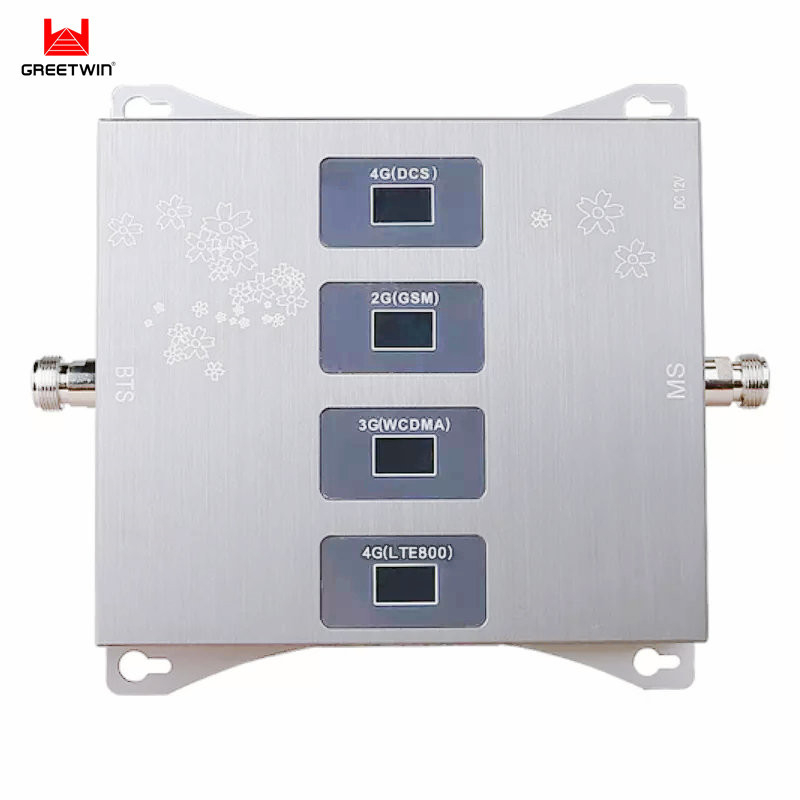

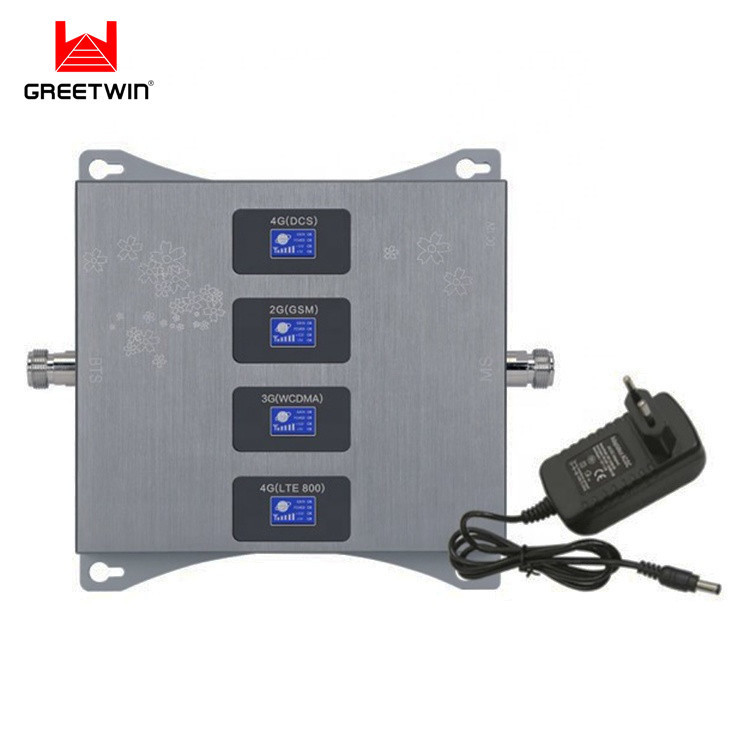

Factory price 17dBm 4 band 900 1800 2100 2600MHz gsm signal booster mobile signal booster

| Frequency Range | Uplink | Downlink |
| 900MHz | 935-960MHz | 890-915MHz |
| 1800MHz | 1805-1880MHz | 1710-1785MHz |
| 2100MHz | 2110- 2170MHz | 1920-1980MHz |
| 2600MHz | 2620-2690MHz | 2500-2570MHz |
| Output Power | 17dBm | 15dBm |
| Gain | 65dB | 60dB |
| VSWR | 1.5 | |
| Inter-modulation | 36dBc | |
| power supply | AC:100V-240V,50/60Hz | |
| working voltage | DC 12V | |
| Power Port | DC-55-2.5 | |
| Dimension | 205mm*175mm*27mm | |
| Weight | 0.9kg | |
| Operating Temperature | 0-50 | |
| Environmental class | IP40 | |
| RF Port Number | 2(BTS:1,MS:1) | |
| RF Connector | N-Female,50ohm | |
| Product Number | GW-17CDWL | |

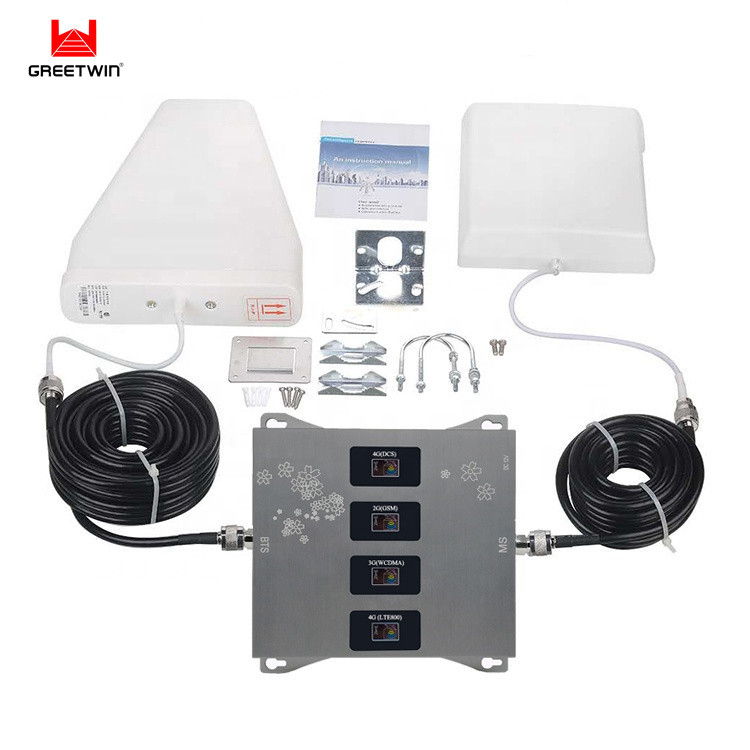

It can be a TV, Wi-Fi, a Cell Phone Signal Booster. It is A.K.A. an amplifier or a repeater. It is a device that has an amplifier and two antennas (exterior and interior). All items connect with coaxial cable(s). It boosts wi-fi and/or cellphone signals to your wireless device. It can improve wifi & cellular in homes, offices, or cars & trucks. Wireless communication occurs over a wide spectrum. Our wireless network boosting products cover mobiles, wi-fi & TV freq. bands used in the U.S.A. & Canada. All network boosters are certified by F.C.C. & I.S.E.D. / I.C.





Factory price 17dBm 4 band 900 1800 2100 2600MHz gsm signal booster mobile signal booster

| Frequency Range | Uplink | Downlink |
| 900MHz | 935-960MHz | 890-915MHz |
| 1800MHz | 1805-1880MHz | 1710-1785MHz |
| 2100MHz | 2110- 2170MHz | 1920-1980MHz |
| 2600MHz | 2620-2690MHz | 2500-2570MHz |
| Output Power | 17dBm | 15dBm |
| Gain | 65dB | 60dB |
| VSWR | 1.5 | |
| Inter-modulation | 36dBc | |
| power supply | AC:100V-240V,50/60Hz | |
| working voltage | DC 12V | |
| Power Port | DC-55-2.5 | |
| Dimension | 205mm*175mm*27mm | |
| Weight | 0.9kg | |
| Operating Temperature | 0-50 | |
| Environmental class | IP40 | |
| RF Port Number | 2(BTS:1,MS:1) | |
| RF Connector | N-Female,50ohm | |
| Product Number | GW-17CDWL | |
It can be a TV, Wi-Fi, a Cell Phone Signal Booster. It is A.K.A. an amplifier or a repeater. It is a device that has an amplifier and two antennas (exterior and interior). All items connect with coaxial cable(s). It boosts wi-fi and/or cellphone signals to your wireless device. It can improve wifi & cellular in homes, offices, or cars & trucks. Wireless communication occurs over a wide spectrum. Our wireless network boosting products cover mobiles, wi-fi & TV freq. bands used in the U.S.A. & Canada. All network boosters are certified by F.C.C. & I.S.E.D. / I.C.
