| Quantity: | |
|---|---|
SHENZHEN
Greetwin
CE, RoHS
GW-MWPS-6060-02-41F-153
2pcs
$30.8-$37.8/ PC
Carton with PE Foam
3 Working Days After Received Payment
T/T, Western Union, MoneyGram
10000pcs per Month

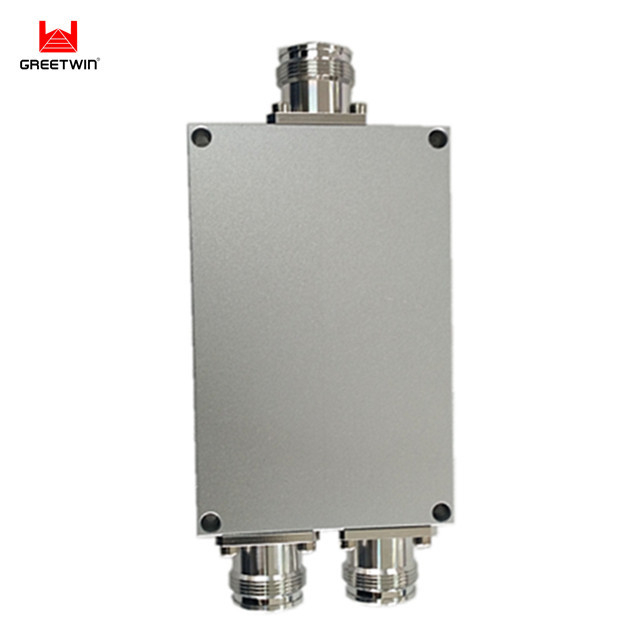

Greetwin 50W IP65 -153dBc 600~6000MHz RF Power Splitter Combiners 2 Way Power Dividers
Splitter Specification:
| Model No. | GW-MWPS-6060-02-41F-153 | GW-MWPS-6060-03-41F-153 | GW-MWPS-6060-04-41F-153 |
| Freq(MHz) | 600-6000 | ||
| Split Loss(dB) | 3.0 | 4.8 | 6.0 |
| Insertion Loss(dB) | ≤1.0 | ≤1.2 | ≤1.5 |
| Isolation(dB) | ≤18 | ≤16 | ≤16 |
| VSWR | ≤1.45 | ≤1.50 | ≤1.50 |
| PIM (dBc) | ≤-153dBc@2*43dBm (698-2700) | ||
| Power(W) | 50(average) | ||
| Impedance | 50 ohm | ||
| Connector | 4.3/10-female | ||
| Color | Silver-plated | ||
| Temp(deg) | -30~+70 | ||
| Application | Indoor or Outdoor | ||
• Power dividers can be used as combiners or splitters
• Wilkinson and High isolation power dividers offer high isolation, blocking signal cross-talk between output ports
• Low insertion and return loss
• Wilkinson and resistive power dividers offer excellent (<0.5dB)
As the name implies, an RF/microwave power divider will split an input signal into two equal and identical (i.e. in-phase) signals. It can also be used as a power combiner, where the common port is the output and the two equal power ports are used as the inputs. Important specifications when used as a power divider include the insertion loss, return losses, and amplitude and phase balance between the arms. For power combining of uncorrelated signals.
