| Quantity: | |
|---|---|
China
GREETWIN
SGS, ISO9001,CE,ROHS
GW-23CPL
1pcs
$254.76-$269.76/ PC
Carton with PE Foam
3 Working Days After Received Payment
T/T, L/C, Western Union, MoneyGram
5000pcs per Month

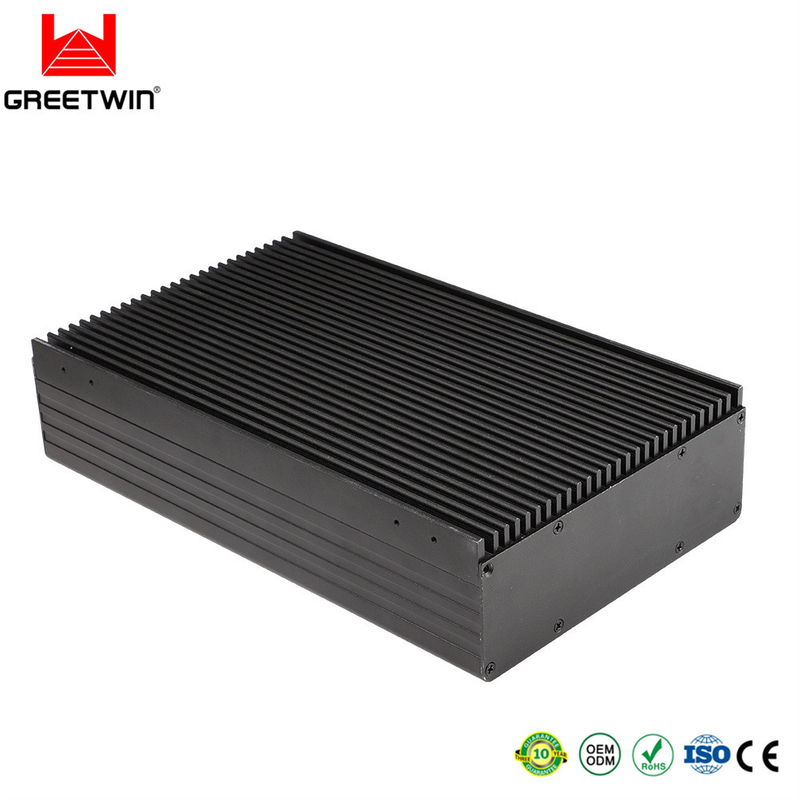

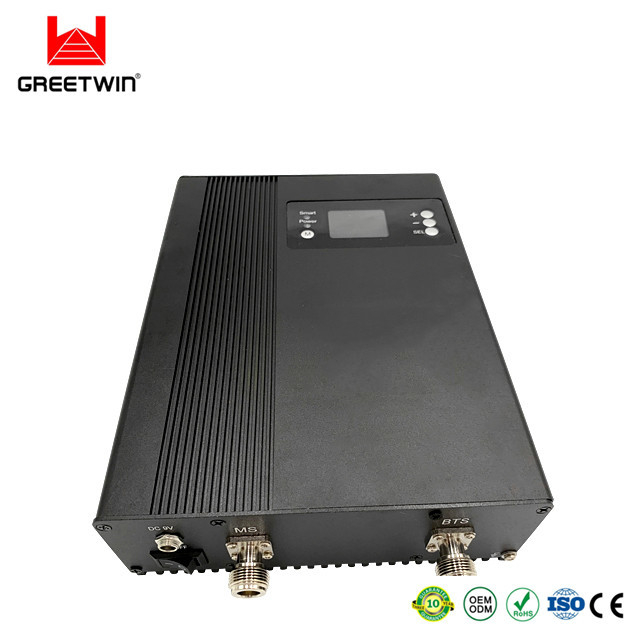

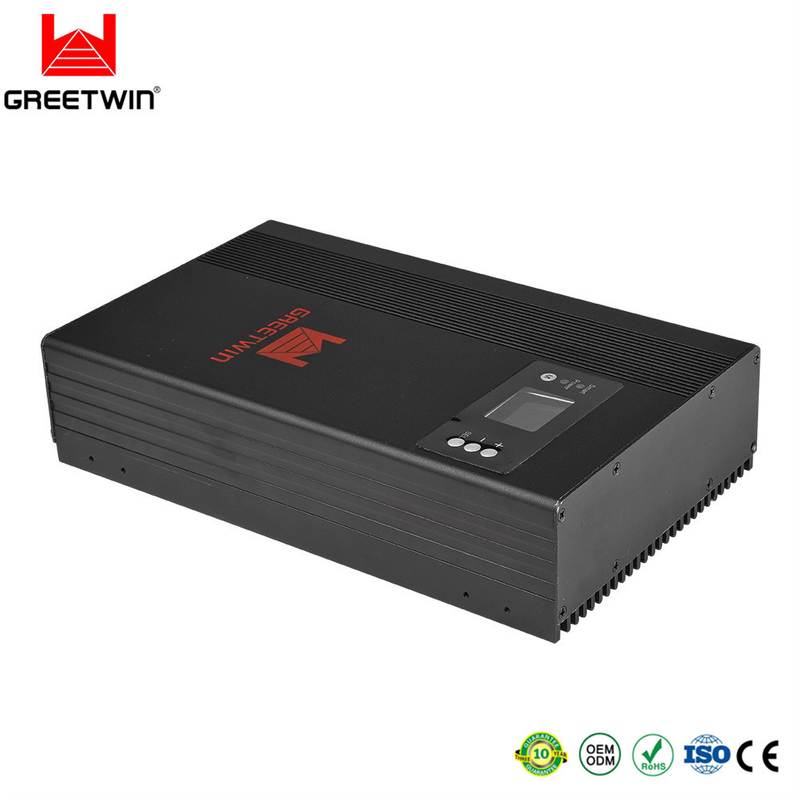

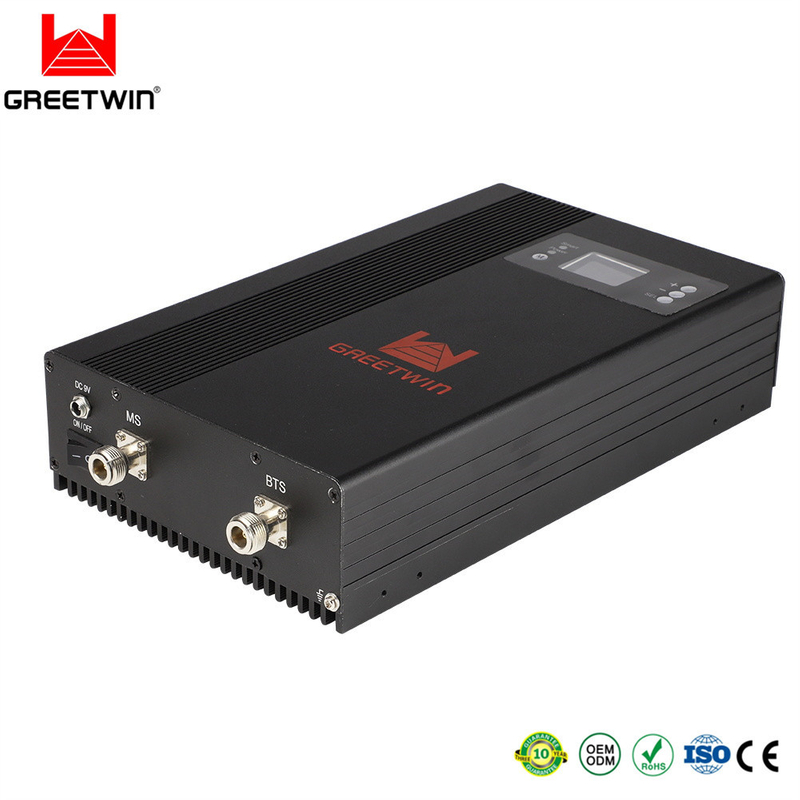

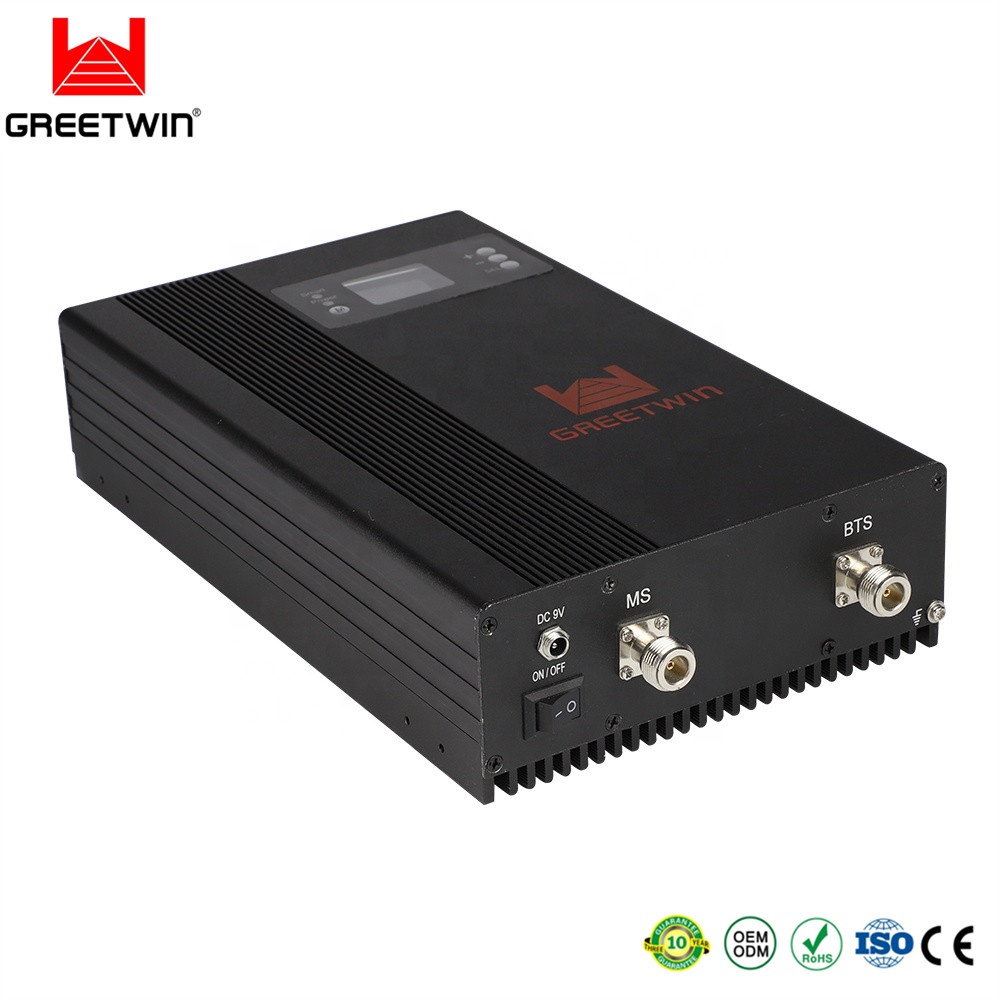

Tri-band 23dBm GSM CDMA800/850 PCS1900 LTE2600 mobile signal booster 3g 4g lte
I don’t know if you have ever encountered the following situation. Sometimes the phone can’t get out in the elevator and there is no signal. After going to the parking lot to make a call, the phone signal is weak, the call is intermittent, and the phone has no signal when passing through the tunnel when riding the train. There is no signal in the mountainous countryside. Traveling in the forest and grassland, the mobile phone has no signal, which seriously affects the quality of instant messaging. How to solve these problems? Install a mobile phone signal amplifier to instantly increase the signal strength of the mobile phone, improve the quality of calls and network, and solve the problem of weak mobile phone signal.
| Specification | Uplink | Downlink | |
| Frequency | CDMA 850MHz | 824-849MHz | 869-894MHz |
| PCS 1900MHz | 1850-1910MHz | 1930-1990MHz | |
| LTE2600MHz | 2500-2570Mhz | 2620-2690Mhz | |
| Operation Bandwidth | Wide Band | ||
| Gain | ≥70dB | ≥75dB | |
| Output Power | ≥20dBm | ≥23dBm | |
| MGC (Manual Gain Control) | 31dB Range/1dB step | ||
| Ripple in Band | 8dB | ||
| Noise Figure | ≤ 6dB | ||
| VSWR | ≤2.0 | ||
| Automatic Level Control | 25dB | ||
| Intermodulation Products | ≤ -40dBc | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm/30KHz | |
| 1GHz~12.75GHz | ≤ -30dBm/30KHz | ||
| Frequency stability | ≤ 0.01ppm | ||
| MTBF | > 50000 hours | ||
| Time Delay | ≤1.5μs | ||
| Impedance | 50Ω | ||
| Power Supply | Input: AC 110~240V; Output: DC 9V/5A | ||
| LED Alarm | Power LED | DC ON/OFF | |
| Smart LED | Smart function ON/OFF | ||
| AGC Alarm | Alarm RED when ALC 5dB-10dB | ||
| ISO Alarm | Alarm RED when ALC 20dB-25dB, Then Repeater will Auto Shut Down. Auto restart after two minutes. | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Power Consumption | 25W | ||
| Operating Temperature | -10â~ +55â | ||
| Environment Conditions | IP40(Indoor) | ||
| Installation Type | Wall Installation | ||
| Dimensions (D x W x H ) | 354*268*58mm | ||
| Weight | ≤ 6.5 KG | ||

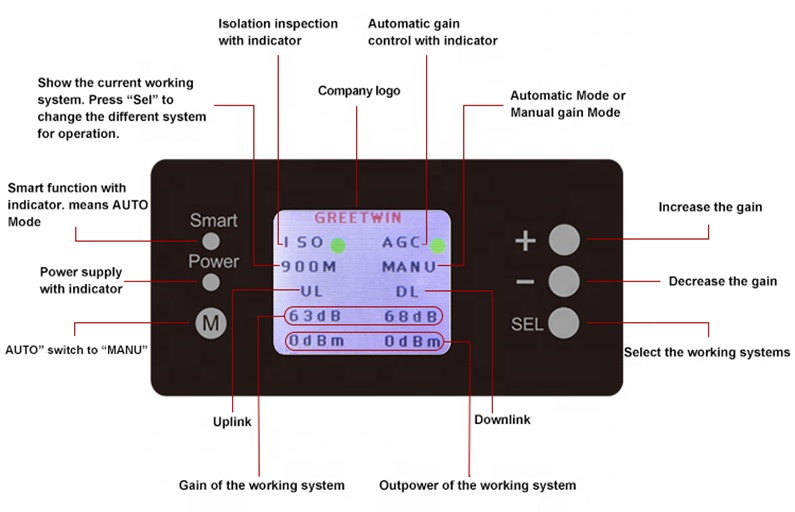

The LCD Repeaters have many intelligent functions: such as antenna isolation detection, Input & Output signal strength indication, system indication, manual gain control and smart mode. See the detailed introduction listed below:
The Display will auto off if don't touch it in one minute.
1. “GREETWIN”is Company LOGO.
2. Power: Power supply with indicator.
3. Smart: Smart function with indicator. AUTO Mode now.
4. M : “AUTO” switch to “MANU”.
5. Sel: Select the working systems ,
long press the button for 2s , will enter into 900M. then setting the gain.
then set the gain 65dB, long press the button for 2s again. 65dB was confirmed.
6. 900MHz: Show the current working system. Press “Sel” to change to the different system for operation.
7. AUTO/MANU: Automatic Mode or Manual gain Mode.
8. AGC: Automatic gain control with indicator.
9. ISO: Isolation inspection with indicator.
10. 63dB/68dB: Real-time gain show in the LCD display.
11. 0dBm/0dBm: Real-time outpower show in the LCD display.
12. UL is Uplink, DL is downlink. “+” is increasing the gain, “-” is decreasing the gain.
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
This model is suitable for Asia, Europe, The Middle East, and Brazil, etc.
*For more details please contact us directly.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.
Q5.Shipment Date
| Sample | 1-3 business days |
| <50 pcs | 7-15 days |
| 50-200 pcs | 15-24 days |
| >200 pcs | Negotiate |
Q6: Delivery Date of the sample by DHL/FedEx
| Russia/Canada/Europe/Asia | 3-5 days |
| Middle East/Latin American | 3-6 days |
| African | 5-7 days |
