433MHz 930MHz 5.8G 2.4G 1.5G GPS Drone Signal Jammer

Basic Information
Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001
Model Number: GW-UAV90PRO
Minimum Order Quantity: 1pcs
Price: $4087.2-4687.6
Packaging Details: Wooden Case with PE Foam
Delivery Time: 10 Working Days After Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500pcs per Month
Product Name: Uav Jammer LCD Display 5 Band Advantage: Super Cooling System
Jamming Range: 1500-2000meters Output Power: 44dBm High Power
Working Band: 5 Bands
High Light:

1.5G GPS Drone Signal Jammer

,

930MHz Drone Signal Jammer

,

5.8G LCD Display Uav Jammer



5 Band Uav Jammer LCD Display 433MHz 930MHz 5.8G 2.4G 1.5G GPS Drone Signal Jammer



Portable light Uav Drone Jammer, Built-in high gain directional antenna, Built-in 5 sets of independently operated RF working unit, can choose to on/off GPS to drive the drone or force the drone to land, can be transmitted shielding interference signals to the surrounding 45-degree angle, Coverage (1500-2000m) can be comprehensive and stable uninterrupted shielding of the 433MHz 930MHz GPSL1, WIFI 2.4G, and 5.8G bands in the UAV frequency band.


-----UAV Drone Signal Jammer Features-----


1.High-gain 10dbi built-in antenna, Jamming range up to 2 KM.
2.Working for more than 60 minutes with fully charged.
3. The display can choose to display the power and voltage, and the customer can switch according to their requirements.
4.There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand. 5.Independent design of control switch, aiming at stopping peeping, driving away, and forcing to land.


-----UAV Drone Signal Jammer Application-----


Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc

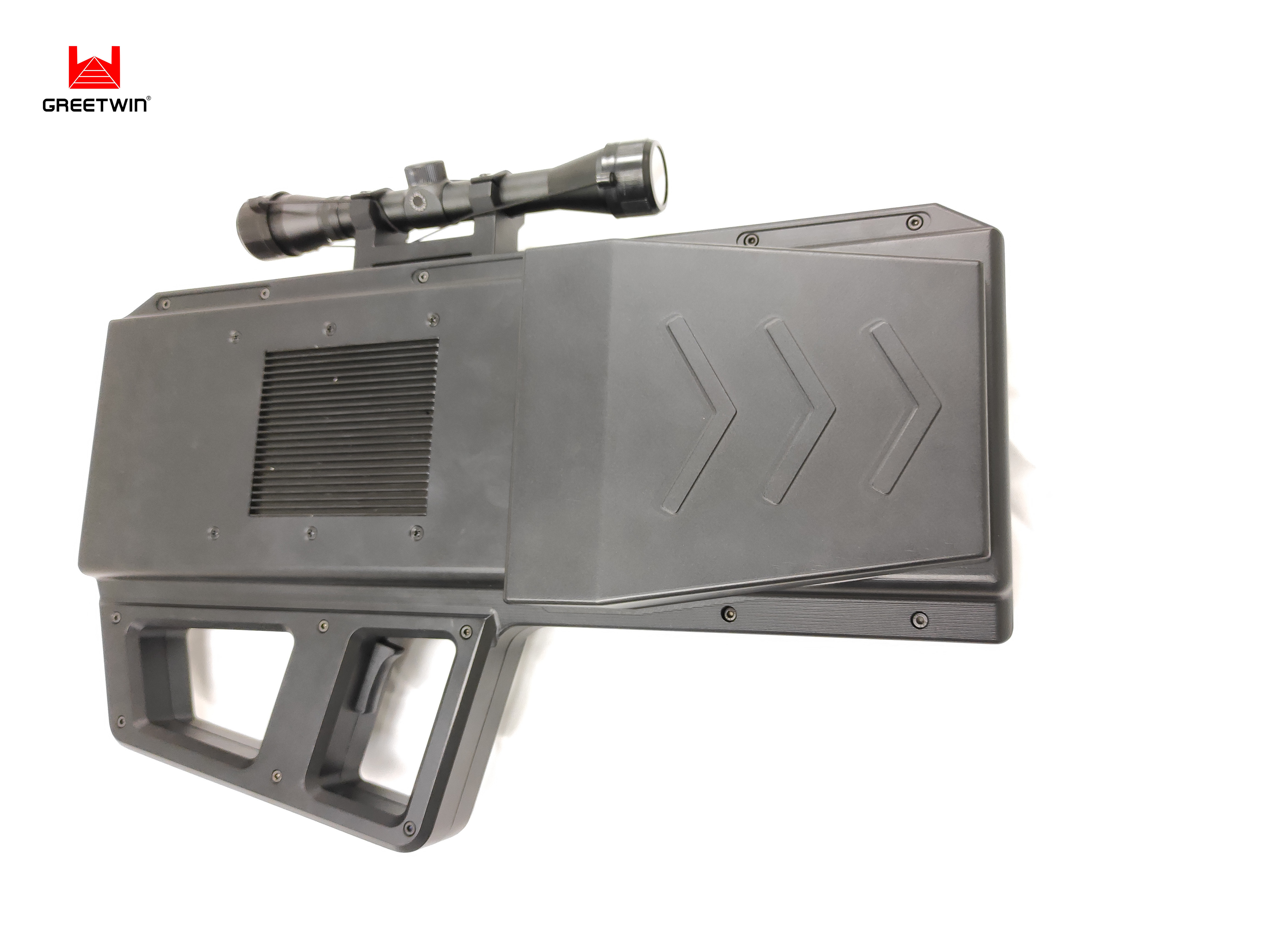

-----UAV Drone Signal Jammer Product Show-----



1. Power Port

2. 2.4G/5.8G switcher

3. GPS

4. Carrying handle

5. Battery compartment

6. Antenna position


-----UAV Drone Signal Jammer Technical Parameters-----

Channel Working Frequency
CH1 2.4G 2400-2485MHz
CH2 5.8G 5725-5850MHz
CH3 GPSL1, Glonass, BDS 1575.4±2.5MHZ(1.5G-GPS)
1602±5MHZ(1.5G-GLONASS)
1561±2.5MHZ(BDS)
CH4 433MHz 430-436MHz
CH5 900MHz 900-930MHz
Power supply mode

Inside battery: 24V, 10A;

Or External battery

Turn on/off 1 Power Switch, 5 Independent Switch for each band
Total Outpower 125W
Battery working time 60 minutes
Working temperature -20ºC to +55ºC
Power consumption 350W
Weight 4.9KG, Packing Weight:6.5KG
Size 490X340X90mm
Directional Panel Antenna 5.8G>12dBi, 2.4G>10dBi, 1.5G>8dBi, 900M>5dBi, 433M>3dBi
LCD Display Show Battery Percentage





-----UAV Drone Signal Jammer Instructions-----

1. Check whether the accessories are complete when you open the box and take out the device.

2. Make sure the device is fully charged on the first use, red light charging, green light full.

3. Easily using: face to UAV and press the switch.

Press 2.4G/5.8G switcher, aiming at stopping peeping, driving away.

Press GPS switcher, aiming at forcing to land

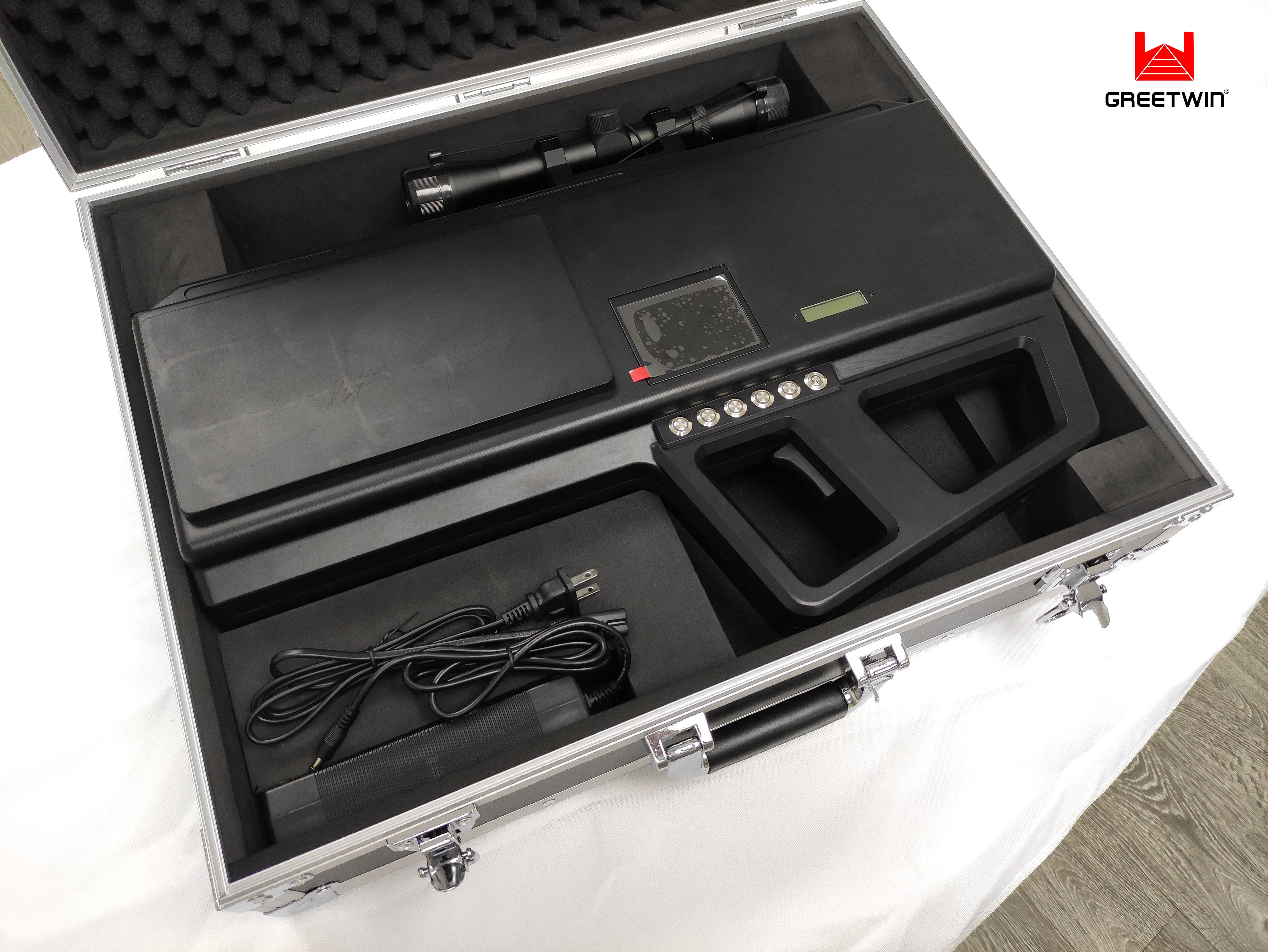

-----UAV Drone Signal Jammer Packing list-----

Name Quantity Remarks
Jammer 1
DC24V Charger 4A 1 AC220V-240V Input
Instruction / Certificate 1
