2km 433MHz 930MHz 5.8G 2.4G drone jamming device

Basic Information
Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001
Model Number: GW-UAV90PRO
Minimum Order Quantity: 1pcs
Price: $4087.2-4687.6
Packaging Details: Wooden Case with PE Foam
Delivery Time: 10 Working Days After Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500pcs per Month
Product Name: Uav Jammer LCD Display 5 Band Application: Drone
Advantage: Super Cooling System Jamming Range: 2000meters
Output Power: 44dBm High Power Working Band: 5 Bands
High Light:

2.4G Drone Jamming Device

,

930MHz Drone Jamming Device

,

2km Drone Frequency Blocker



Drone shield 2km Uav Jammer LCD Display 5 Band 433MHz 930MHz 5.8G 2.4G 1.5G GPS Drone Signal Jammer



Hand-held portable signal Drone/UAV jammer, with the combination of advanced technology from domestic and overseas, was developed to manage and control the Drone. As a product of the green environmental protection, it has no any effect on surrounding signals such as mobile phone communication, operator base station, automobile remote control, police radar and so on.

The system uses 3 channels of signal outputs (2.4G, 5.8G and GPS) to block the wireless transmission signals, to make the Drone/UAV out of control.



The device has been tested for many times that it can block the Drone/UAV. That means the communication and navigation between the UAV and the controller can be cut off at a long distance. After that, the Drone/UAV can be effectively driven away or forced to land.





-----UAV Drone Signal Jammer Features-----
1. With imported chips, using ultra-high speed sweeping technology to generate multiple bandwidth signals
2. Wideband ultra-high gain integrated antenna and built-in battery design, easy to carry and operate

3. With international technology of secondary oxidation and wear resistance, aluminium shell helps for intelligent temperature controlling and cooling

4. Effective jamming distance is 600-800 meters, depending on the distance of more than 100 meters between remote control and UAV.

5.There is a power switch in the visible part of the body, including a power indicator, which can be operated directly by one hand.

6.Independent design of control switch, aiming at stopping peeping, driving away and forcing to land.


-----UAV Drone Signal Jammer Application-----
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone, etc

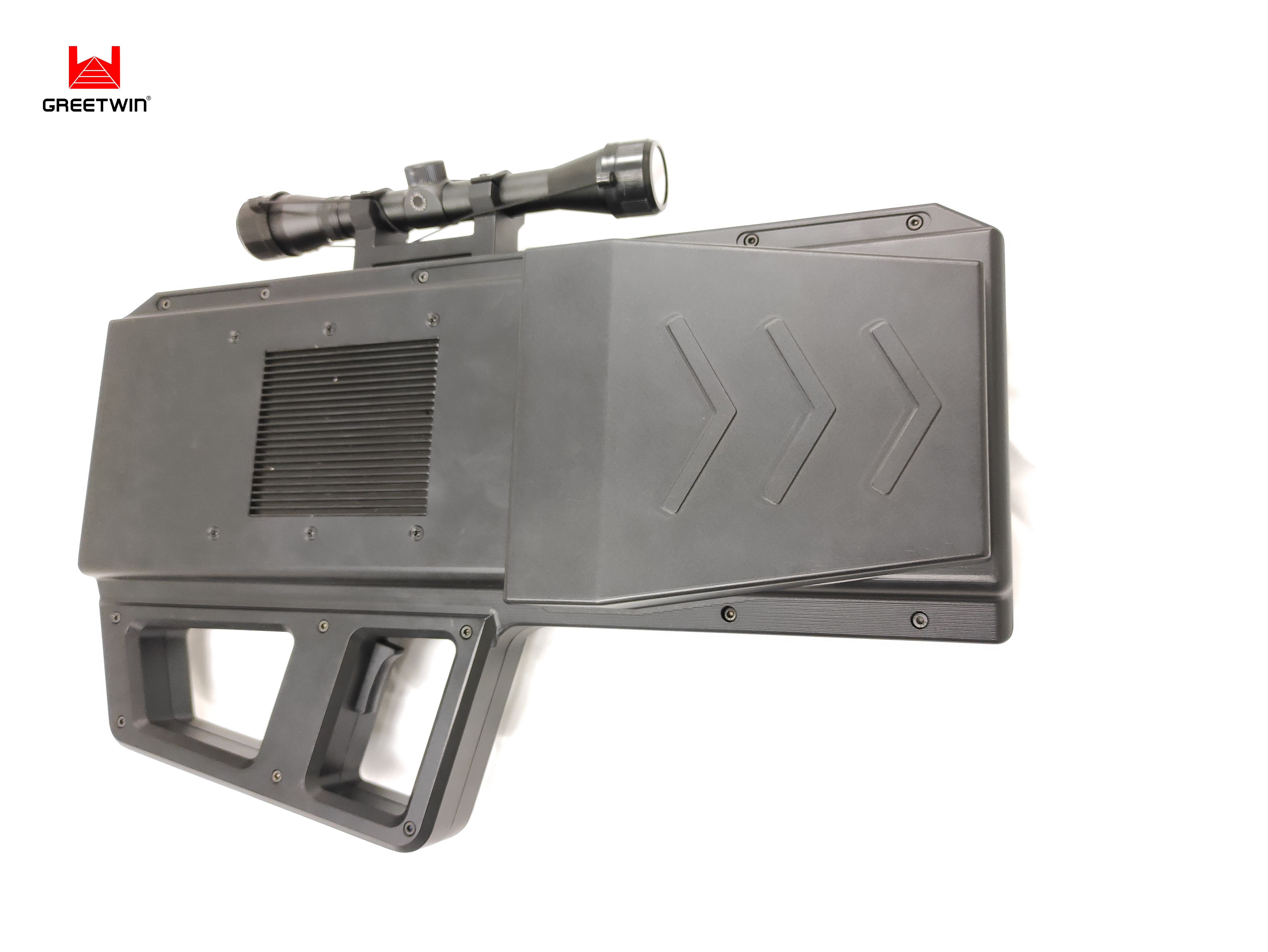

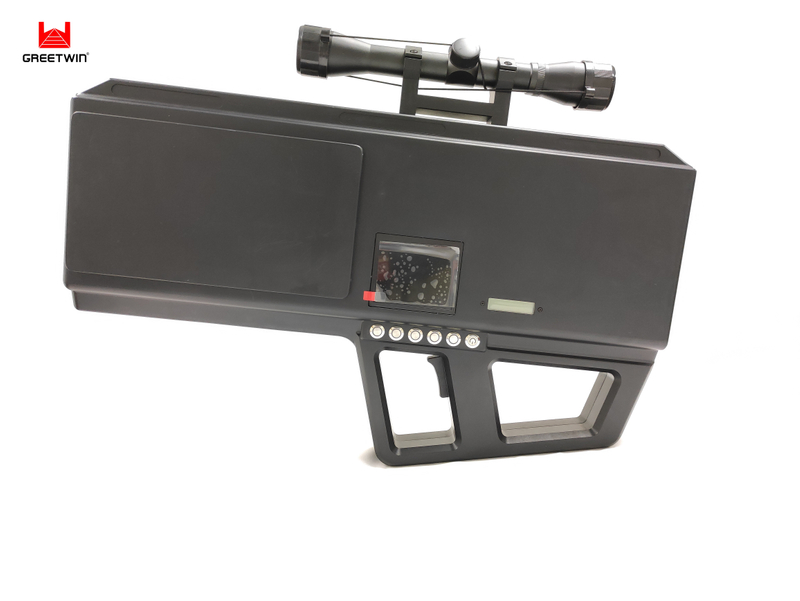

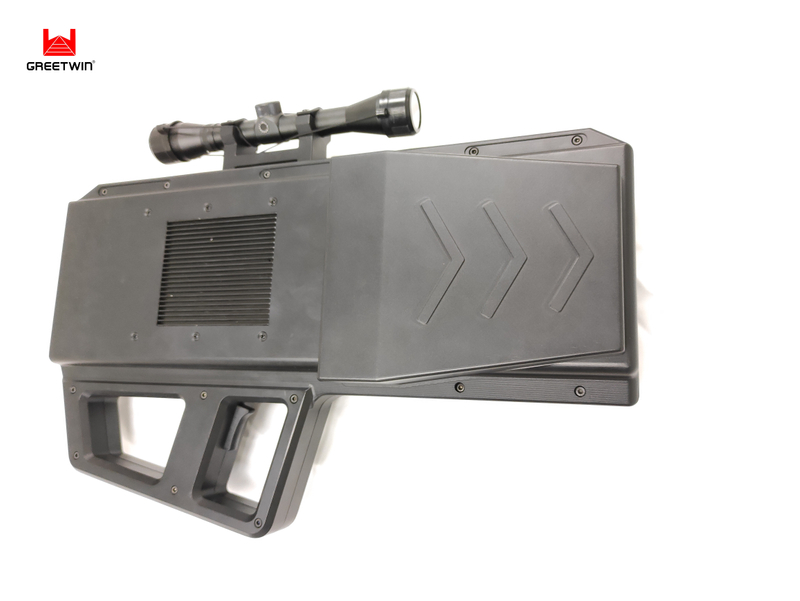

-----UAV Drone Signal Jammer Product Show-----



1. Power Port

2. 2.4G/5.8G switcher

3. GPS

4. Carrying handle

5. Battery compartment

6. Antenna position


-----UAV Drone Signal Jammer Technical Parameters-----

Channel Working Frequency
CH1 2.4G 2400-2485MHz
CH2 5.8G 5725-5850MHz
CH3 GPSL1, Glonass, BDS 1575.4±2.5MHZ(1.5G-GPS)
1602±5MHZ(1.5G-GLONASS)
1561±2.5MHZ(BDS)
CH4 433MHz 430-436MHz
CH5 900MHz 900-930MHz
Power supply mode

Inside battery: 24V, 10A;

Or External battery

Turn on/off 1 Power Switch, 5 Independent Switch for each band
Total Outpower 125W
Battery working time 60 minutes
Working temperature -20ºC to +55ºC
Power consumption 350W
Weight 4.9KG, Packing Weight:6.5KG
Size 490X340X90mm
Directional Panel Antenna 5.8G>12dBi, 2.4G>10dBi, 1.5G>8dBi, 900M>5dBi, 433M>3dBi

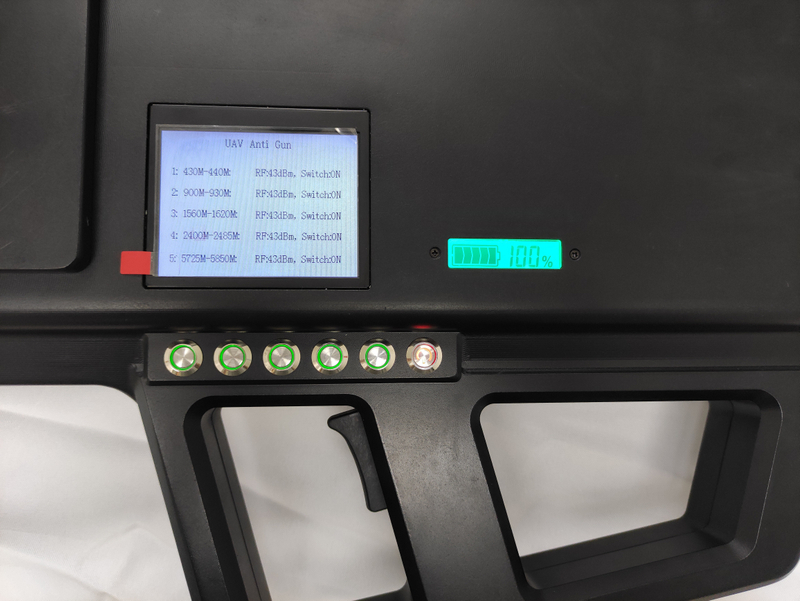

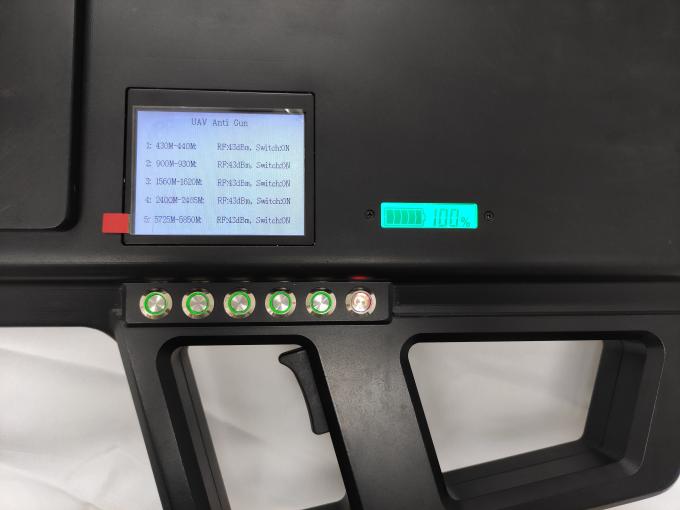

LCD Display Show Battery Percentage

-----UAV Drone Signal Jammer Instructions-----

1. Check whether the accessories are complete when you open the box and take out the device.

2. Make sure the device is fully charged on the first use, red light charging, green light full.

3. Easily using: face to UAV and press the switch.

Press 2.4G/5.8G switcher, aiming at stopping peeping, driving away.

Press GPS switcher, aiming at forcing to land

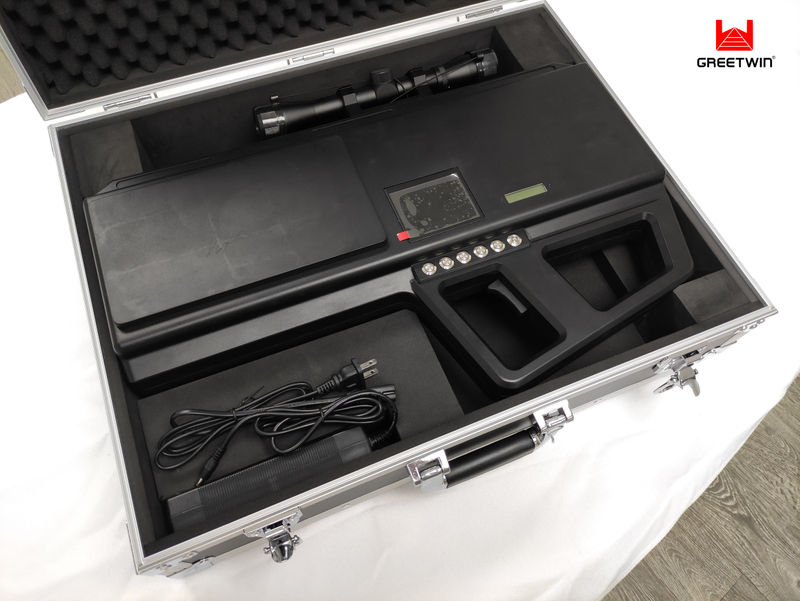

-----UAV Drone Signal Jammer Packing list-----

Name Quantity Remarks
Jammer 1
DC24V Charger 1 AC220V-240V Input
Instruction / Certificate 1
