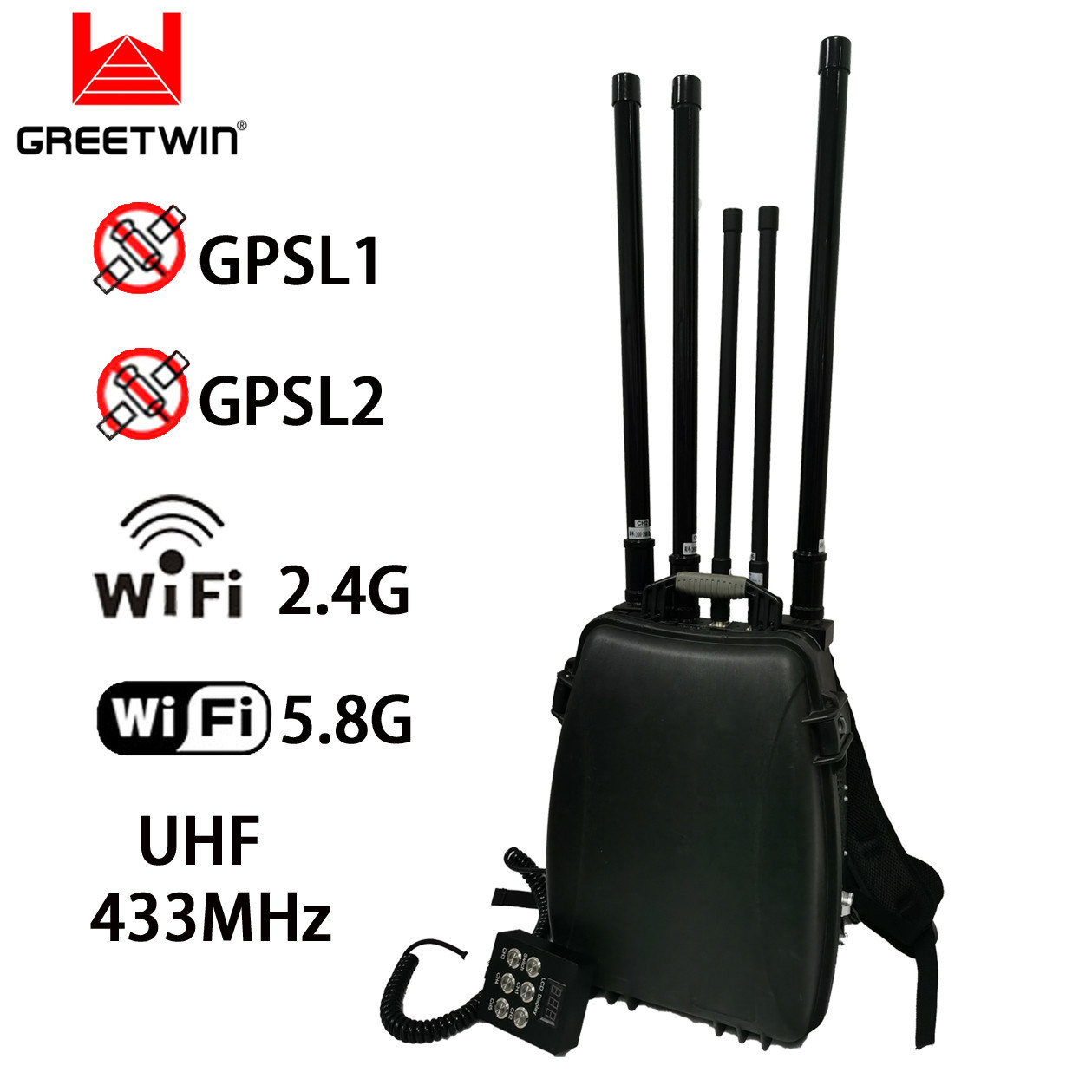

2km UAV jammer Drone jammer WiFi 2.4G 5.8G GPS Anti Drone systems

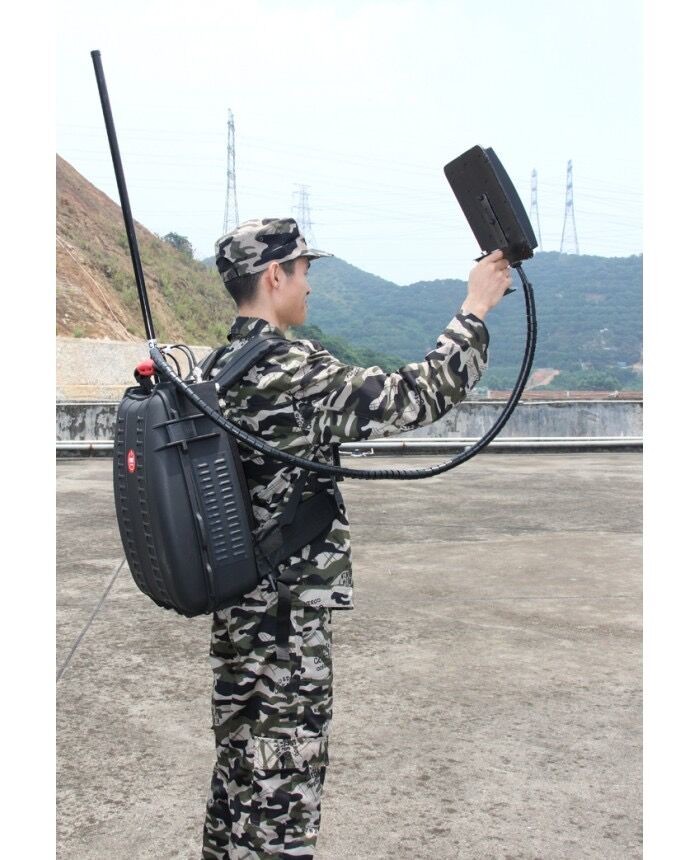

Backpack drone Jammer is the ultimate anti-drone solution. It is safe, simple to operate and can be used for houses, offices, airports or Military important places easily. It comes with Omni directional antennas to disrupt 5 frequencies used by the majority of commercial drones. With a radius range of up to 2km. With multiple power outputs the operator can choose if they want the drone to return to home or land. The device GW-UAV-BP15Pro does no harm to the drone or its operator.
Function:
Effective interference with UAV Remote-Control Signal 2400MHz, GPSL1 signal, Transmission Signal 5800MHz,
Application:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of military important places, etc. that forbid aerial photography by use of UAV.
Technical Parameters:
Channel | Working frequency | Output power(±1dBm) | |
2.4G | 5725-5850MHz | 44 dBm(25W) | |
2.4G | 2400-2500MHz | 45dBm | |
5.8G | 5725-5850MHz | 44 dBm | |
GPS L1 | 1570-1620MHz | 45dBm | |
GPS L2 | 2400-2500MHz | 45dBm | |
Total output power: 140W | |||
Power consumption : 400W | |||
Power supply: AC90-260V, DC24-28V | |||
Main engine weight : 16.8Kg | |||
Size:350×190×490mm | |||
With directional panel antenna 10dBi (jamming range 2km-2.5km) or 5pcs omni antenna 7dBi (jamming range 1.5km-2km) | |||
Jammer Module Number : | 5 | ||
Cooling System: | Systematic Smart Cooling System | ||
Jamming Source : | Noise Technology | ||
Humidity: 30%-95% | |||
Running temperature : -20â to +70â | |||
Inside battery working 1.5h: 24V,24A | |||
Battery charger: 5A(Open the external switch to charge, automatically manage the charging current, full automatically disconnect) | |||
External Remote control Panel : shows the battery voltage, can switch on/off each band. |
