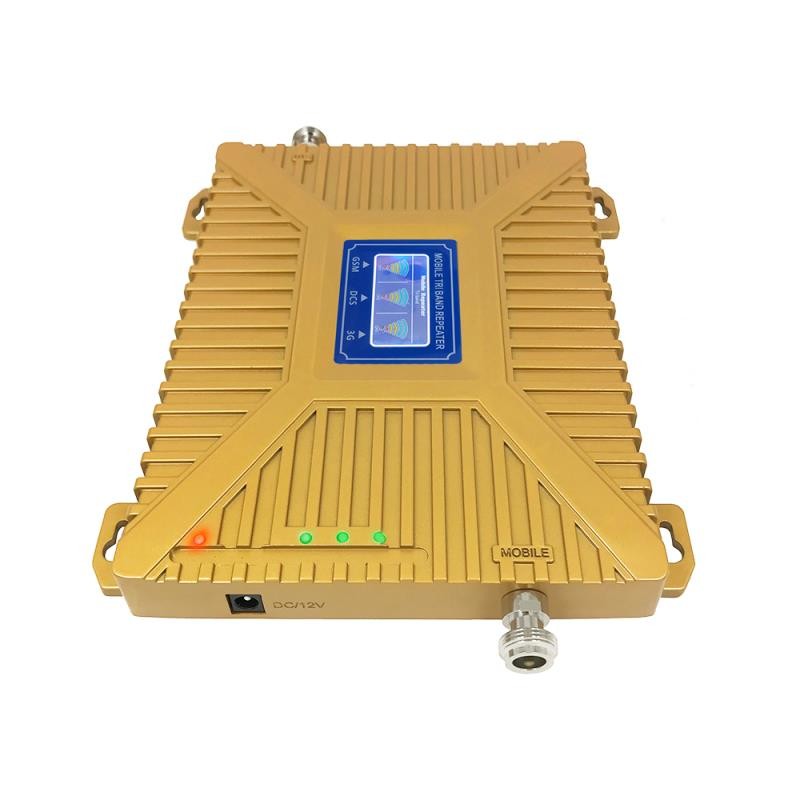

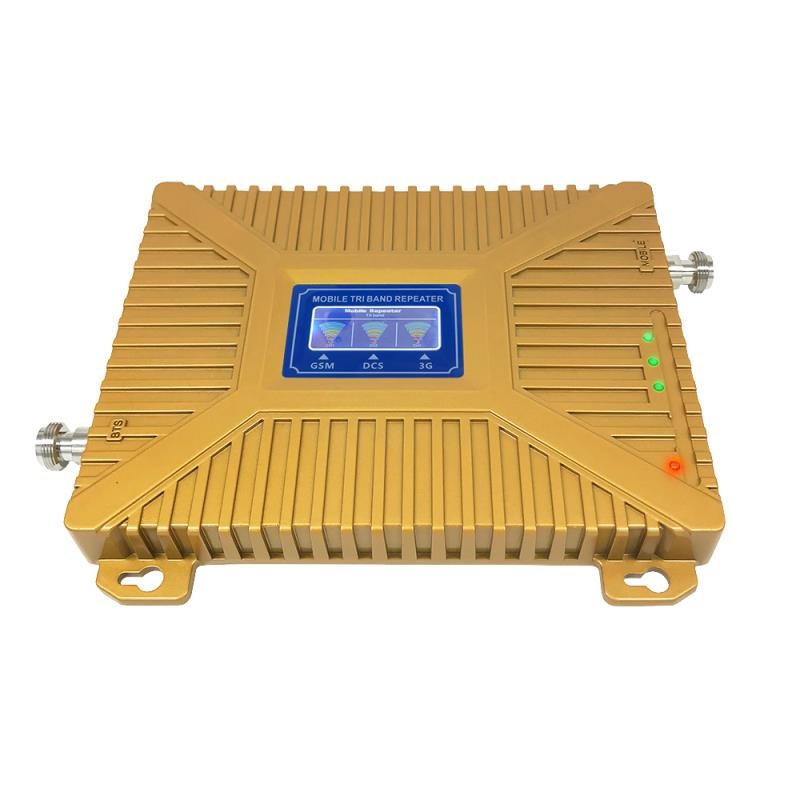

20dBm 2g 3G 4G Cellphone Signal Repeater Triple-Band GSM900 Dcs1800 WCDMA2100 Signal Booster
A cell phone signal booster (also known as amplifier or repeater) is made up of three main elements - exterior antenna, amplifier, and interior antenna. They form a wireless system to boost cellular reception.
|Frequency Range ||Uplink ||Downlink |
|GSM 900MHz ||890-915MHz ||935-960MHz |
|DCS1800MHz ||1710-1785MHz ||1805-1880MHz |
|WCDMA2100MHz ||1920-1980MHz ||2110-2170MHz |
|Max. Gain ||60dB ±2dB ||65dB±2dB |
|Max. Output Power ||17dBm±2dB ||20dBm±2dB |
|Bandwidth ||Wide Band |
|Ripple in Band ||≤ 8dB |
|Noise Figure ||≤ 6dB |
|VSWR ||≤ 2.0 |
|Spurious Emission ||9KHz~1GHz ||≤ -36dBm |
|1~12.75GHz ||≤ -30dBm |
|Time Delay ||≤ 1.5 μs |
|MTBF ||> 50000 hours |
|Impedance ||50 ohm |
|Power Supply ||AC 90-240V,DC 12V/3A |
|Power LED ||Power indicator |
|Alarm LED ||Red ||Strong input signal |
|Green ||Normal |
|Mechanical Specification |
|RF Connector ||N-Female |
|Cooling ||Heatsink Convection cooling |
|Humidity ||< 90% |
|Operating Temperature ||-10°C ~ +55°C |
|Environment Conditions ||IP40 |
|Installation Type ||Wall Installation |
|Size ||196*182*22mm |
|Weight ||< 1.5Kg |
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please Contact us with more details.
Q2.Delivery Date&Lead Time
|Quantity ||Lead time ||Delivery to American/Middle East/Asia/Europe |
|<20 pcs ||3-5 business days ||3-7 business days by DHL |
5-7 business days by FedEx/UPS
|20-100 pcs ||7-15 business days |
|>100 pcs ||15-24 business days |
*Click it to get the sample.
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/CDMA/GSM/DCS/AWS/PCS/WCDMA/LTE,etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to Contact us with your inquiry, we will find the frequency you need and address your problems.
