40W 800M Long Distance Intercept HandGun Instrument Drone Jammer Anti System Equipment
I. Drone Jammer Introduction

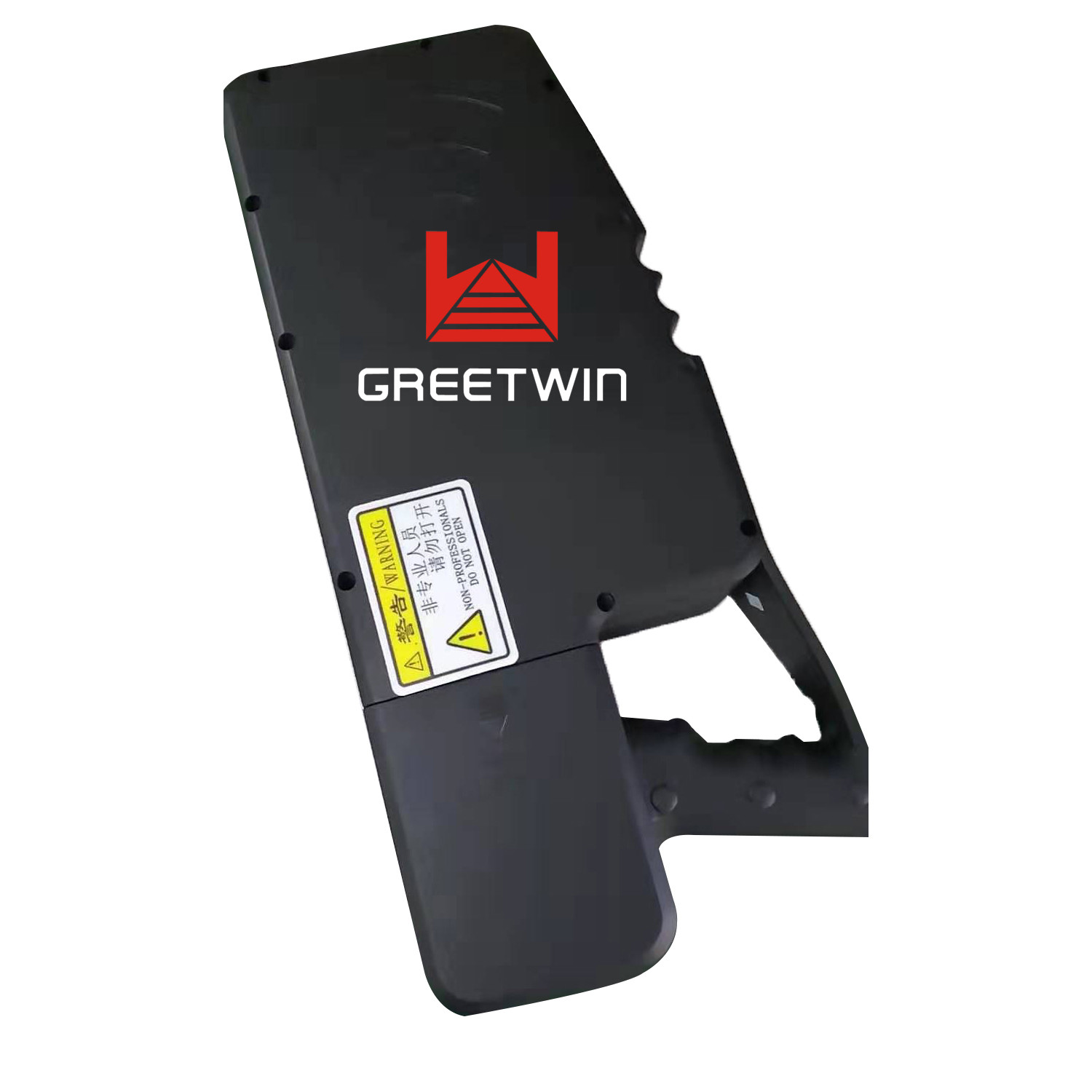

Portable light drone jammer GW-UAV420Pro, Built-in high gain directional antenna, Built-in 4 sets of independently operated RF working unit, can be choose to on/off GPS to drive the drone or force the drone to land, can be transmit shielding interference signals to the surrounding 45 degree angle, Coverage (500-800) m can be comprehensive and stable uninterrupted shielding of the 900M, 2.4G, and 5.8G bands in the UAV frequency band, The data transmission of all target frequency bands within the range can be terminated within a few seconds after the device is started. The exterior of the product is a high-strength nylon casing, the casing does not deform within 150â, sturdy and durable. The shielding effect is stable and reliable, Small size, Easy to store and transport.
The device has been tested for many times that it can block the Drone/UAV. That means the communication and navigation between the UAV and the controller can be cut off at a long distance. After that, the Drone/UAV can be effectively driven away or forced to land.
Application scenario: meeting room, office, workshop, classroom, examination room, parking lot.
II.Drone Jammer Characteristic Parameter
Model: GW-UAV420Pro
Name: Portable Drone Jammer
Transmit power: Single band 10W, total 40W.
Antenna gain: 10dBi
Output channel: 4 Outputs
Block frequency: 900ï½5850MHZ
Jamming Range:800m-1.2km
Block signal: 900MHz,1575 MHz,2400 MHz,5800MHz
Power supply : DC28V
III. Drone Jammer Features
1.GPS can be switched on and off to meet the drive and force the drone to land.
2.It can work continuously in a variety of complex environments, when the equipment fully charged, can working for more than 50 minutes.
3.Smart chip, shielding all kinds of wireless signals.
4.The display can choose to display the power and voltage, and the customer can switch according to their requirements.
5.High-gain antenna, the jamming range is farther, the shielding effect is better, and the built-in antenna is neat and tidy.
6.High-strength plastic material, good wear resistance, good ventilation and ventilation effect.
7.Built-in high-power fan, good heat dissipation and more stable working performance.
IV. Drone Jammer Specification
| Frequency band parameter | Channel number | Frequency | Power |
| CH1 | 2400 - 2483.5MHz | 10W | |
| CH2 | 900 - 930 MHz | 10W | |
| CH3 | 1575 - 1606MHz | 10W | |
| CH4 | 5725 - 5850MHz | 10W | |
| Machine size | (435×200×75)(L×W×H)mm | ||
| Antenna size | Built-in antenna | ||
| Package size | (580×420×23)mm | ||
| Weight | 2.5 kg | ||
Environment temperature | (-20 ï½ +55)â | ||
| Relative humidity | ≤85 %RH | ||
| Battery | 29.5V/4000mAh | ||
| Power supply | 165W | ||
| Input Power | DC: 29.5V | ||
| Switch control | Manual control | ||
| Shell material | High-strength plastic housing | ||
V.Drone Jammer Installation Instruction
