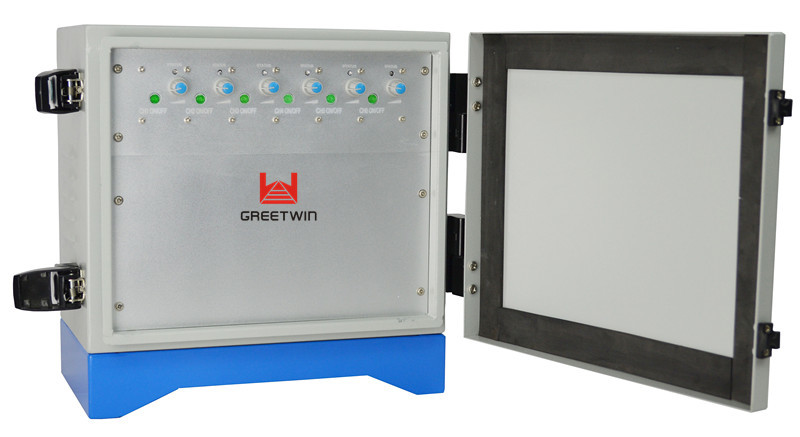

CDMA 450MHz Prison LTE Signal Jammer Blocker Modular With Cooling Fan
GW-J265DW will jam all frequency, Up to 6 Bands can be chosen:
Cellphone Standards: CDMA450(460-470MHz), CDMA800/GSM850(851-894MHz), iDEN(869-894MHz), GSM900(925-960MHz), DCS/GSM1800(1805-1880MHz), PCS/GSM1900(1930-1990MHz), 3G/WCDMA/CDMA2000(2110-2170MHz), 4G/LTE700(American), 4G/LTE800(Europe), 4G/LTE2.6GHz,4G-LTE2.3GHz
Computer Communication Standards: Wlan, 2.4GHz, WiFi, Bluetooth
Satellite Communication Systems: GlobalStar, GPS,Thuraya (1520-1580MHz)
Output Power: Up to 15 Watt/band
Total Power: Max: 90Watt
Power Supply voltage: 230VAC/110VAC, 24-27VDC
Housing: Metal Enclosure
Total System Weight(With antennae): Approx.: 18kg
Operational Temperature: -20 °C ~ +55 °C
Cooling System: Active smart with integrated incoming air filter
Waterproof level: IP65
GREETWIN Make All Bomb Jammers, IED Jammers, RF Signal Jammer and RCIED Jammers, including cell phone jammers and mobile phone jamming devices, are sold for governmental, law enforcement and military,etc.
Prison Jammer Technical Specification:
| Output interface | Description | Shield band of frequency | RF output power | |
| CH1 | CDMA 450 | 460 -470 MHz | 41.7dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 41.7dBm | |
| CH3 | GSM900 | 925-960 MHz | 41.7dBm | |
| CH4 | GSM1800 /PCS 1900 | 1805-1880 MHz /1930-1990 MHz | 41.7dBm | |
| WIFI, 2.4G | 2400-2485 MHz | |||
| CH5 | LTE 2600 | 2620-2690MHz | 41.7dBm | |
| GPS L1(Optional) | 1570-1580 MHz | |||
| CH6 | LTE800 | 790-821 MHz | 41.7dBm | |
| Power supply: AC220V, | ||||
| Total Output Power: 90Watt | ||||
| Power consumption: 300Watt | ||||
| Weight: 18Kg Size(length × wind × high):320×300×220mm | ||||
| Humidity: 30%-95% Running Temperature: -20â to +55â | ||||
| Jammer Module Number | 6 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection | VSWR Protection | |||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | High Gain Directional Panel Antennas or omni antenna | |||
| Jamming range: 50-120m according to signal density of mobile network | ||||
Prison Jammer Advantages:
1. VSWR protection,
When there be antenna disconnect, full system will not burn out.
2. Waterproof Level: IP65
Good cooling system, Continuous operation, even in hot climates.
3. Stable capability, cost-effective choice
4. Each channel can be controlled separately and simultaneously.
Manual adjustable output power with each channel.
Prison Jammer Application:
Prisons, military, government, Oil and Gas Storage Facilities and fields, Churches, Theatres, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
