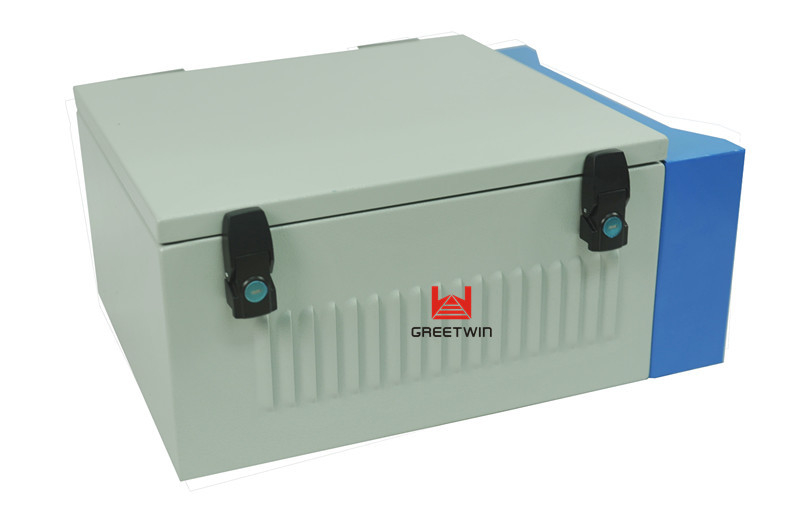

UAV GPS Drone Signal Jammer / Drone Signal Blocker Radio Frequency Disruptor
Drone Signal Jammer Description:
The UAV/drone outdoor jammer is our company's latest product designed by R&D department,
against the widespread use of UAV nowadays. It disables the targeted UAV by jamming the UAV's
remote control signal and GPS signal(include GLONASS), to force the UAV fall or return.
The jamming distance reaches up to 1KM.
Drone Signal Jammer Function:
Effective interference with UAV Remote-Control Signal 2400MHz, GPSL1, GPSL2 signal, 900MHz Signal and Transmission Signal 5800MHz.
Drone Signal Jammer Features:
1. High integration & Stable operation, VCO technology.
2. Highly effective power & long jamming distance.
3. Separate control of each module, convenient operation.
4. High quality tubular radiator, effective in radiating heat.
5. Import components; the moderating circuit-starting design avoids a spark when the device turn on/off.
Drone Signal Jammer Application:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of military important places, etc.
that forbid aerial photography by use of UAV.
Drone Signal Jammer Technical Parameters:
| Channel | Working frequency | Output power(±1dBm) | |
| 2.4G | 2400-2485MHz | 50 dBm | |
| 5.8G | 5725-5850MHz | 41.7 dBm | |
| GPS L1 | 1573-1607MHz(GPS,GLONASS) | 50 dBm | |
| GPS L2 | 1225-1250MHz(GPS,GLONASS) | 50 dBm | |
| 900M | 902-928MHz | 50 dBm | |
| Total output power: 415W | |||
| Power consumption : 1300W | |||
| Power supply: AC220V, or 110V, DC28V | |||
| Main engine weight :35Kg | |||
| Size:650×350×300mm | |||
| With omni antenna or directional panel antenna | |||
| Jammer Module Number : | 5 | ||
| Cooling System: | Systematic Smart Cooling System | ||
| System Protection : | VSWR Protection | ||
| Jamming Source : | Frequency Scan Technology | ||
| Humidity: 30%-95% | |||
| Running temperature : -10ºC to +50ºC | |||
| Jamming range: up to 1KM,according to signal density of mobile network | |||
