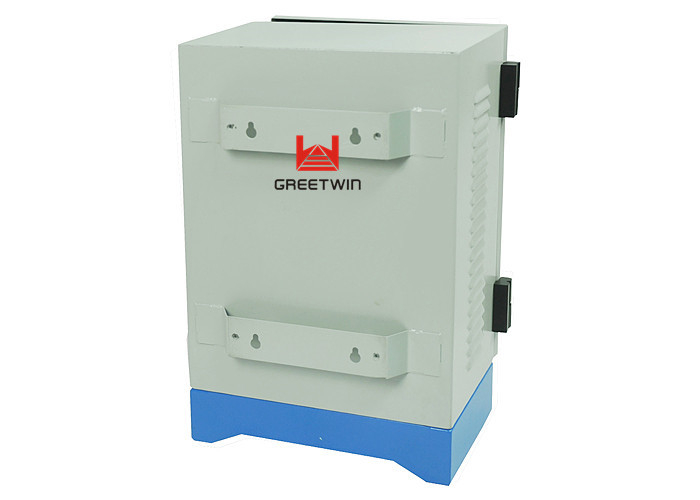

Modular 500W Power WiFi GSM Jammer WiFi Signal Stopper Multi Band

Quantity:
  • China
  • GREETWIN
  • SGS, ISO9001
  • GW-J265DW
  • 1pcs
  • Negotiable
  • Wooden Case with PE Foam
  • 10 Working Days After Received Payment
  • T/T, L/C, Western Union, MoneyGram
  • 500pcs per Month

Modular 500W Power WiFi GSM Jammer WiFi Signal Stopper Multi Band



WIFI Sinal Jammer Description:

This jammer GW-J265DW mainly used for large-scale prison playground, lawns, squares, etc., to eliminate security risks and disadvantages caused by mobile phones.

Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VVIPs.



WIFI Sinal Jammer Features:

1. High-power multi-band jammer, make high jamming range

2. Modular construction for easy maintenance, repair and upgrade.

3. Jamming up to FIVE different jamming modules.

4. Max 500watts total RF output power.

5. Special additional housing for all weather protection.

6. The general design of the system meets military requirements.

7. Different frequency band can be controlled independently by single switches;

8. Power Amplifiers protection design ensures the working reliability of the device.

9. Can customize these frequencies AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, Wireless Toys , FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, etc.



WIFI Sinal Jammer Advantages:
1. VSWR protection,

When there be antenna disconnect, full system will not burn out.
2. Waterproof Level: IP65
Good cooling system, Continuous operation, even in hot climates.
3. Stable capability, cost-effective choice
4. Each channel can be controlled separately and simultaneously.
Manual adjustable output power with each channel.



WIFI Sinal Jammer Application:
Prisons, military, government, Oil and Gas Storage Facilities and fields, Churches, Theatres, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.



WIFI Sinal Jammer Technical Specification:



Output interface Description Shield band of frequency RF output power
CH1 CDMA800 851-894 MHz 50dBm
CH2 WCDMA 3G 2110-2170 MHz 50dBm
CH3 GSM900 925-960 MHz 50dBm
CH4

GSM1800

/PCS 1900

1805-1880 MHz

/1930-1990 MHz

50dBm
CH5 WIFI, 2.4G 2400-2485 MHz 50dBm
  LTE 2600(Optional) 2620-2690MHz
  GPS L1(Optional) 1570-1580 MHz
  LTE800(Optional) 790-821 MHz
Power supply: AC220V, or DC 28V
Total Output Power: 500Watt
Power consumption: 1500Watt

Weight: 30Kg

Size(length × wind × high):592×395×265mm

Humidity: 30%-95%

Running Temperature: -20℃ to +55℃

Jammer Module Number 5
Cooling System Systematic Smart Cooling System
System Protection

VSWR Protection

Jamming Source Frequency Scan Technology

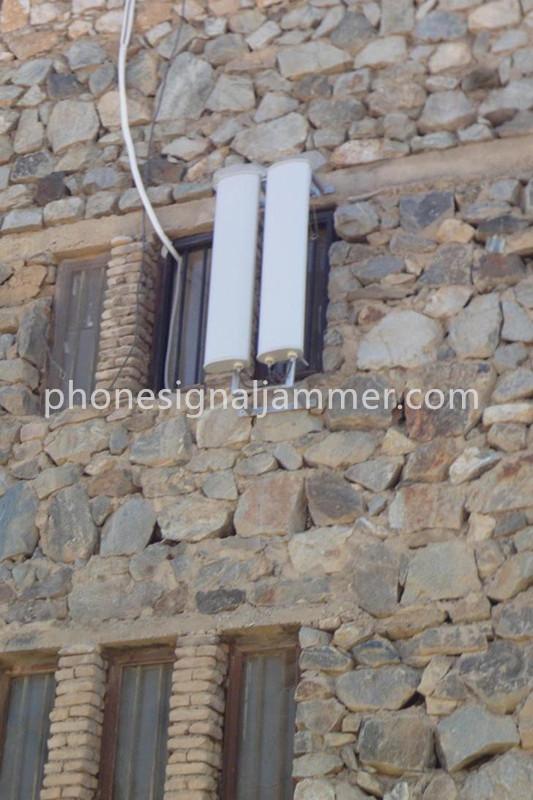

Antenna Type High Gain Directional Panel Antennas or omni antenna
Jamming range: 50-300m according to signal density of mobile network





Modular 500W Power WiFi GSM Jammer WiFi Signal Stopper Multi Band 0
