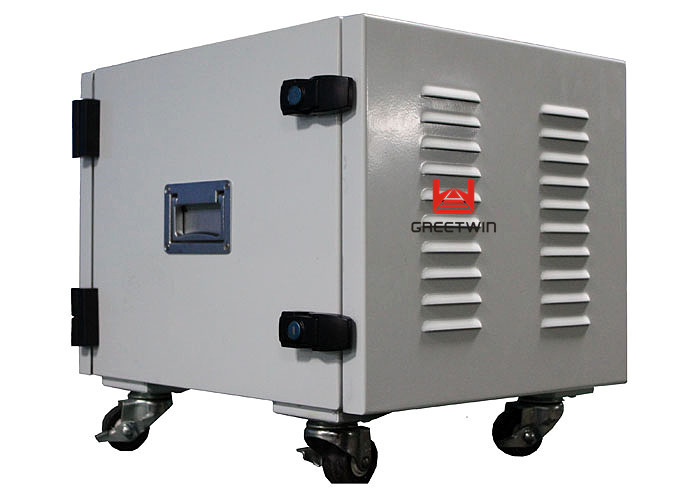

Mobile Convoy Bomb Jammer , DDS Programmable Jammer 20 MHz - 3000 MHz

Basic Information
Place of Origin: China
Brand Name: GREETWIN
Certification: SGS, ISO9001
Model Number: GW-3000VD13
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden Case with PE Foam
Delivery Time: 10 Working Days After Received Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500pcs per Month
Product Name: DDS Programmable Jammer Antennas: 13pcs Omni Antenna
Working Time: Continuous Operating Temp: -20℃ To +55℃
Output Power: 1300W Jamming Range: 50-600meters,depend On Mobile Signal Strength
Advantage: 20-3000MHz Full Band Jamming Signal Source: DDS Technology
High Light:

RCIED jammer

,

DDS Jammer

Mobile Convoy Bomb Jammer , DDS Programmable Jammer 20 MHz - 3000 MHz





Convey Bomb Jammer Description:

DDS Programmable Jammer is a communications jammer used to negate all types of RF signals. The system can work to defeat RCIED explosive triggers set off by remote control. This programmable jammer can also block unauthorized communications, and is adjustable by the user. No factory setting is required, giving the user the flexibility to control:
the frequency bands being blocked
the power output attributes when increasing or decreasing the RCIED Jammer coverage
the RF spectrum of frequency usage over great distances
Continual RF Jamming to target an RCIED can be conducted without frequency gaps, ensuring a concentrated attack toward all respective communication bands.



Communication Windows:
The GW-3000VD13 allows the operator to selectively turn on or off variable sub bands in the internal jamming modules, thus allowing for normal communications to pass. Each of the bands of the GREETWIN BOMB JAMMER are divided into ranges that are individually controlled. Communication windows can be created by the operator at will.





Convey Bomb Jammer Fetures:

20-3000MHz full band jamming with DDS Technology.
Modular construction for easy maintenance, repair and upgrade.
Jamming up to 13 different jamming modules.
Max 1300 watt total RF output power.
Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc





Convey Bomb Jammer Specifications:



RF Characteristics
Output Power 1300 Watts
Signal Source DDS
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 13
Wired Remote Control ON/OFF Switch
Remote Monitoring Adjusted output power by wired digital control board.
Antenna External – Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector
Operating hours Unlimited





Convey Bomb Jammer Specifications:




Channel
Frequency Range Output Power (± 1dBm )
CH1 20-80 MHz 50 dBm
CH2 80-200 MHz 50 dBm
CH3 200~500MHz 50 dBm
CH4 500-1000MHz 50 dBm
CH5 1000-1500MHz 50 dBm
CH6 1500-2000MHz 50 dBm
CH7 2000-2500MHz 50 dBm
CH8 2500-3000MHz 50 dBm
CH9 851-894MHz 50 dBm
CH10 925-960MHz 50 dBm
CH11 1805~1880MHz 50 dBm
1930~1990MHz 50 dBm
CH12 2110~2170MHz 50 dBm
CH13 2400~2500MHz 50 dBm

Power Supply : AC110-240V

Output power: 1300W
Jamming radius: 50-600M depending on the environment signal strength

Power Consumption:3900W

Host Weight :85Kg

13pcs External Omni antennas

Host Size(L×H×W) :625×500×700 mm

Humidity : 30%-95%

Working temp: -20 to +55 degree Celsius
