9 Band Military Convoy Bomb Jammer 900 W High Power for EOD Solutions

Quantity:
  • China

  • GREETWIN

  • SGS, ISO9001

  • GW-2500VJ9

  • 1pcs

  • Negotiable

  • Wooden Case with PE Foam

  • 10 Working Days After Received Payment

  • T/T, L/C, Western Union, MoneyGram

  • 500pcs per Month

9 Band Military Convoy Bomb Jammer 900 W High Power for EOD Solutions





Convey Bomb Jammer Description:

The RCIED (Radio Controlled Improvised Explosive Device ) is an electronically initiated explosive that uses a wireless detonation method consisting of a transmitter and a receiver. Examples include radios, cordless phones, key fobs, or any over-the-air technology that can transmit a RF signal to an electronic receiving unit. In this application, an RCIED transmitter sends a signal to the threat receiver which is modified to send an initiating signal to an explosive initiator (for example, electric blasting cap). Successful transmission and reception of the initiating RF signal will result in detonation of the RCIED. RCIEDs have been effectively used in many regions and conflicts including Israel, the Balkans,  Afghanistan (Operation Enduring Freedom) and Iraq (Operation Iraqi Freedom).



It is important to note that RCIED threats our Convoy Bomb Jammer works to block are not always known. Many EOD solutions focus on bomb detection, the frequencies that an RCIED Jammer is able to block, the distances, yet the answers may not always be known due to the sub-standard nature of IED weapons. Explaining the nomenclature of an improvised bomb, there are very few consistencies that bomb makers follow.



Convey Bomb Jammer Features:

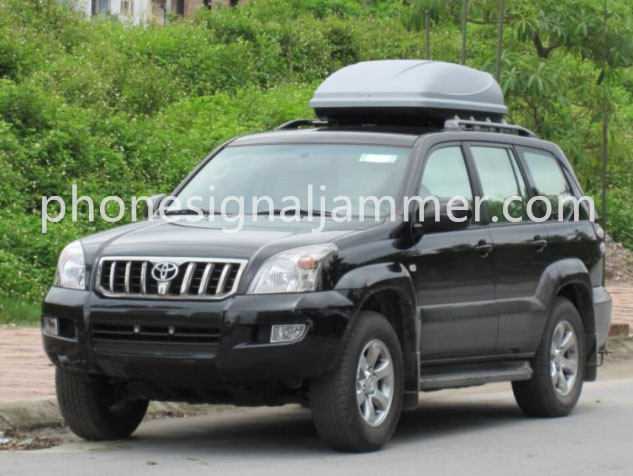

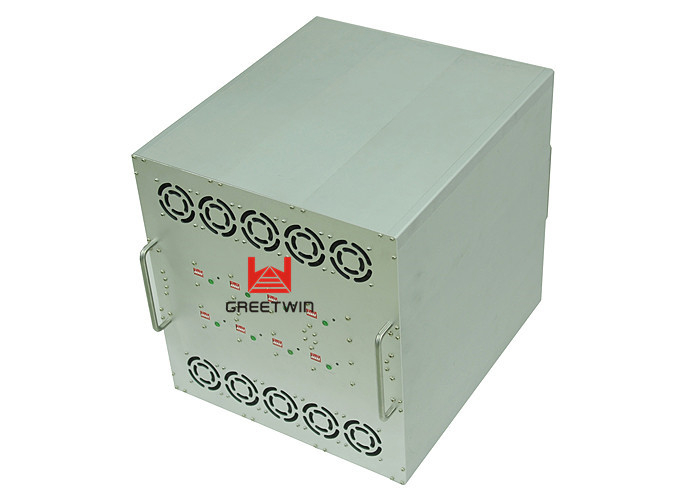

The GW-2500VJ9 is a Vehicle Mounted High Power Convoy Jammer. Designed for blocking remote controlled improvised explosive devices used by terrorists.

The GW-2500VJ9 is using Advanced Technology for Maximum performance. Jamming the signals transmits to activate bombs. The unit is controlled by a Microprocessor programming and a unique Modulation Technique based on a mixed signal for Maximum Jamming efficiency.



Convey Bomb Jammer Applications:

•  Special Military Units
•  Special Police Units VIP Protection
•  Bomb Disposal
•  Convoy Protection etc.



Perfect Self Protection:
Modular construction for easy maintenance, repair and upgrade.
Jam up to 9 different jamming modules.
Max 900 watt total RF output power.
Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc



Convey Bomb Jammer Specifications:



RF Characteristics
Output Power 900 Watts
Signal Source DDS
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 9
Wired Remote Control ON/OFF Switch
Remote Monitoring Adjusted output power by wired control board.
Antenna External – Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector
Operating hours Unlimited



Convey Bomb Jammer Specifications:




Channel
Frequency Range Output Power (± 1dBm )
CH1 20-500 MHz 50 dBm
CH2 2620-2690 MHz 50 dBm
CH3 1570~1580MHz 50 dBm
CH4 851-894MHz 50 dBm
CH5 925-960MHz 50 dBm
CH6
CH7
1805~1880MHz 50 dBm
1930~1990MHz 50 dBm
CH8 2110~2170MHz 50 dBm
CH9 2400~2500MHz 50 dBm

Power Supply : AC110-240V

Output power: 900W
Jamming radius: 50-600M depending on the environment signal strength

Power Consumption:2700W

Host Weight :65Kg

9pcs External Omni antennas

Host Size(L×H×W) :625×500×700 mm

Humidity :30%-95%

Working temp:-20 to +55 degree Celsius
